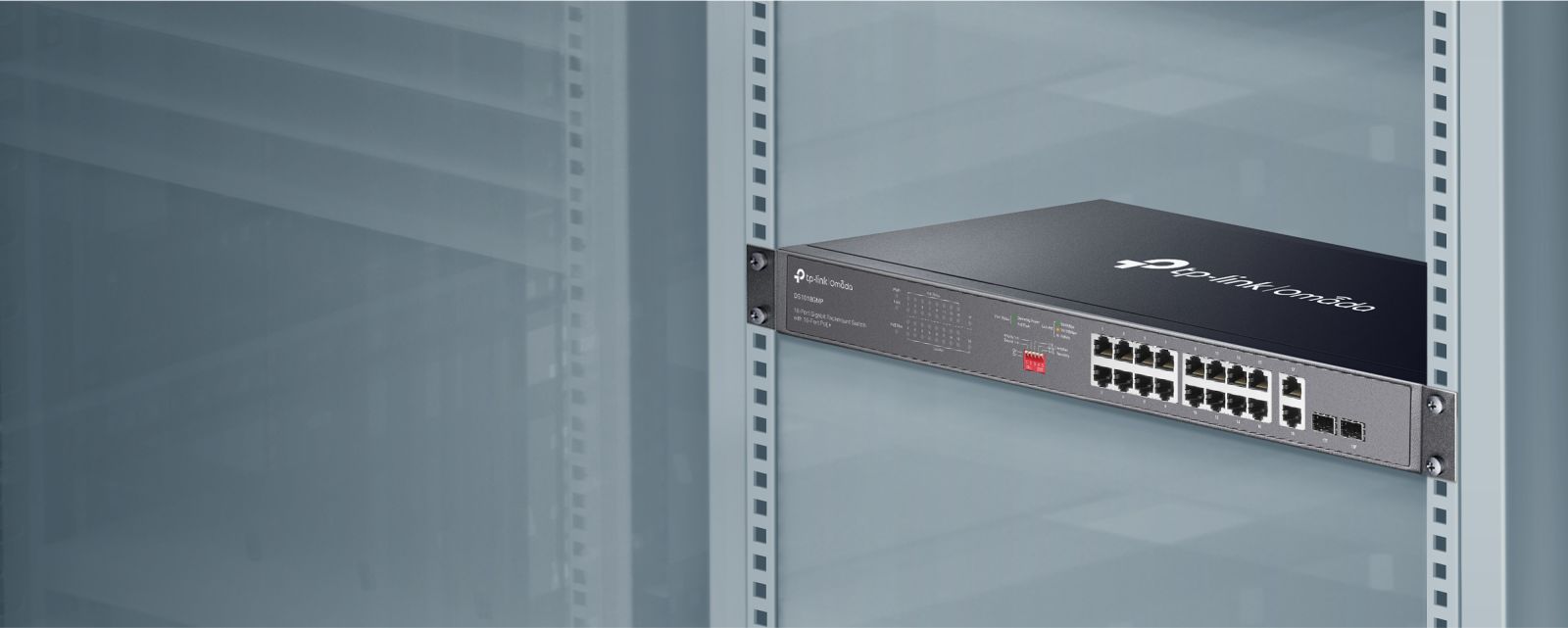

DS1018GMP
Omada 18-Port Gigabit Unmanaged Rackmount Switch with 16-Port PoE+
- 16× Gigabit PoE+ RJ45 ports and 2× Combo Gigabit SFP slots
- High PoE power budget with up to 30 W for each PoE port and 250 W* for all PoE ports
- Working with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority mode for ports 1–4 to guarantees the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.

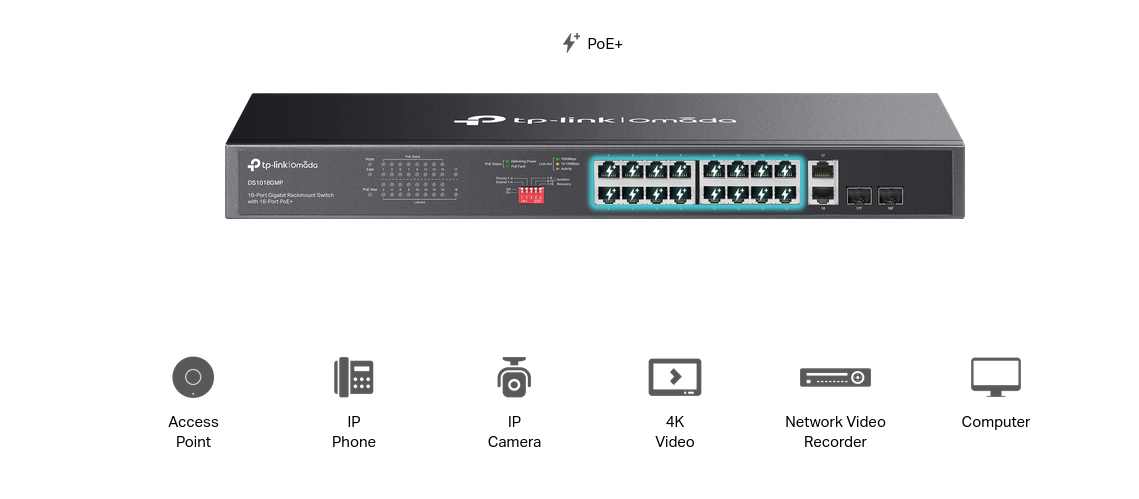

Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 250 W with 30 W max per PoE+ port. When total power consumption exceeds 250 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z, IEEE 802.1p |
Interface | • 16× 10/100/1000 Mbps PoE+ RJ45 ports • 2× Combo Gigabit SFP slots |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
Fan Quantity | 2 |
Physical Security Lock | Yes |
Power Supply | 100–240 VAC, 50/60 Hz |
PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 250 W |
Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.73 in (440 × 180 × 44 mm) |
Mounting | Rack Mountable |
Max Power Consumption | • 19 W (220/50 Hz. no PD connected) • 293.34 W (220/50 Hz. with 250 W PD connected) |
Max Heat Dissipation | • 64.79 BTU/h (no PD connected) • 1000.29 BTU/h (with 250 W PD connected) |
PERFORMANCE | |
---|---|
Switching Capacity | 36 Gbps |
Packet Forwarding Rate | 26.78 Mbps |
MAC Address Table | 8K |
Packet Buffer Memory | 4.1 Mbit |
Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode: Ports 1–4** • Priority Mode: Ports 1–4 • Isolation Mode: Ports 1-8/9-16 • PoE Auto Recovery: Ports 1-16 • Mac Address Auto-Learning and Auto-Aging • 802.1p/DSCP QoS • IEEE802.3x Flow Control |
Jumbo Frame | 10 KB |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 18 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | IEEE 802.3z |
Управляем: | Не |
