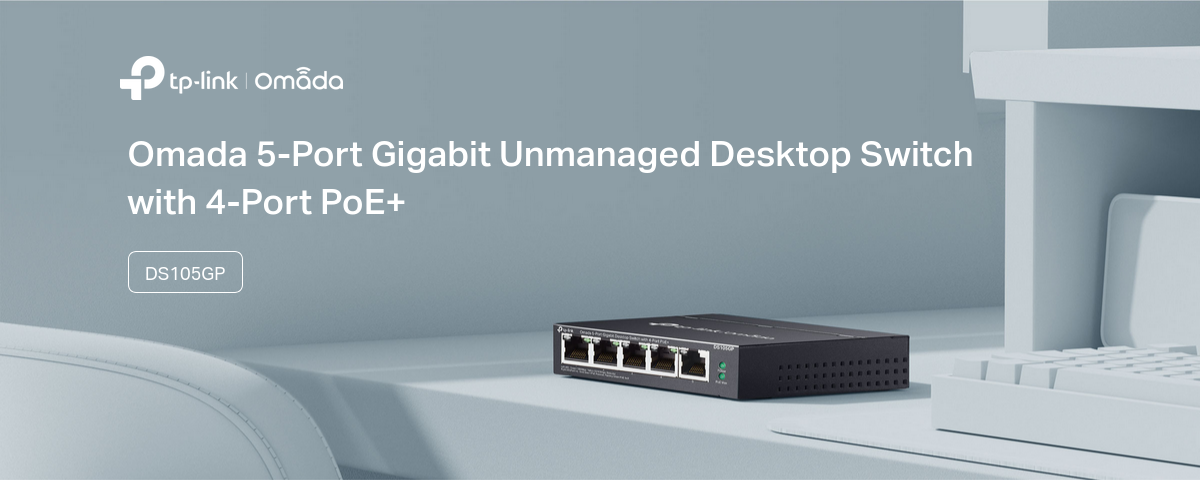

DS105GP
Omada 5-Port Gigabit Unmanaged Desktop Switch with 4-Port PoE+
- 5× 10/100/1000 Mbps RJ45 ports

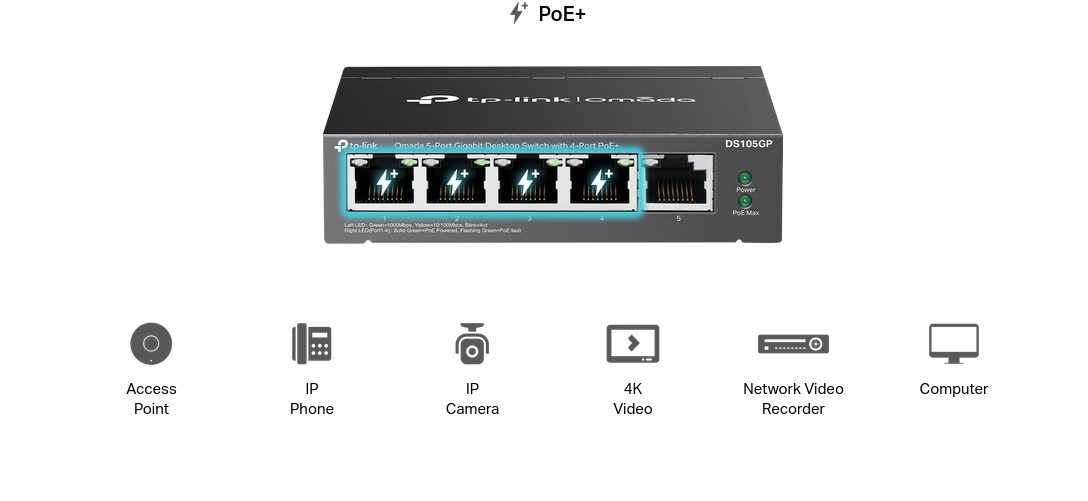

- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports*
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.


Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max
per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower
priority ports power to protect devices from damage.

HARDWARE FEATURES | |
---|---|
Interface | • 5× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation • AUTO MDI/MDIX |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Fan Quantity | Fanless |
External Power Supply | External Power Adapter (Output: 53.5 VDC / 1.31 A) |
Packet Forwarding Rate | 7.44 Mpps |
PoE Ports (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–4 • Power Supply: 65 W |
Mac Address Table | 2K |
Jumbo Frame | 16 KB |
Switching Capacity | 10 Gbps |
Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (99.8×98×25 mm) |
Max Power Consumption | • 3.44 W (220/50 Hz. no PD connected) • 74.49 W (220/50 Hz. with 65 W PD connected) |
Max Heat Dissipation | • 11.73 BTU/h (no PD connected) • 254.01 BTU/h (with 65 W PD connected) |
SOFTWARE FEATURES | |
---|---|
Advanced Features | • Compatible With IEEE 802.3af/at Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-4) |
Transfer Method | Store-And-Forward |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 5 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | 802.3x |
Управляем: | Не |
