Мрежови адаптер Synology E10G21-F2, от PCIe 3.0 x8(м) към 2x RJ-45(ж), 10 Gbps, за Synology NAS сървъри

Synology E10G21-F2



Boost Connectivity for Bandwidth-Heavy Workloads

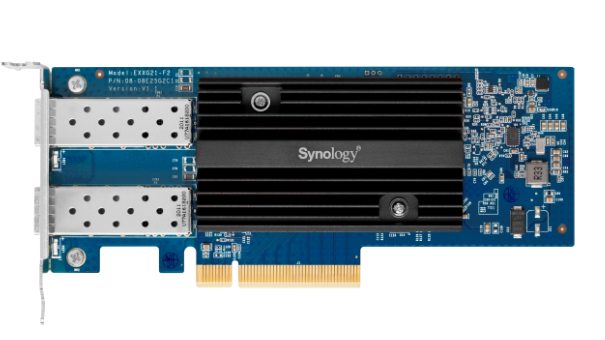

The Synology E10G21-F2 is a dual-port 10GbE SFP+ network interface card that lets you boost network bandwidth and performance. Handle more operations, users, and high-resolution videos.

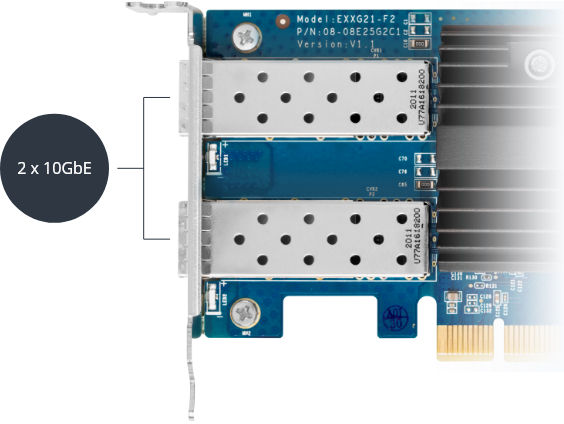

Combine the E10G21-F2’s two 10GbE ports into a Link Aggregation group to enable higher simultaneous throughput, port failover, and load balancing.



Specifications:

General	Host Bus Interface	PCIe 3.0 x8
	Bracket Height	Low Profile and Full Height
	Size (Height x Width x Depth)	69 mm x 168 mm x 17.3 mm
	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Network	IEEE Specification Compliance	IEEE 802.3ad Link Aggregation IEEE 802.3ae 10Gbps Ethernet
	Data Transfer Rates	10 Gbps
	Supported Features	TCP Segmentation Offload (TSO) Large Send Offload (LSO) Receive Side Scaling (RSS) Generic Receive Offload (GRO) Generic Segmentation Offload (GSO) 1.5 - 9 KB Jumbo Frame Offloaded storage over Ethernet Non-offloaded storage over Ethernet TCP/UDP Checksum Offload Transmit side scaling (TSS) SR-IOV
Compatibility
Applied Models	FS series:FS6400, FS3600, FS3400, FS3017, FS2017, FS1018, FS3410, FS2500 HD series:HD6500 SA series:SA3600, SA3400, SA6400, SA3200D UC series:UC3200 23 series:RS2423RP+, RS2423+, DS1823xs+ 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series:RS820RP+, RS820+ 19 series:RS1619xs+, DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII
	Notes	DSM version requirement: 6.2.3-25426 or later version SR-IOV support requires DSM 7.1.1-42962 and is not available on the following units: UC3200, FS3410, FS3017, SA3200D, and DS1621+.
