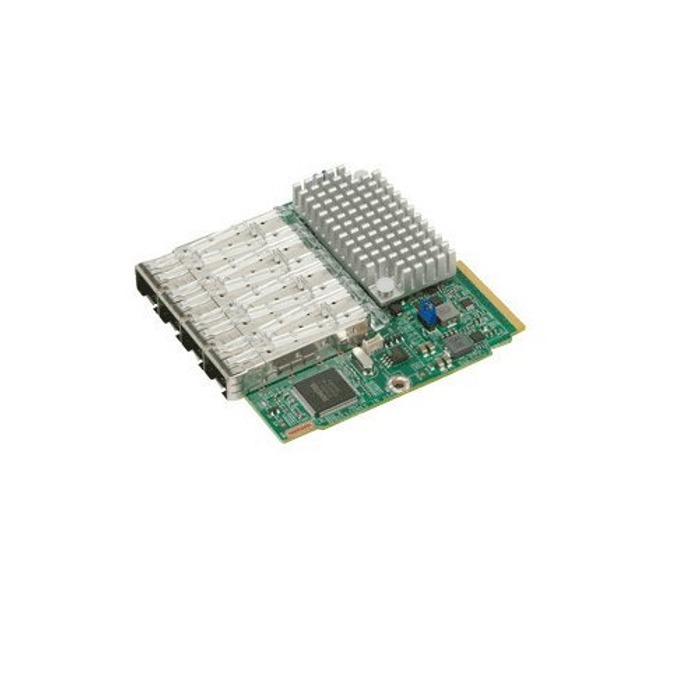

Контролер Supermicro AOC-MTGN-I4SM, 4-port 10GbE SFP+

Key Features
• Quad SFP+ Connectors
• Super I/O Module (SIOM) Form Factor
• Network Virtualization Offloads including VXLAN and NVGRE
• Small Packet Performance
• Data Plane Developer Kit for efficient packet processing
• Low Power Consumption
• Intel® Flow Director
• Intelligent Offloads
• Unified networking providing a single wire support for LAN and
storage
• Asset Management Features
• NC-SI for Remote Management
• RoHS compliant 6/6
• Supports Both Direct Attach Copper and Fiber Cables


pecification
• General
- Intel® XL710 controller
- Super I/O Module (SIOM) Form Factor
- Quad SFP+ connectors with speed up to 10Gbps per port
- Load balancing on multiple CPUs
- Intel® PROSet Utility for Windows Device Manager
- Time Sync (IEEE 1588)
- Energy Efficient Ethernet (EEE)
• I/O Features
- Intel® Flow Director
- MSI-X support
- Multiple Queues: 1,536 TX and RX queues per port
- Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6)
capabilities
- Jumbo Frame (9.5KB)
• Virtualization Features
- Next-Generation VMDq with up to 256 VMDq VMs supported
- PCI-SIG SR-IOV with up to 128 virtual ports
- Virtual Machine Load Balancing (VMLB)
- Advanced Packet Filtering
- VLAN support for up to 4096 VLAN tags
- VXLAN and NVGRE support
• Storage Interface Features
- Preboot eXecution Environment (PXE) support
- iSCSI remote boot
- Simple Network Management Protocol (SNMP) and Remote
Network Monitoring (RMON) static counters
• Management Features
- Asset Management support on Supermicro® platforms
- Controller asset tags such as part number, revision, serial
number, and MAC addresses
- Controller thermal sensor
- NC-SI for remote management
• Advanced Software Features
- Teaming support
- IEEE 802.3ad (link aggregation control protocol)
- IEEE 802.1Q VLANs
- IEEE 802.3 2005 flow control support
- TCP segmentation/large send offload
- Interrupt moderation
• OS Support
- Windows® Server 2012 R2, 2012, 2008 R2 X86-64
- Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
- Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
- FreeBSD 9 and 10 IA-32, X86-64, and IA-64
- UEFI 2.1 and 2.3 X86-64 and I-64
- VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
• Cable Support
- SFP+ direct attach twinaxial copper cables up to 7m
- Fiber-optic cables (with required optional SFP+ transceivers)
• Power Consumption
- Typical power consumption: 4W
- Maximum power consumption: 7W
• Operating Conditions
- Operating temperature: 0°C to 55°C (32°F to 131°F)
- Storage temperature: -40°C to 70°C (-40°F to 158°F)
- Storage humidity: 90% non-condensing relative humidity at 35°C
• Physical Dimensions
- Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
