Super Flower Leadex VII Platinum PRO

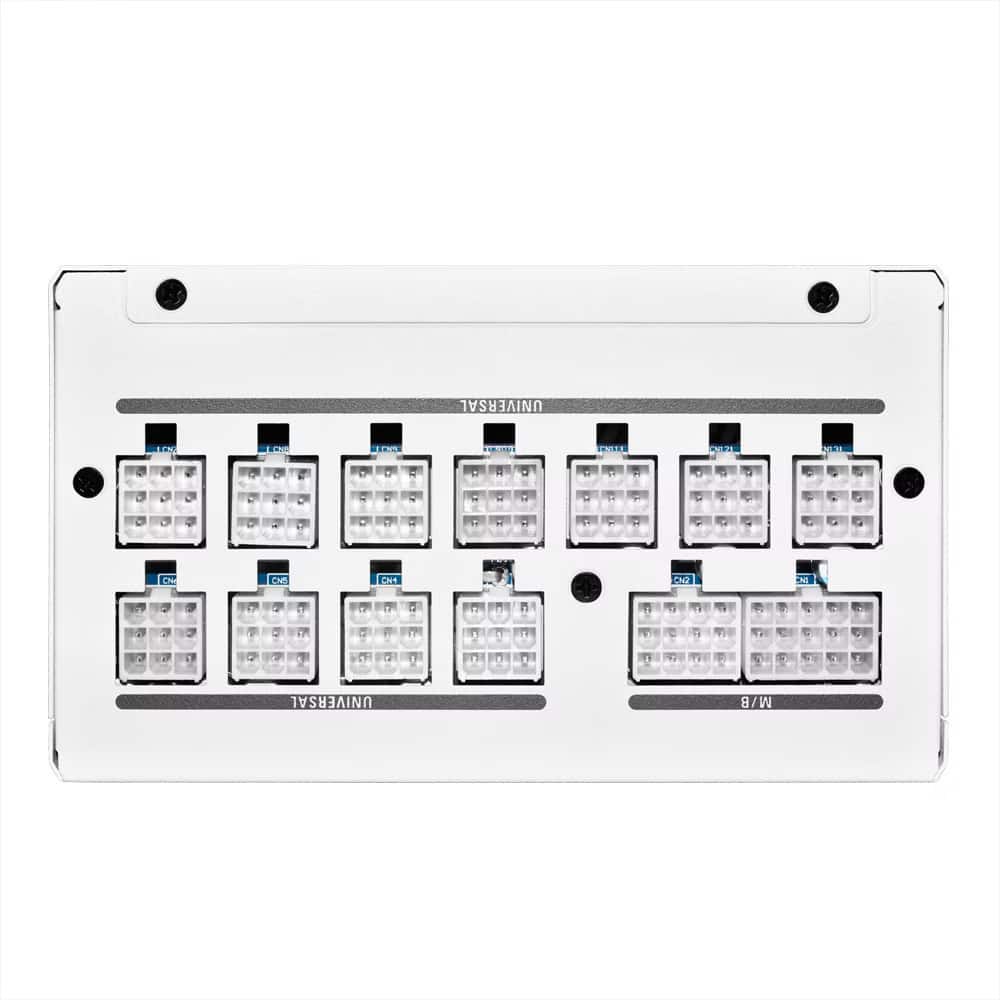

%20SUPER%20FLOWER.png) | LEADEX VII Platinum is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual 9-pin sockets on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode
%20SUPER%20FLOWER.png) |
%20SUPER%20FLOWER.png)
Specifications
| Transform Efficiency | 20%: 90% ; 50% : 92% ; 100% : 89% (115V Internal Platinum) Efficiency |
| Cybernetics Certified | Efficiency: Platinum / Efficiency 230V: Platinum |
| Intel Power Design Guide | EPS Ver. 2.92 & ATX 3.1 |
| AC Input | Frequency | 100V-240V | 60 / 50Hz , Full Range APFC |

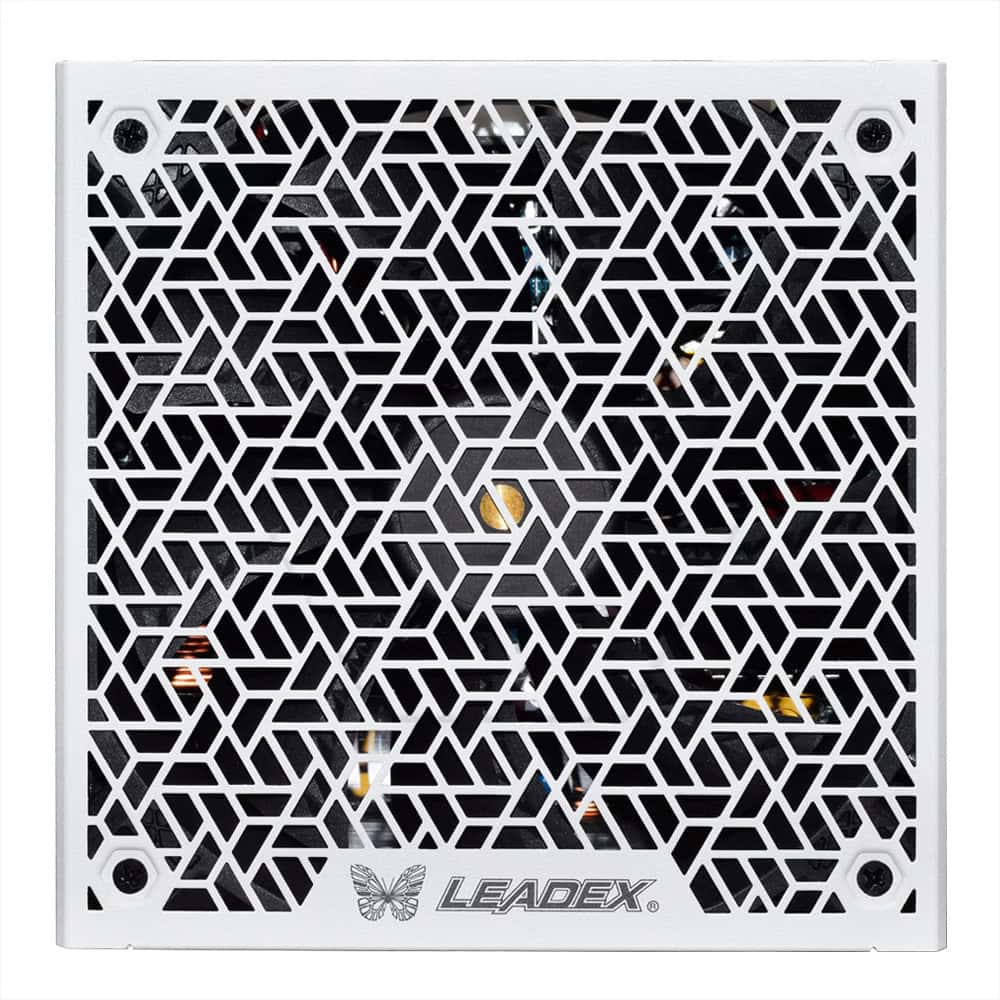

| Fan Size | 14cm FDB FAN |
| Dimension | 150mm(L) x 150mm(W) x 86mm(H) |
| Protection | OVP / OCP / OPP / SCP / UVP / OTP / NLO / SIP |
| Safety Certificates | cTÜVus / TÜV / CB / CE / FCC / UKCA / RCM / BSMI / RoHS / KCC / EAC / CCC |
| Temperature | Passed 50℃ Hot Testing |
Cable Wires | ||
| 20+4 Pin | Detachable | One Cable (600mm) |
| 8(4+4) Pin CPU | Two Cables (700mm) | |
| PCI 6+2 Pin | Four Cables (700mm) | |
| 4 SATA | Three Cables (550+130+130+130mm) | |
| 4 Molex | One Cable (550+150+150+150mm) | |
| PCIe 12+4 Pin | One Cable (700mm) | |
AC INPUT | 100-240V~ 15A 60Hz/50Hz | |||||
200-240V~ 10A 60Hz/50Hz (Only for China/Korea) | ||||||
DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB | |
1000W | Max Output Current | 20A | 20A | 83.3A | 0.5A | 2.5A |
Max Combined Wattage | 100W | 999.6W | 6W | 12.5W | ||
1000W | ||||||
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Super Flower
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 1000 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
