Name: Суич Cudy GS1005PTS1, 5 порта, 1000Mbps, 4x 10/100/1000 Mbps PoE, 1x SFP - 66.27 лв. (≈ 33.88 EUR)
Brand: Cudy
SKU: NTLHCUDYGS1005PTS1
Price: 66.27 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

Cudy GS1005PTS1

Specifications

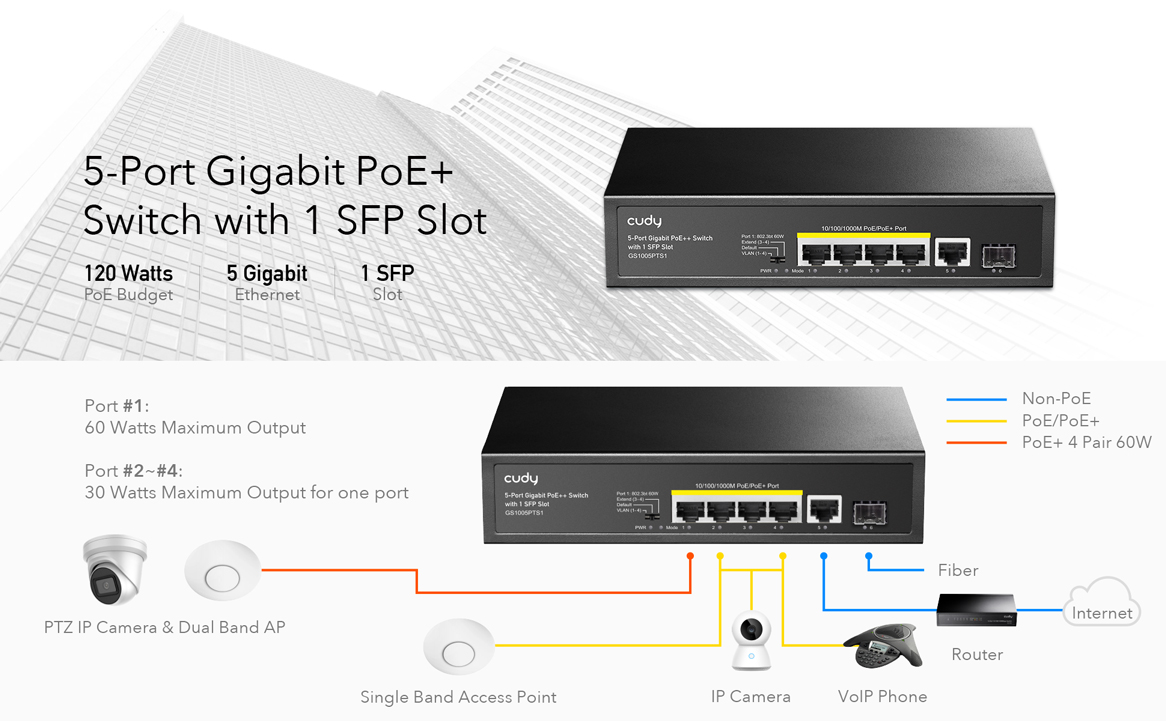

Ethernet	410/100/1000M PoE Port 11000M RJ45 Port 1* Gigabit SFP Uplink Port
Switching Capacity	12Gbps
Throughput	8.928Mpps
Packet Buffer	1Mb
MAC Address	2K
Jumbo Frame	9216bytes
Transfer Mode	Store and forward
MTBF	100000 hour
Network protocol	IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control)
PoE Protocol	IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3at （4 Pair 60W）
Network Medium	10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m)
Optical Media	Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm
Working Environment	Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet
PWR（power supply）	Lighting：Powered Un-Light：No Power
Mode（DIP）	Lighting：VLAN Un-Light：Default Flashing：Extend
1-6 Gree（Link&Data）	Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect

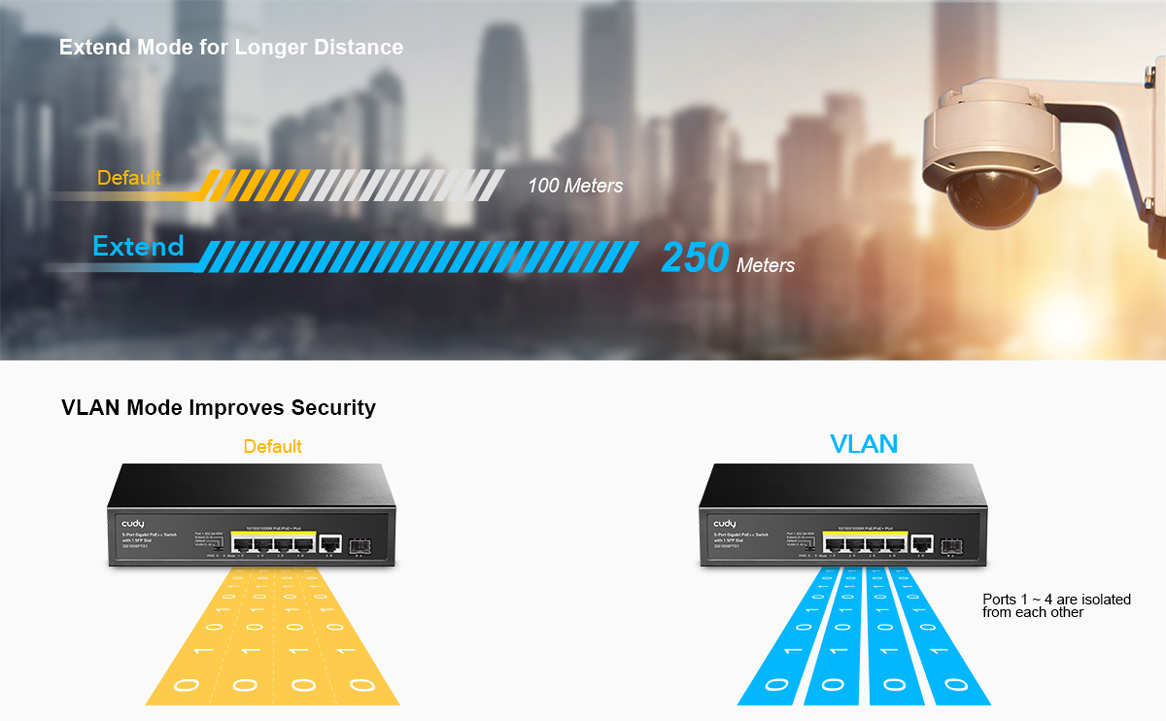

DIP Switch	VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M
Product Dimension	20011844mm
Package Dimension	24519060mm
N.W	0.6kg
G.W	0.9kg
Packing Info	Carton MEAS：505320402mm Packing Qty：20units Packing Weight：19KG
Package List	Input Voltage ：AC 100-240 V
Package List	Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
