Дънна платка за сървър SuperMicro MBD-X10SAE, LGA 1150, поддържа ECC/non-ECC UDIMM/DDR3 SDRAM, 2x Lan1000, 6x SATA3 RAID (0,1,5,10), 2x USB 3.0, ATX, Bulk Pack

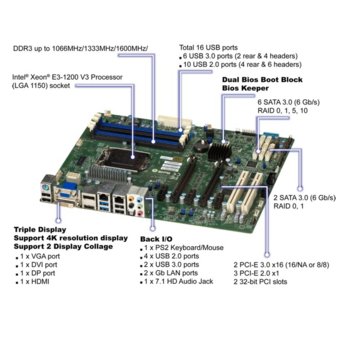

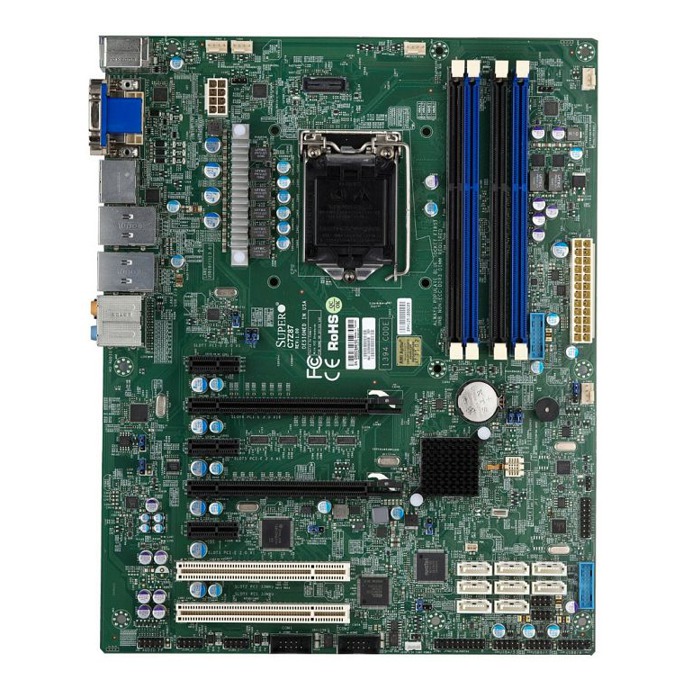

SuperMicro X10SAE


Physical Stats

Form Factor
ATX

Dimensions
12" x 9.6", (30.48cm x 24.4 cm)


Processor/Cache
CPU
Intel® Xeon® processor E3-1200 v3 and 4th Gen Core i7/i5/i3, Pentium, Celeron processors
Single Socket H3 (LGA 1150)
A Graphic Integrated CPU is required to have the on-board video functioned. Examples: E3-1265L v3, E3-1275 v3*

System Memory

Memory Capacity
4x 240-pin DDR3 DIMM sockets
Supports up to 32GB DDR3 ECC/Non-ECC Un-Buffered memory (UDIMM)

Memory Type
1600MHz ECC/non-ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs

DIMM Sizes
8GB, 4GB, 2GB, 1GB

Memory Voltage
1.5V, 1.35V

Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)


On-Board Devices

Chipset
Intel® C226 Express PCH

SATA
SATA3 via PCH w/ RAID 0, 1, 5, 10
SATA3 via ASM1061®

Network Controllers
Intel® i217LM + Intel® i210AT Controllers
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output

Audio
RealTek ALC1150 High Definition Audio


Input / Output

Serial ATA
6x SATA3 (6Gbps) ports via PCH
2x SATA3 (6Gbps) ports via ASM1061®
Total of 8x SATA3 ports (6Gbps)

LAN
2x RJ45 Gigabit Ethernet LAN ports

USB
6x USB 3.0 ports (2 rear, 4 via headers)
10x USB 2.0 ports (4 rear, 6 via headers)

Audio
7.1 HD Jacks

Serial Port / Header
2x COM ports (headers)

DOM
SATA DOM (Disk on Module) power connector support

Others
TPM header, 2x Type B 1394a headers, PS/2 connector for mouse and keyboard

Expansion Slots

PCI-Express

2x PCI-E 3.0 x16 slots -
Function as: 16/NA or 8/8
3x PCI-E 2.0 x1 slots

PCI
2x PCI 5V 32-bit slots
