Дънна платка ASRock WRX90 WS EVO, WRX90, sTR5, DDR5, PCI-E 5.0(SLI), 2x LAN, 4x SATA 6Gb/s, 2x M.2, 2x SlimSAS, RAID 0/1/10, 2x USB 4.0 Type-C, EEB

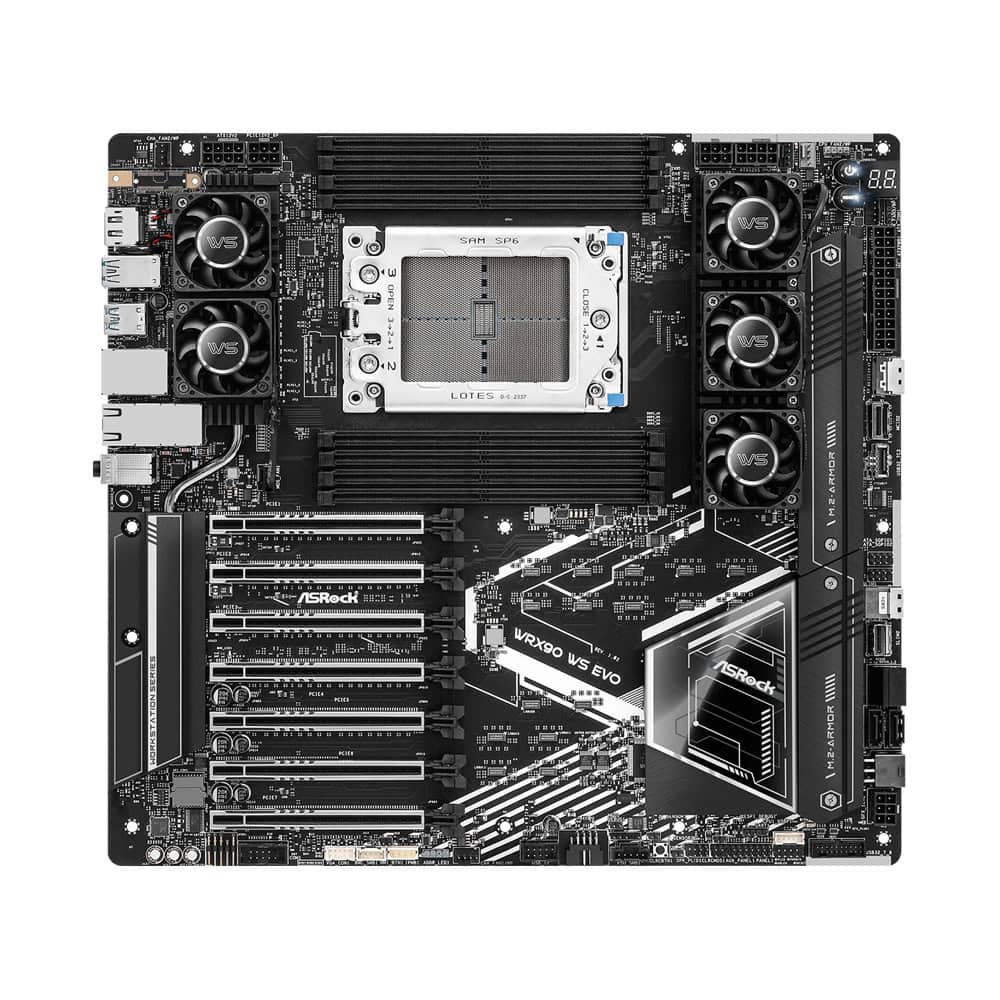

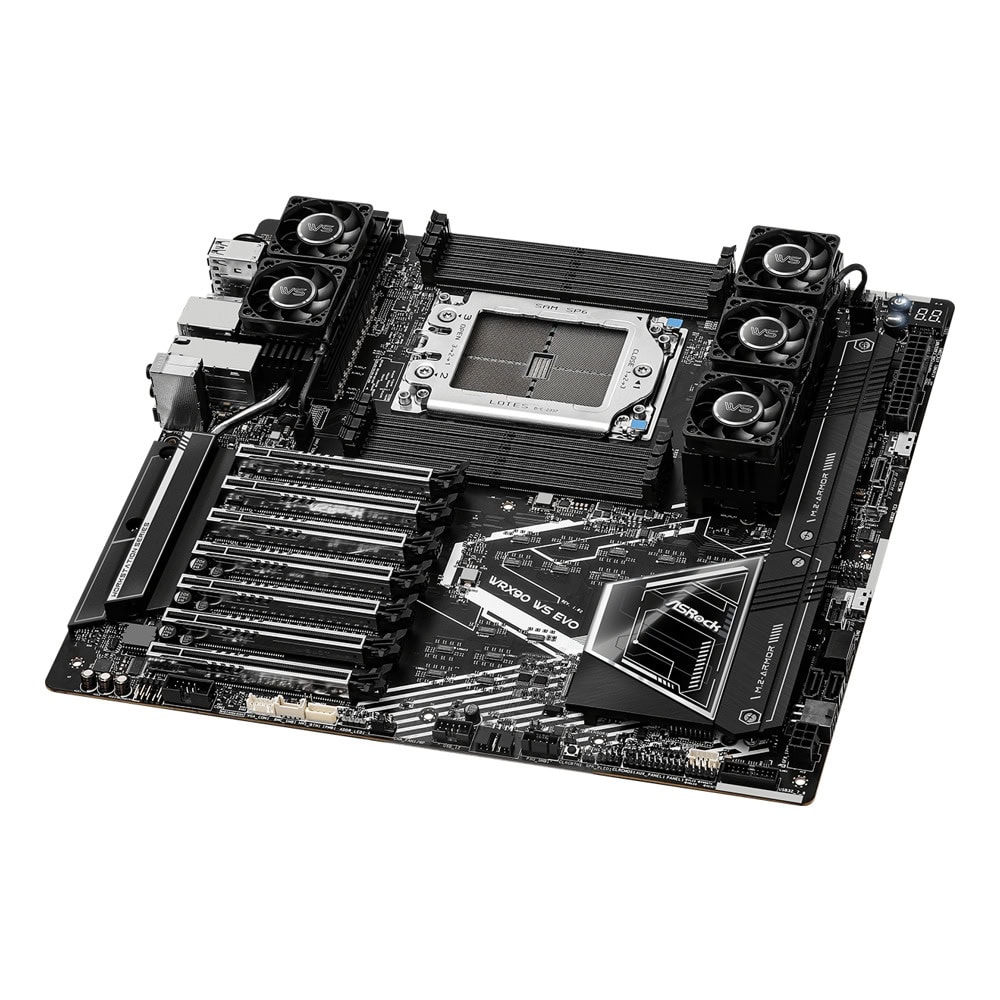

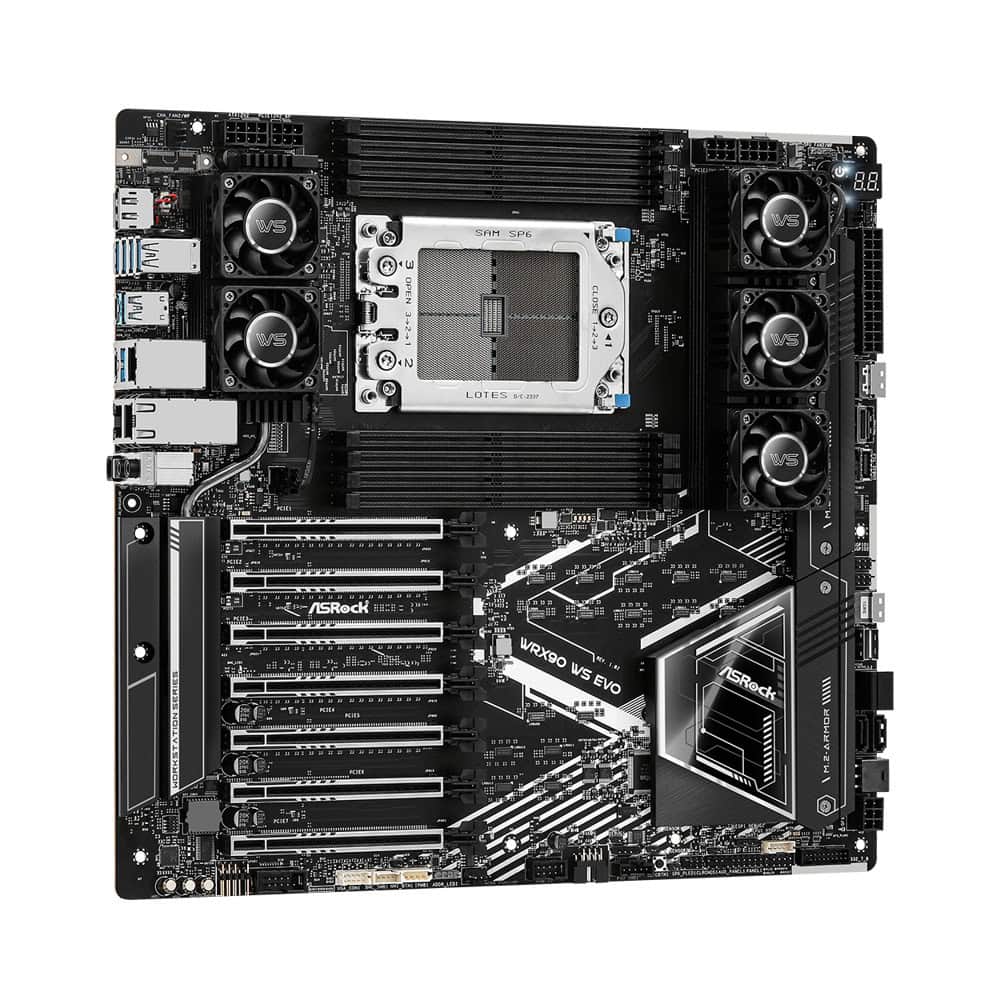

ASRock WRX90 WS EVO

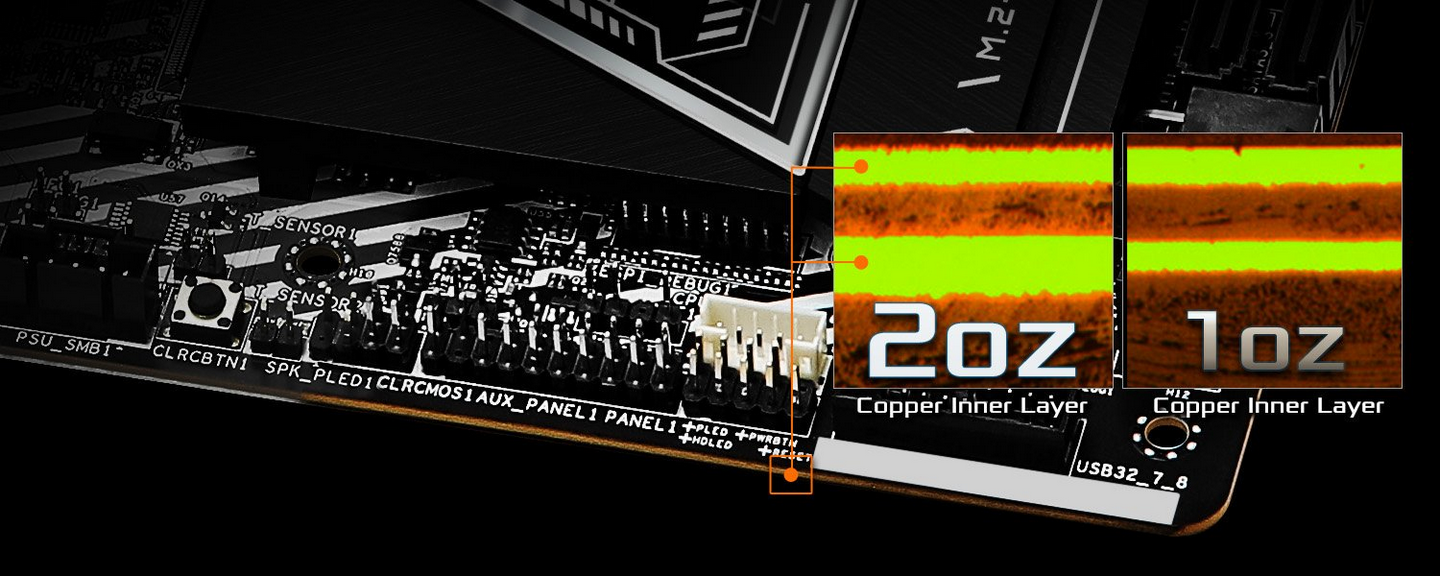

2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

14 Layer PCB

The 14 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.

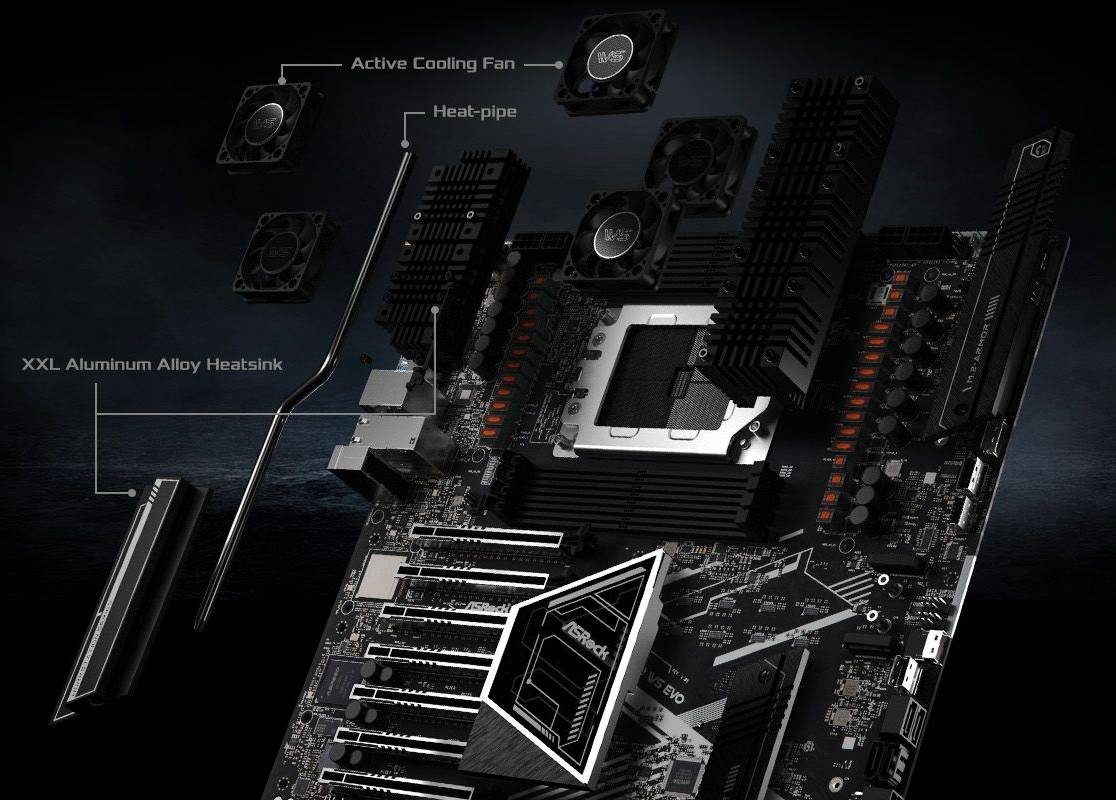

Composite VRM Heatsink

It is equipped with a composite VRM heatsink active cooling fans, XXL aluminum heatsinks and heat pipe for maximum heat dissipation.

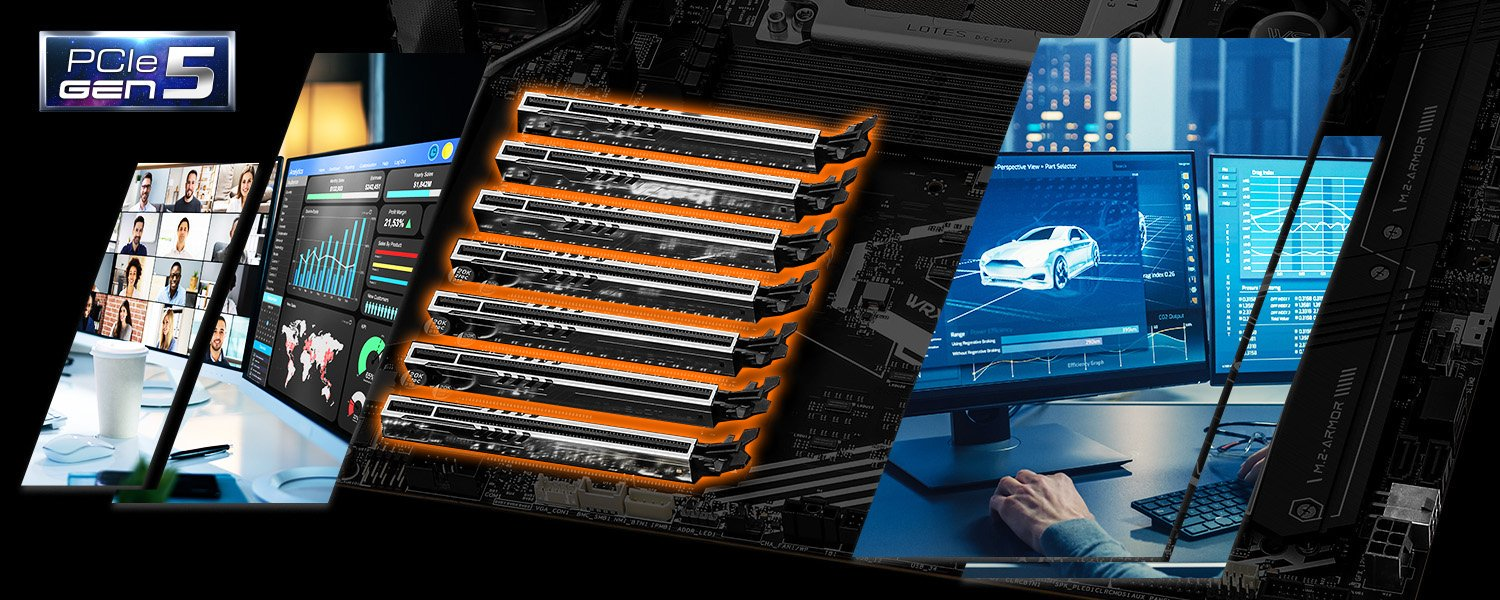

7 x PCIe Gen5 x16

With AMD Ryzen™ Threadripper™ PRO processors, ASRock WRX90 WS EVO supports 7 PCIe gen5 x16 slots, deliver all the performance of PCIe 5.0 to your GPU and add-on cards. Fullfill all the professional design, deep learning, simulation and rendering applications.

DDR5 ECC Memory Support

Supports 8 DIMMs DDR5 RDIMM ECC Memory overclocking with max capacity of 2TB. It can automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability with multiple memory modules.

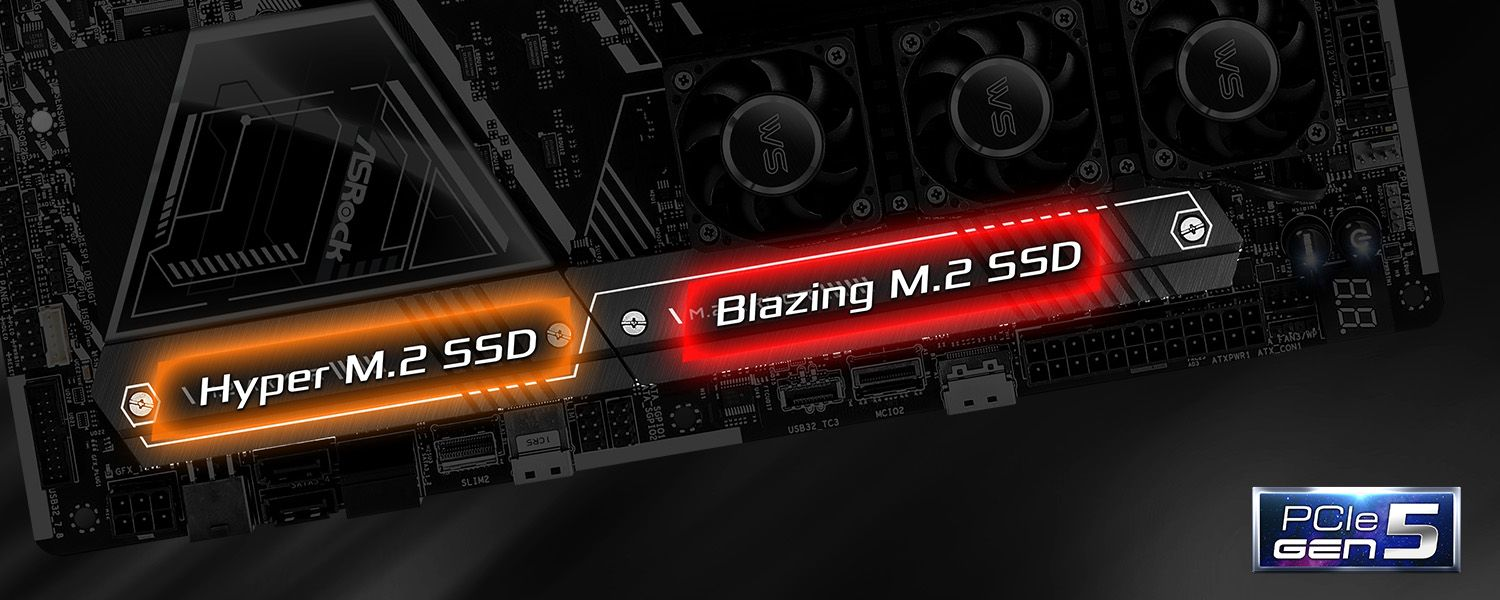

PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Server Grade Storage Connections

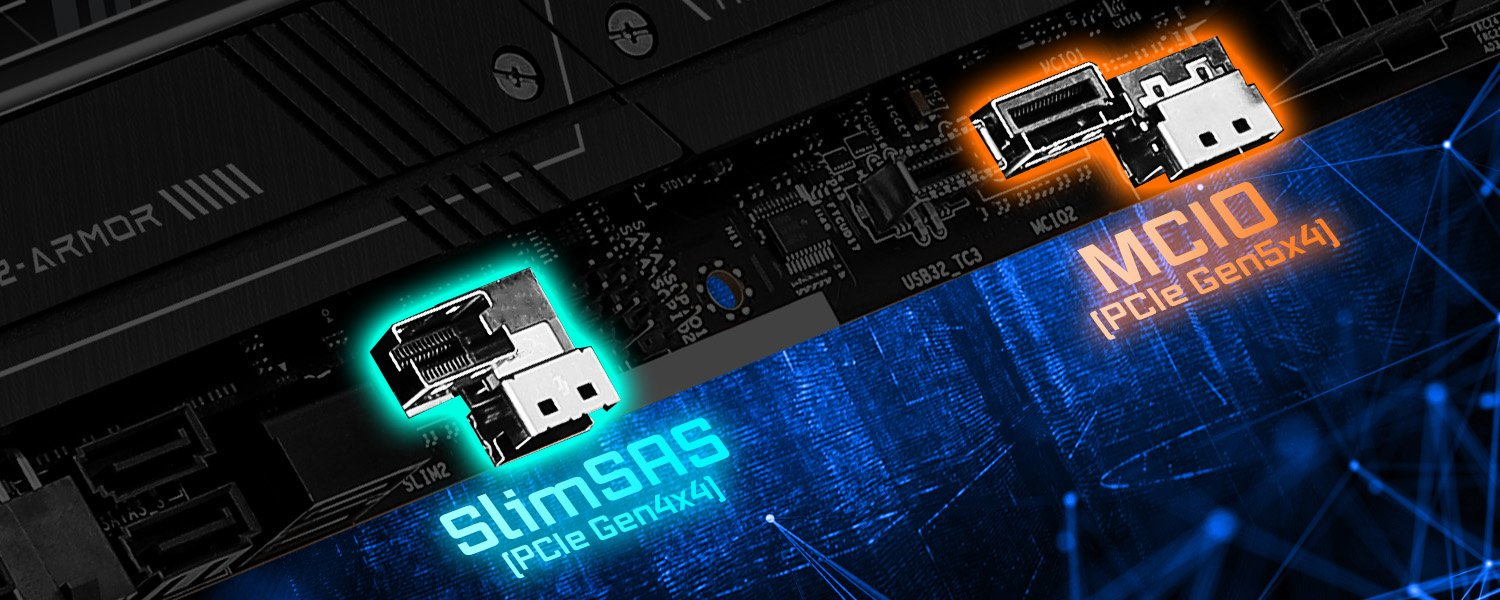

Equipped with SlimSAS(SFF-8654) and the latest MCIO server grade connections for fast and stable storage expansions.

Specifications

• Unique Feature

  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  - Eight Channel DDR5
  - USB4 Type-C Ports (40 Gb/s)
  Rock-Solid Durability
  - Ultra Low-Loss PCB
  - 18+3+3 Power Phase, 110A SPS for VCore
  - 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
  Ultrafast Connectivity
  - Dual Intel® 10G LAN
  EZ Update
  - ASRock Auto Driver Installer

• CPU

  - Supports AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series Processors
  - Supports AMD Socket sTR5
  - Supports ASRock Hyper BCLK Engine

• Chipset

  - AMD WRX90

• Memory

  - Eight Channel DDR5 Memory Technology
  - 8 x DDR5 DIMM Slots*
  - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS) up to 7600+(OC)
  - Max. capacity of system memory: 2TB

  *S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed.

• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support

• Graphics

  - Aspeed AST2600 BMC Controller
  - 1 x DisplayPort 1.1a with max. resolution up to 1920x1200 @ 60Hz*

  *DisplayPort 1.1a does not support audio function.

• Audio

  - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
  - Impedance Sensing on Rear Out port
  - Individual PCB Layers for R/L Audio Channel
  - Nahimic Audio

• LAN

  2 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Intel® X710-AT2)
  - Support PXE
  1 x Dedicated IPMI (Realtek RTL8211F)

• Slots

  CPU:
  - 7 x PCIe 5.0 x16 Slots (PCIE1/PCIE2/PCIE3/PCIE4/PCIE5/PCIE7 at x16; PCIE6 at x8)*
  - 15μ Gold Contact in VGA PCIe Slots

  *Supports NVMe SSD as boot disks

• Storage

  CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280/22110 PCIe Gen5x4 (128 Gb/s) mode*
  - 2 x MCIO Connectors (PCIe Gen5x4 or 4 x SATA3 6.0 Gb/s)
  - 1 x SlimSAS SFF-8654 Connector (SLIM1) (PCIe Gen4x4 or 4 x SATA3 6.0 Gb/s)
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x SlimSAS SFF-8654 Connector (SLIM2) (PCIe Gen4x4)
  - 4 x SATA3 6.0 Gb/s Connectors

  *Supports NVMe SSD as boot disks

• RAID

  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*

  *Requires additional M.2 NVMe expansion cards to support RAID 10

• USB

  CPU:
  - 2 x USB4 Type-C (Rear)
  - 4 x USB 3.2 Gen2 Type-A (Rear)
  Chipset:
  - 1 x USB 3.2 Gen2x2 Type-C (Front)
  - 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
  - 4 x USB 2.0 (Front)

  *All USB ports support ESD Protection

• Connector

  - 2 x Thermistor Cable Headers
  - 1 x Front VGA Header
  - 1 x COM Port Header
  - 1 x Power LED and Speaker Header
  - 1 x Intelligent Platform Management Bus Header
  - 1 x PSU SMBus Header
  - 1 x BMC SMBus Header
  - 1 x Auxiliary Panel Header
  - 2 x Addressable LED Headers*
  - 1 x CPU Fan Connector (4-pin)**
  - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
  - 1 x 3 pin ATX Power Connector*****
  - 2 x 8 pin ATX 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
  - 2 x 6 pin PCIe 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)******
  - 2 x 6 pin Graphics 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*******
  - 1 x Right Angle Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
  - 2 x SGPIO Headers
  - 1 x CPU HP-SMBus Connector
  - 1 x Non Maskable Interrupt Button Header
  - 1 x Dr. Debug with LED
  - 1 x Power Button with LED
  - 1 x Reset Button with LED
  - 1 x Clear CMOS Button

  *Support in total up to 5V/3A, 15W LED Strip
  **CPU_FAN1 supports the fan power up to 1A (12W).
  ***CPU_FAN2/WP supports the fan power up to 2A (24W).
  ****CHA_FAN1~3/WP support the fan power up to 2A (24W).
  *****Plug the Multi PSU Adaptor Cable that comes with the package to ATX_CON1 if you use a secondary PSU.
  ******It is required to connect both ATX12V1 and ATX12V2; otherwise, the system may not boot up properly.
  It is required to connect all 8 pin and 6 pin 12V Power Connectors when overclocking.
  *******It is required to connect 6 pin PCIE 12V Power Cables to either GFX_12V1 or GFX_12V2; otherwise, the system may not boot up properly.

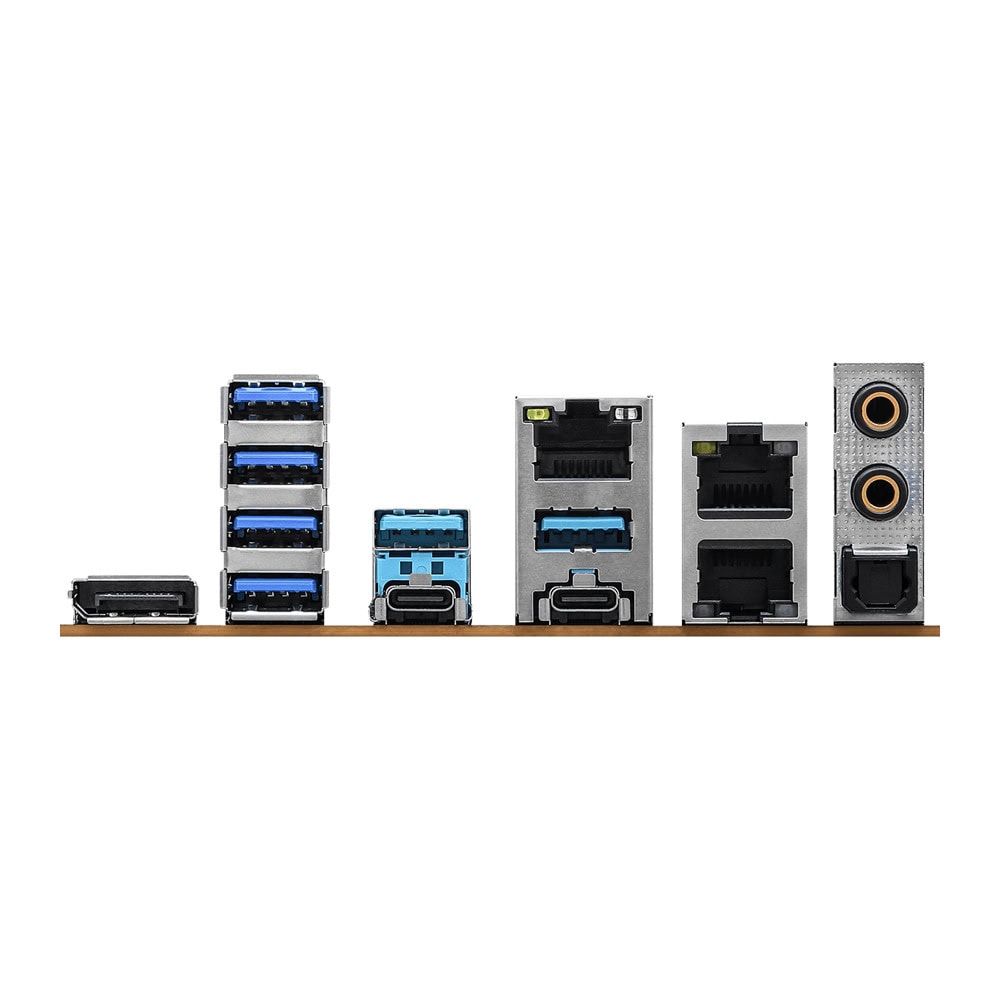

• Rear Panel I/O

  - 1 x DisplayPort 1.1a
  - 1 x Optical SPDIF Out Port
  - 2 x USB4 Type-C Ports (40 Gb/s)*
  - 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
  - 2 x USB 3.2 Gen1 Type-A Ports
  - 2 x RJ-45 LAN Ports
  - 1 x RJ45 Dedicated IPMI LAN Port
  - 1 x Line Out Jack (Gold Audio Jack)
  - 1 x Microphone Input Jack (Gold Audio Jack)

  *USB_TC1 supports USB PD 3.0 up to 9V@3A (27W) / 5V@3A (15W) charging; USB_TC2 supports USB PD 3.0 up to 5V@3A (15W) charging.

• UEFI
  - ASRock Full HD UEFI
  - ASRock Auto Driver Installer
  - ASRock Instant Flash

  *These utilities can be downloaded from ASRock Live Update & APP Shop.

• Form Factor

  - EEB Form Factor: 12.0-in x 13.0-in, 30.5 cm x 33.0cm
  - 14 Layer PCB
  - 2oz Copper PCB

• OS

  - Microsoft Windows 11 64-bit

• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
  - CEC Tier II ready
