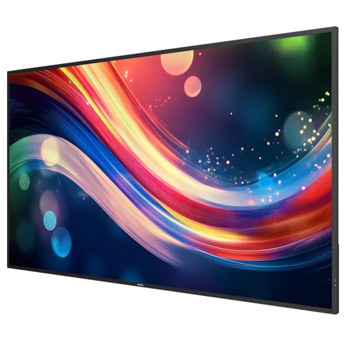

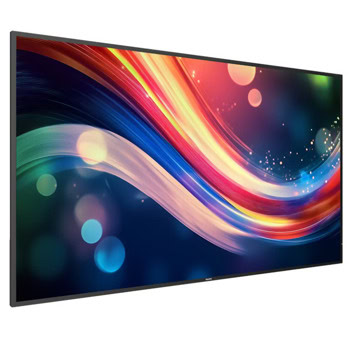

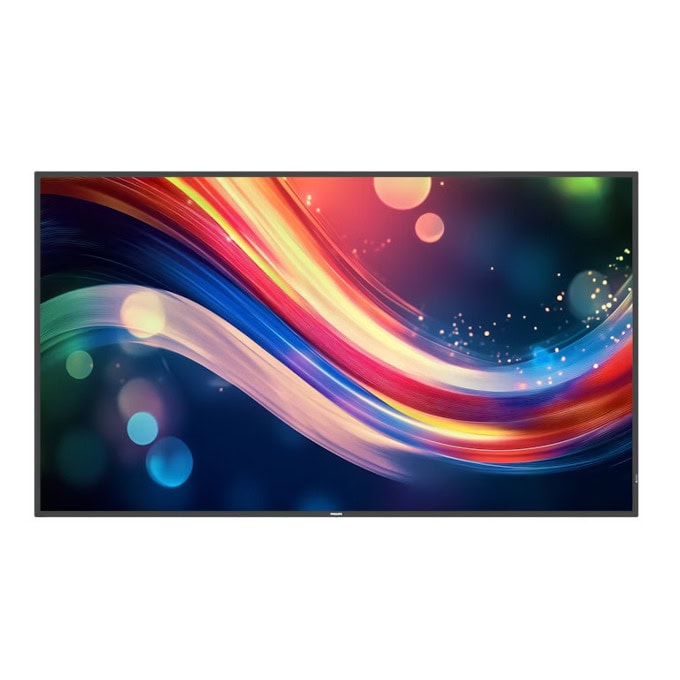

Публичен дисплей Philips 65BDL4050Q/00, 64.5"(163.83 cm) 4K/UHD LED дисплей, HDMI, DVI-I, USB, LAN

Philips 75BDL4050Q/00

Philips Signage 4050 Series

Efficiency made easy – your versatile 24/7 display

• 65"
• 24/7 operation
• Wave ready
•

500 cd/m2 brightness

With 500 cd/m2 brightness for better visibility, the Philips Signage 4050 display is designed to be used 24/7, making it a great choice for travel and transport hubs, retail centres, food and beverage locations, and more. FailOver is also included, enabling your display to switch automatically between primary and secondary inputs should an outage occur.

Easily mounted in landscape or portrait.

Install in portrait or landscape orientations, with size variants to suit a range of installation purposes across a range of settings and industries.

Proven reliability. No need for an external media player.

Tried, tested and proven intuitive user experience, with a professional Android 10 SoC built in for easy app and solution integrations, and no need for an external media player.

Remote management with Philips Wave

Manage your display and control content remotely with the Philips Wave Controller – your evolutionary ecosystem designed to support time, energy and cost efficiencies. Discover software applications to support your interactive vision from our network of proven partners on the PPDS ProStore.

Add optional Philips ScreenShare

Add in the fully secure and GDPR-compliant optional Philips ScreenShare presentation software for instant and effortless content sharing using any device, on any network, and without additional hardware.

Supporting business sustainability and energy savings.

Supporting business sustainability and energy savings, with power-saving features and more environmentally friendly materials in the product and the packaging.

Add optional CRD22 module for easy Wi-Fi

With a range of input options for easy content control, simply add in a CRD22 module to bring the power of Wi-Fi into the mix.

OPS slot allows for PC embedding without cabling

Advanced quality brings stunning contrast for the richest colours and the clearest picture to captivate passers-by and draw customers in.

Technical Specifications

• Picture/Display

  Diagonal screen size (metric)

  163.9  cm

  Diagonal screen size (inch)

  64.5  inch

  Aspect ratio

  16:9

  Panel resolution

  3840 x 2160

  Pixel pitch

  0.372 x 0.372 mm

  Optimum resolution

  3840 x 2160 @ 60 Hz

  Brightness

  500  cd/m²

  Display colours

  1.07 Billion

  Contrast ratio (typical)

  1200:1

  Dynamic contrast ratio

  500,000:1

  Response time (typical)

  8  ms

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Picture enhancement

  • 3/2 - 2/2 motion pull down
  • Progressive scan
  • Dynamic contrast enhancement

  Panel technology

  ADS

  Operating system

  Android 10

  Haze

  25%

• Connectivity

  Audio output

  3.5 mm jack

  Video input

  • USB 2.0 (x 2)
  • DVI-I (x 1)
  • HDMI 2.0 (x 2)
  • USB 3.0 (x1)

  Audio input

  3.5 mm jack

  Other connections

  • micro SD
  • OPS

  External control

  • RS232C (in/out) 2.5 mm jack
  • IR (in/out) 3.5 mm jack
  • RJ45

• Convenience

  Placement

  • Landscape (24/7)
  • Portrait (24/7)

  Tiled Matrix

  Up to 3 x 3

  Keyboard control

  • Hidden
  • Lockable

  Remote control signal

  Lockable

  Signal loop through

  • RS232
  • IR Loop through

  Ease of installation

  Smart Insert

  Energy-saving functions

  Smart Power

  Network controllable

  • RS232
  • RJ45

• Sound

  Built-in speakers

  2 x 10 W RMS

• Power

  Mains power

  100–240 V~, 50/60 Hz

  Standby power consumption

  <0.5 W

  Power Saving Features

  Smart Power

  Energy Label Class

  E

  EEI Lot5 power consumption (W)

  67

  EPEAT certification

  EPEAT Silver

• Supported Display Resolution

  Computer formats

  • 720 x 400, 70 Hz
  • 640 x 480, 60, 67, 75 Hz
  • 800 x 600, 60 Hz
  • 832 x 624, 75 Hz
  • 1024 x 768, 60 Hz
  • 1152 x 870, 75 Hz
  • 1280 x 720, 60 Hz
  • 1920 x 1080, 60 Hz
  • 1680 x 1050, 60 Hz
  • 3840 x 2160, 30, 60 Hz

  Video formats

  • 480i, 60 Hz
  • 480p, 60 Hz
  • 576p, 50 Hz
  • 576i, 50 Hz
  • 720p, 50, 60 Hz
  • 1080i, 50, 60 Hz
  • 1080p, 50, 60 Hz
  • 3840 x 2160, 30, 60 Hz

• Dimensions

  Set Width

  1462.3  mm

  Product weight

  28.5  kg

  Set Height

  837.3  mm

  Set Depth

  68.9 mm (D@wall mount)/89.9 mm (D@handle)  mm

  Set Width (inch)

  57.57  inch

  Set Height (inch)

  32.96  inch

  Wall Mount

  400 mm x 400 mm, M8

  Set Depth (inch)

  2.71(@ wall mount) / 3.54(@ handle)  inch

  Bezel width

  14.9 mm (Even bezel)

  Product weight (lb)

  62.83  lb

• Operating conditions

  Altitude

  0 ~ 3000 m

  Temperature range (operation)

  0 ~ 40  °C

  MTBF

  50,000  hour(s)

  Temperature range (storage)

  -20 ~ 60  °C

  Humidity range (operation)[RH]

  20 ~ 80% RH (No condensation)

  Humidity range (storage) [RH]

  5 ~ 95% RH (No condensation)

• Multimedia Applications

  USB Playback Video

  • MPEG 1/2 (1080p 60 Hz)
  • MPEG 4 (1080p 60 Hz)
  • H.263 (1080p 60 Hz)
  • H.264 (4K2K 60 Hz)
  • H.265 (4K2K 60 Hz)
  • VP8 (1080p 60 Hz)
  • VP9 (4K2K 60 Hz)

  USB Playback Picture

  • JPEG
  • PNG
  • BMP
  • WEBP

  USB Playback Audio

  • AAC
  • HEAAC
  • MPEG 1/2/2.5 Layer 3
  • MPEG 1/2 Layer 1
  • MPEG 1/2 Layer 2

• Internal Player

  CPU

  Quad-Core Cortex A55

  GPU

  G52 MC1

  Memory

  • 16 GB
  • 3 GB DDR
