PoE конвертор Optone OPT-2200A, 1x 1000Mbps ethernet PoE port, 1x SFP port

1*10/100/1000M TX and 1*1000M FX/SFP (OPT-2200 series)

This converter will give your Copper Gigabit connection the ability to interface with fiber connection over a distance up to 80 km! 10/100/1000 means, that media converter that converts the electrical signal of a 10/100/1000 Ethernet signal from copper to fiber. This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually

Interface

1 x Ethernet port (RJ45) 10/100/1000Base-Tx

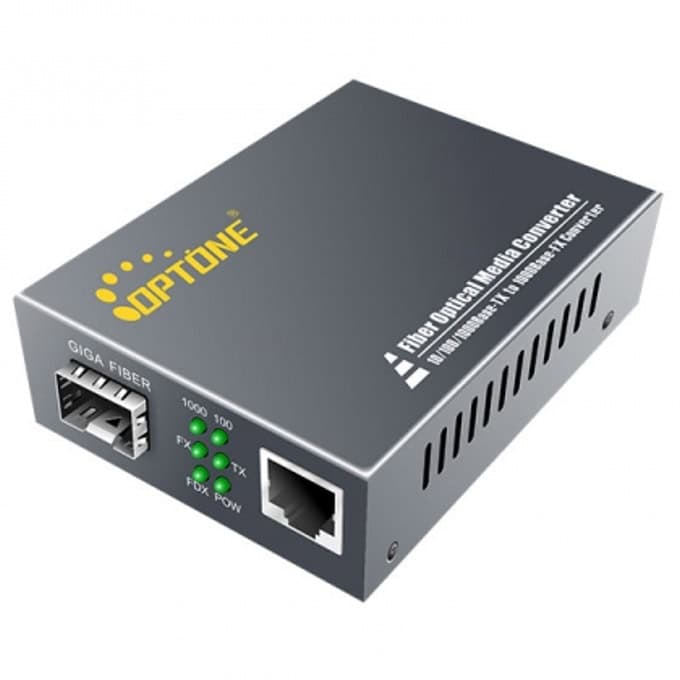

1 x Optical port (1x9 or SFP) 1000Base-Fx

Optical Port

Available for 1310nm and 1550nm Single mode, and 850nm Multi mode;

Transfer Distance: up to 120km;

Connectors: SC, ST, FC, SFP optional

Fiber core: 9/125μm on single mode fiber, 50/125μm and 62.5/125μm on multi-mode fiber

Ethernet Port

Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x

Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex   auto-negotiation

Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing

LED Indicators Power Status, FDX, Speed, FX Link/Act, TX Link/Act Power Requirement Input: supports 220V AC@50-60Hz Physical Characteristics

Housing: Metal enclosure

Dimensions: 94 x 70 x 26mm (Excluding the connector)

Weight: 0.28kg

Environmental Limits

Operating Temperature: 0°C to 50°C

Storage Temperature: -20°C to 70°C

Operating Humidity: 5% to 90% RH

Storage Humidity: 5% to 90% RH
