Суич NEXCOM VES30-4S, 1000 Mbps, 5 порта, 4x 10/100/1000Mbps PoE

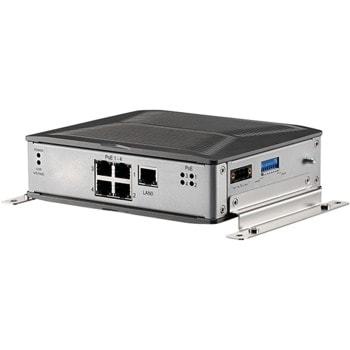

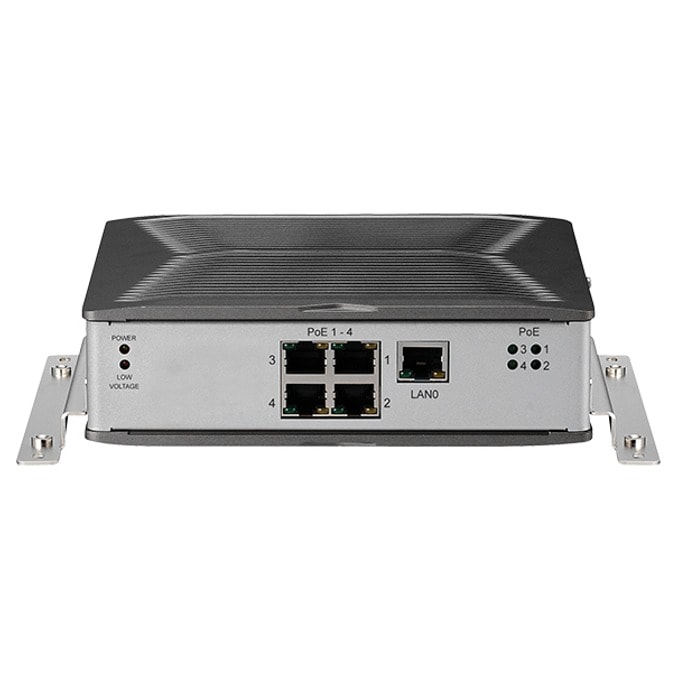

NEXCOM VES30-4S

4 x 10/100/1000 Mbps PoE port (802.3af compliance)
15.4W at 48VDC for each PoE port
Low battery voltage protection
CE/FCC, E13 mark certification

Wide power input range 9 ~ 36VDC
-30 ~ 70°C operating temperature
Ignition power on/off support
Power on/off delay time setting

Specifications
Architecture
-Switch architecture. Highly integrated, unmanaged-smart gigabit,
store and forward switch
-4K entry MAC address table with automatic learning and aging

Power over Ethernet
- PoE standard IEEE 802.3af Power over Ethernet/PSE
- PoE power supply type end-span
- PoE power output per port 48V DC, 350mA. max. 15.4 watts

Network Connector
- 4-port RJ45 for 10/100/1000 base-T. PoE IEEE 802.3af compliance,
total 60W
- 1-port RJ45 for 10/100/1000 base-T

Standard Compliance
- IEEE 802.3 for 10BaseT Ethernet
- IEEE 802.3u for 100BaseT(X) Fast Ethernet
- IEEE 802.3ab for 1000BaseT(X) Gigabit Ethernet
- IEEE 802.3x for flow control
- IEEE 802.3af Power Over Ethernet

I/O Interface
Power: 1 x 9 ~ 36VDC input with ignition
Ethernet
- 4 x RJ45 10/100/1000 Mbps PoE port, 802.3af compliance
- 1 x RJ45 10/100/1000 Mbps

LED
- 1 x power indicator
- 4 x PoE indicator
- 1 x low voltage protection indicator


Power Management
Selectable boot-up & shut-down voltage for low power protection by
Dip switch
Power on/ off delay time setting by Dip switch

Dimensions
167 x 51.49 x 139.6 mm (65.75" x 20.27" x 54.96")
Weight: 1kg
Support Horizontal Mounting, DIN- Rail Mounting (option) and vertical
Mounting (option)
