Дънна платка MSI MPG B550 GAMING PLUS, B550, AM4, DDR4, PCIe 4.0 (HDMI&DP), (CF), 6x SATA 6Gb/s, 2x M.2, 1x USB 3.2 Gen 2 Type-C, ATX

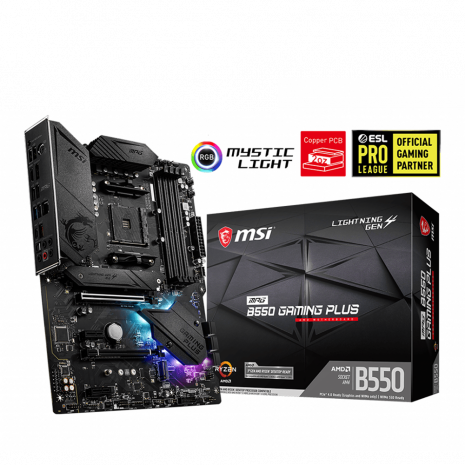

MPG B550 GAMING PLUS

• Support for 3rd Gen AMD Ryzen™ Processors and future AMD Ryzen™ processors with BIOS update
• Supports DDR4 Memory, up to 4400(OC) MHz
• Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, AMD Turbo USB 3.2 GEN 2
• Enhanced Power Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, DDR4 Boost
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• Pre-installed I/O Shielding: Better EMI protection and more convenience for installation
• Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
• Audio Boost: Reward your ears with studio grade sound quality

Specifications

CPU
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update

CHIPSET
AMD B550 Chipset

MEMORY
4x DDR4 memory slots, support up to 128GB 1

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE

EXPANSION SLOTS
1x PCI-E 4.0/3.0 x16 slot + 1x PCI-E 3.0 x16 slot

ONBOARD GRAPHICS
1x HDMI 2.1 port
1x DisplayPort
Available for the processor with integrated graphics.Graphics specifications may vary depending on the CPU installed.

MULTI-GPU
Supports 2-Way AMD CrossFire™ Technology

STORAGE
AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4 1
Supports SATA 6Gb/s
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
The supported specification depends on installed processor.

USB
AMD B550 Chipset

2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C)
5x USB 3.2 Gen 1 5Gbps (4 Type-A + 1 Type-C)
8x USB 2.0

AUDIO
8-Channel (7.1) HD Audio with Audio Boost

LAN
Realtek® RTL8111H Gigabit LAN

FORM FACTOR
ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
