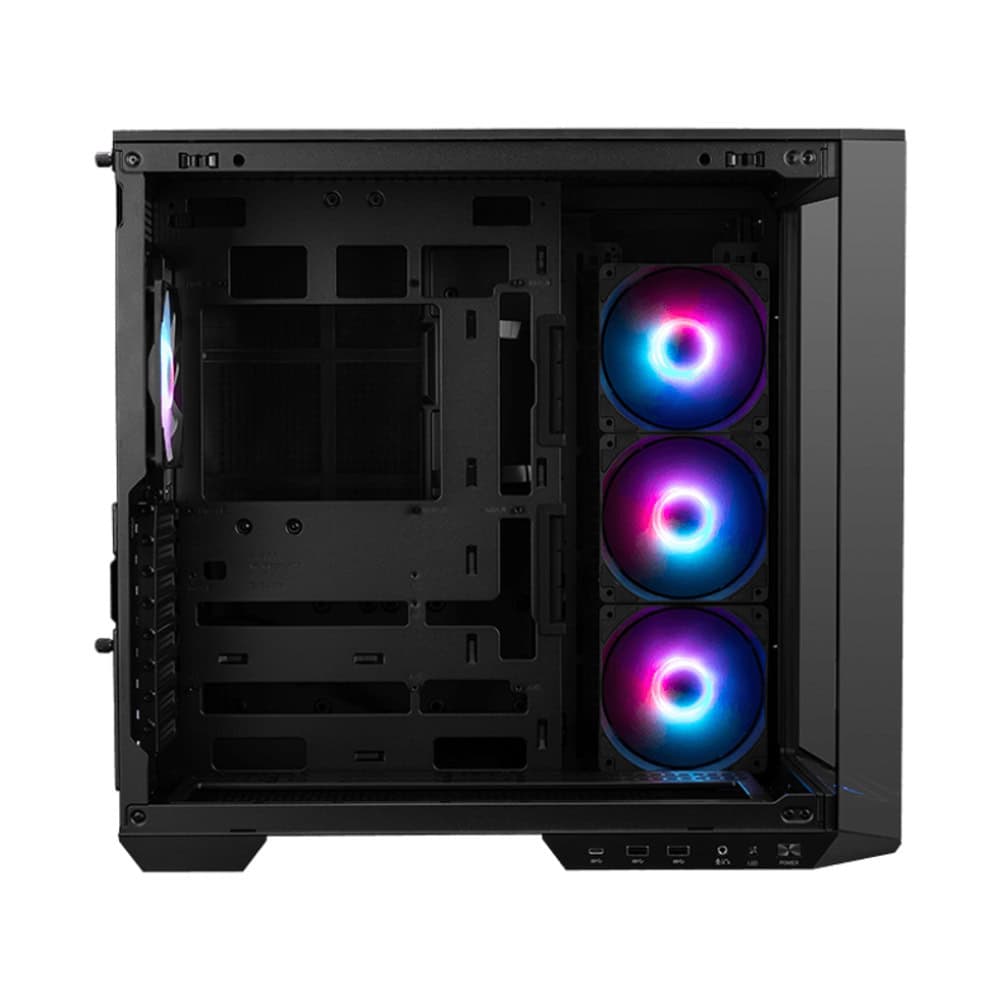

Кутия MSI MAG PANO 100R PZ, ATX/mATX/Mini-ITX, 1x USB 3.2 Gen 2x2 Type-C, 4x 120mm ARGB вентилатора, с прозорец, черна, без захранване

MSI MAG PANO 100R PZ

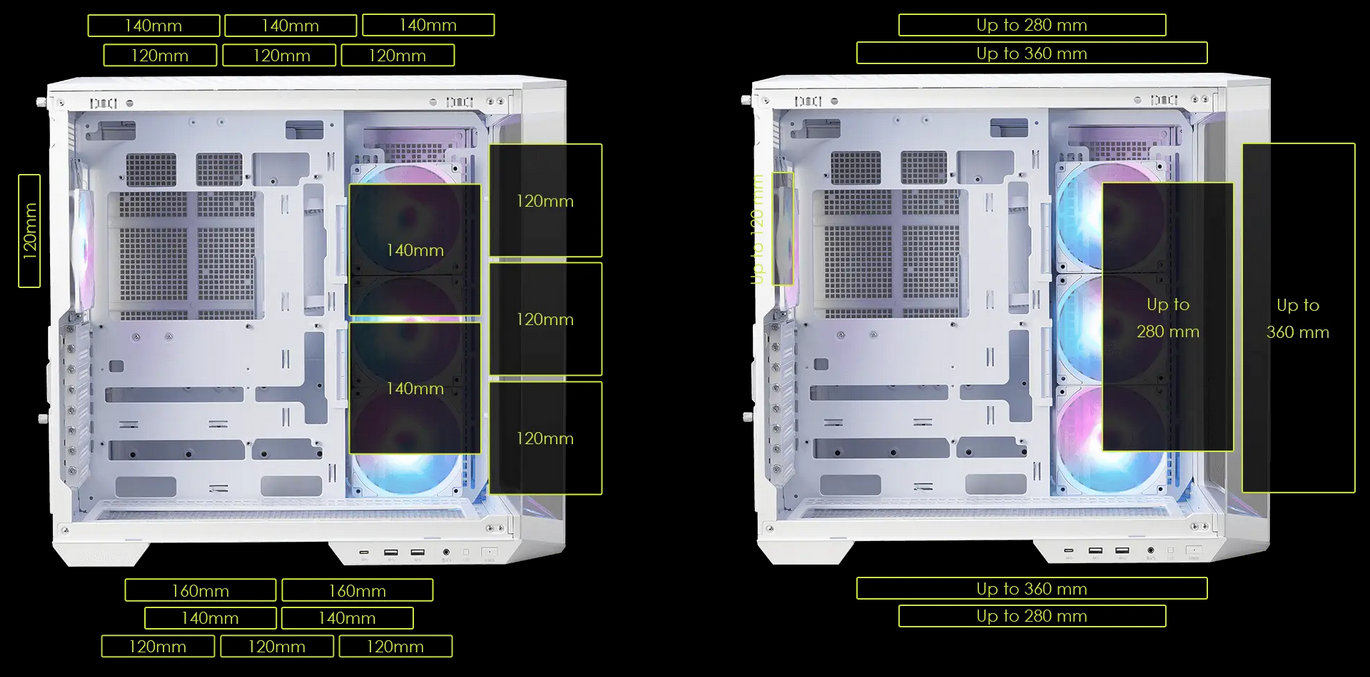

Fans and radiator supported overview

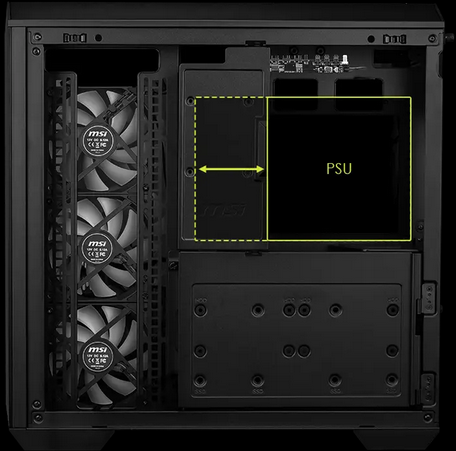

Dual Chamber

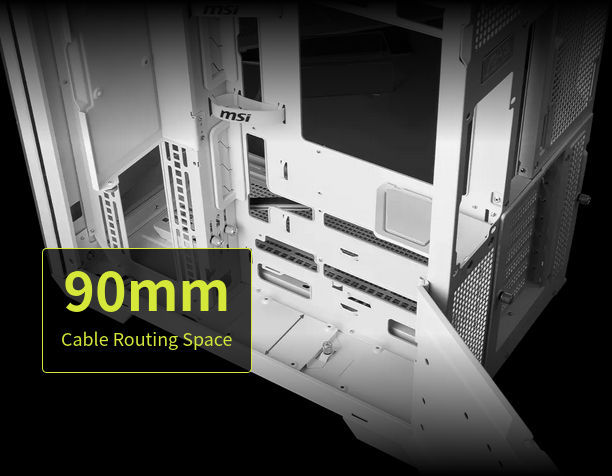

Large cable management space to reduce cable routing complexity, ensuring sufficient space for cable organization.

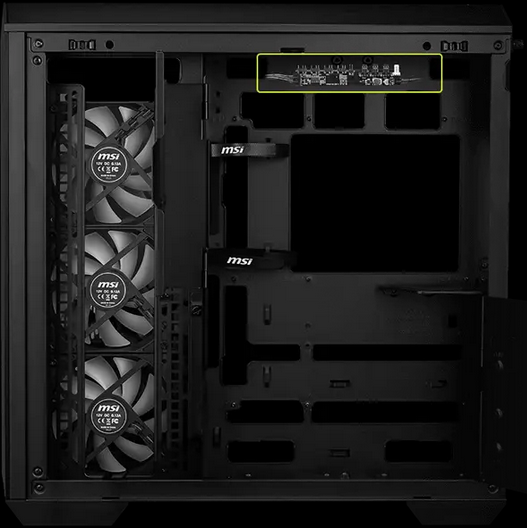

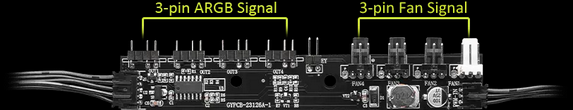

1 to 4 ARGB-fan control board Thanks to the integrated control board, users can easily and intuitively manage lighting effects and adjust fan speeds conveniently.

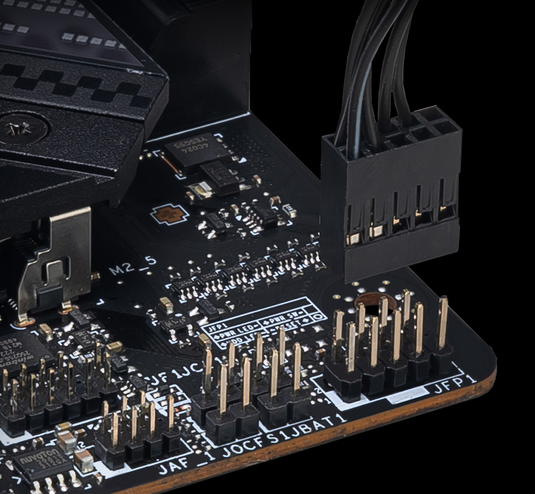

The uni-front-panel cable is easy for users to connect to MSI motherboards.

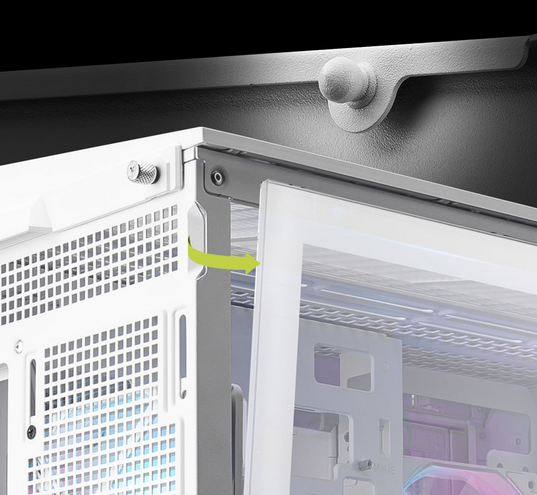

Push-latch side panel and PCIe bracket, streamline installation process, enhancing the experience.

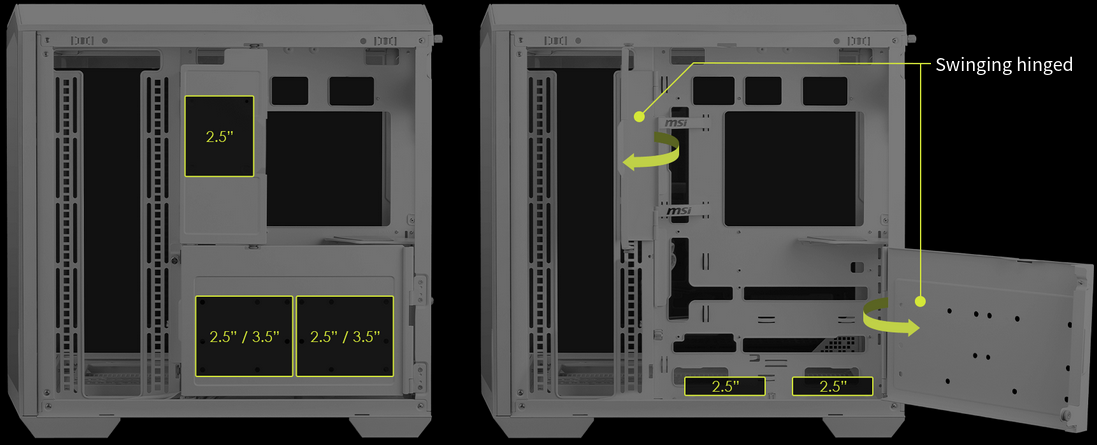

Multi-function storage bracket

The multi-function storage bracket with swinging door serves as a convenient tool for SSD installation and cover the messy cables, maintaining a clean and aesthetic appearance in the main chamber.

Specifications

Case Form Factor

Mid Tower

Motherboard Form Factor Support

Regular: ATX / Micro-ATX / Mini-ITX
Back-connect: ATX / Micro-ATX

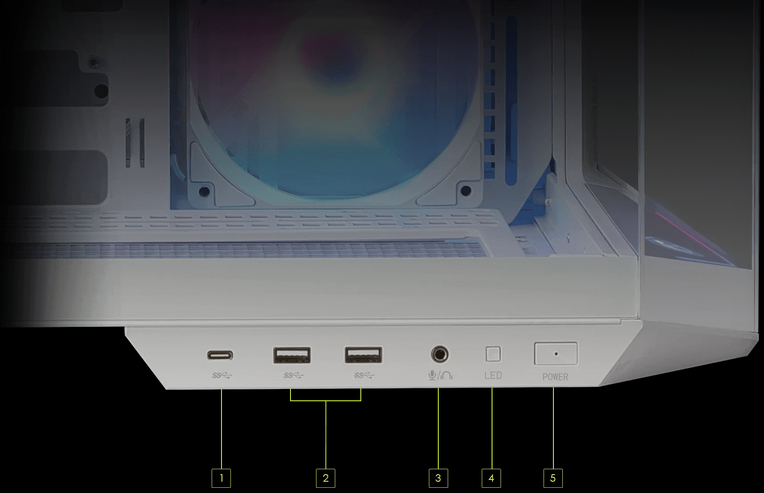

I/O Ports

1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-Out / Mic-in
1 x LED Switch Button
1 x Power Button

Drive Mount Support

3 x 2.5”
2 x 2.5”/3.5” combo

Expansion Slots

8

Maximum GPU Length

400 mm / 15.75 inches

Maximum CPU Cooler Height

166 mm / 6.54 inches

Power Supply Support

ATX

Maximum PSU Length

200 mm / 7.87 inches

Fan Size Support

Top: 3 x 120 mm / 3 x 140 mm
Front: NA
Rear: 1 x 120 mm
Side: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm

Pre-installed Fan Size

Side: 3 x 120 mm
Rear: 1 x 120 mm

Pre-installed Fan Type

Side: 3 x ARGB Reverse-blade
Rear: 1 x ARGB


Radiator Size Support

Top: 120 / 240 / 360 mm
Front: NA
Rear: 120 mm
Side: 120 / 240 / 360 mm
Bottom: 120 / 240 / 360 mm

Dimensions (DxWxH)

518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
