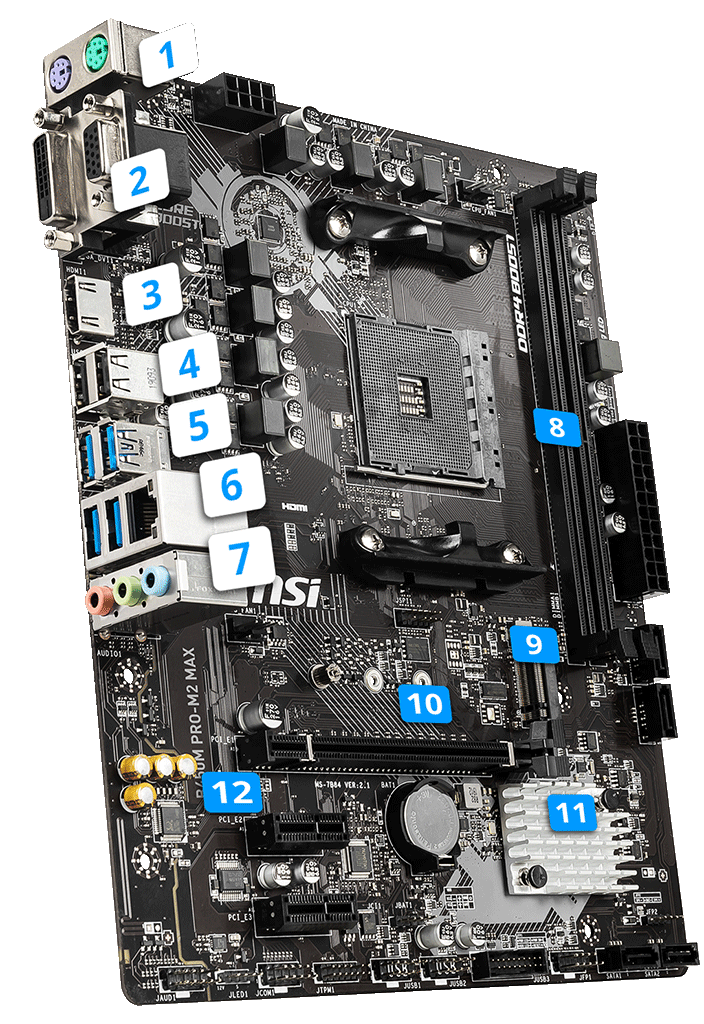

Дънна платка MSI B450M PRO-M2 MAX, B450, AM4, DDR4, PCI-E(HDMI&DVI&VGA), 4x SATA 6Gb/s, 1x M.2 slot, 6x USB 3.2 (Gen1) + 6 x USB 2.0, mATX

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 3466+(OC) MHz

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.

• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

• Audio Boost: Reward your ears with studio grade sound quality.

• EZ Debug LED: Easiest way to troubleshoot

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

• PCI-E Steel Slot: Protecting VGA cards against bending

Specifications

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® B450 Chipset

MEMORY
2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports DDR4 1866/ 2133/ 2400/ 2667 MHz by JEDEC
For AMD Ryzen Gen3 (R5/R7/R9)
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz by A-XMP OC mode1
For AMD Other CPU
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz by A-XMP OC mode
Dual channel memory architecture
Supports ECC UDIMM memory (non-ECC mode)
Support non-ECC UDIMM memory

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors
Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
2 x PCIe 2.0 x1 slots

ONBOARD GRAPHICS
1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2
1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160@30Hz1,2
Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorssMaximum shared memory of 2048 MB

STORAGE
AMD® B450 Chipset
4 x SATA 6Gb/s ports
Supports RAID 0, RAID1 and RAID 10
1 x M.2 slot (Key M)
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics)and SATA 6Gb/s 2242/ 2260 /2280 storage devices
USB
AMD® B450 Chipset
2 x USB 3.2 Gen1 (SuperSpeed USB) ports through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)
AMD® processor
4 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC887 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin system fan connector
1 x Front panel audio connector
2 x Front panel connectors
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial port connector
1 x LED strip connector
1 x Clear CMOS jumper

BACK PANEL PORTS
Mouse
VGA Port
USB 2.0
LAN Port
HD Audio Connectors
Keyboard
DVI-D Port
HDMI Port
USB 3.2 Gen1
MSI
B450M PRO-m2 max back panel ports

DIMENSIONS
9.6 in. x 8.1 in. (24.4 cm x 20.6 cm)
m-ATX Form Factor

MOUNTING
9 mounting holes
