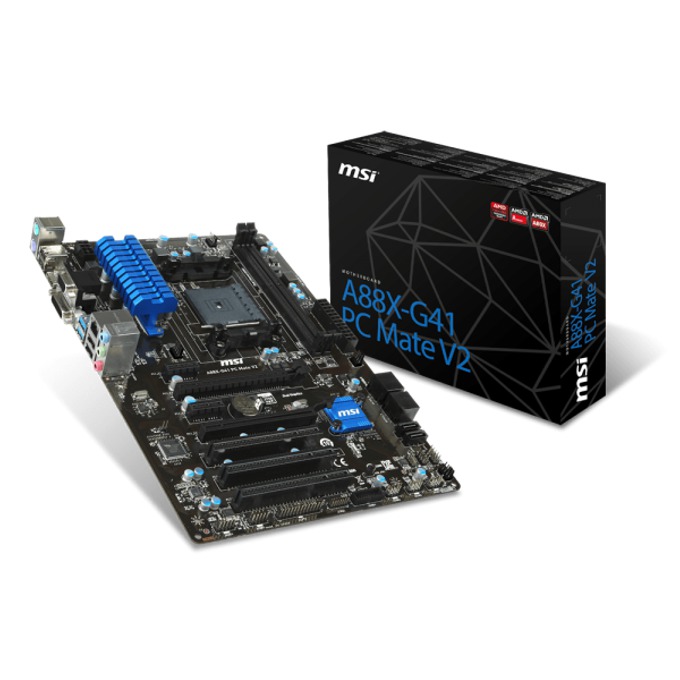

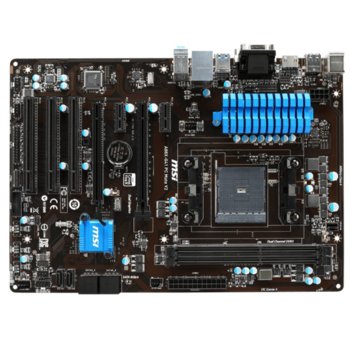

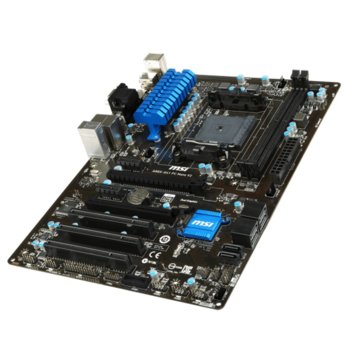

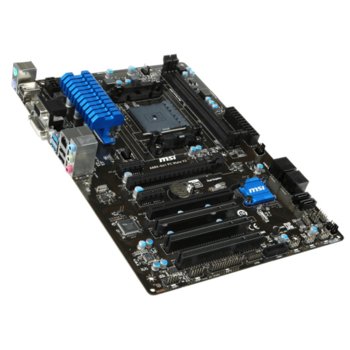

Дънна платка MSI A88X-G41 PC MATE V2, FM2(+), DDR3, PCI-E (HDMI & DVI), SB7.1, Lan1000, 6x SATA 6Gb/s, RAID 0,1,5,10, 2x USB3.0, ATX

MSI
A88X-G41 PC MATE V2


Specifications:

CPU

• AMD Socket FM2+ A-Series/Athlon™ Processors*
* Also support FM2 A-Series/Athlon™ Processors


Chipset

• AMD A88X Chipset


Main Memory

• Support two DDR3 1333/1600/1866/2133 MHz . up to 32GB Max
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports AMD Memory Profile (AMP)
- Supports Extreme Memory Profile (XMP)
* For the support status of AMP/XMP memory modules, please take MSI’s Memory Support list as reference.


Slots


• 2 x PCIe x16 slots
- PCI_E2 supports PCIe 3.0 x16 speed*
- PCI_E4 supports PCIe 2.0 x4 speed
• 2 x PCIe 2.0 x1 slots
• 3 x PCI slots
* Only FM2+ processors can support PCIe 3.0


On-Board SATA

• SATAIII controller integrated in AMD A88X chipset
- Up to 6Gb/s transfer speed.
- Supports six SATAIII ports (SATA1~6) by A88X


• RAID
- SATA1~6 support AMD Rapid Storage Technology enterprise (RAID 0/ 1/ 5/ 10) by AMD A88X


USB

• 4 x USB 3.0 ports (2 ports on the back panel, 2 ports available through the internal USB connectors)
• 10 x USB 2.0 ports (4 ports on the back panel, 6 ports available through the internal USB connectors)


Audio

• Realtek® ALC887 Codec


LAN

• Realtek® RTL8111E Gigabit LAN controller


Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 3 x USB 2.0 connectors (supports additional 6 USB 2.0 ports)
- 1 x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x 3-pin system fan connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x TPM module connector
- 1 x Serial port connector
-1 x Parallel port connector
-1 x Clear CMOS jumper
-2 x USB power jumpers

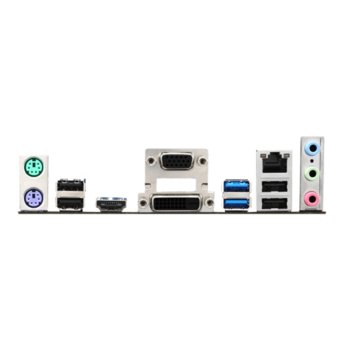

Back Panel I/O Ports

- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 4 x USB 2.0 ports
- 2 x USB 3.0 ports
- 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
- 1 x DVI-D port, supporting a maximum resolution of 2560 x1600 @60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
- 1 x LAN (RJ45) port
- 3 x audio jacks

This platform supports dual-display and triple-display function


- HDMI+VGA
- HDMI+DVI
- VGA+DVI
- HDMI+VGA+DVI


Multi-GPU Support


• Supports 2-Way AMD® CrossFireTM Technology*
* Supports Windows 7 and Windows 8.


BIOS


• The motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
• The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.


Dimension


• 12.0 in. x 8.4 in. (30.5 cm x 21.4 cm) ATX Form Factor


Mounting

• 6 mounting holes
