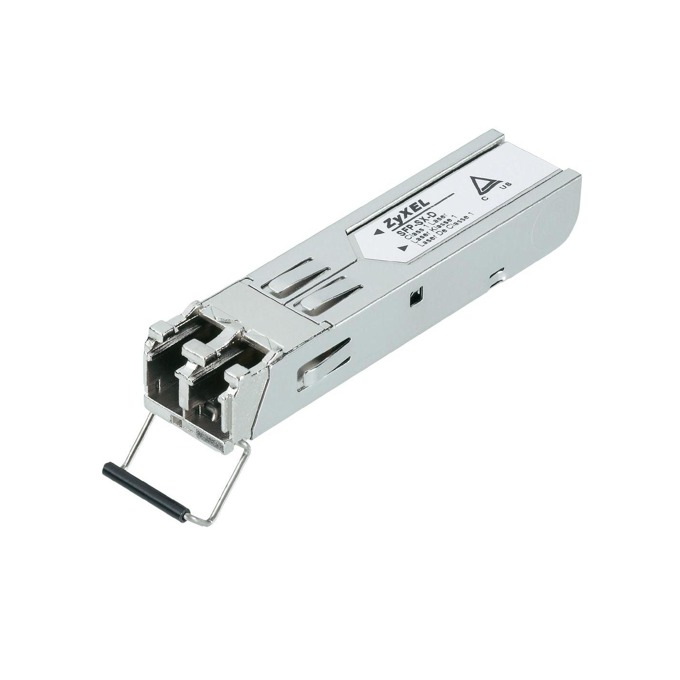

Мрежов SFP модул Zyxel SFP-SX Gigabit SFP, LC connector SX transceiver, max 550m

SFP ports mean flexibility. The flexibility to choose which fiber you want to run and what sort of distance you need. They save money by allowing you to use existing fiber so you don’t have to run more. Instead of buying a switch with built-in fiber ports, buy a switch with SFP ports that allows you to choose what type of fiber transceiver you want to use on a port-by-port basis.


Gigabit Performance Transmission and Flexibility
Small Size and High Port Density
Industry Standard-based Compliance

Gigabit Speed and Flexibility
Hot Pluggable
Compact Size and High Port Density
Industry Standards-based Compliance
802.3z , SFP MSA (Multi-Source Agreement) Compliance
Single +3.3V Power Supply
Low Power Dissipation

Dimensions

2.2” (W) x .5” (D) x .5” (H) / 56 x 13.4 x 12.46 mm

Optical Receiver Sensitivity

-17 dBm

Wavelength

850nm

Connector

LC

Transmission Distance vs. Fiber Cable Specification

62.5um MMF: 220 m
50um MMF: 550 m

Operational Ranges

Supply Voltage: 3.15~3.45 V
Max Current: 300mA

Safety Certification

Class 1 Laser
21 CFR 1040.10 and 1040.11 Compliant
CSA
TUV

Operating Environment Information

Operating Temperature: 32°F ~ 158°F / 0°C ~ 70°C
Storage Temperature: -40°F ~ 185°F / -40°C ~ 85°C
Relative Humidity: 5% - 95%

Vendor ZyXEL
Part No. SFP-SX
Warranty 3 years
Dimensions H, cm 1.24
Dimensions W, cm 5.6
Dimensions D, cm 1.34
