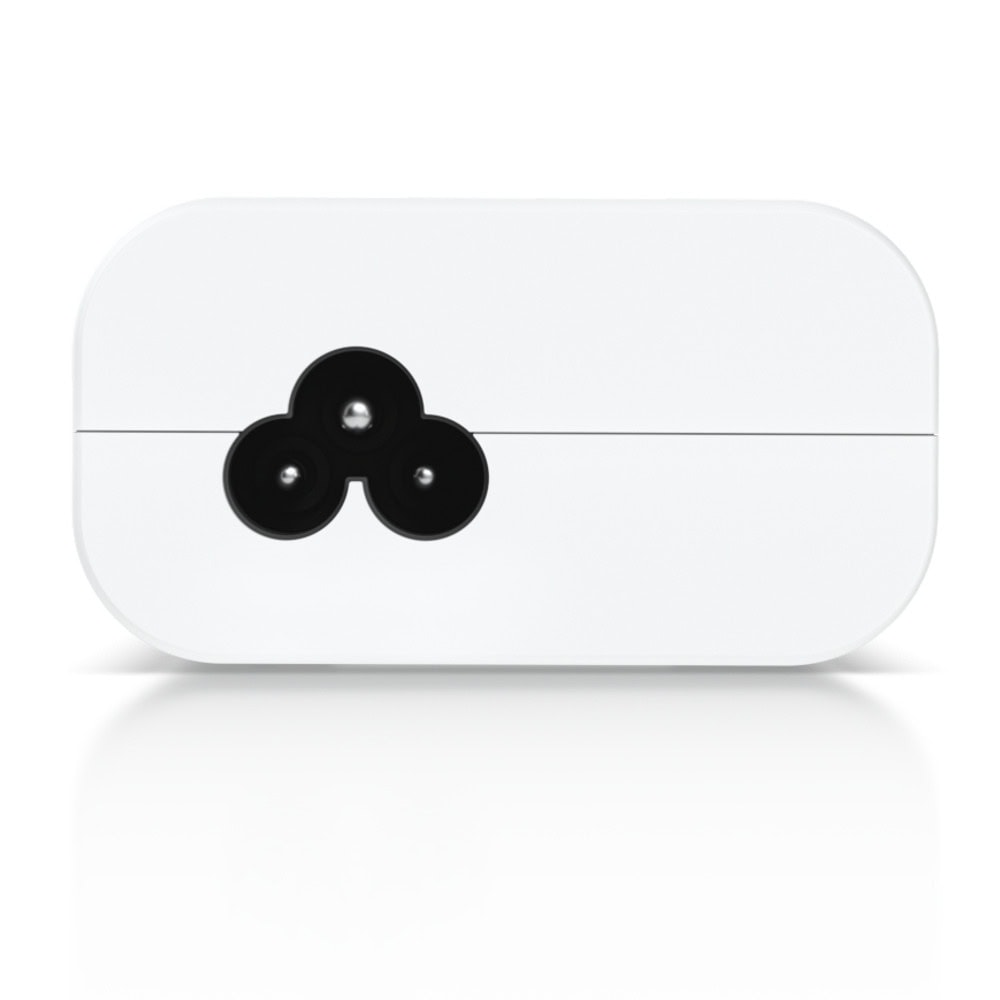

The Ubiquiti UACC-PoE++-10G is a high-performance Power over Ethernet (PoE) injector designed to provide reliable power and data connectivity for your network devices. With an output voltage of 54V DC and a maximum power capacity of 60W per port, this device ensures efficient and robust power delivery, making it an ideal solution for devices requiring higher power such as IP cameras and access points. The Gigabit LAN port supports up to 10 GbE, allowing for fast data transmission that is crucial for today's bandwidth-intensive applications.
Crafted for durability and performance, the UACC-PoE++-10G features a compact design with dimensions of 106 x 63 x 34 mm and weighs just 210 g. It operates efficiently with an impressive efficiency rating of over 88%. This device also incorporates advanced surge protection for both data and power, ensuring the safety and longevity of connected equipment. Compliance with multiple certifications such as CE, FCC, IC, UL, UKCA, and more underscores its quality and reliability in various environments.
Designed for a wide range of applications, the Ubiquiti UACC-PoE++-10G operates within an ambient temperature range of 0 to 40° C and a storage temperature of -30 to 70°C. The capability to maintain performance under a humidity level of 10 to 95% non-condensing further enhances its versatility in real-world deployments. This PoE injector exemplifies Ubiquiti's commitment to innovation, providing essential functionality for today's demanding network solutions.
Specification | Value |
---|---|
Dimensions | 106 x 63 x 34 mm (4.2 x 2.5 x 1.3") |
Weight | 210 g (7.4 oz) |
Output Voltage | 54V DC @ 1.12A |
LAN Activity Indicator | No |
Gigabit LAN Port | Yes, up to 10 GbE |
Remote Reset Capability | No |
Reset Button | No |
Rated Voltage | 100—240V AC @ 50/60Hz |
Input Current | 1.5A max. |
Inrush Current | <150A peak @ 230V AC |
Efficiency | >88% |
Output Ripple | 1% max. |
Switching Frequency | 65 kHz |
Line Regulation | ≤ 2% |
Load Regulation | ≤ 5% |
2-Pair Powering | No |
4-Pair Powering | Pins 1, 2, 4, 5 (+); 3, 6, 7, 8 (-) |

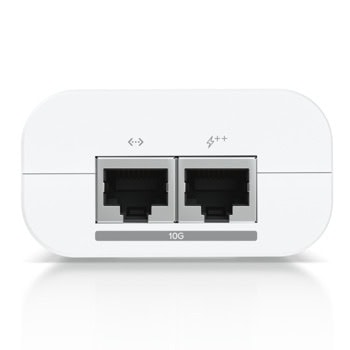

Data In / PoE | RJ45 shielded socket |
Surge Protection | Difference and common mode |
Clamping Protection | 11V data, 60V power |
Max. Surge Discharge | 1500A (8/20 μs) power |
Peak Pulse Current | 36A (10/1000 μs) data |
Shunt Capacitance | <5 pF data |
Response Time | <1 ns |
Max. PoE+ Wattage per Port by PSE | 60W |
Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
Storage Temperature | -30 to 70°C (-22 to 158°F) |
Ambient Operating Humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
Виж още Жични мрежи аксесоари Ubiquiti
Виж всички Жични мрежи аксесоари в категорията
Тип: | PoE Injector |
---|
