Суич MikroTik CRS418-8P-8G-2S+5axQ2axQ-RM, 1000 Mbps, 18 порта, 16x 10/100/1000Mbps RJ45 (8x PoE+), 2x SFP+, Wi-Fi

CRS418-8P-8G-2S+5axQ2axQ-RM

The Wi-Fi version of CRS418... with our strongest 4x4 MIMO Wi-Fi 6! L3 HW offloading, quad-core 2.2 GHz ARM CPU, 16x Gigabit Ethernet ports + a Gigabit management port with a direct CPU line, 2x 10G SFP+ ports, PoE-out.

More than a switch!

Why settle for just a simple switch when you can have PoE-out, high-speed fiber uplinks, USB storage compatibility, advanced network control/monitoring, and enough processing power even for some routing or L3 HW offloading... in a single 1U device and for the best price on the market?

Wi-Fi where it matters

The all-in-one switch/routing champion also delivers 4×4 MIMO dual-band Wi-Fi 6 – for fast, reliable connectivity wherever you need it. The perfect solution to simplify basement server room setups or medium-sized offices on a tight budget – now you don’t need to carry a separate access point!

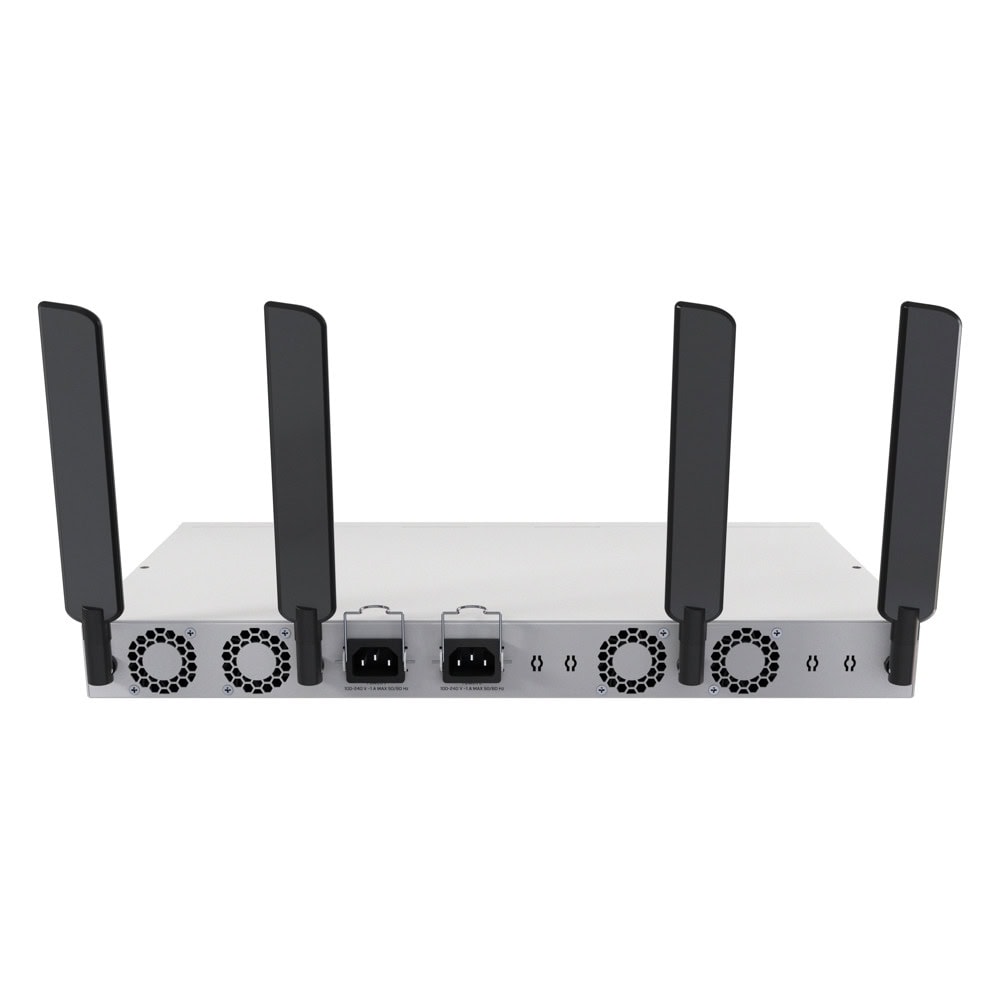

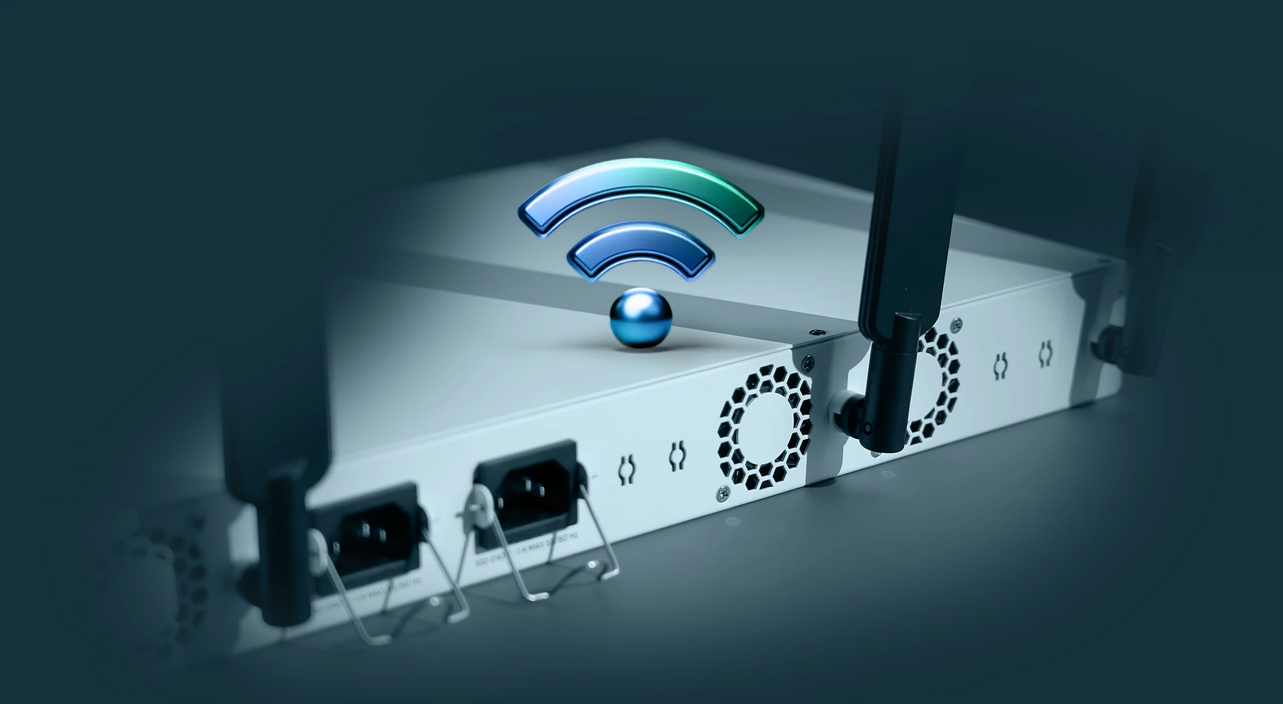

We know rackmounts are not famous for great wireless coverage. That’s why the CRS418 Wi-Fi edition includes dedicated holes in the back for pigtails, so you can place antennas outside the case if needed.

Specifications

• Architecture ARM 64bit
• CPU IPQ-8072A
• CPU core count 4
• CPU nominal frequency 2208 MHz
• CPU Threads count 4
• Switch chip model 98DX226S
• RouterOS license 5
• Operating System RouterOS v7
• Size of RAM 1 GB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -20°C to 70°C

Powering

• Number of AC inputs 2
• AC input range 100-240
• Number of PSU slots 2
• Frequency (Hz) 50-60
• Max power consumption 227 W
• Max power consumption without attachments 43 W
• Cooling type 4 fans

PoE-out

• PoE-out ports Ether9-Ether16
• PoE out 802.3af/at
• Low voltage PoE-Out current limit 1.1 A
• High voltage PoE-Out current limit 0.56 A
• Total output power 150

Wireless specifications

• Wireless 2.4 GHz Max data rate 1148 Mbit/s
• Wireless 2.4 GHz Number of chains 4
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 5
• Wireless 2.4 GHz chip model QCN-5024
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 2400 Mbit/s
• Wireless 5 GHz Number of chains 4
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 6
• Wireless 5 GHz chip model QCN-5054
• Wireless 5 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 17
• Number of 1G Ethernet ports with PoE-out 8

Fiber

• SFP+ ports 2

Peripherals

• Serial console port RJ45
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB 3.0 type A
• Max USB current (A) 1

Other

• CPU temperature monitor Yes
• Current Monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes
• Mode button Yes

Certification & Approvals

• Certification CE, FCC, IC, EAC, ROHS
• IP 20
