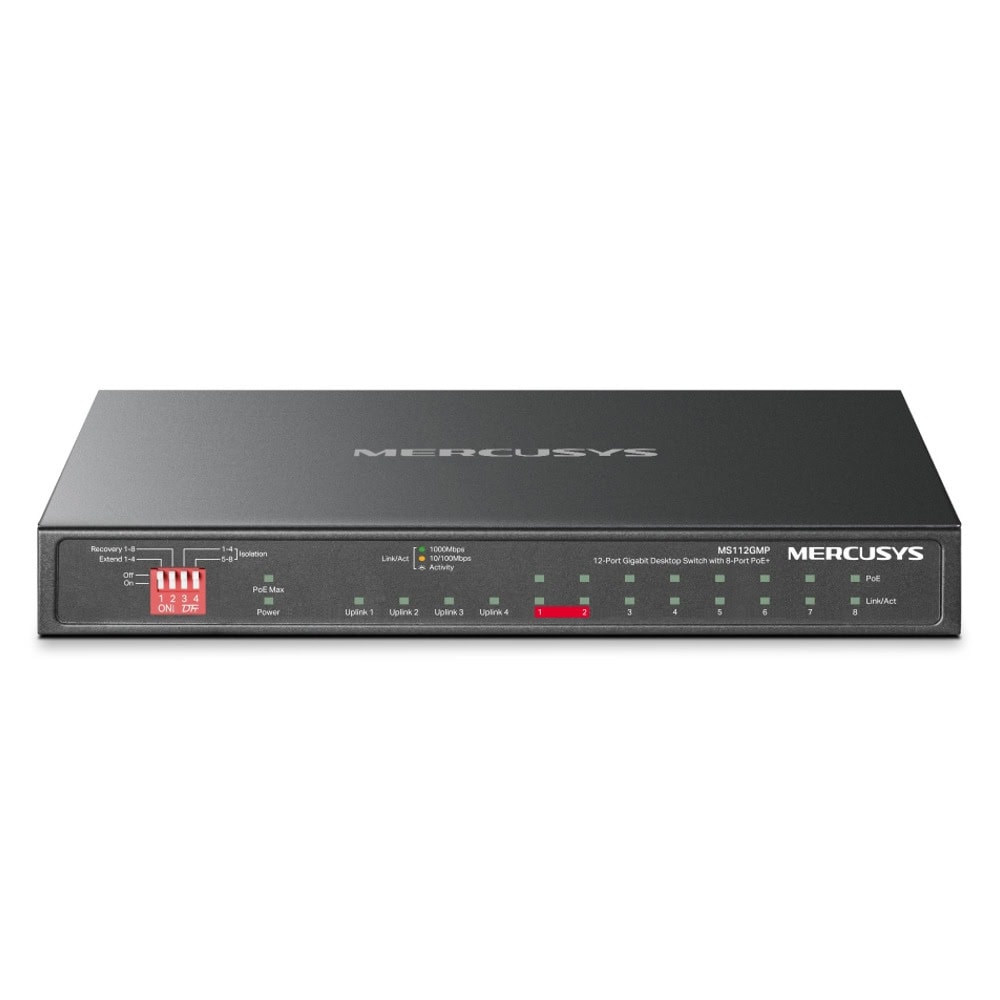

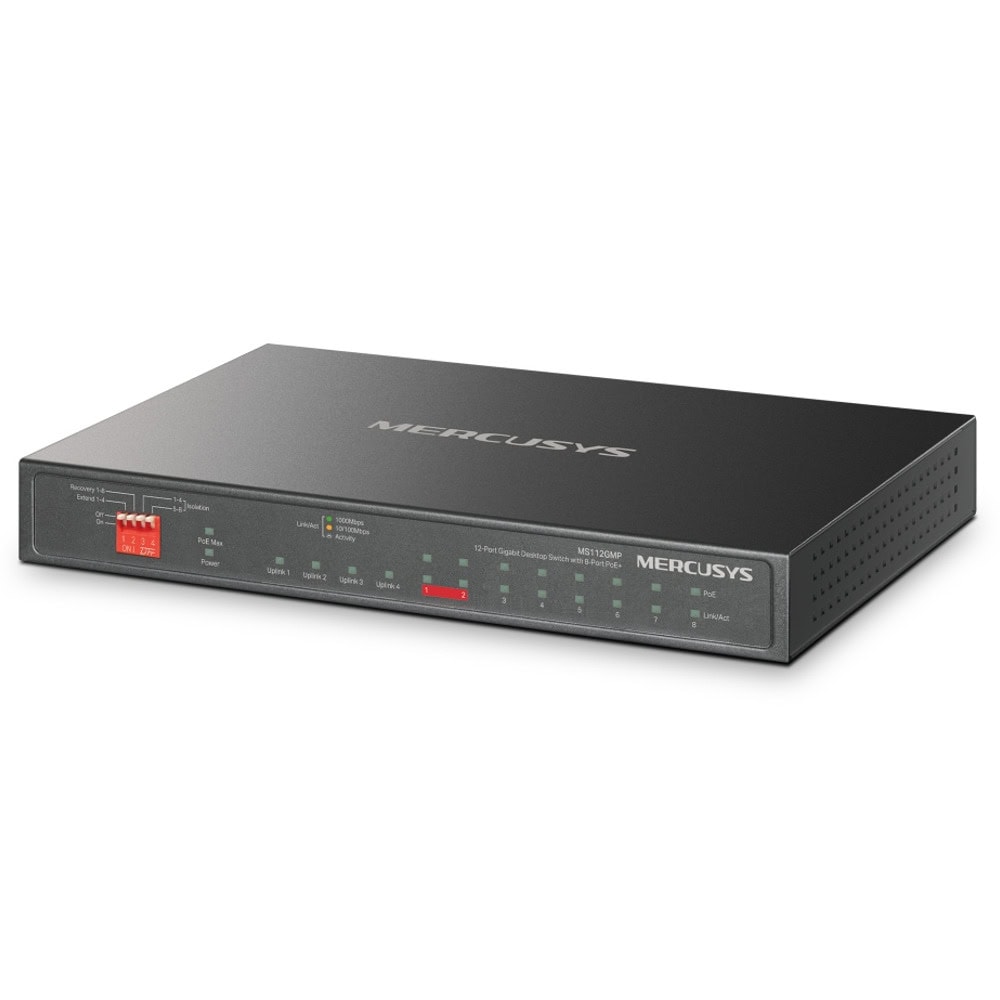

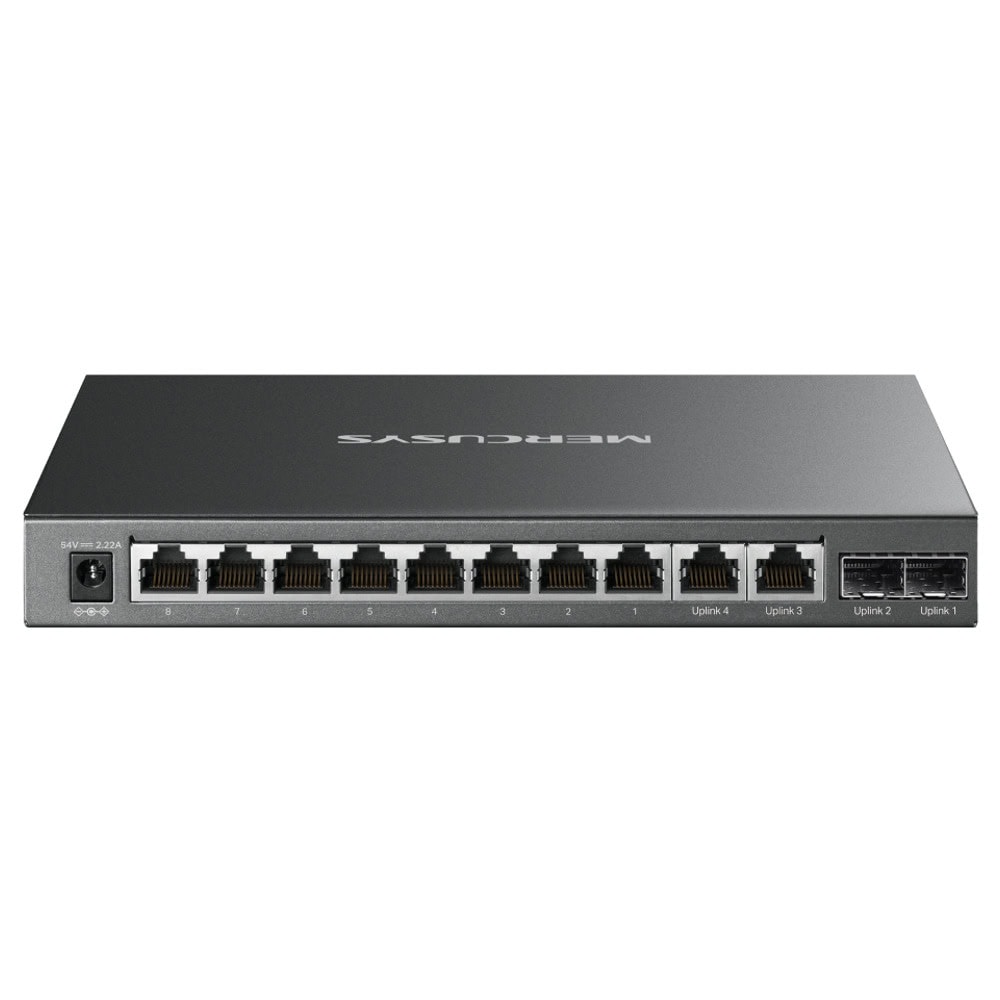

Суич Mercusys MS112GMP, 1000 Mbps, 12 порта, 8x PoE+ RJ45, 2x RJ45, 2x SFP

MS112GMP

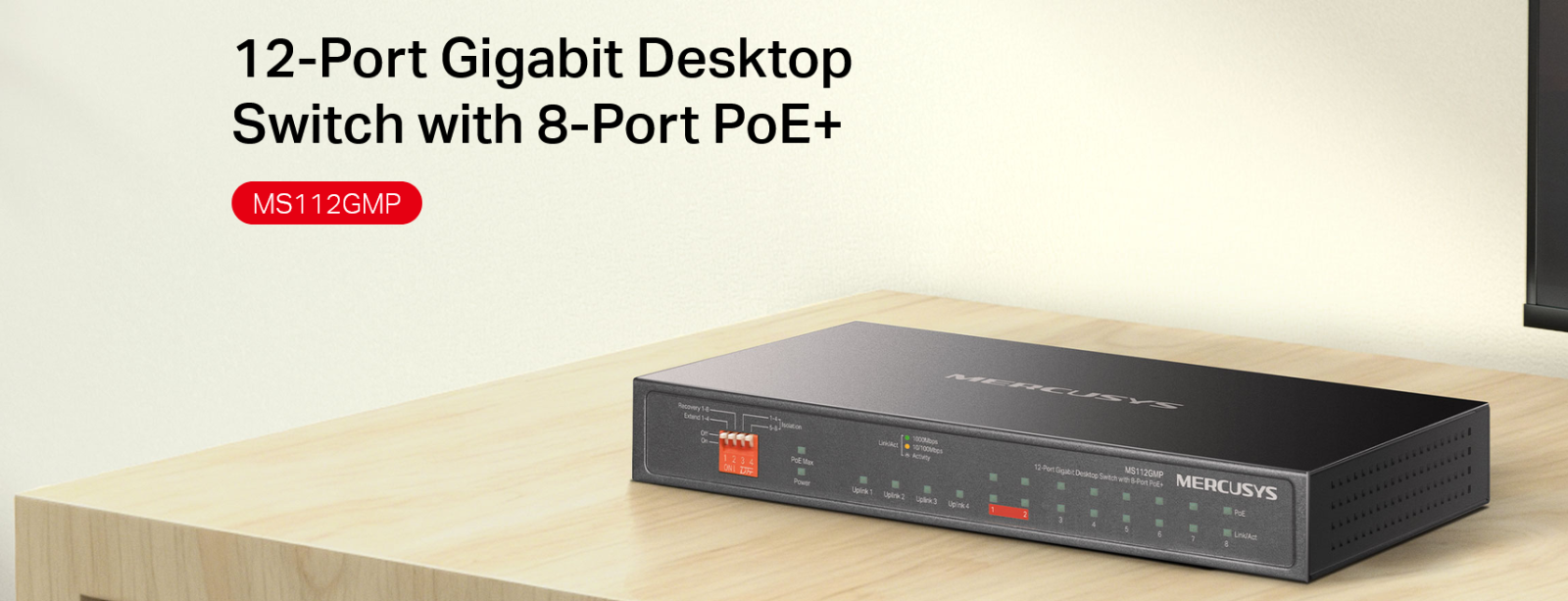

12-Port Gigabit Desktop Switch with 8-Port PoE+

8× Gigabit PoE+ ports, and 4× Gigabit Uplink Ports

8× PoE+ ports transfer data and power via a single cable with a total power budget of 110 W*

Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port

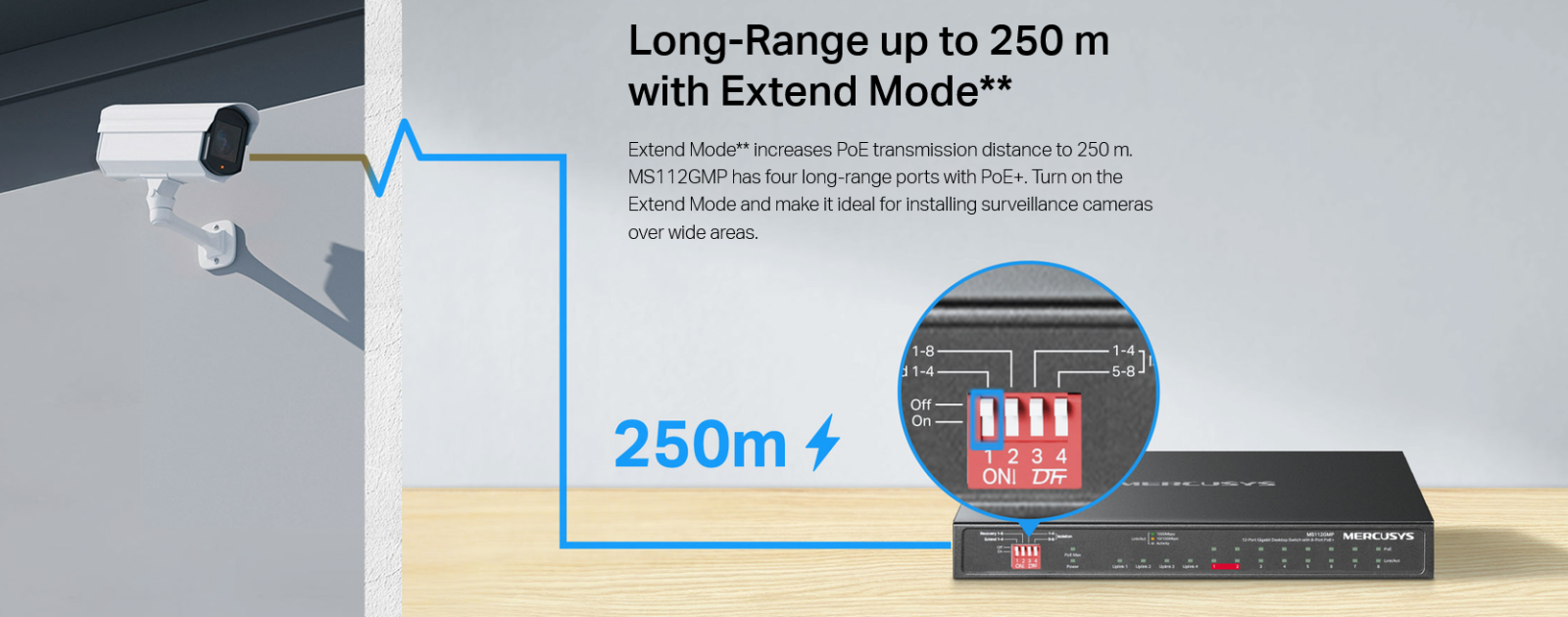

Up to 250 m data and power transmission range under Extend Mode**

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of the sensitive applications

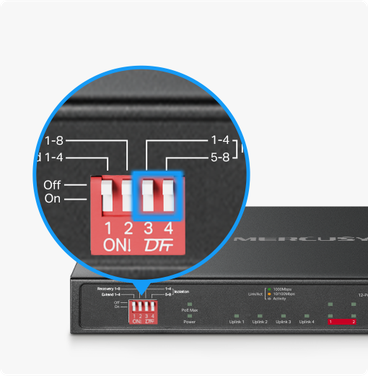

Isolation Mode allows one-click client traffic separation for higher security and performance

Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery

Plug and play with no configuration required

Fanless design reduces power consumption and works silently in its location

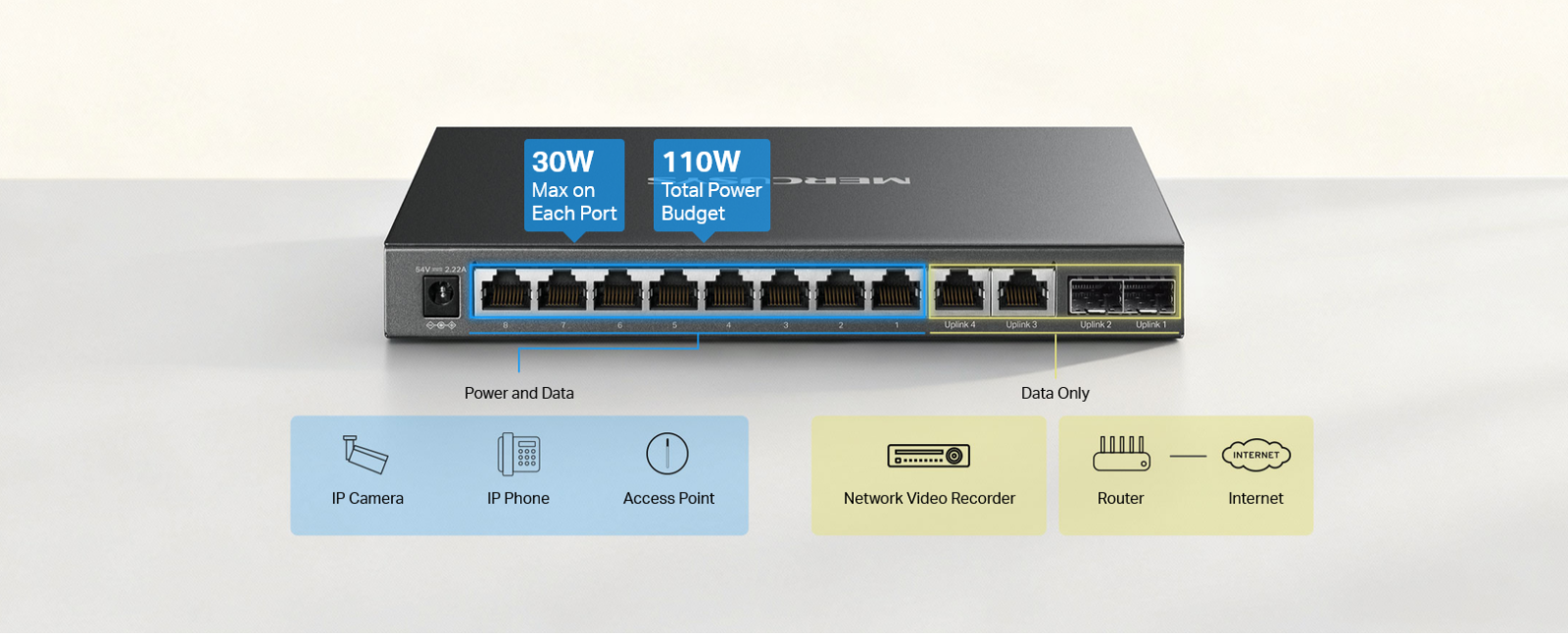

8 PoE+ Ports for Network Deployment

Each of the 8 PoE+ ports supports a maximum power supply of 30 W. The total 110 W PoE power budget* can be applied in various scenarios, including surveillance, offices, dormitories, and small businesses, since MS112GMP is compatible with devices such as IP cameras, access points, IP phones, PCs, video recorders, and etc.

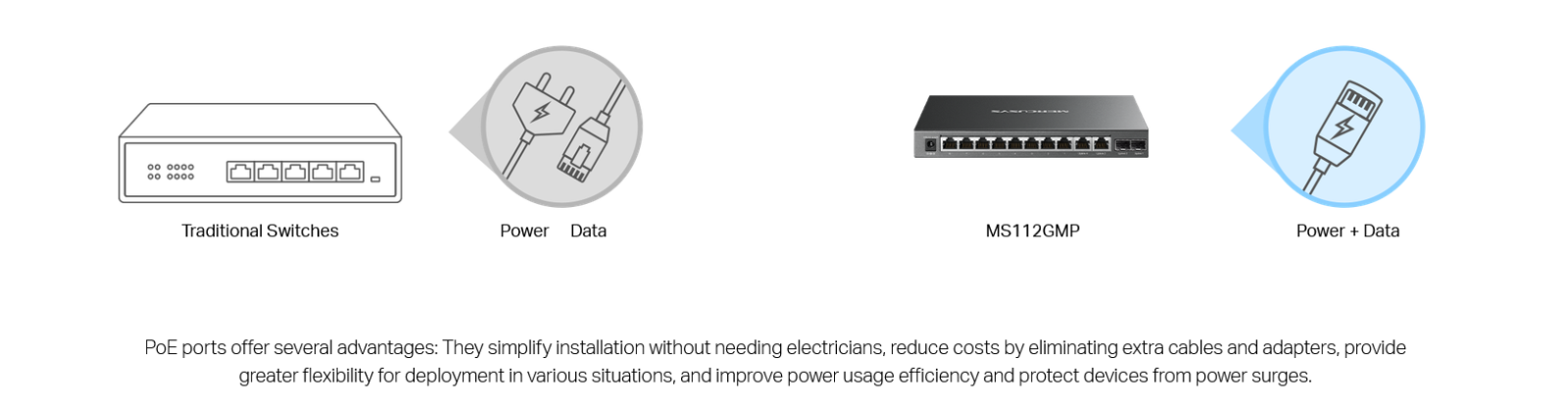

Power over Ethernet: Two Cables in One

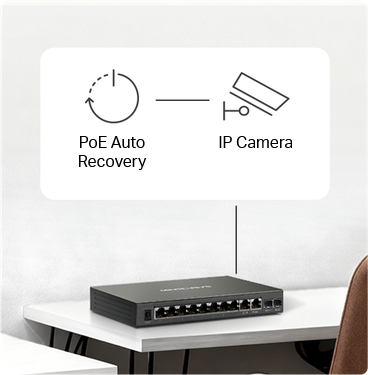

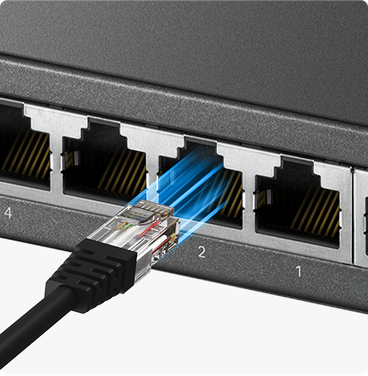

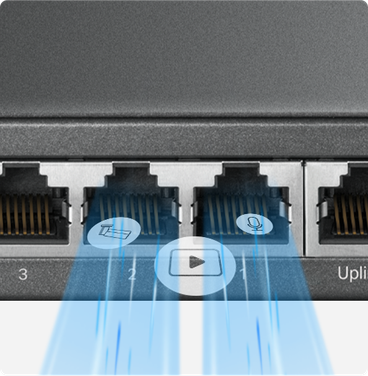

Traffic Separation Isolation Mode easily divides traffic for ports 1-4 & 5-8 to avoid snooping/tampering and isolates broadcast storm for higher security.	Port Prioritization Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.	PoE Auto Recovery The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.	Plug and Play MS112GMP offers auto-negotiation and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.

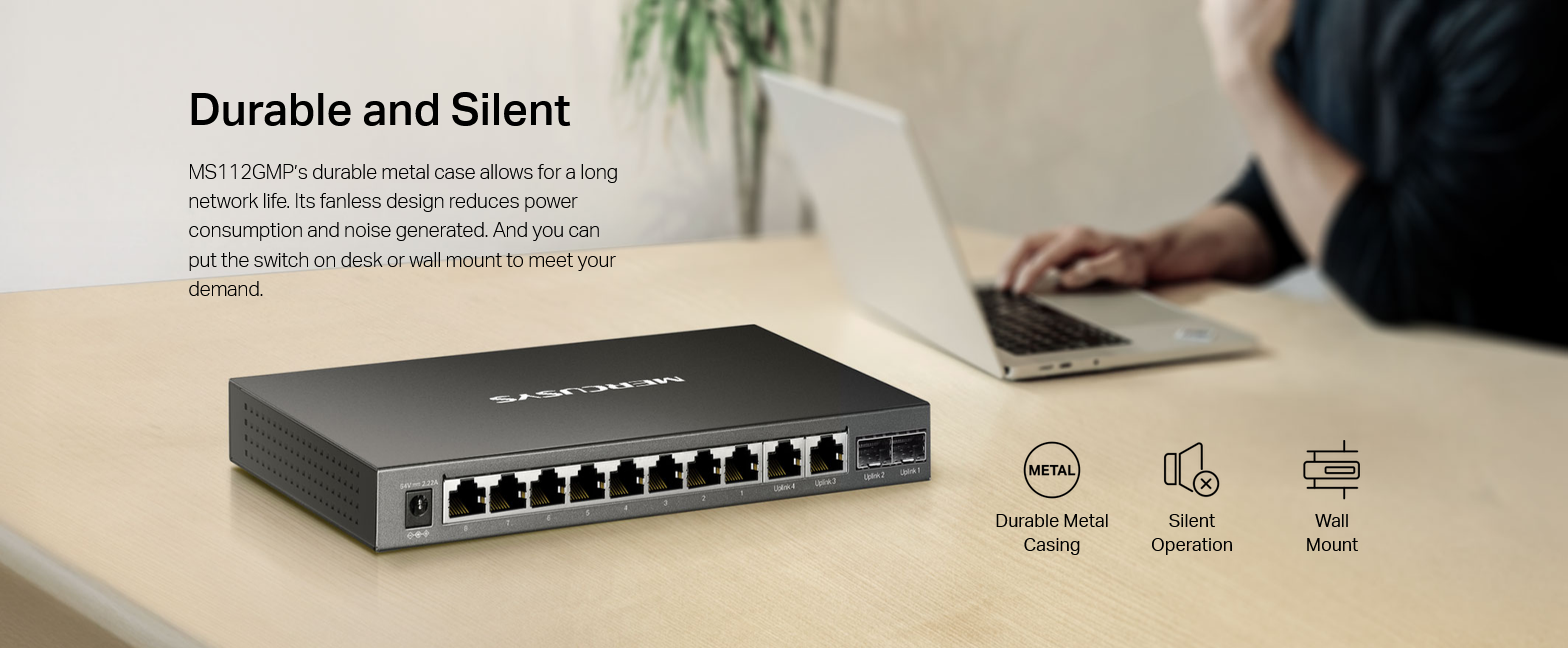

Durable and Silent

MS112GMP’s durable metal case allows for a long network life. Its fanless design reduces power consumption and noise generated. And you can put the switch on desk or wall mount to meet your demand.

Hardware

Dimensions

99.8*98*25mm

PoE Ports

RJ45

Standard: 802.3 af/at compliant
PoE Ports: Ports 1–8
Power Supply: 110 W

Interfaces

8× 10/100/1000 Mbps PoE+  Ports
2× 10/100/1000 Mbps RJ45 Ports
2× Gigabit SFP Slots
AUTO Negotiation
AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable
(maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 54VDC / 2.22A)

Jumbo Frame

15 KB

Mac Address Table

8K

Max Power Consumption

1.87W（220 V / 50 Hz, no PD connected）

44.8W（220 V / 50 Hz, with 40W PD connected）

Max Heat Dissipation

423.11 BTU/hr (110V/60 Hz @ 25 °C, with 110 W PD connected)


423.93 BTU/hr (220V/50 Hz @ 25 °C, with 110 W PD connected)

Others

Environment

Operating Temperature: -10℃~40℃ (14℉~104℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
