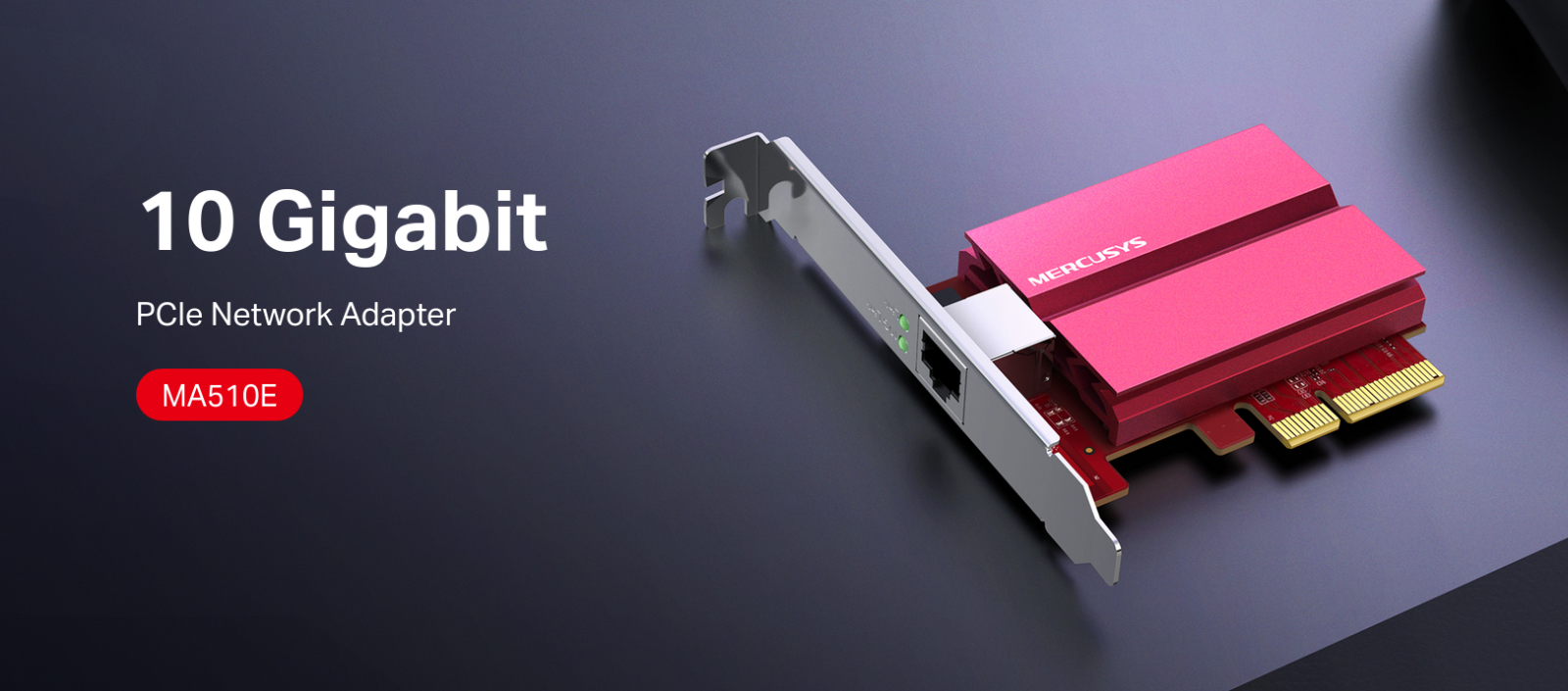

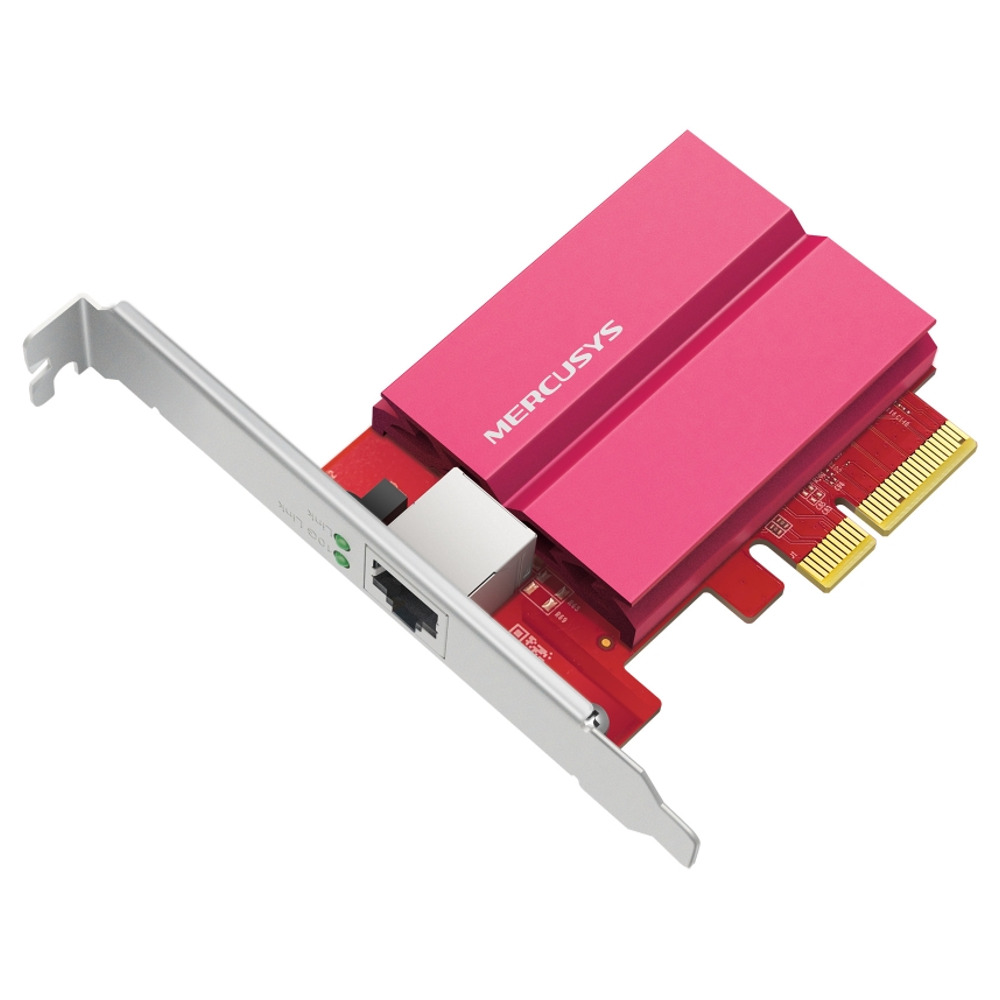

Мрежови адаптер Mercusys MA510E, от PCI-E x4 към 1x x10/100/1000/10000 RJ-45

Mercusys MA510E

10 Gigabit PCle Network Adapter

• Blazing-Fast 10 Gbps Networking — MA510E delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters
• Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.
• Share Files in Seconds — MA510E fully utilizes your 10 Gbps internet access and can seamlessly connect to NAS devices for high-speed local data transmission.
• Flow Control — The dynamic point-to-point credit management mechanism ensures high-speed data transmission with zero packet loss, delivering a low-latency multi-gig experience.
• Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.
• Energy-Efficient Ethernet (EEE) — Equipped with EEE technology, MA510E can slash energy use, trim your carbon footprint, and guarantee flawless performance.
• Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.
• System Compatibility — Supported operating systems include Windows 11/10/8.1/8, Windows Servers 2022/2019/2016/2012 R2, and Linux.

Blazing-Fast 10 Gbps Networking

MA510E delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, automatically negotiating between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.

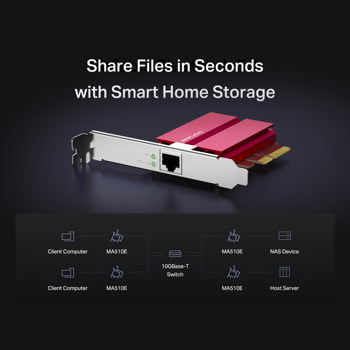

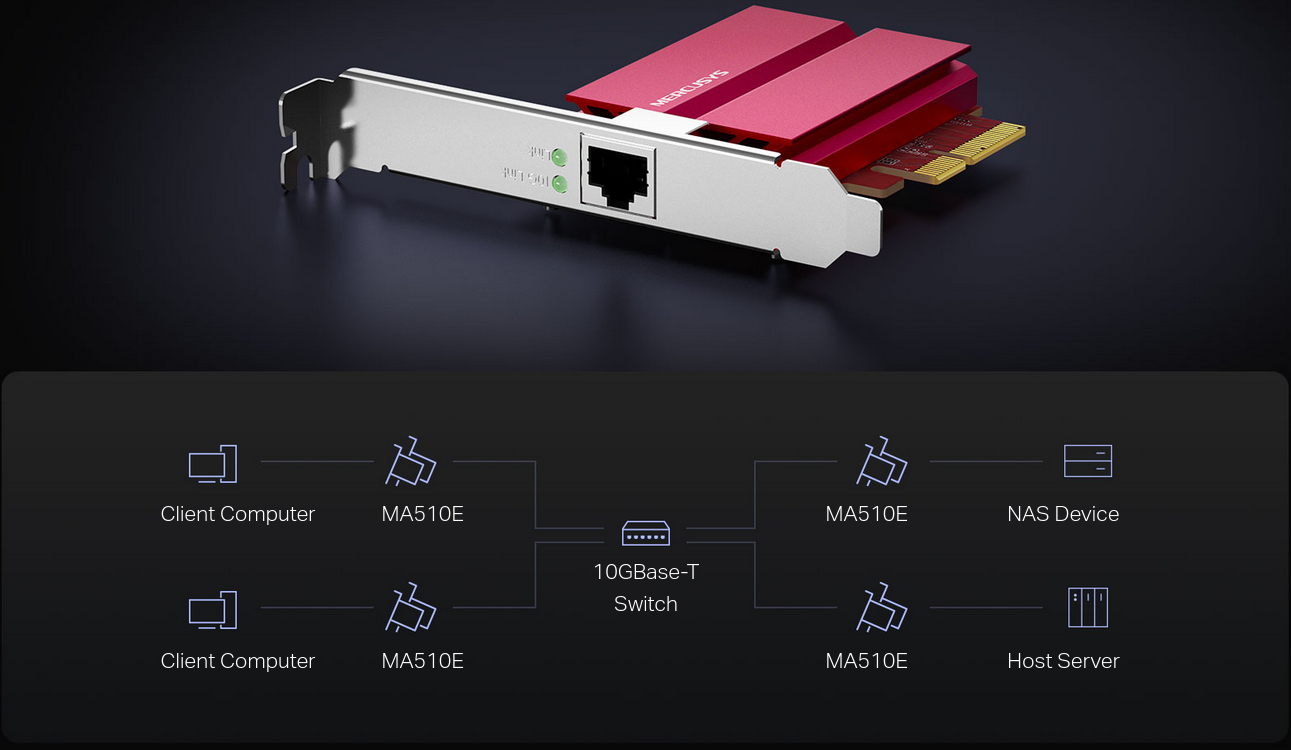

Share Files in Seconds with Smart Home Storage

Equipped with a 10G high-speed adapter, you can build a blazing-fast "data expressway" for your home or office, effortlessly handling large files and 4K workflows. Seamlessly connect central storage to all devices with zero complicated setups.

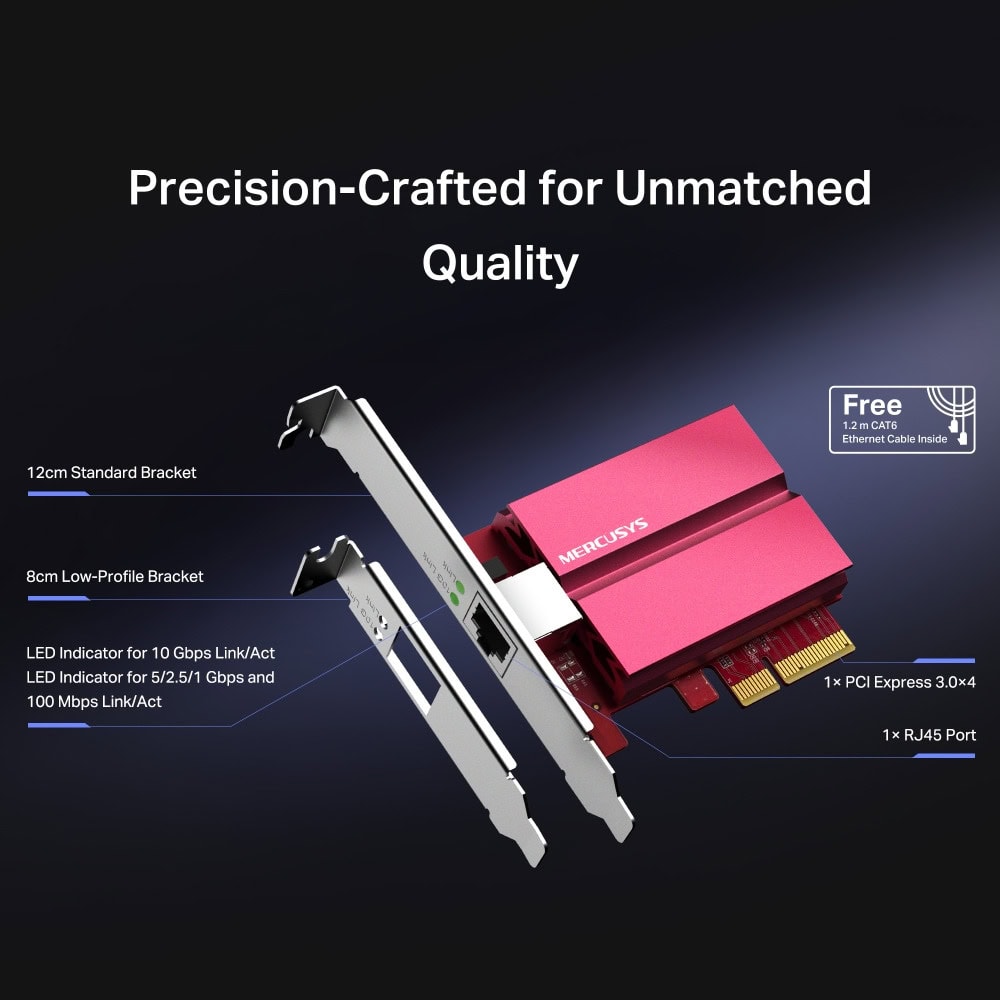

Precision-Crafted for Unmatched Quality

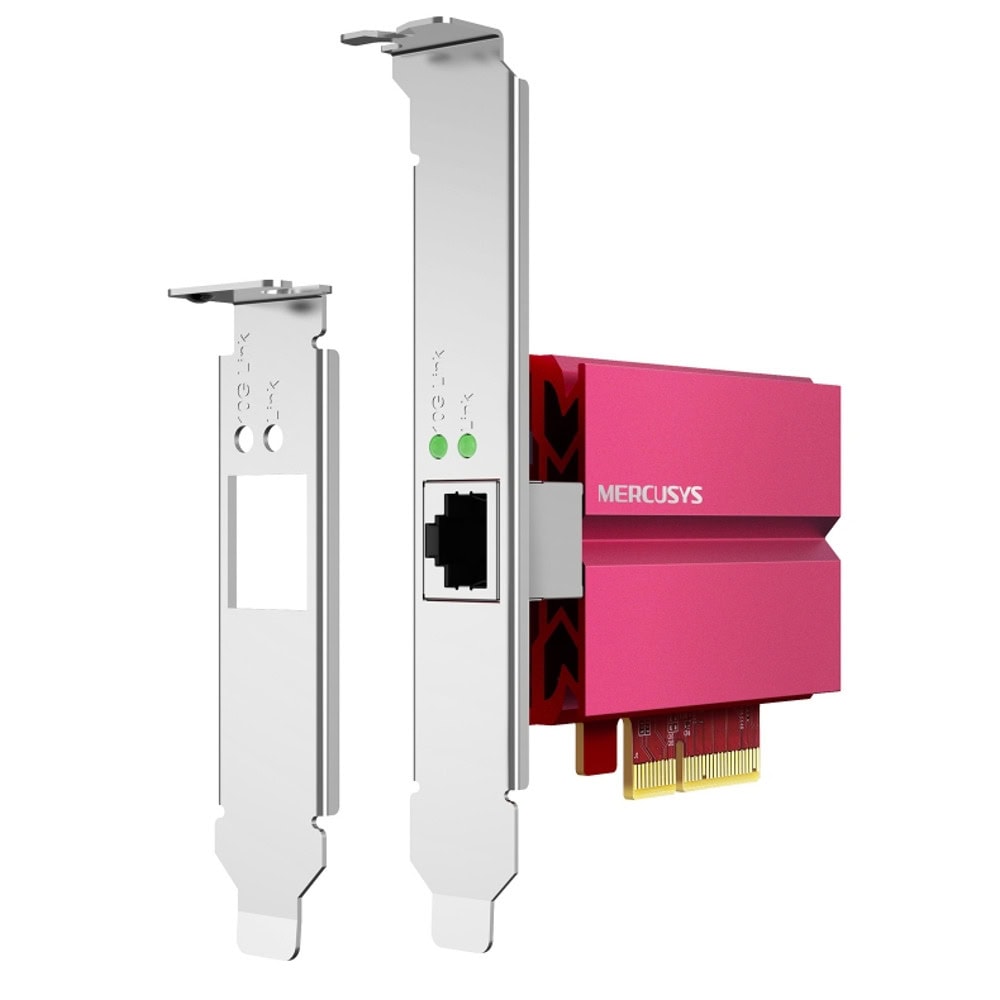

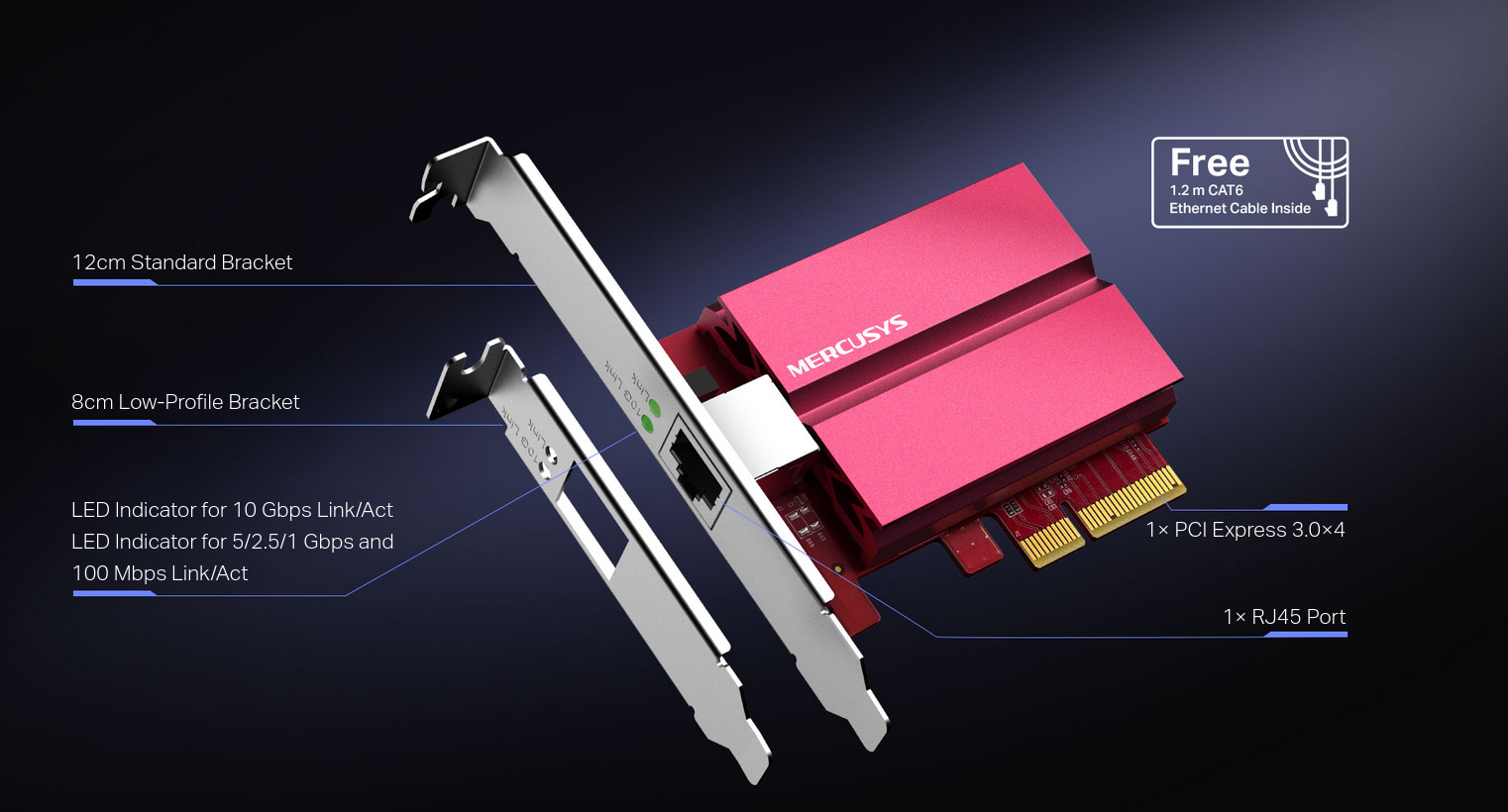

Includes both standard and low-profile brackets for compatibility with various board designs. The LED indicator lets you effortlessly know the speed of your network connection, ensuring your experience exceeds expectations at every touchpoint.

Hardware

Standards and Protocols

• 802.3x Flow Control
• 802.3az Power Saving
• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T
• 802.3bz 2.5GBASE-T and 5GBASE-T
• 802.3an 10GBASE-T

Dimensions

120.8 × 98.2 × 21.5 mm

(4.76 × 3.87 × 0.85 in)

Interfaces

1× PCI Express 3.0 × 4, 1× RJ45 Port

Network Media

10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX

Data Rates

Auto negotiation between 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, and 10 Gbps

LED

10 Gbps Link/Act, 5/2.5/1 Gbps and 100 Mbps Link/Act

Others

Certifications

CE, RoHS

Package Contents

10 Gigabit PCIe Network Adapter (MA510E)

Standard/Low-Profile Brackets

Quick Installation Guide

Resource CD

1.2m CAT6 Ethernet Cable

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

System Requirements

Supported operating systems include Windows 11/10/8.1/8, Windows Servers 2022/2019/2016/2012R2, and Linux
