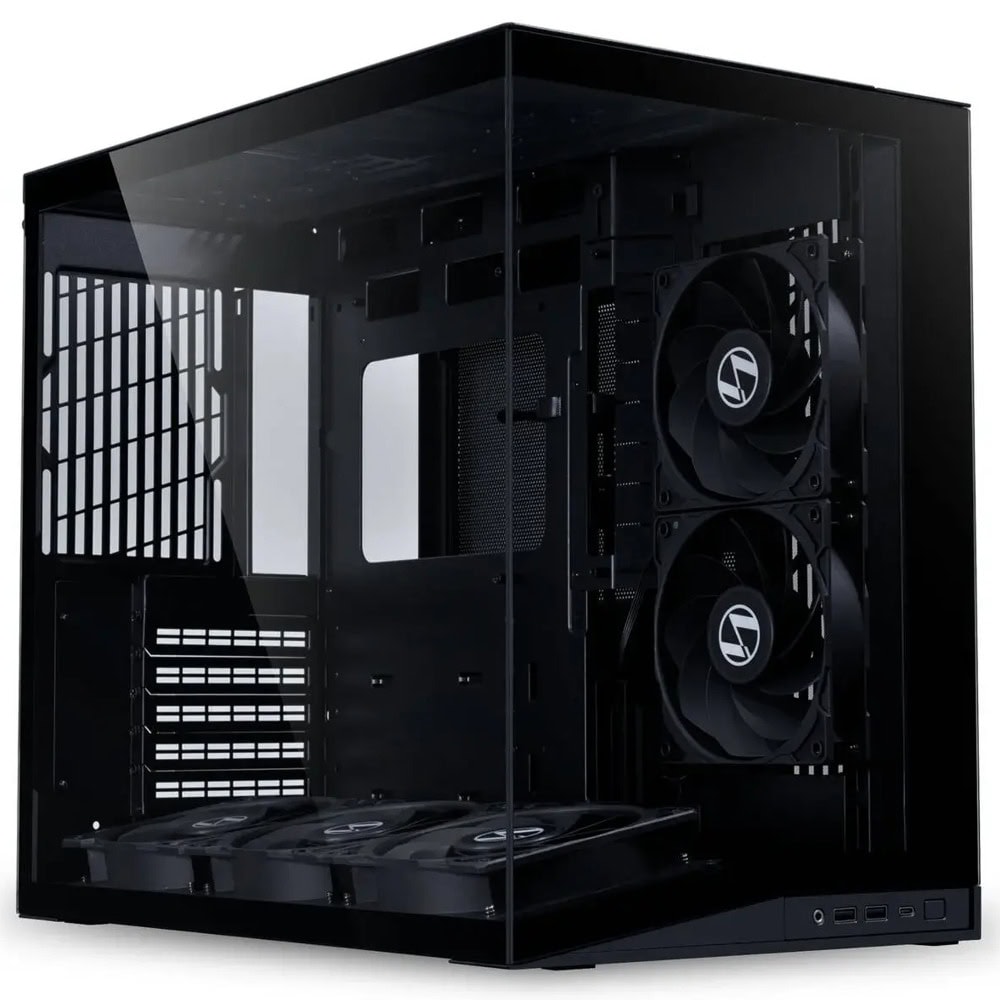

Name: Кутия Lian Li O11 DYNAMIC MINI V2 Flow Black, ATX/mATX/Mini-ITX, 2x USB 3.0, 1x USB-C, 5x 120mm вентилатора, с прозорец, черна, без захранване
Brand: Lian Li
SKU: CASEPLIANLIG99O11DMIV2FX00
Price: 104.48 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

O11 DYNAMIC MINI V2

Precision resized 45.38L chassis offers expanded hardware support with a compact footprint

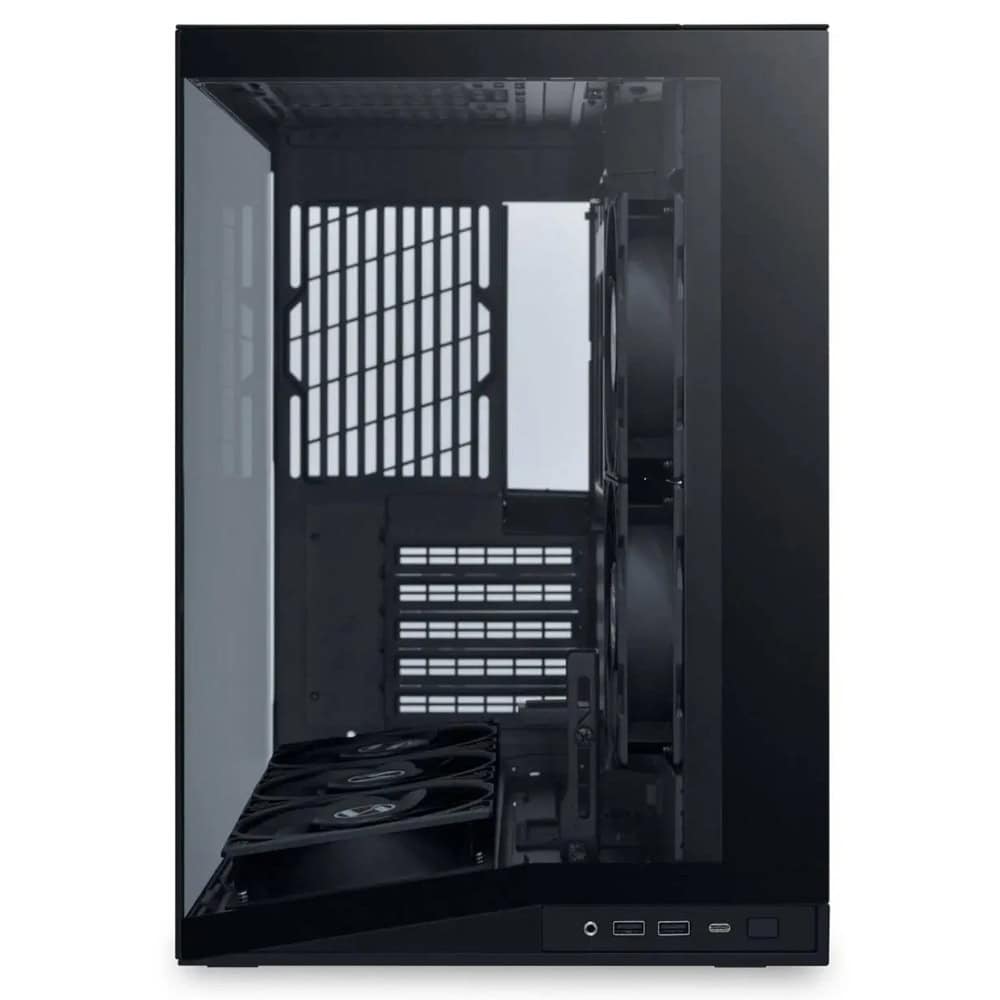

Pillar-less tempered glass front and side panels for an unobstructed internal view
10° slanted bottom improves GPU airflow and aesthetic presentation
Supports ATX, M-ATX, Mini-ITX, and ATX Back-Connect motherboards
Accommodates 400mm long GPUs, 160mm tall CPU coolers, and ATX PSU (Under 200mm)
Supports up to 360mm top radiator, 240mm side radiator, and 9 x 120mm fans
Includes horizontal and vertical GPU anti-sag brackets for heavy GPU support

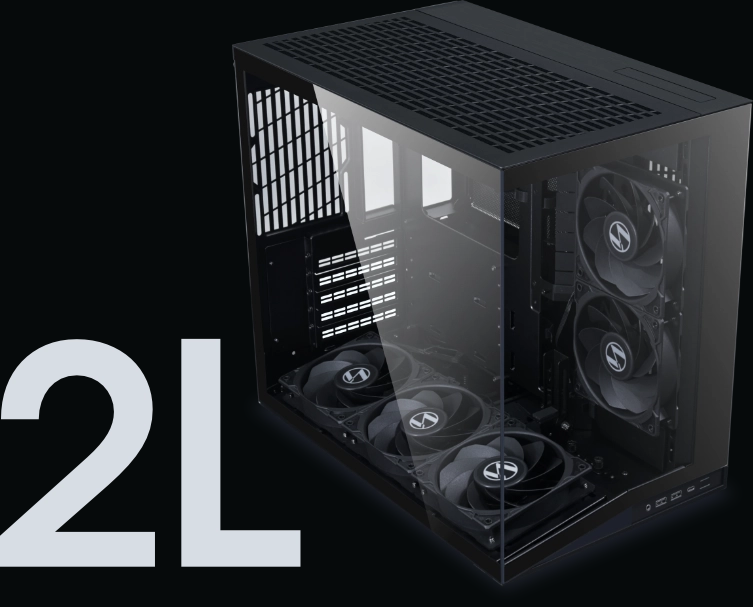

SLIGHTLY BIGGER CASE, WAY MORE CAPACITY

Only 2L larger than the original O11D Mini, but redesigned for greater hardware compatibility and improved airflow.

ATX BACK-CONNECT MOTHERBOARD SUPPORT

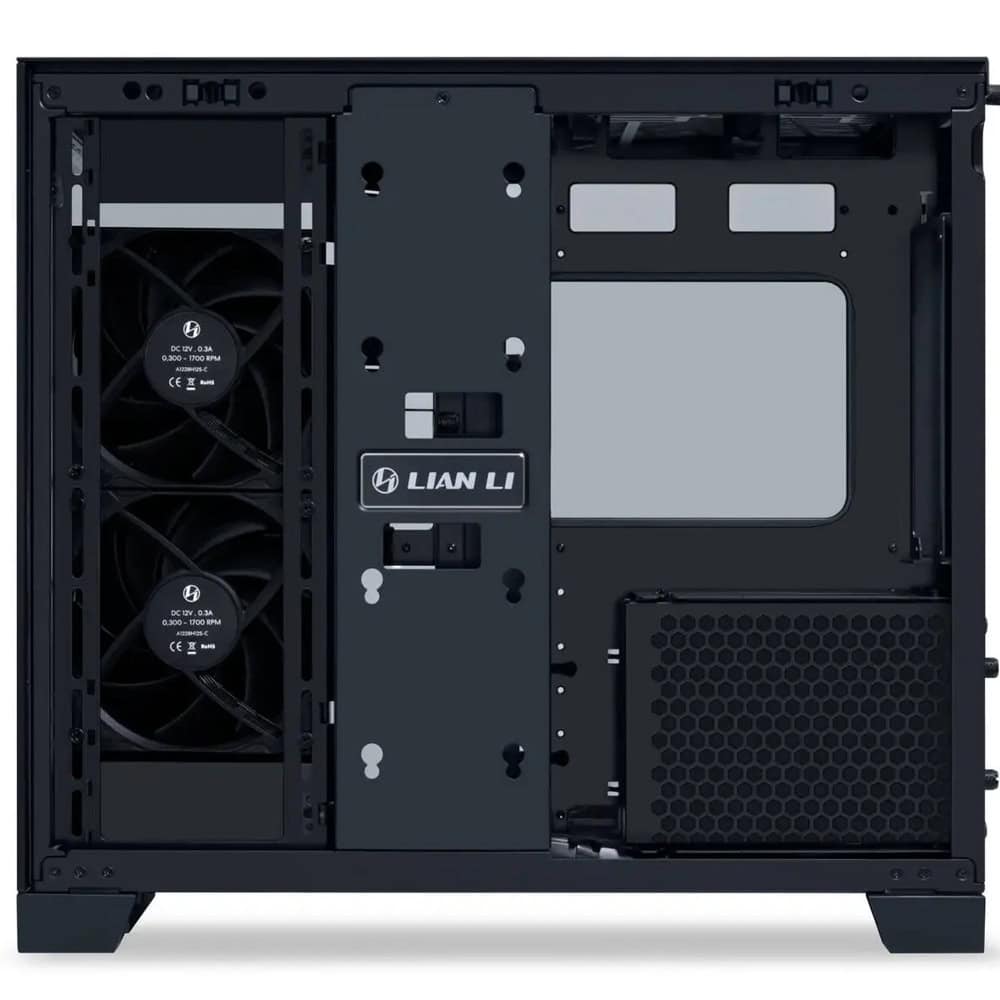

The case offers broad motherboard support, including standard ATX, M-ATX, and Mini-ITX form factors. For users seeking next-level cable management and cleaner builds, Back-Connect compatibility is exclusively available with ATX Back-Connect motherboards.

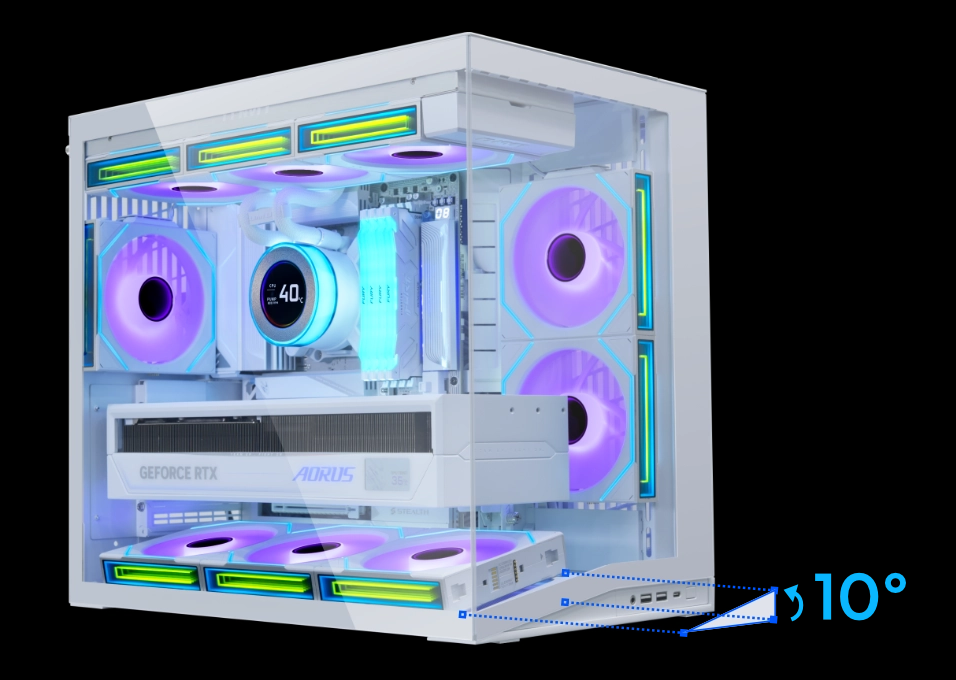

ANGLED BASE FOR DIRECT GPU AIRFLOW

A 10° slanted bottom channels cool air directly to the GPU for better cooling performance and a cleaner look.

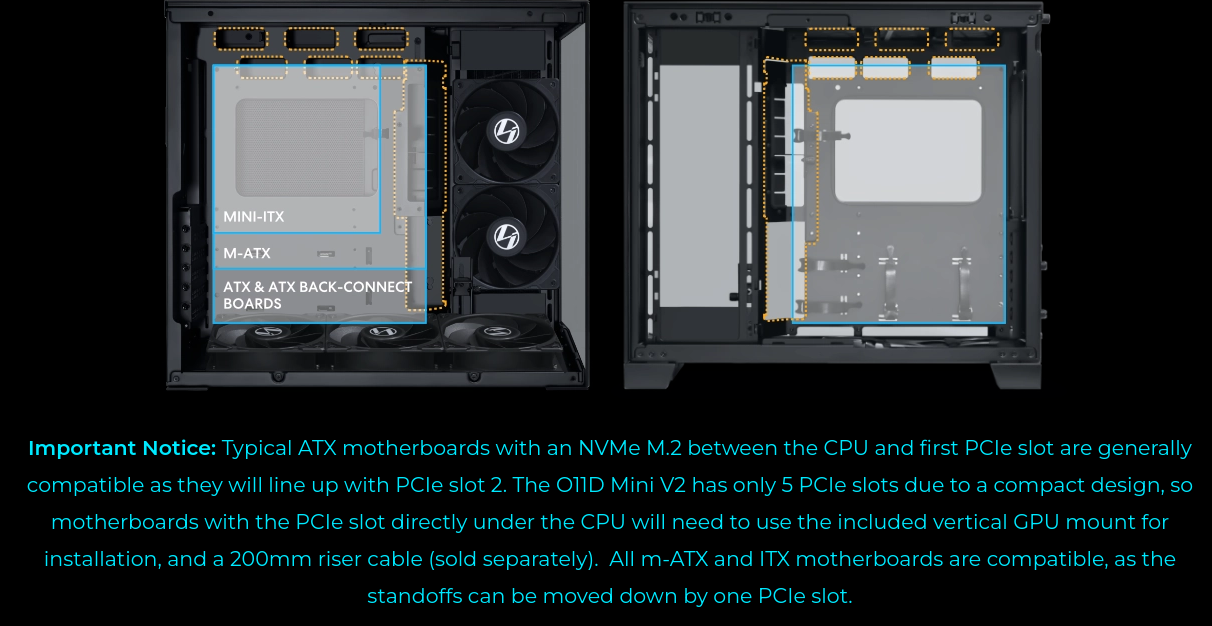

ADJUSTABLE MOTHERBOARD STANDOFFS FOR RADIATOR FLEXIBILITY

This case features movable motherboard standoffs, allowing vertical adjustment of the M-ATX mounting position. This flexibility enhances compatibility with 280mm radiators, as well as thicker 360mm or 240mm models.

GPU ANTI-SAG SUPPORT

Horizontal and Vertical GPU brackets are included out of the box, giving users the freedom to choose their GPU orientation.

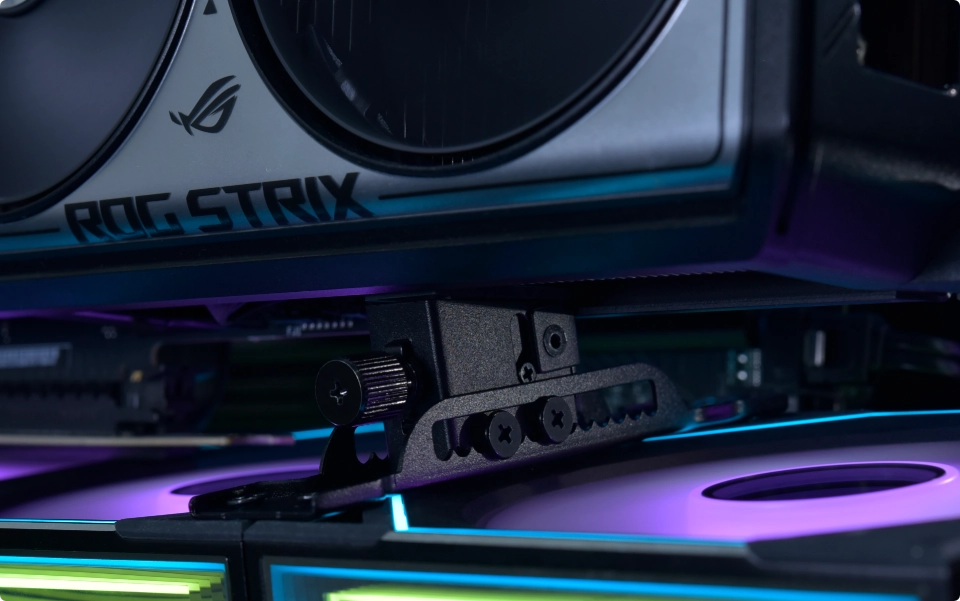

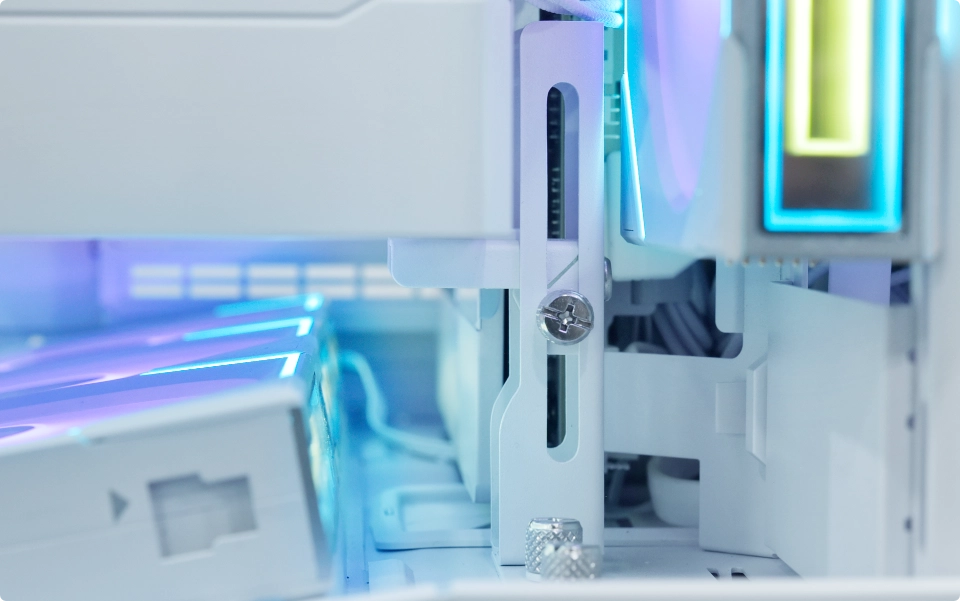

ADJUSTABLE ANTI-SAG BRACKET FOR VERTICAL GPU

The vertical GPU support bracket features height adjustment to accommodate thick cards and prevent GPU sag.

Specification	Details
Color Options	Black
Dimensions (D × W × H)	423.6 mm × 273.3 mm × 391.95 mm
Materials	2mm Aluminum Panel / 1mm Mesh Panel / 4.0mm Tempered Glass
Motherboard Support	Back-Connect ATX / ATX / Micro-ATX / Mini-ITX
Expansion Slots	5
Storage Support	Drive Cage: 2 × 2.5” SSD or 2 × 3.5” HDDBehind MB Tray: 2 × 2.5” SSD
GPU Length Clearance	400 mm
CPU Cooler Height Clearance	160 mm
PSU Support	ATX (Under 200 mm)
Radiator Support	Top: 240 mm / 280 mm / 360 mm (280 mm requires motherboard mounted one slot lower)Side: 240 mm
Fan Support	Top: 3 × 120 mm or 2 × 140 mmSide: 2 × 120 mmBottom: 3 × 120 mmRear: 1 × 120 mm
Included Fans	Side: 2 × Reverse Blade 120 mm PWMBottom: 3 × Reverse Blade 120 mm PWM
Dust Filters	Bottom × 1
