Кутия Xigmatek Cubi, E-ATX/ATX/mATX/Mini-ITX, 1x USB 3.0, с прозорец, черна, без захранване

Xigmatek Cubi

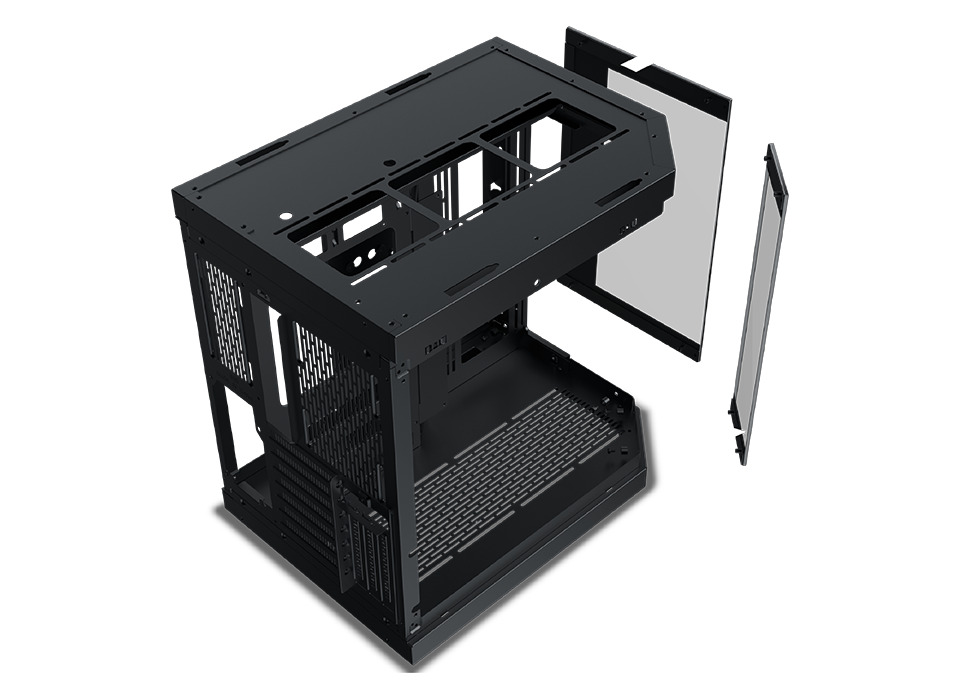

	Easily Mounted Panels
Easily Mounted Panels

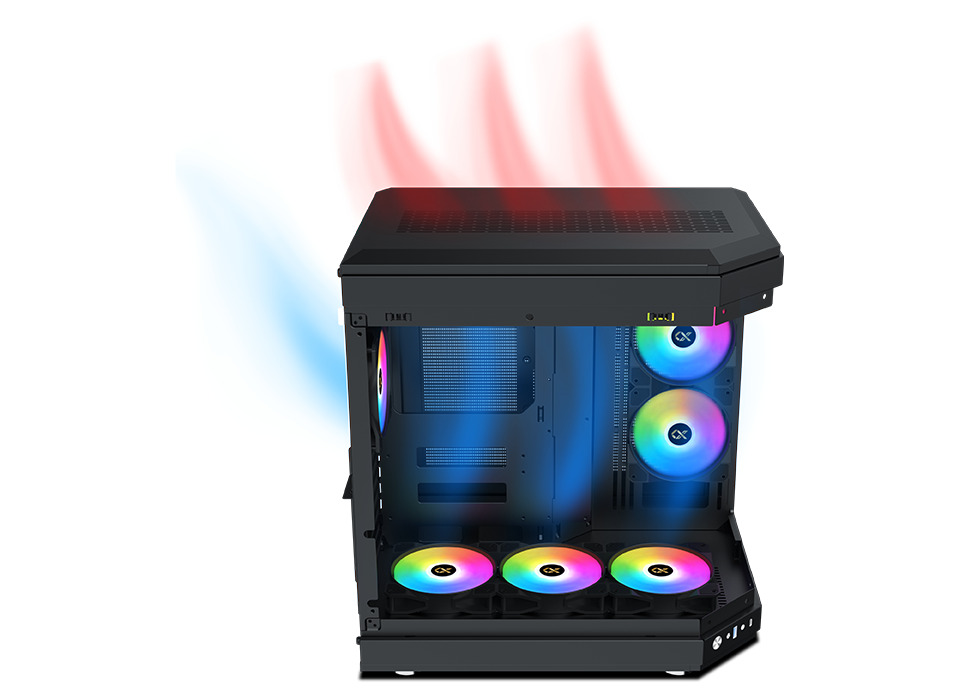

	Superior Airflow and Ventilation Design

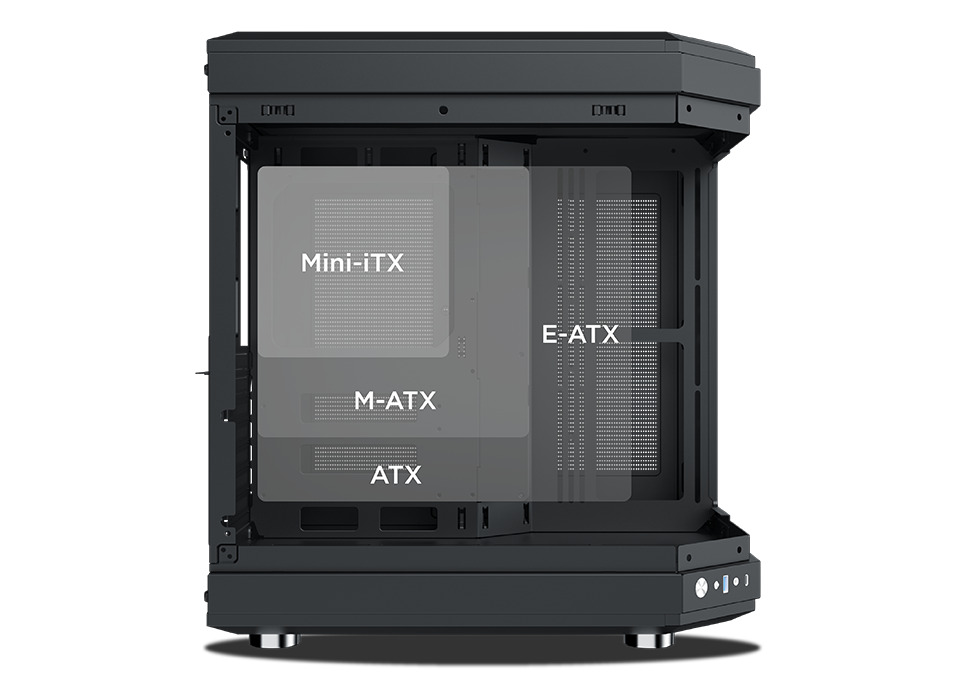

E-ATX Motherboard Support

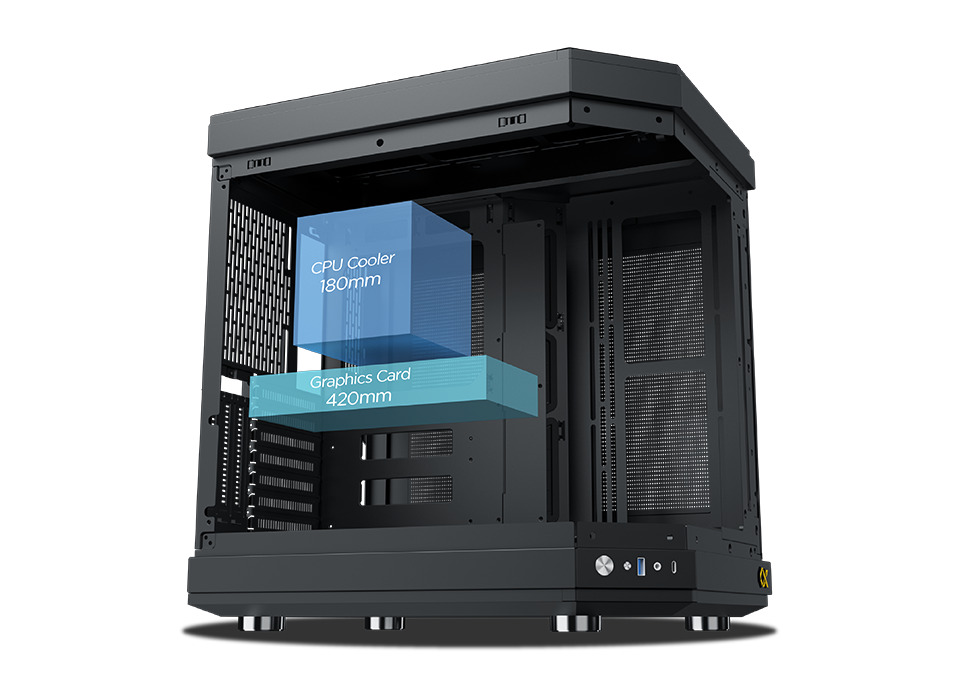

	Component Limitation • CPU Cooler : 180 mm • Graphics Card : 420 mm

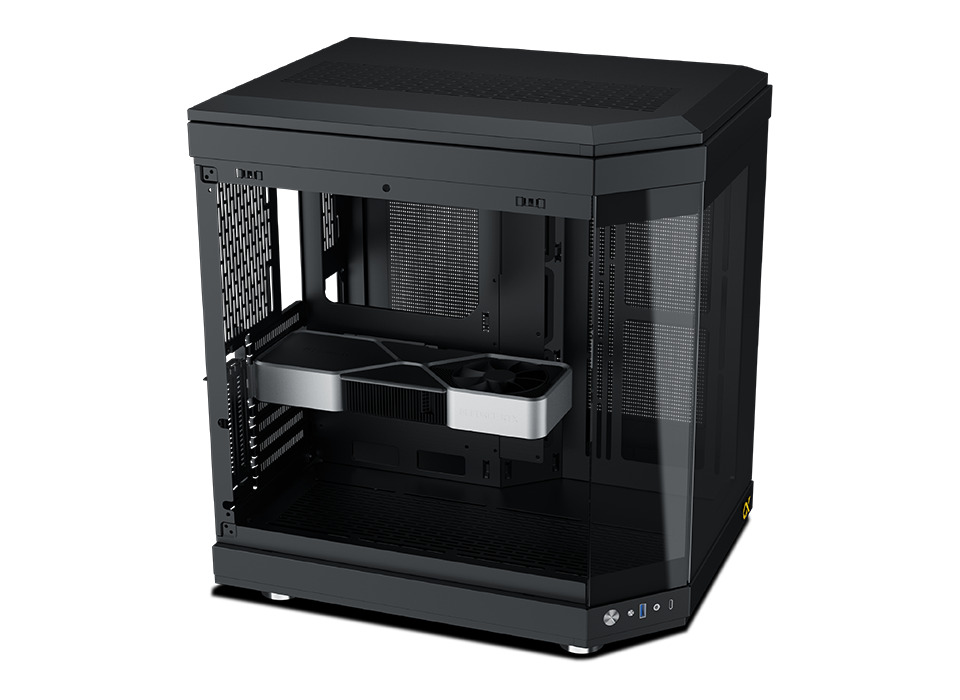

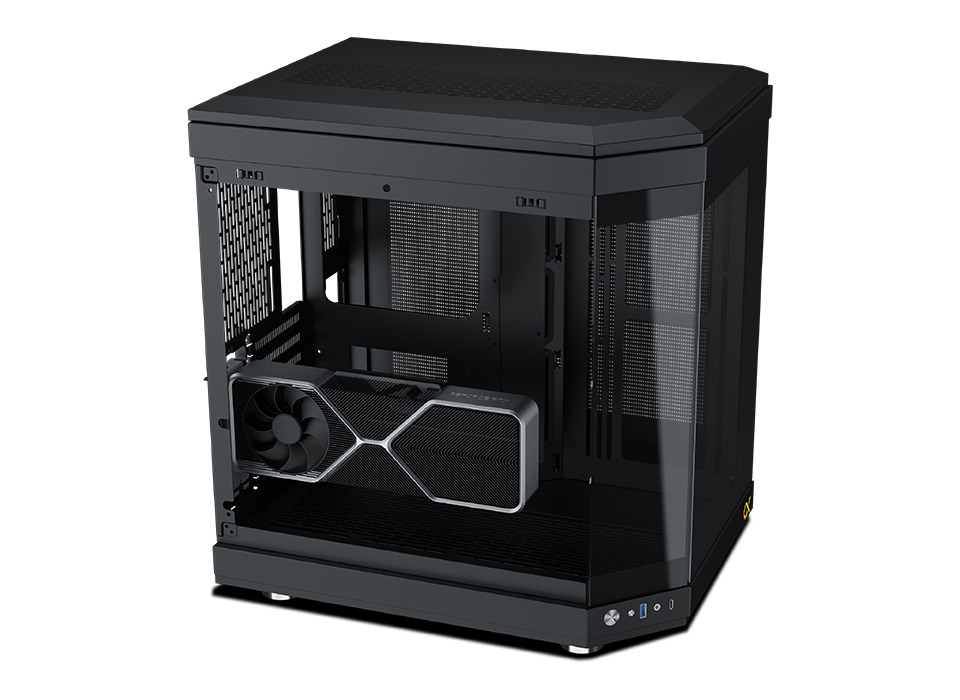

Support Graphics Card Vertical Installation
	Support Vertical Installation

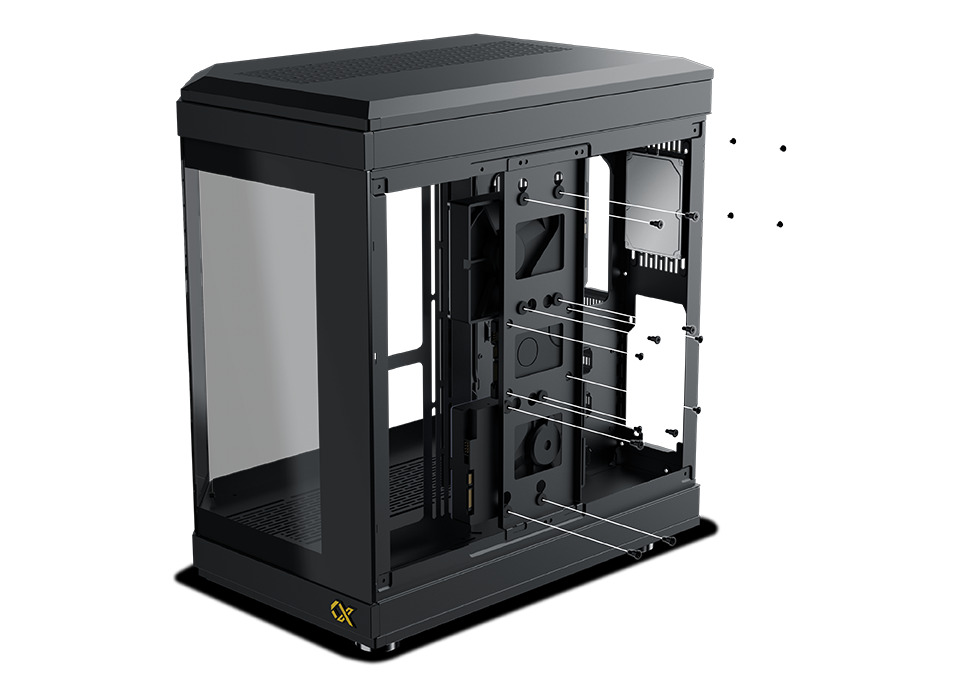

Build With Your Drive Preference • HDD x 4 & SSD x 2

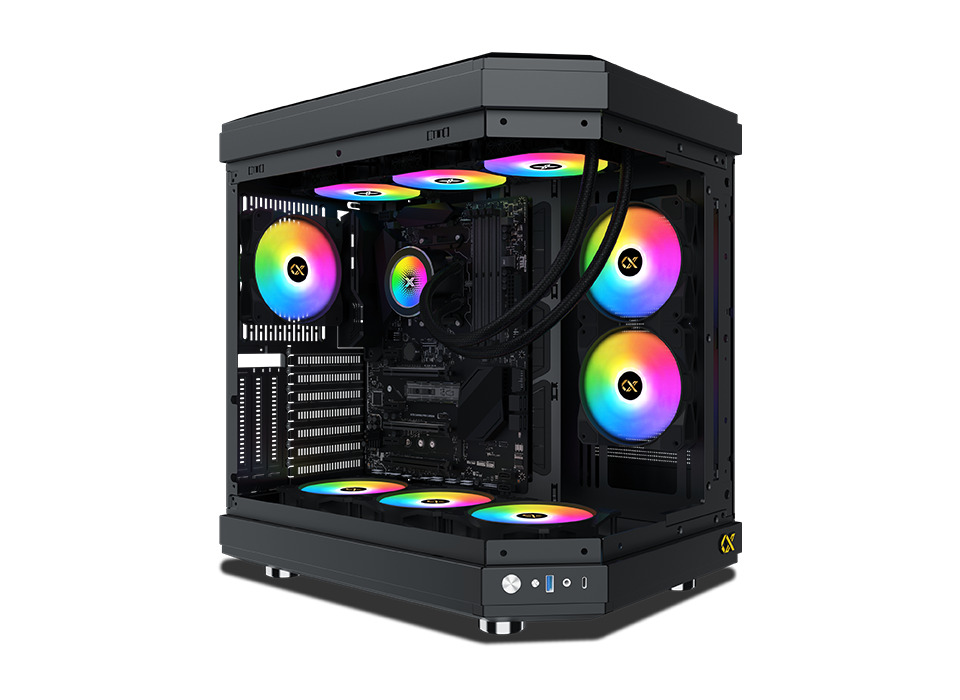

	Effective Heat Dissipation Fan Cooling System： • Top: 120mm x3 • Bottom: 120mm x3 • Rear: 120mm x1 • MB Panel: 120mm x3 or 140mm x2   Liquid Cooling System： • Top: 360 • MB Panel: 240 (E-ATX Width ≤ 28cm) • Bottom: 360 • Rear: 120mm x1

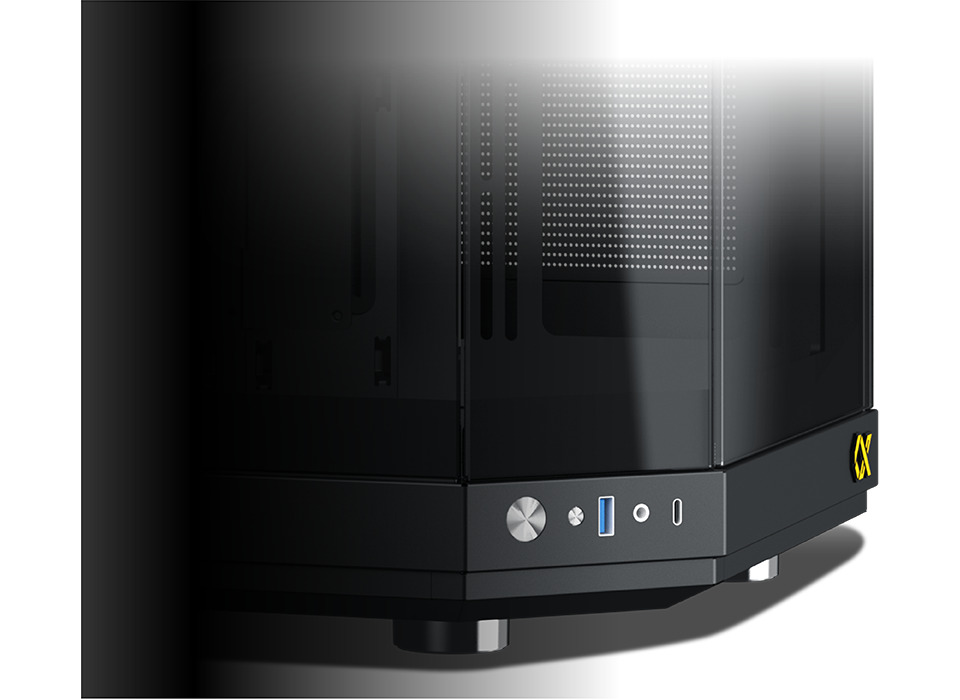

Top Mount I/O Ports • USB3.0 x 1 • Type C x 1 • HD Audio Jack • Reset Button • Power Button

Specifications



Material

Steel



Dimensions

428x310x473mm (LxWxH)



Drive Bays

HDD & SSD Bracket : 3.5″ x2 & 2.5″ x1
Rear SSD Bay : 2.5″ x1



Expansion Slots

7 Standard Slots
3 Vertical Slots



Motherboard Support

E-ATX, ATX, M-ATX, Mini ITX



Power Supply

Standard PS2 ATX PSU



Fan Support

Top: 120mm x3
MB Panel: 120mm x2 or 140mm x2
Bottom: 120mm x3
Rear: 120mm x1



Radiator Support

Top: 360
MB Panel: 240
(E-ATX MB Width ≤28cm)
Bottom: 360



CPU Cooler Clearance

180mm



VGA Length Limitation

285mm
(Liquid Cooler on MB Panel)

420mm
(No Liquid Cooler on MB Panel)



PSU Length Limitation

200mm
