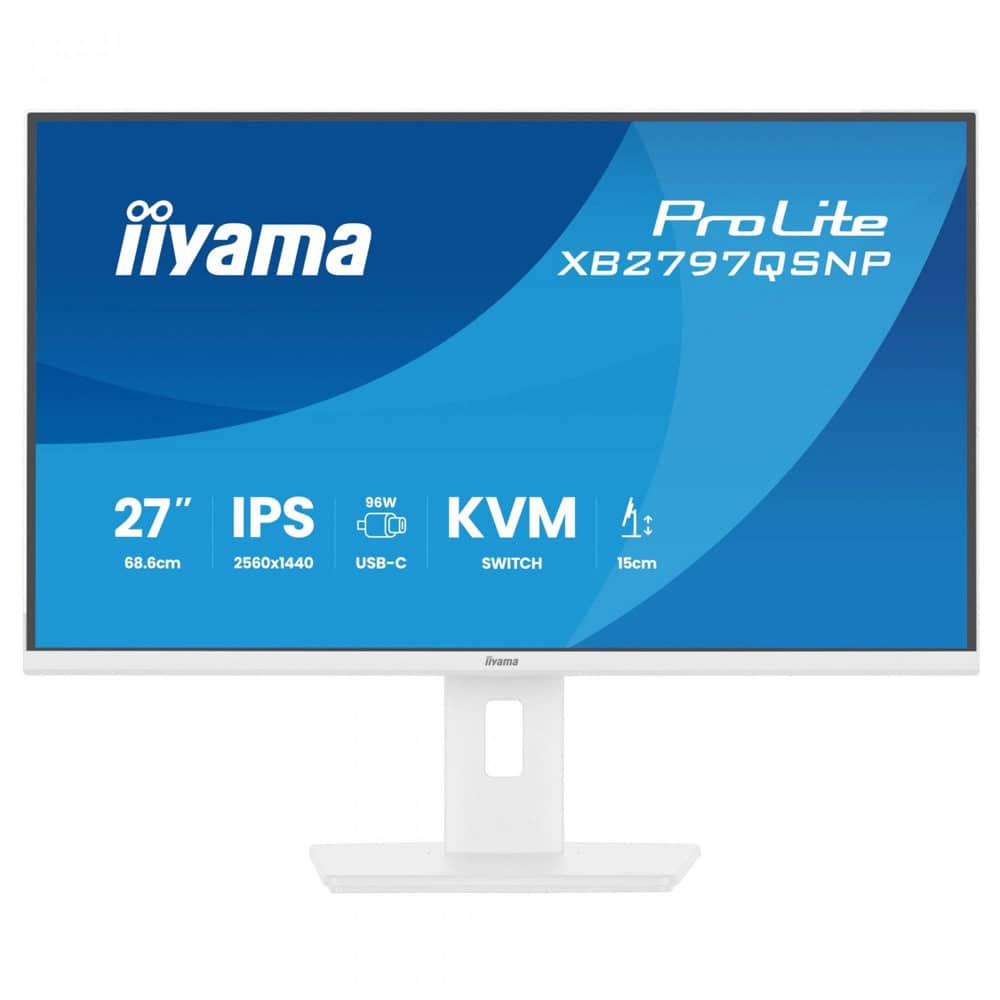

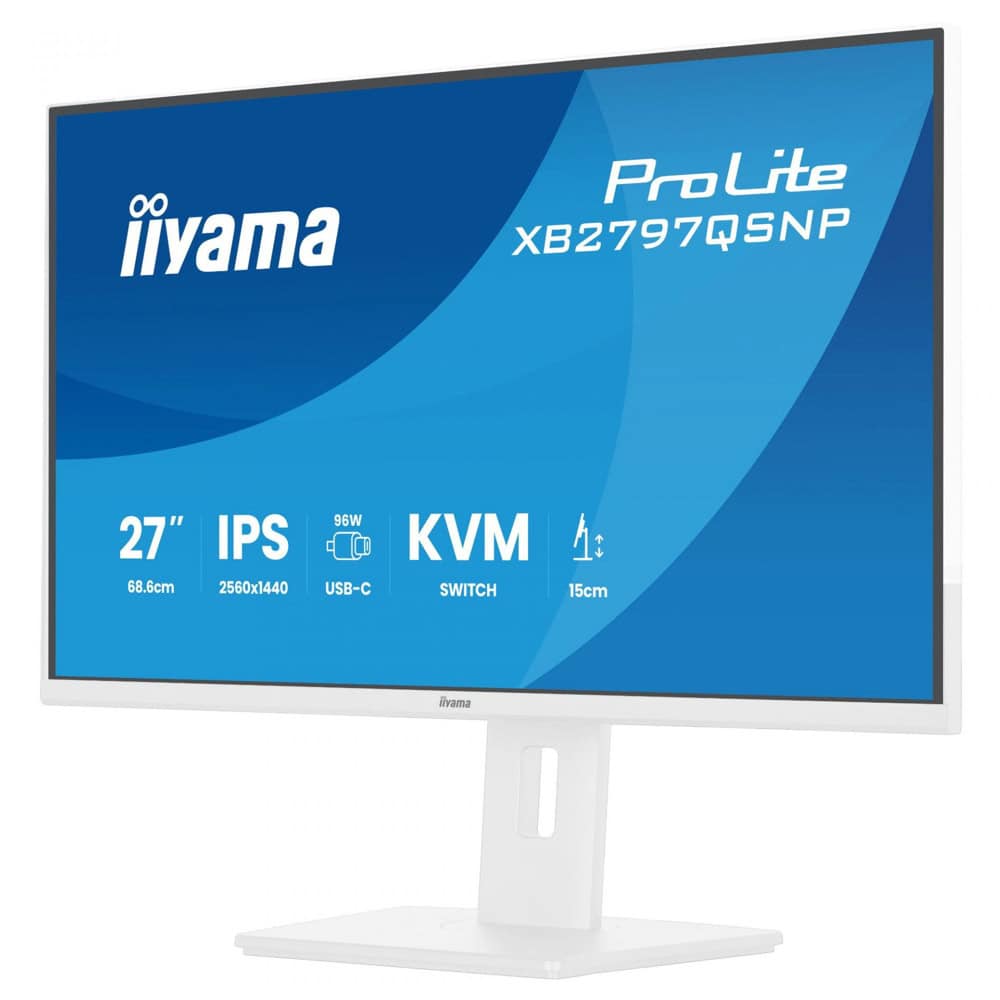

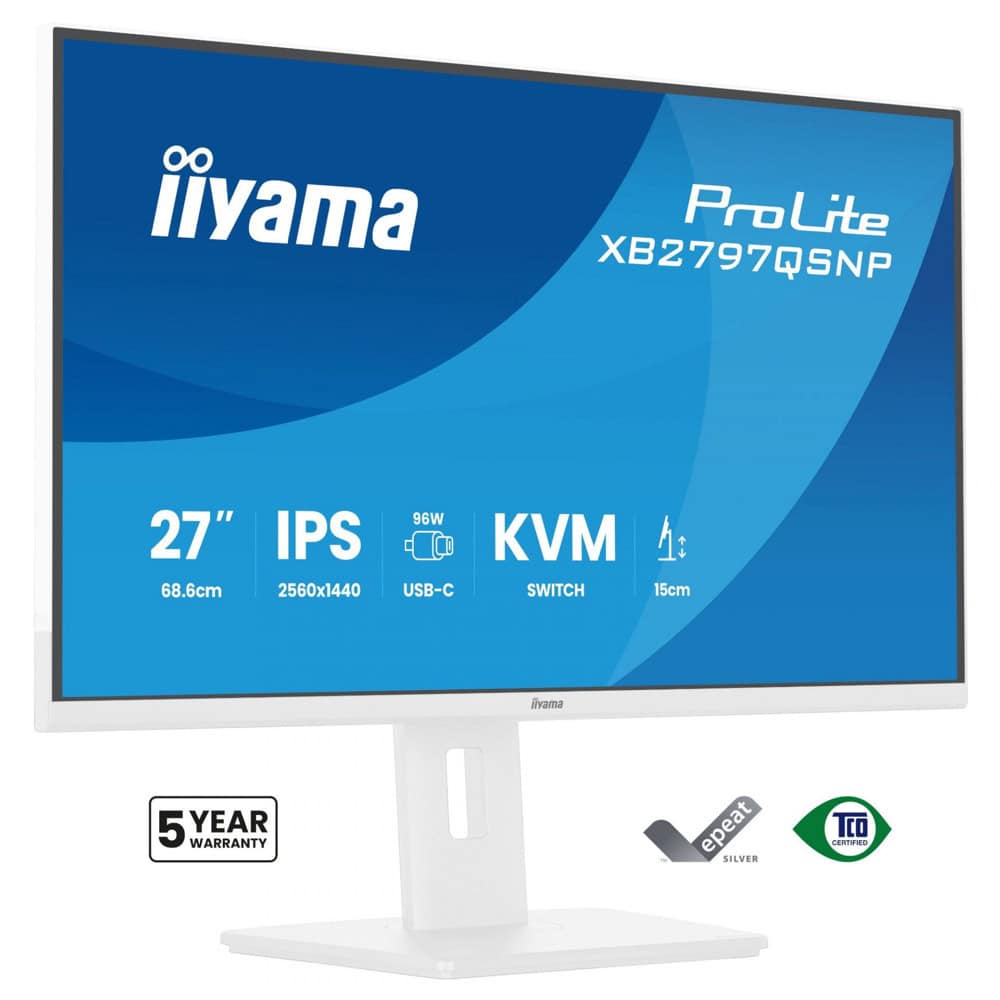

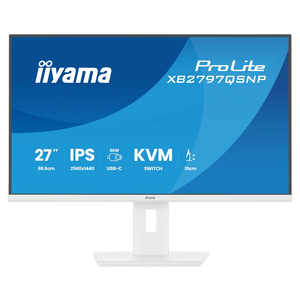

Монитор IIYAMA XB2797QSNP-W1, 27" (68.6 cm) IPS панел, 100Hz, QHD, 1ms, 80 000 000:1, 300cd/m2, DisplayPort, HDMI, USB-C

IIYAMA XB2797QSNP-W1

ProLite XUB2797QSN-W2

27’’ QHD IPS technology panel with USB-C dock and RJ45 (LAN)

Equipped with a USB-C dock connector, the XUB2797QSN allows you to simplify your workspace by using a single cable to both send signal (audio, video and touch) from your notebook to your monitor whilst providing power and charge to the notebook. Additionally, if your monitor is connected to the Internet with a LAN cable, your notebook will automatically be connected to the network as well. Thanks to a DisplayPort output you can easily extend your desktop by creating a double-monitor set-up. The IPS panel assures rich and accurate colours with wide viewing angles. QHD resolution, high contrast and brightness values mean the monitor provides excellent performance for photographic and web design. The ergonomic stand offers a height adjustment of 150mm and with the tilt and swivel mechanisms you can easily turn the monitor into portrait mode for more comfort while working on large data sheets.

Display

Design: 3-side borderless
Diagonal: 27", 68.5cm
Panel: IPS Panel Technology LED, matte finish
Native Resolution: 2560 x 1440 @100Hz (3.7 megapixel QHD)
Aspect Ratio: 16:9
Panel Brightness: 300 cd/m²
Static Contrast: 1300:1
Advanced Contrast: 80M:1
Response Time (MPRT): 1ms
Viewing Angle: 178° horizontal / 178° vertical
Colour Support: 16.7 million colours (sRGB: 99%; NTSC: 72%)
Horizontal Sync: 30 - 151kHz
Viewable Area: 596.7 x 335.7mm, 23.5 x 13.2"
Pixel Pitch: 0.233mm
Colour: Matte, white

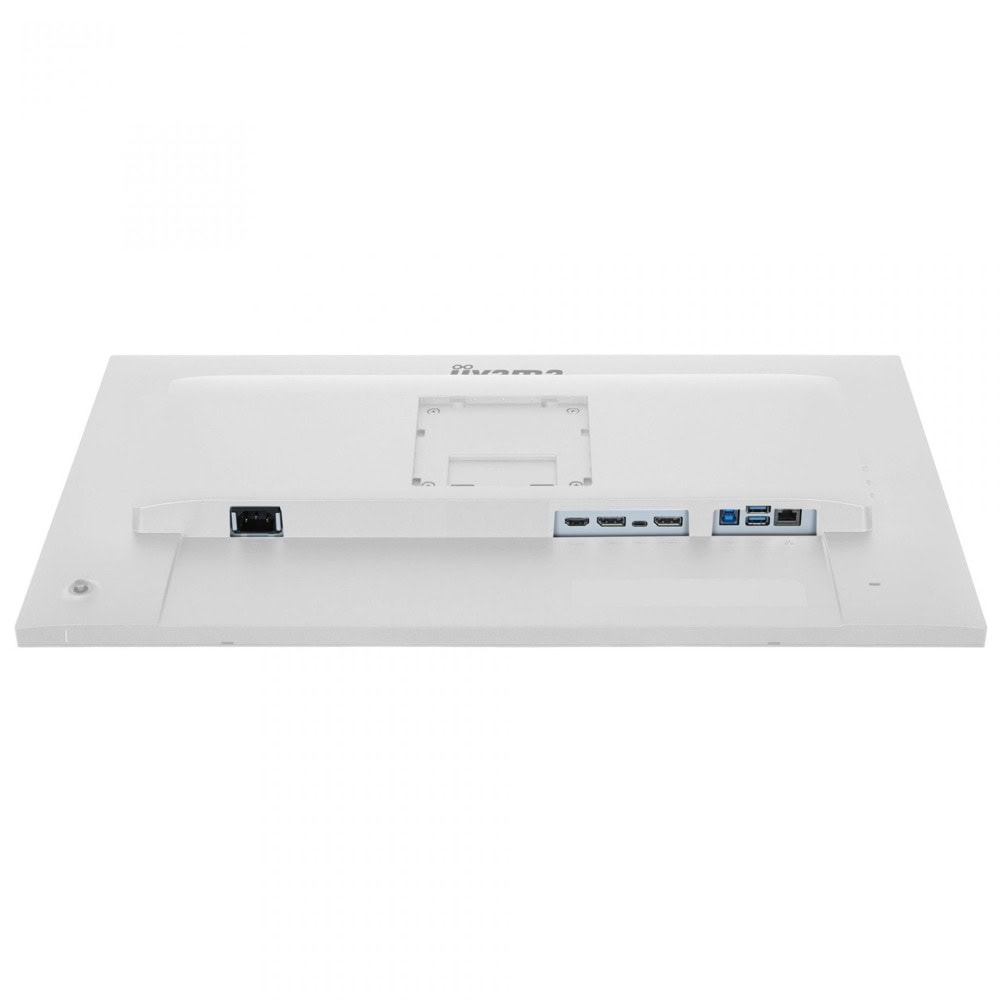

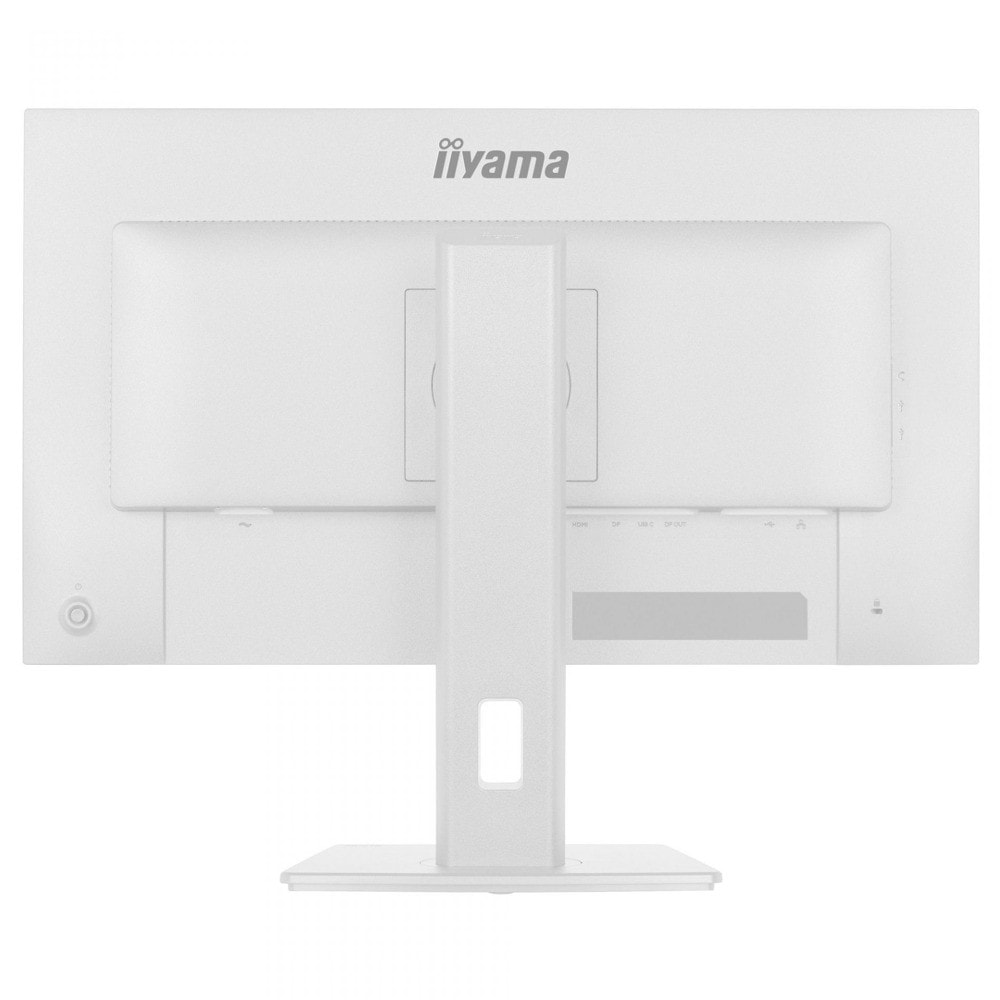

Interfaces / Connectors

Signal Input:
- HDMI x1 (v2.0)
- DisplayPort x1 (v1.4)
- USB-C x1 (Power Delivery 65W)

Signal Output:
- DisplayPort x1 (2560 x 1440)

USB Hub:
- 3x USB Type-A v3.2 Gen 1 (5Gbps, 4.5W)
- 1x USB Type-C (5Gbps, 15W)

USB-C Dock:
- Power Delivery 65W
- LAN
- DisplayPort output
- USB v3.2 Gen 1 (5Gbps)

HDCP: Yes
Headphone Connector: Yes
RJ45 (LAN): x1

Features

Blue Light Reducer: Yes
Flicker Free: Yes
Adaptive Sync Support: Yes
Extra: i-Style Colour

OSD Languages:
EN, DE, FR, ES, IT, RU, JP, CZ, NL, PL

Control Buttons:
Power, Menu, Adjustment/Volume, Adjustment/Shortcut Menu, Input/Exit

User Controls:
- Picture adjustment (brightness, contrast, Eco, ACR, OD, MBR, Adaptive Sync)
- Colour settings (i-Style Colour, blue light reducer, colour temperature, user preset)
- OSD settings (OSD H. position, OSD V. position, OSD rotate, OSD time)
- Language selection
- Recall settings
- Miscellaneous 1 (sharpness, video mode adjustment, opening logo, RGB range)
- Miscellaneous 2 (USB BC, MST, USB, LED, display information, MAC address)
- Input selection
- Audio settings (volume, mute)

Speakers:
2 x 2W

Convenience:
Kensington-lock™ prepared, DDC2B

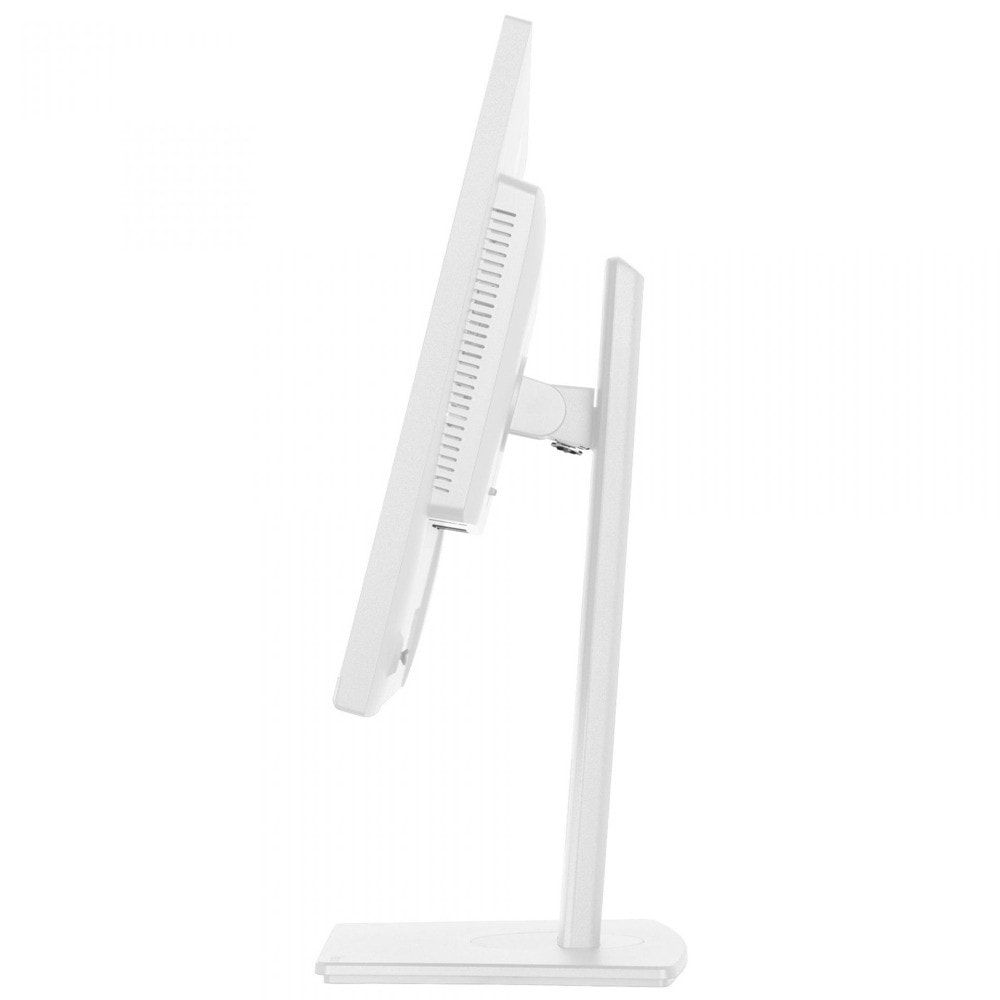

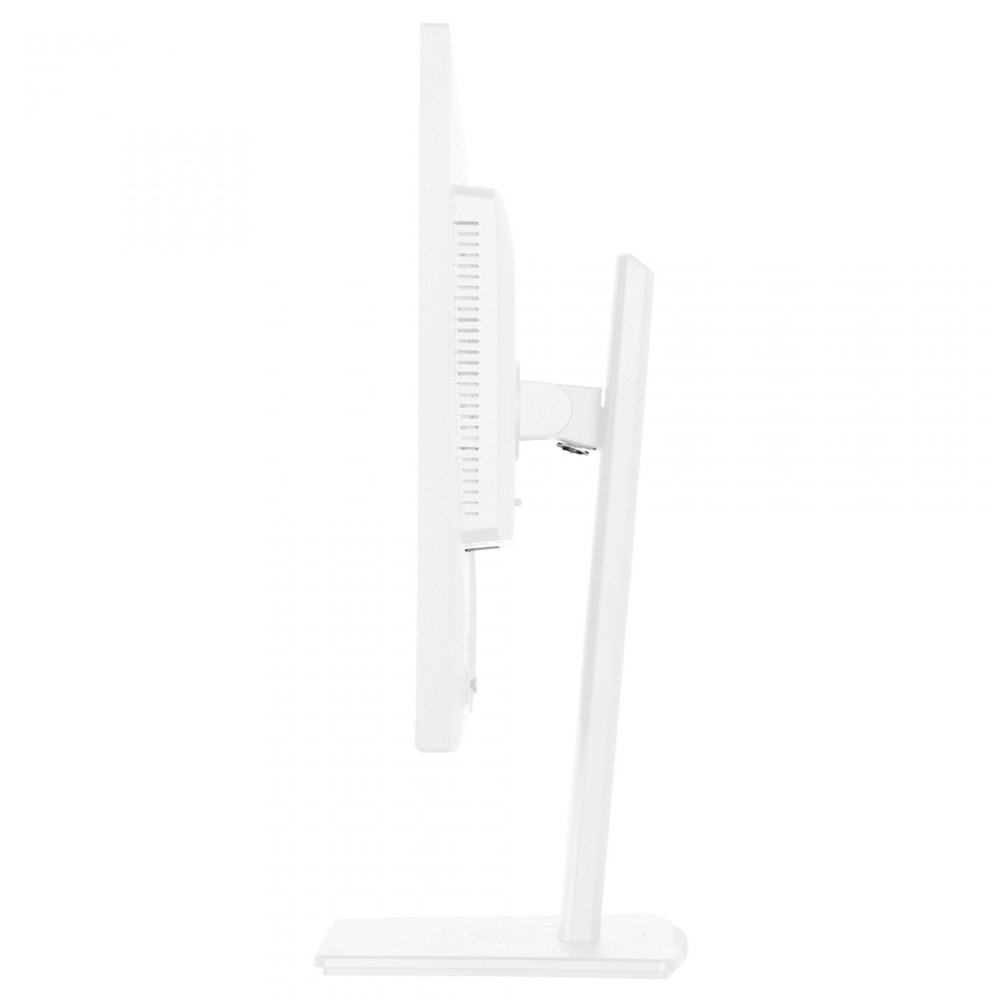

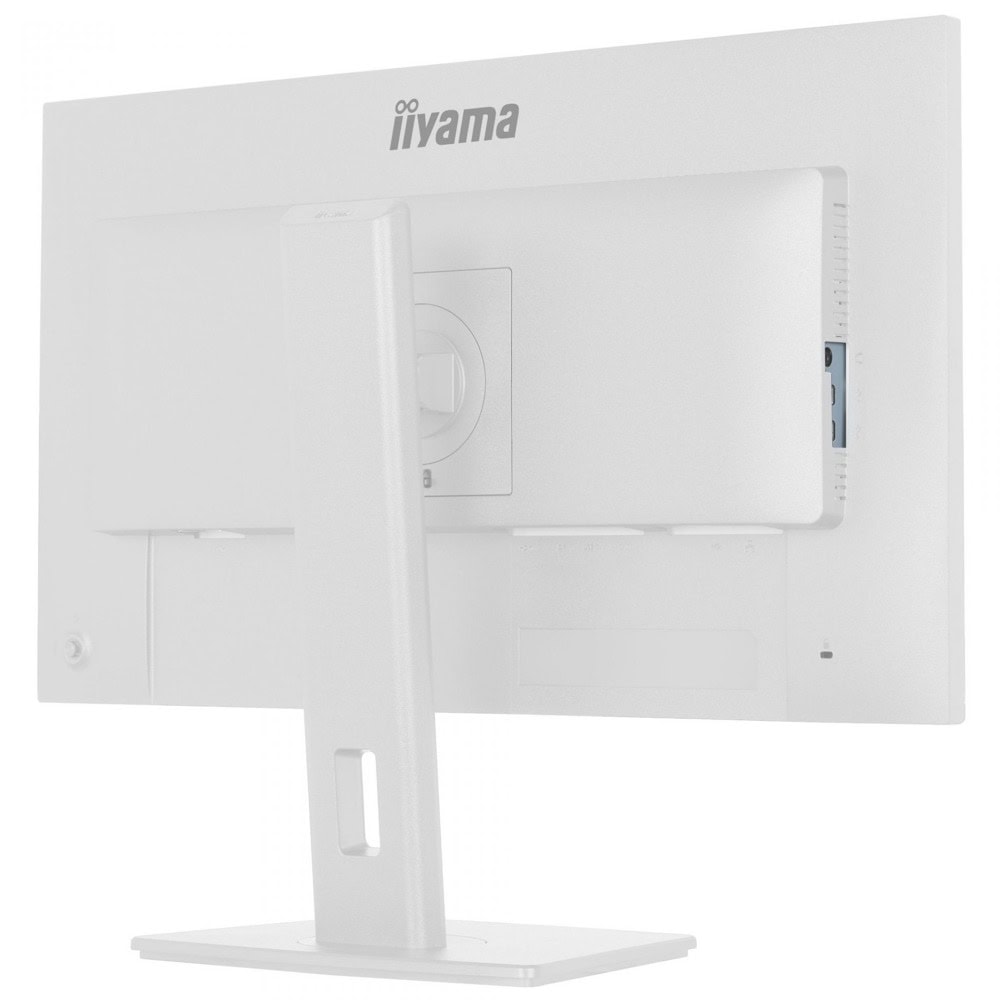

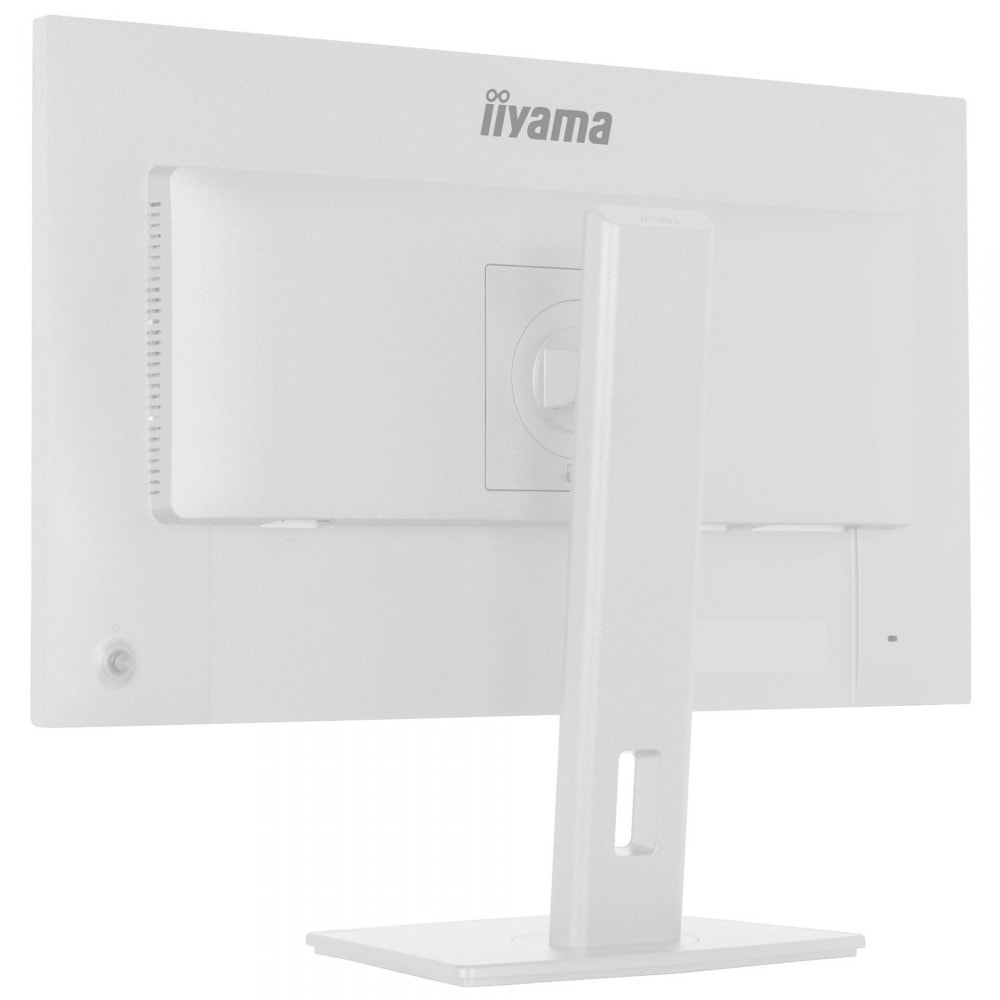

Mechanical

Display Position Adjustments:
Height, swivel, tilt, pivot (rotation both sides)

Height Adjustment: 150mm

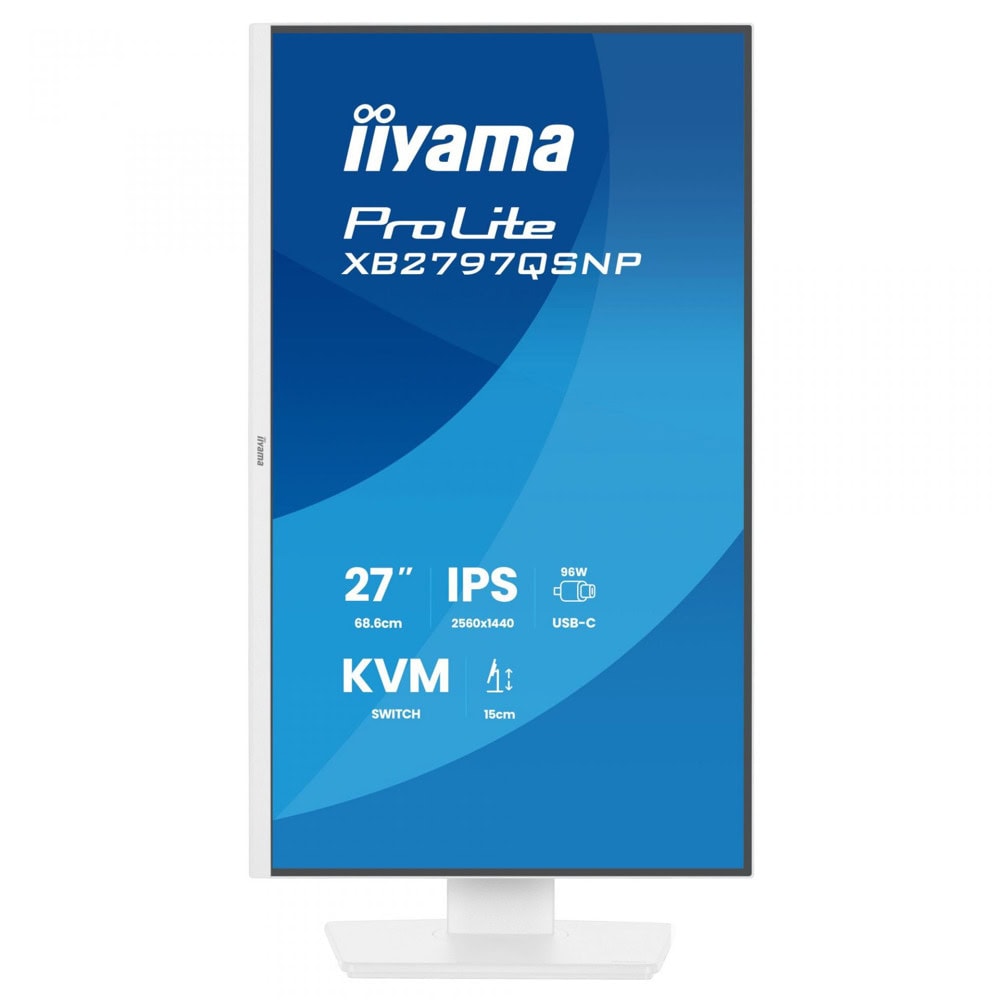

Rotation (Pivot Function): 90°
Swivel Stand: 120° (60° left / 60° right)
Tilt Angle: 23° up / 5° down
VESA Mounting: 100 x 100mm
Cable Management System: Yes

Power Management

Power Supply Unit: Internal
Power Supply: AC 100 - 240V, 50/60Hz
Power Usage: 26W typical
Standby Mode: 0.5W
Off Mode: 0.3W

Sustainability

Regulations:
TCO Certified, CE, TÜV-GS, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA

Energy Efficiency Class:
E

EPEAT Silver:
Comprehensive environmental rating certification. Silver certification means the monitor meets all required criteria plus at least 50% of optional requirements.

REACH SVHC:
Above 0.1%: Lead, Lead monoxide, Diboron trioxide
