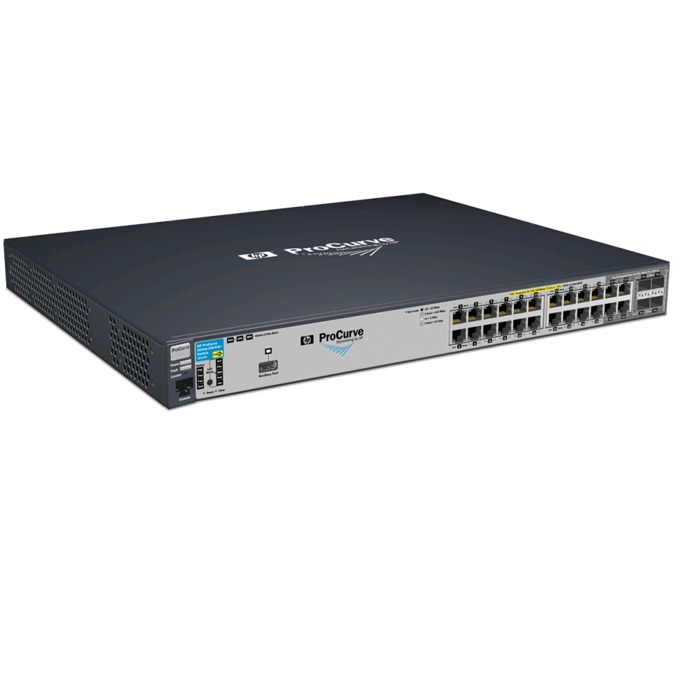

Суич HP E2910-24G-PoE+ (J9146A), 20 ports 1000Mbps, 4xSFP/1000Mbps Combo

Switch HP E2910-24G-PoE+ (J9146A)

Портове 20x10/100/1000Base-T
Сигурност Dynamic ARP protection; DHCP protection; Source-port filtering; Secure Shell; Secure FTP; Secure Sockets Layer (SSL); Port security; MAC address lockout; STP BPDU port protection; USB Secure Autorun; STP Root Guard
Други External - 1U
Захранване Redundant Power
Стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Комутираща матрица капацитет: 128 Gbps
MAC адреси 16000 MAC address table size
Управление HP PCM+; HP PCM; command-line interface; Web browser; out-of-band management (serial RS-232C)
Допълнителни (uplink) портове 4xSFP/1000Base-T Combo
Памет (Flash, RAM) Flash Memory: 4 MB, RAM: 512 MB SDRAM
VLAN (брой, стандарти) Supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Слотове 1 serial console port
Размери, mm 366 x 443 x 44, 1U height
Stackable Single IP address management for a virtual stack of up to 16 switches
Суич, тип Fixed Port
Общ брой портове 24
Основни портове, тип 20x10/100/1000Base-T
Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus: provides up to 30 W per port, PoE power: 382 W
Uplink портове 4 dual personality
Свободни (10GB) слотове No
Fans yes
Routing Layer 3 RIP
Капацитет за маршрутизиране/превключване, Gbps 128 Gbps
Пропускателна способност, Mpps 95 Mpps
QoS Traffic prioritization (IEEE 802.1p); CoS: sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ; Layer 4 prioritization; Rate Limiting
L2 мреживи стандарти VLAN support and tagging; GARP VLAN Registration Protocol (GVRP); Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically
L3 мрежови стандарти Static IP routing: provides manually configured routing; includes ECMP capability; Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing
IPv6 functionality IPv6 host: allows the switches to be managed and deployed at the edge of IPv6 networks
VLAN support and tagging; GARP VLAN Registration Protocol (GVRP); Jumbo packet support: supports up to 9220-byte frame size to improve the performance of large data transfers; IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically
