Hored PS504, 5x 10/100 Ethernet ports, PoE

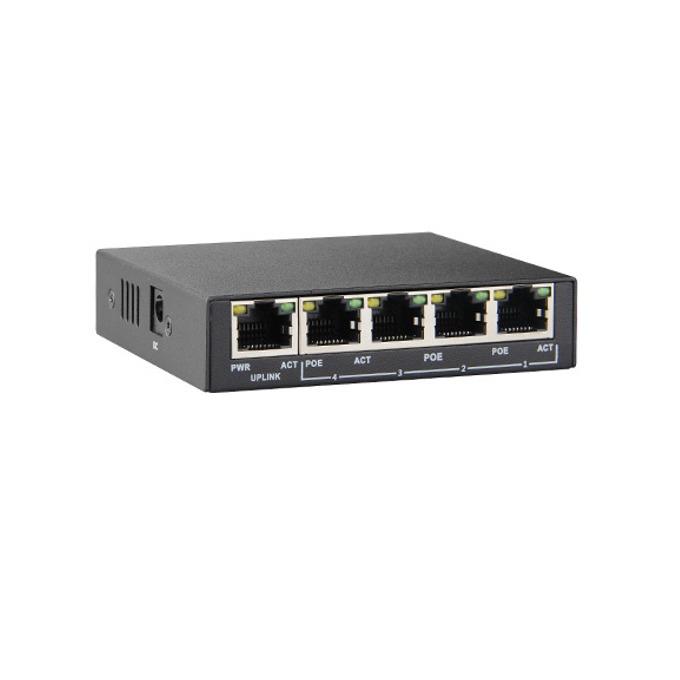

Hored PS504

PS504 is 4 port 100Mbps PoE switch, auto detection and identification IEEE802.3af standard PD device, then carry power to it. Therefore do not worry it will destroy the private standard PoE or Non-PoE equipment.

PS504 is the best choice for minitype commercial network because it economically use PoE deployment wireless AP and IP camera .

PS504 can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.


Interface
4 PoE 10/100Mbps RJ45 ports（1-4）
1 10/100MbpsRJ45 port（5th）

Standards
IEEE802.3i,IEEE802.3u,IEEE802.3x,IEEE802.3af,IEEE802.3at

Bandwidth
1.0Gbps(Non-blocking）

MAC
2K

Forwarding Rate
0.744Mpps

LED
PWR,PoE,Link/ ACT

Power
Input 60W, 48V DC/1.25A
Each port up to 30W
100~240V AC/50-60Hz

Dimensions
92L x 82W x 22H

Weight
0.2kg

Environment
Work within 0°~40°C, Storage within -40℃~70℃
Work within 10%~90% Non-condensing, Storage within 5%~90% Non-condensing
