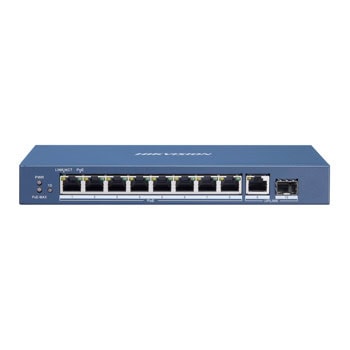

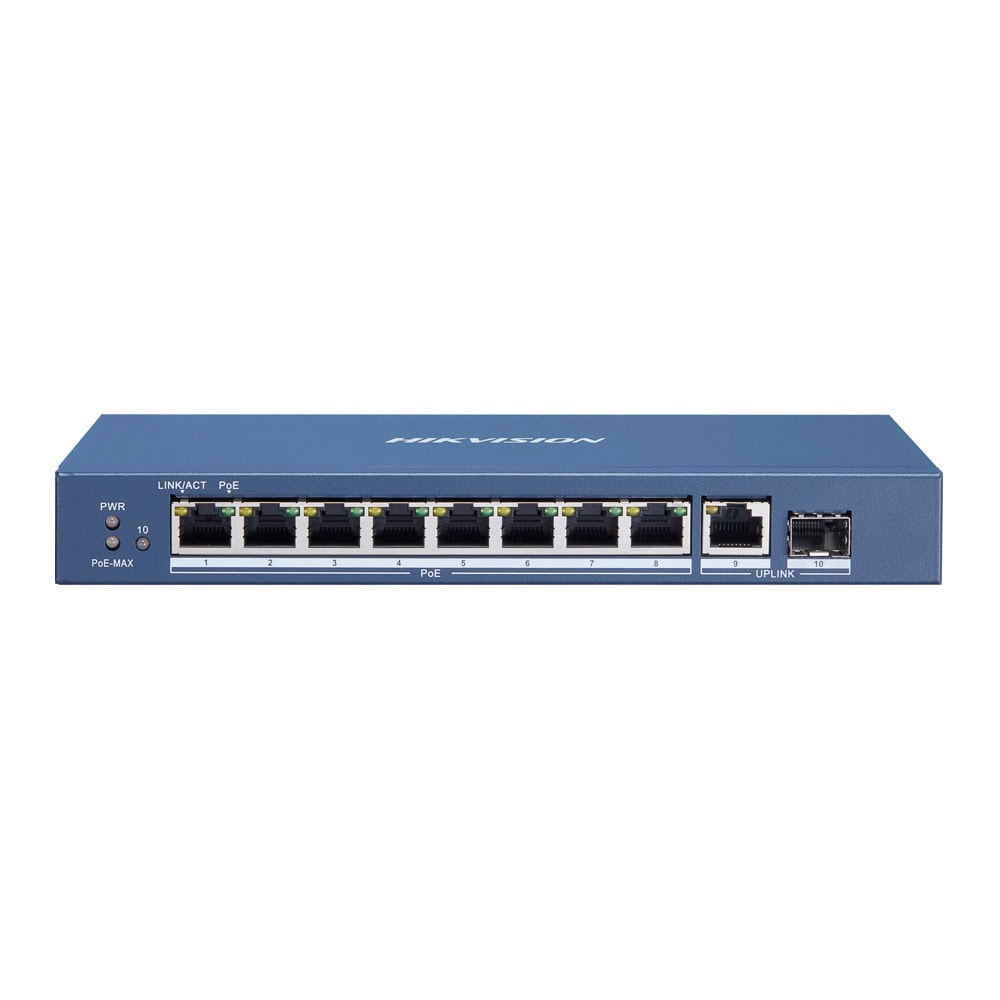

Суич Hikvision DS-3E0510P-E/M, 1000Mbps, 10 порта, 8x 10/100/1000Mbps RJ-45 PoE, 1x 10/100/1000Mbps RJ-45, 1x 10/100/1000Mbps Optical SFP

8 Port Gigabit Unmanaged POE Switch

• 8 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
• IEEE 802.3at/af standard
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
• 6 KV surge protection for PoE ports
• PoE power management
• Gigabit network access
• Wire-speed forwarding and non-blocking design
• Store-and-forward switching
• Solid high-strength metal shell
• Reliable fan-free design

Specifications

General

Shell: Metal material

Net Weight: 0.635 kg (1.40 lb)

Dimensions (W × H × D): 217.6 mm × 27.8 mm × 108.55 mm (8.6'' × 1.1'' × 4.3'')

Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)

Storage Temperature: –40 °C to 85 °C (–40 °F to 185 °F)

Operating Humidity: 5% to 95% (no condensation)

Relative Humidity: 5% to 95% (no condensation)

Power Supply: 48 VDC, 1.35 A

Max. Power Consumption: 65 W

Power Consumption in Idle: 7 W

Installation Mode: Desk-Mounted,Wall-Mounted

Surge Protection: 6 KV

Network Parameters

Ports: 8 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table: 4 K

Switching Capacity: 20 Gbps

Packet Forwarding Rate: 14.88 Mpps

Internal Cache: 1.5 Mbits

PoE Power Supply

PoE Standard: IEEE 802.3af;IEEE 802.3at

PoE Power Pin: End-span: 1/2(+), 3/6(-)

PoE Port: PoE Ports 1 to 8

Max. Port Power: 30 W

PoE Power Budget: 58 W

Approval

EMC: FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)

Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry: CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
