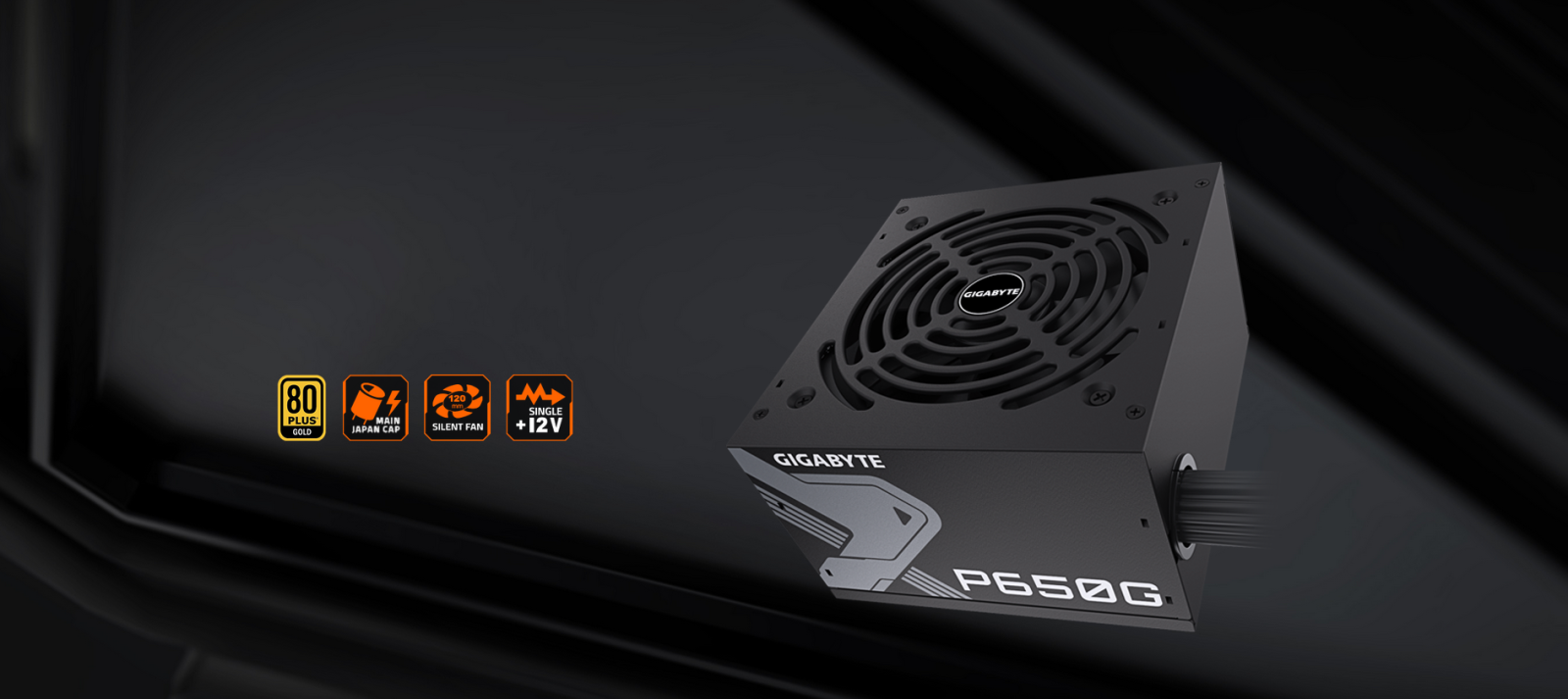

Захранване Gigabyte P650G, 650W, Active PFC, 80 Plus Gold, 120mm вентилатор

Gigabyte P650G

• 80 PLUS Gold certified
• Main Japanese capacitors
• 120mm Silent Hydraulic Bearing (HYB) Fan
• Powerful single +12V rail
• OVP/OPP/SCP/UVP/OCP/OTP protection
• Compact design

Tech specs:

• Type

  Intel Form Factor ATX 12V



• PFC

  Active PFC(>0.9 typical)



• Input Voltage

  100-240 Vac(full range)



• Input Current

  9-4A



• Input Frequency

  60-50 Hz



• Output Capacity

  650W



• Dimension

  150 x 140 x 86 mm



• Fan Type

  120mm Hydraulic Bearing (HYB) Fan



• 80 PLUS

  Gold



• Efficiency

  90% at typical load



• MTBF

  >100,000 hours



• Protection

  OVP/OPP/SCP/UVP/OCP/OTP



• Power Good Signal

  100-500ms



• Hold Up Time

  >16ms



• Cable Type

  Flat, All black



• Connectors

  ATX/MB 20+4 Pin x 1 : 600mm*1
  CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1
  PCI-e 6+2 Pin x 4 : 500mm+150mm*2
  SATA x 6 : 500mm+150mm+150mm*2
  4 Pin Peripheral x 3: 500mm+150mm+150mm*1

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
