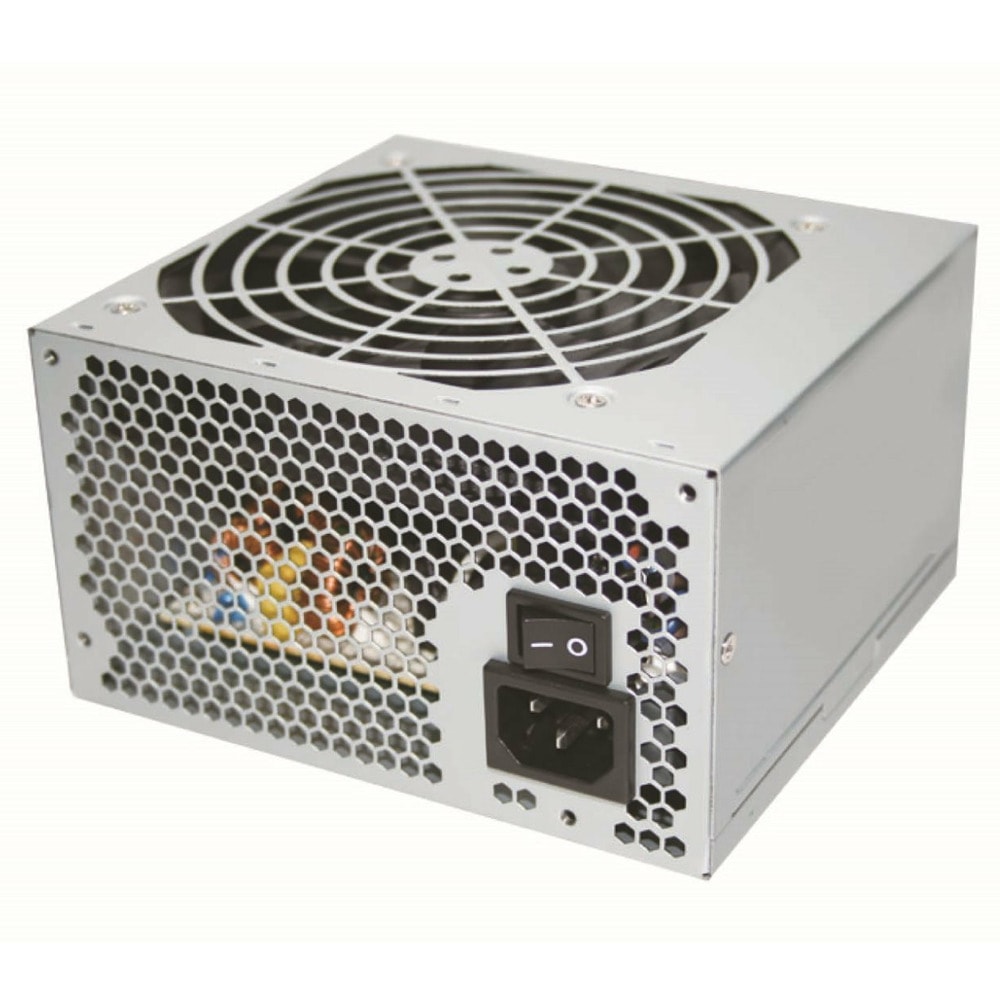

FSP SP500-AD
FSP SP-AD Series features with eco-friendly design, which allows SP-AD series to reach up to 85% efficiency. SP-AD series also equipped with complete protection to prevent your system from damage. SP-AD series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
• Certified CB 62368-1
• 80 PLUS 230V EU Standard Efficiency
• Intel Design Guide ATX 12V V3.0
• Low Ripple & Noise
• Over Current Protection
• Over Temperature Protection
• Over Voltage Protection
Specifications:
| Efficiency: | 80 Plus 230V EU Standard Efficiency |
Working temperature: | 0°C to 40°C |
| Hold-up time: | 230V / 50Hz: ≥ 16ms | Storage temperature: | -40°C to + 70°C |
| Operating altitude | 2,000 meters above sea level | Working humidity: | ~95% RH non-condensing |
| MTBF: | 100,000 hours of continuous operation at 25°C, Max. output load | Storage humidity: | ~95% RH non-condensing |
| Outputs | +5V | +12V | -12V | +5Vsb | |
| Max | 15A | 15A | 37.5A | 0.3A | 2.5A |
| Min. | 0A | 0A | 0A | 0A | 0A |
| Regulation | ±5% | ±5% | ±5% | ±10% | ±5% |
| Ripple/Noise | 50 mV | 50 mV | 120 mV | 120 mV | 50 mV |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри FSP
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 450 W |
|---|---|
| Модулен блок: | Не |
| Форм фактор: | ATX |
