Кутия Fractal Design Meshify 2 Black Solid, E-ATX/ATX/microATX/Mini-ITX, черна, 2x USB 3.0, 1 x USB 3.1 Type-C, без захранване

Кутия Fractal Design Meshify 2 Black Solid

FD-C-MES2A-01



Meshify 2

A classic evolved.

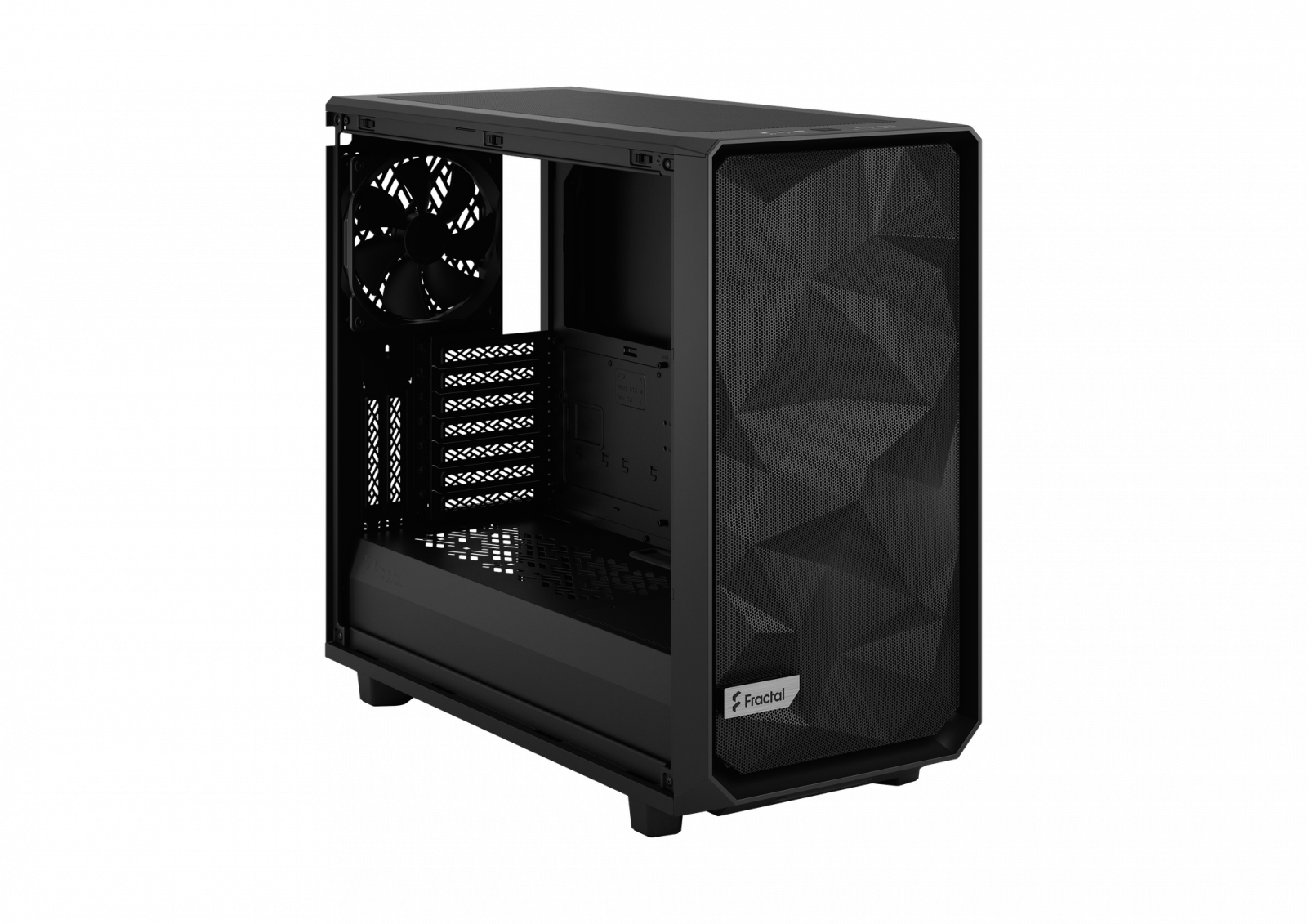

The Meshify 2 is a high-performance case with a bold, stealth-inspired
aesthetic. Its striking exterior features bolt-free, flush tempered glass,
a fully removable top granting excellent interior access, and a fully
redesigned front with USB-C, hinged mesh panel and removable nylon
filter. The flexible dual-layout interior supports large storage arrays and
multi-radiator setups that makes cooling a breeze.



Key features

• Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
• Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
• Includes 6 HDD/SSD trays, 2 SSD brackets, and 1 universal Multibrackets for mounting up to 10 drives
• Expandable to 11 trays and 4 SSD brackets with 3 Multibrackets installed in the top and bottom for a max of up to 18 drives in Storage Layout
• New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
• New front nylon filter that can be removed for increased airflow
• New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
• Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
• Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
• Outstanding cooling capacity with a total of nine 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
• Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
• Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount
• Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
• Two vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
• Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
• Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
• Tool-less, top-latching side panels allow quick access while preventing accidental drops



General specifications:

3.5"/2.5" drive mounts

• 6 included, 14 positions total + 1 Multibracket

Dedicated 2.5" drive mounts

• 2 included, 4 positions total

5.25” drive mounts

• 0

Expansion slots

• 7 + 2

Motherboard compatibility

• E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX

Power supply type

• ATX





Front interface

• 1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0,
 Audio I/O, Power button, Reset button



Total fan mounts

• 9x 120/140 mm

Front fan

• 3x 120/140 mm (2x Dynamic X2 GP-14 included)

Top fan

• 3x 120/140 mm

Rear fan

• 1x 120/140 mm (1x Dynamic X2 GP-14 included)

Bottom fan

• 2x 120/140 mm

Dust filters

• Top, front,and bottom

Front radiator

• Up to 360/280 mm

Top radiator

• Up to 360/420 mm

Rear radiator

• 120 mm

Bottom radiator

• Up to 240/280 mm



PSU max length

• 250 mm (with HDD cage installed)

GPU max length
• Storage layout: 315 mm
• Open layout: 491 mm (467 mm w/ front fan)



CPU cooler max height

• 185 mm

Cable routing space

• 30 mm

Cable routing grommets

• Yes

Fixed velcro straps

• Yes

Tool-less push-to-lock

• Top front and side panels

Captive thumbscrews

• HDD, SSD and PSU brackets

Left side panel

• Steel or tempered glass

Right side panel

• Steel

Case dimensions (LxWxH)

• 542 x 240 x 474 mm

Case dimensions w/o feet/protrusions/screws

• 541 x 240 x 454 mm
