Захранване Fractal Design Ion+ 2 Platinum, 760W, Active PFC, 80 Plus Platinum, 140mm вентилатор

Fractal Design Ion+ 2 Platinum


The power of silence.

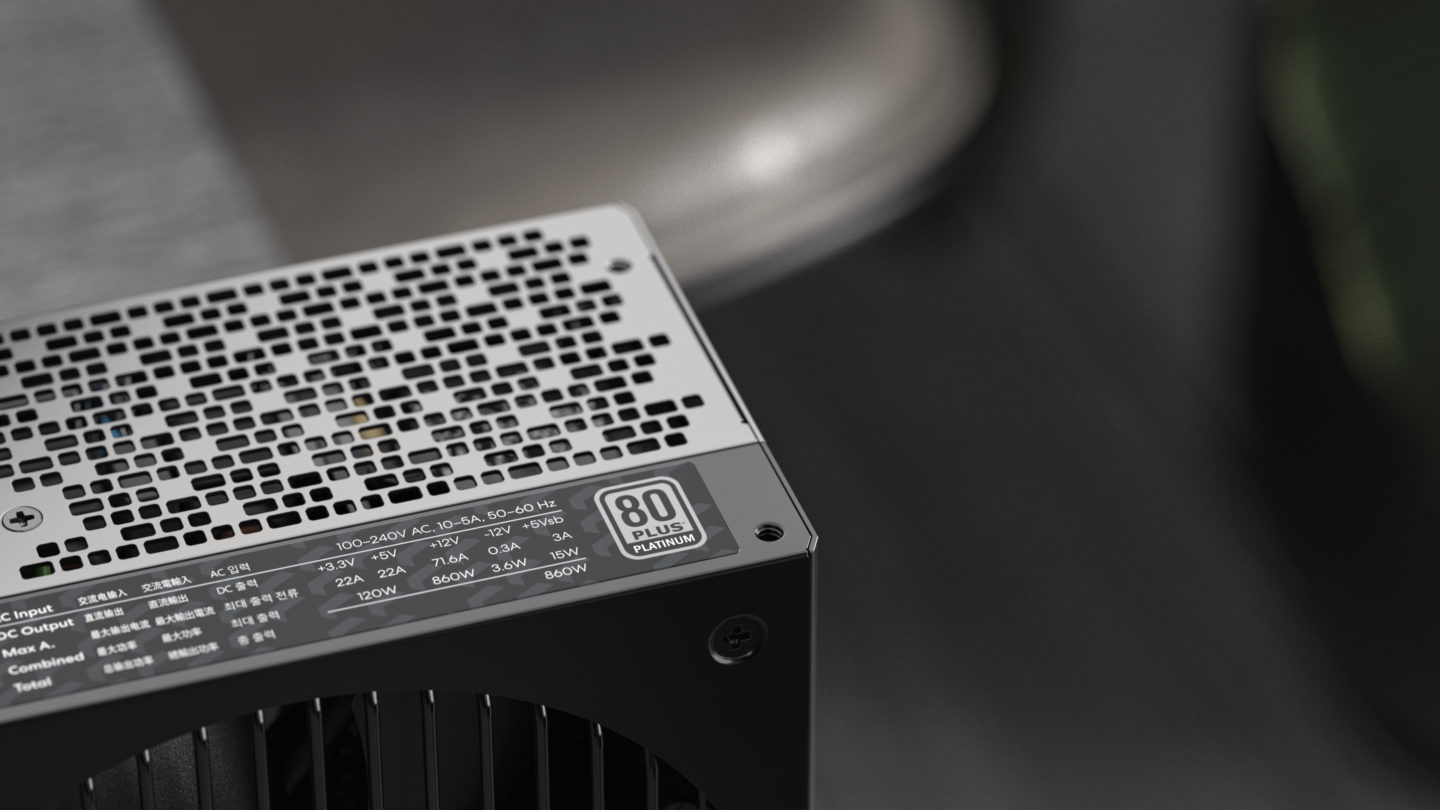

80 PLUS® Platinum certified
80PLUS® Platinum efficiency for optimized electricity use and reduced heat generation

Supports the latest ATX 2.52 standard with improved start-up time and transient load response

Great electrical output quality with tight voltage regulation and low ripple and noise

Premium capacitors
Premium Japanese 105°C capacitors provide superior reliability and durability








80PLUS® certification
Platinum

Modular cables
Fully modular

Fan type
140 mm FDB bearing Fractal Design Dynamic series fan

Maximum operating temperature (full load)
50°C

Semi-passive operation
Yes, user selectable (Zero RPM)

Capacitors
Japanese

Life expectancy
100,000 hours

PSU specification compliance
ATX12V 2.52; EPS12V 2.92

Cable type
Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires

Input voltage
100-240V C

Input frequency
50-60 Hz

Input current
10A/5A

Protection features
Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
Standby efficiency
ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
Sleep state compliance
C6/C7
Approvals & certifications
CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC

Connectors
ATX 24-pin
1
ATX12V 4+4 pin / EPS12V 8-pin
2
PCIe 6+2 pin
6
SATA
10
Peripheral
4

Cable Configuration (length in mm between connectors)
ATX 20+4 pin
600 mm
ATX 12V 4+4 pin
700 mm
EPS12V 8-pin
600 mm
PCIe 6+2 pin
550 + 120 mm
SATA
400+150+150+150 mm & 650+150mm
Peripheral
400+150+150+150 mm

DC Output
3.3V
22A
5V
22A
3.3V and 5V combined
120W
12V
63.3A
-12V
0.3A
+5Vsb
3A
Total Power
760W
