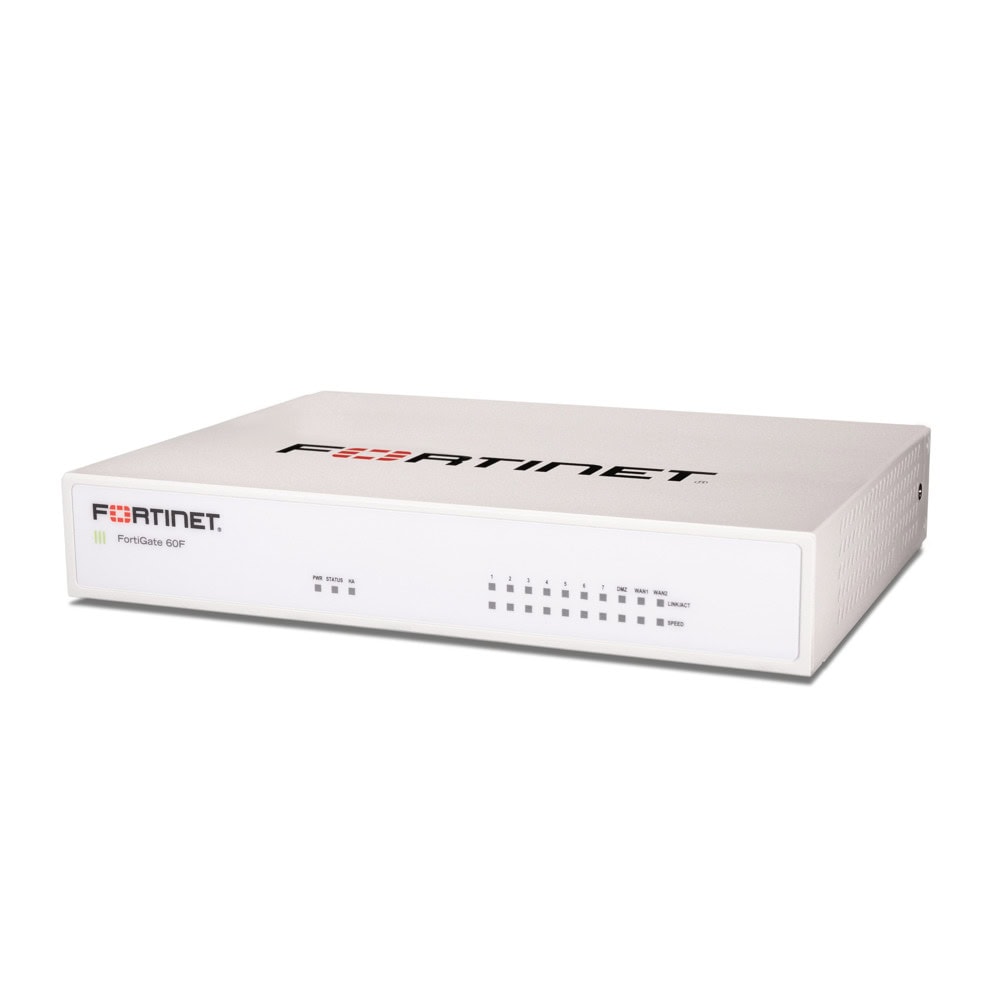

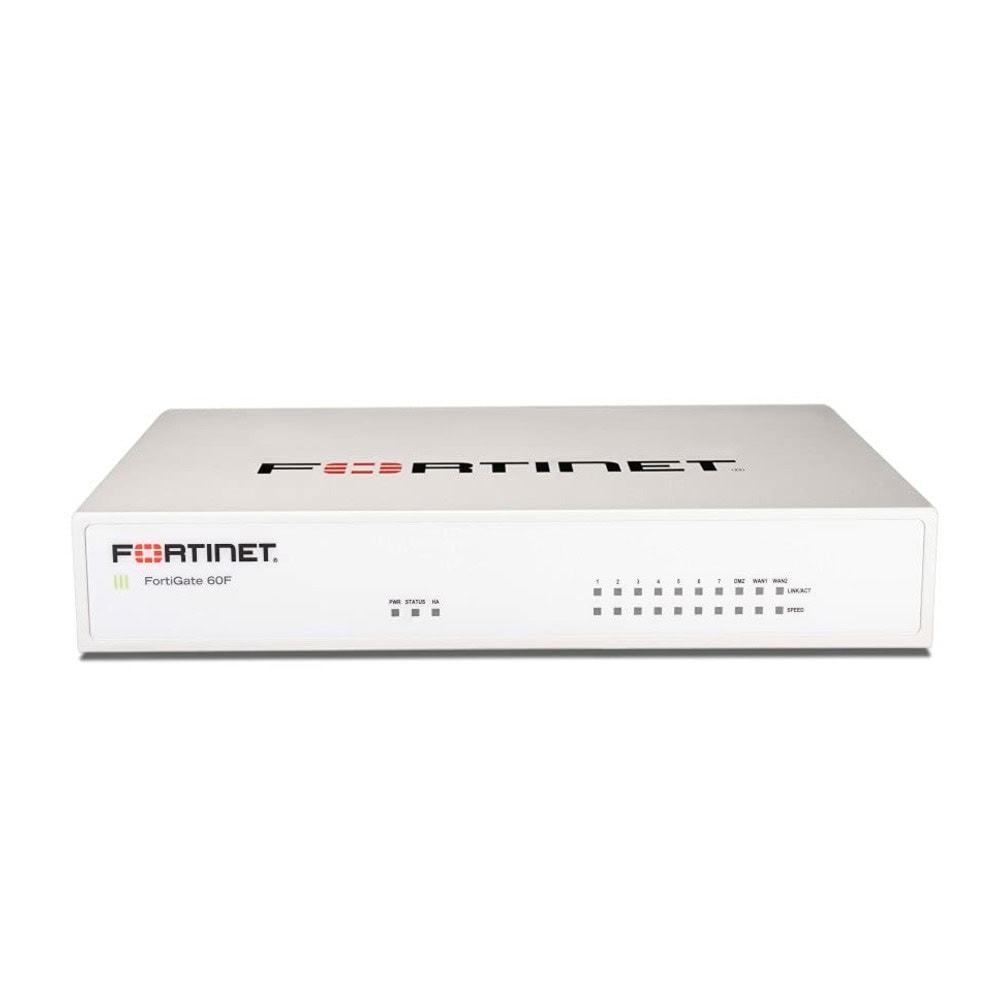

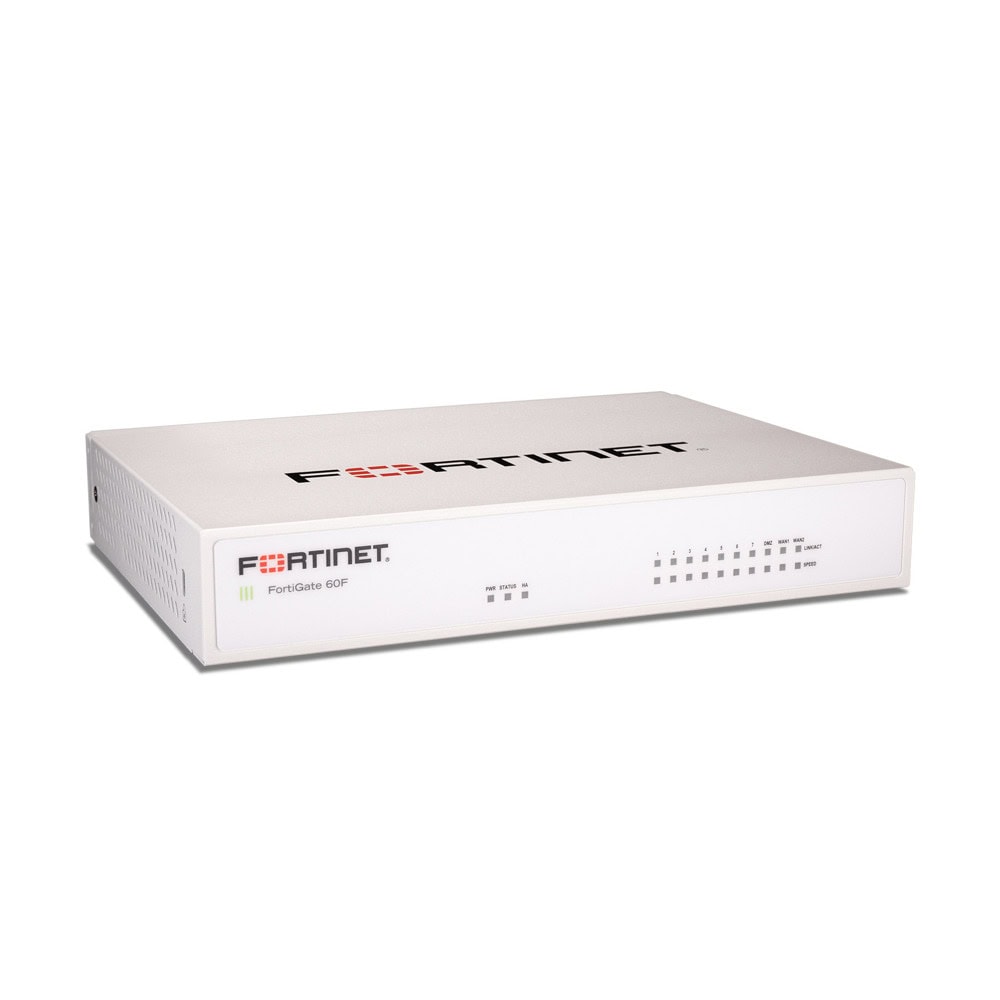

Name: Защитна стена Fortinet FortiGate 60F, 7x 10/100/1000 LAN, 3x 10/100/1000 WAN, 1x Console port, 1x USB - 0.00 лв. (≈ 0.00 EUR)
Brand: Fortinet
SKU: NTFFORTINETFG60F
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

The FortiGate/FortiWiFi 60F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Extensive Connectivity Options: The FortiGate 60F is designed with 10 GE RJ45 ports, including 2 WAN ports, 1 DMZ port, and 7 internal ports, offering broad flexibility and high-density connections for diverse enterprise networking needs.
Superior Performance for Secure Networks: Features powerful system-on-a-chip acceleration to deliver top-tier security with 1.4 Gbps IPS throughput and 700 Mbps threat protection throughput, ensuring effective defense against advanced threats.
Enhanced SSL Inspection and SD-WAN Capabilities: Utilizes purpose-built security processor technology to provide the industry's highest SSL inspection performance and robust SD-WAN functionality for secure, high-speed network operations.
Simple and Effective Management: Comes equipped with a user-friendly management console that supports comprehensive network automation and visibility, alongside Zero Touch Integration with Fortinet's Security Fabric for streamlined deployment.
Advanced Security Features: Leverages continuous threat intelligence from AI-powered FortiGuard Labs, identifying and mitigating both known and unknown threats, enhancing security across all network traffic, whether encrypted or not.
Compact and Quiet Design: Offers a compact, fanless desktop form factor, making it suitable for small environments where space saving and noise reduction are crucial, without compromising on performance or reliability.

Specifications

Hardware Specifications

GE RJ45 WAN / DMZ Ports	2 / 1
GE RJ45 Internal Ports	5
GE RJ45 FortiLink Ports (Default)	2
Wireless Interface	–
USB Ports	1
Console (RJ45)	1
Internal Storage	–

System Performance — Enterprise Traffic Mix

IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	700 Mbps

System Performance

Firewall Throughput (1518 / 512 / 64 byte UDP packets)	10/10/6 Gbps
Firewall Latency (64 byte UDP packets)	3.3 μs
Firewall Throughput (Packets Per Second)	9 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	630 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	400
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
CAPWAP Throughput (HTTP 64K)	8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	64 / 32
Maximum Number of FortiTokens	500
High Availability Configurations	Active-Active, Active-Passive, Clustering

Dimensions

Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160 mm
Weight	2.23 lbs (1.01 kg)
Form Factor	Desktop

Radio Specifications

Multiple User (MU) MIMO	–
Maximum Wi-Fi Speeds	–
Maximum Tx Power	–
Antenna Gain	–

Operating Environment and Certifications

Power Rating	12Vdc, 3A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Maximum Current	100Vac/1.0A, 240Vac/0.6A
Power Consumption (Average / Maximum)	10.17 W / 12.43 W
Heat Dissipation	63.1 BTU/hr
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
