The Fortinet Enterprise Firewall Solution

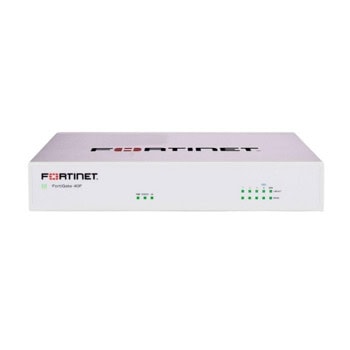

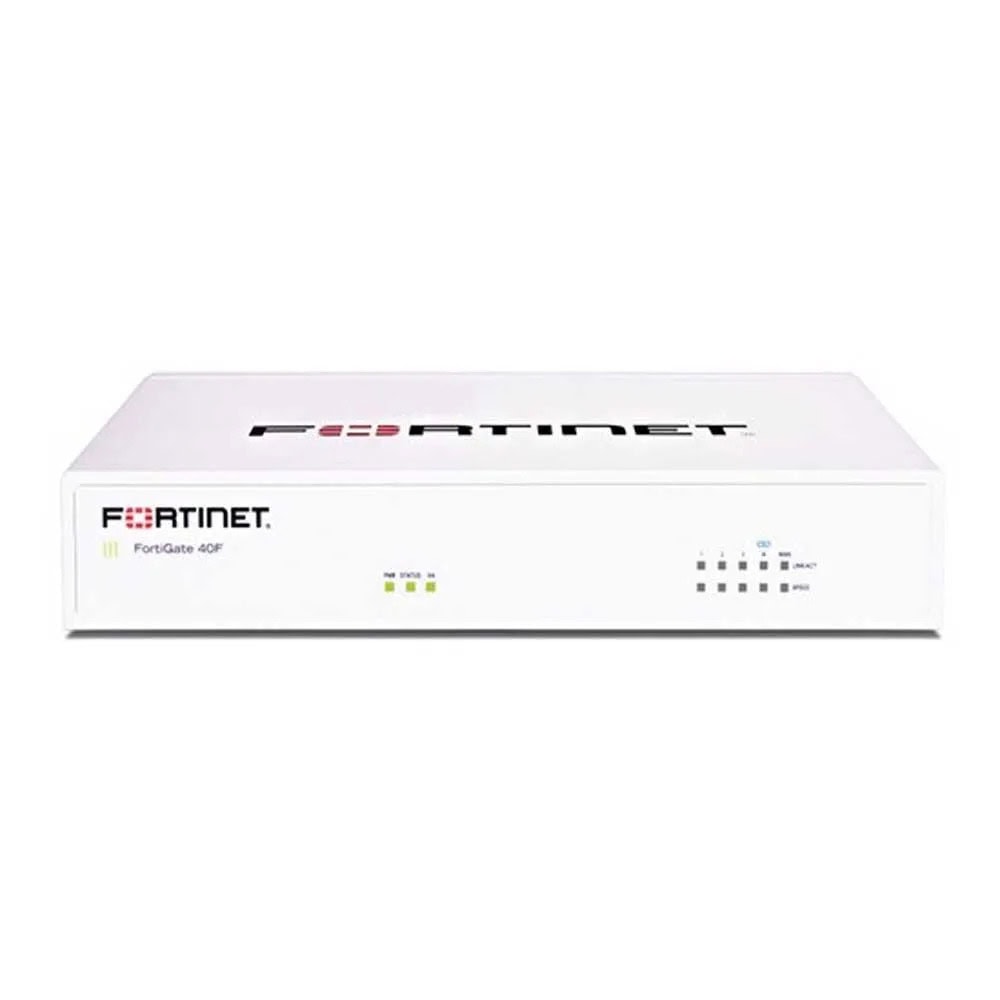

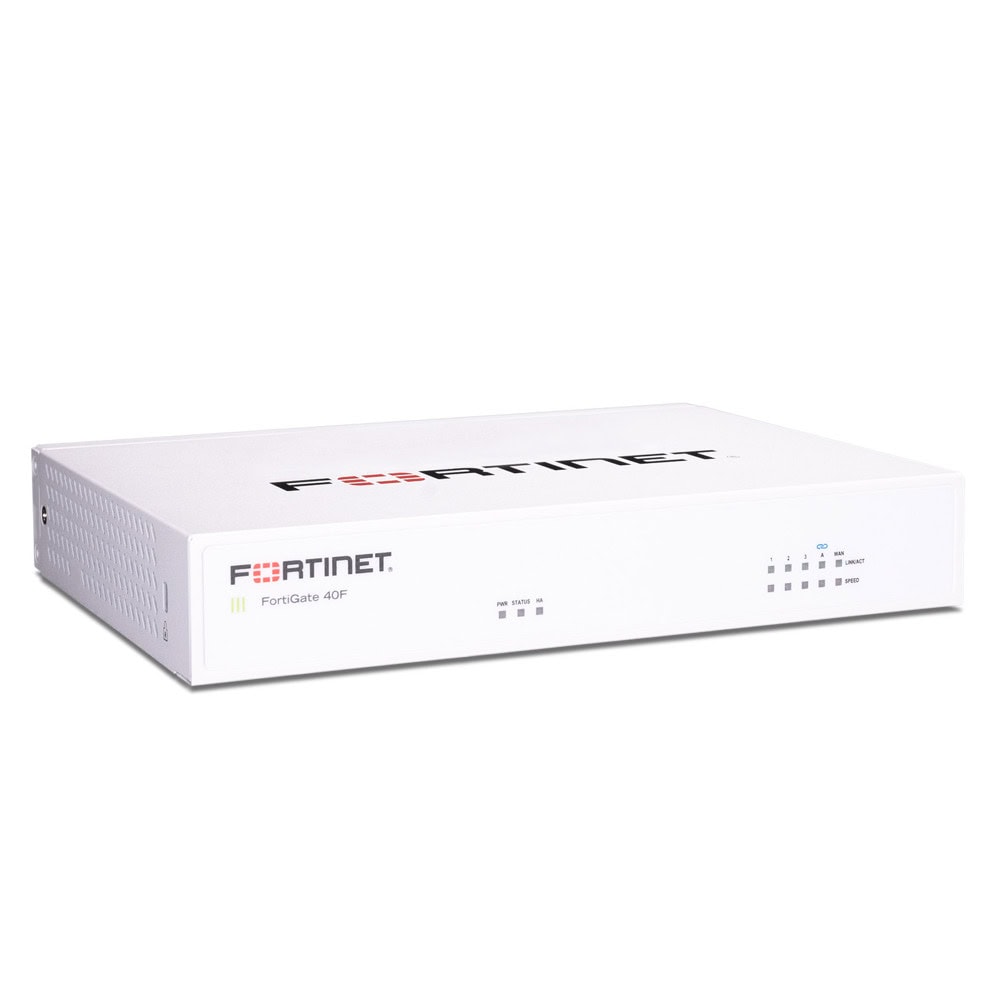

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
- Compact and Efficient Design: The FortiGate 40F is designed for small to mid-sized businesses and enterprise branch offices, featuring a compact, fanless desktop form factor that ensures quiet operation and minimizes space usage.

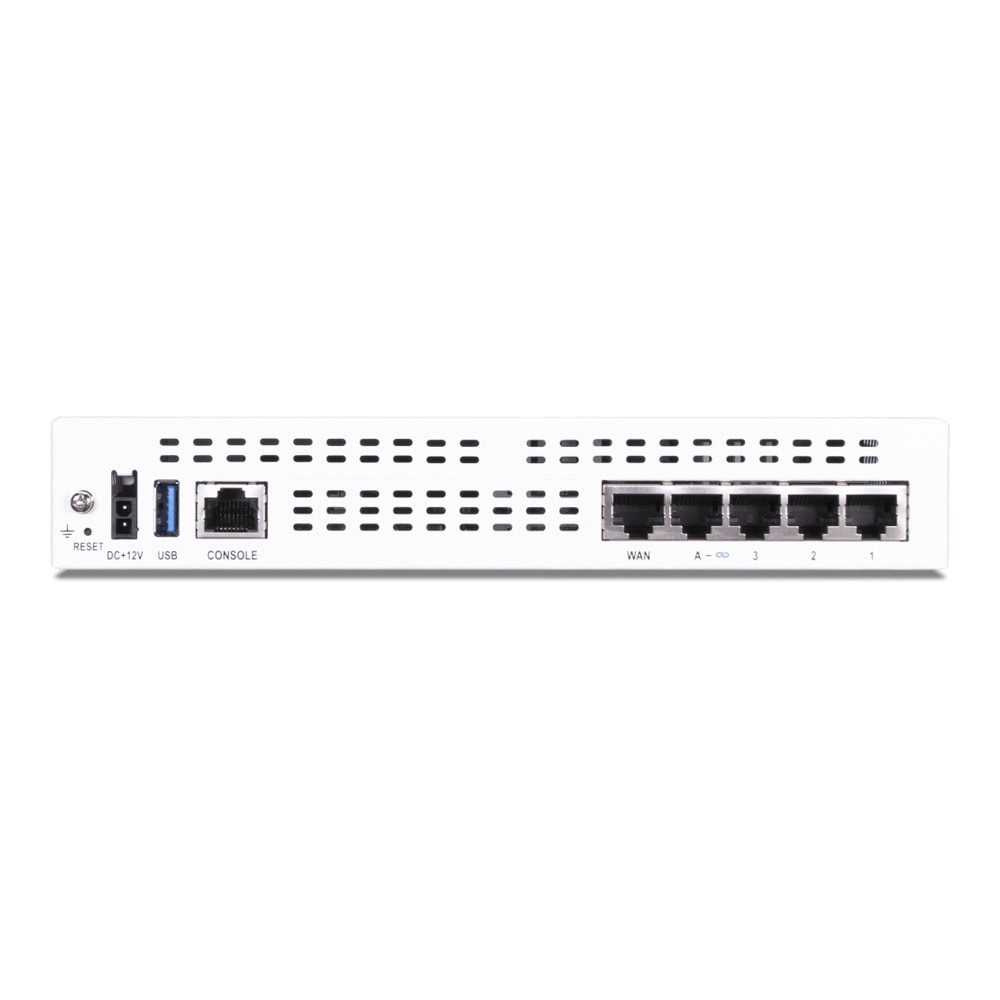

- Robust Connectivity Options: Equipped with 5 GE RJ45 ports, including 1 WAN port and 4 internal ports, this model provides essential connectivity and flexibility for various network configurations in a small-scale environment.
- High-Performance Security: Offers up to 1 Gbps IPS throughput and 600 Mbps threat protection throughput, using Fortinet’s purpose-built security processor technology to deliver industry-leading performance and protection for SSL encrypted traffic.
- Advanced Threat Protection: Integrated with Fortinet’s AI-powered FortiGuard Labs, the FortiGate 40F offers comprehensive cybersecurity, identifying and mitigating both known and unknown threats to maintain robust security across your network.
- Simplified Management and Deployment: Features a user-friendly management console that provides comprehensive network automation and visibility, coupled with Zero Touch Integration with Fortinet’s Security Fabric for easy deployment.
- Secure SD-WAN Ready: Supports secure direct Internet access and dynamic WAN path steering, ensuring consistent business application performance and accelerated multi-cloud access, ideal for businesses transitioning to SaaS models.
- Streamlined Network Management: Features such as the FortiLink protocol allow seamless integration of security and network management, enabling centralized control and simplified operations across all networked FortiGate devices.
- Highly Scalable and Secure SD-WAN: Delivers exceptional quality of experience and enhanced security posture for diverse deployment scenarios from branch offices to large-scale enterprise environments, supported by Fortinet’s patented security processing unit (SPU) technology.
Specifications
Interfaces and Modules
| GE RJ45 WAN / DMZ Ports | 1 |
| GE RJ45 Internal Ports | 3 |
| GE RJ45 FortiLink Ports | 1 |
| GE RJ45 PoE/+ Ports | - |
| Wireless Interface | - |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Onboard Storage | - |
| Included Transceivers | - |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 1 Gbps |
| NGFW Throughput | 800 Mbps |
| Threat Protection Throughput | 600 Mbps |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 5/5/5 Gbps |
| Firewall Latency (64 byte UDP packets) | 2.97 μs |
| Firewall Throughput (Packets Per Second) | 7.5 Mpps |
| Concurrent Sessions (TCP) | 700,000 |
| New Sessions/Second (TCP) | 35,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 4.4 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 490 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 310 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 320 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 55,000 |
| Application Control Throughput (HTTP 64K) | 990 Mbps |
| CAPWAP Throughput (HTTP 64K) | 3.5 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 16 / 8 |
| Maximum Number of FortiTokens | 500 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions
| Height x Width x Length (inches) | 1.5 x 8.5 x 6.3 |
| Height x Width x Length (mm) | 38.5 x 216 x 160 |
| Weight | 2.2 lbs (1 kg) |
| Form Factor | Desktop |
| Input rating | 12Vdc, 3A |
| Power Required | Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 7.74 W / 9.46 W |
| Maximum Current | 100V AC / 0.2A, 240V AC / 0.1A |
| Heat Dissipation | 52.55 BTU/hr |
Operating Environment and Certifications
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
Radio Specifications
| Multiple (MU) MIMO | - |
| Maximum Wi-Fi Speeds | - |
| Maximum Tx Power | - |
| Antenna Gain | - |
