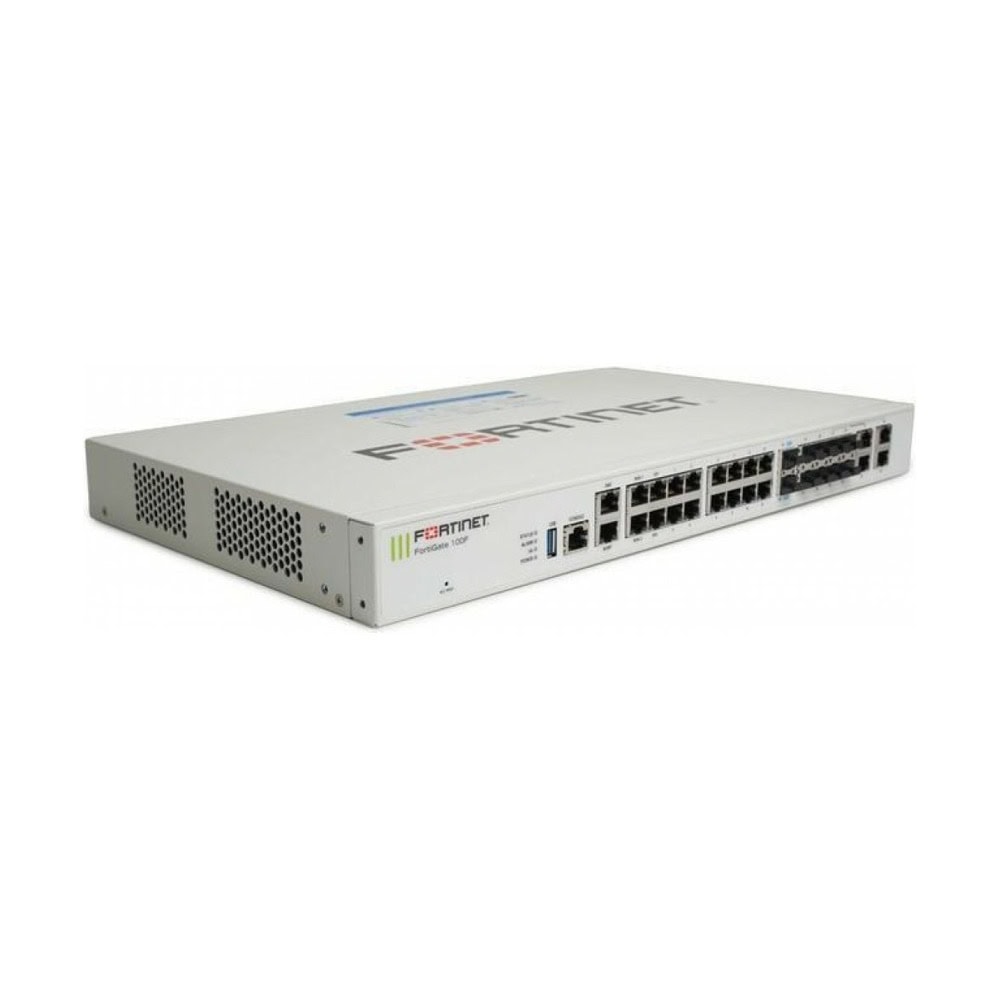

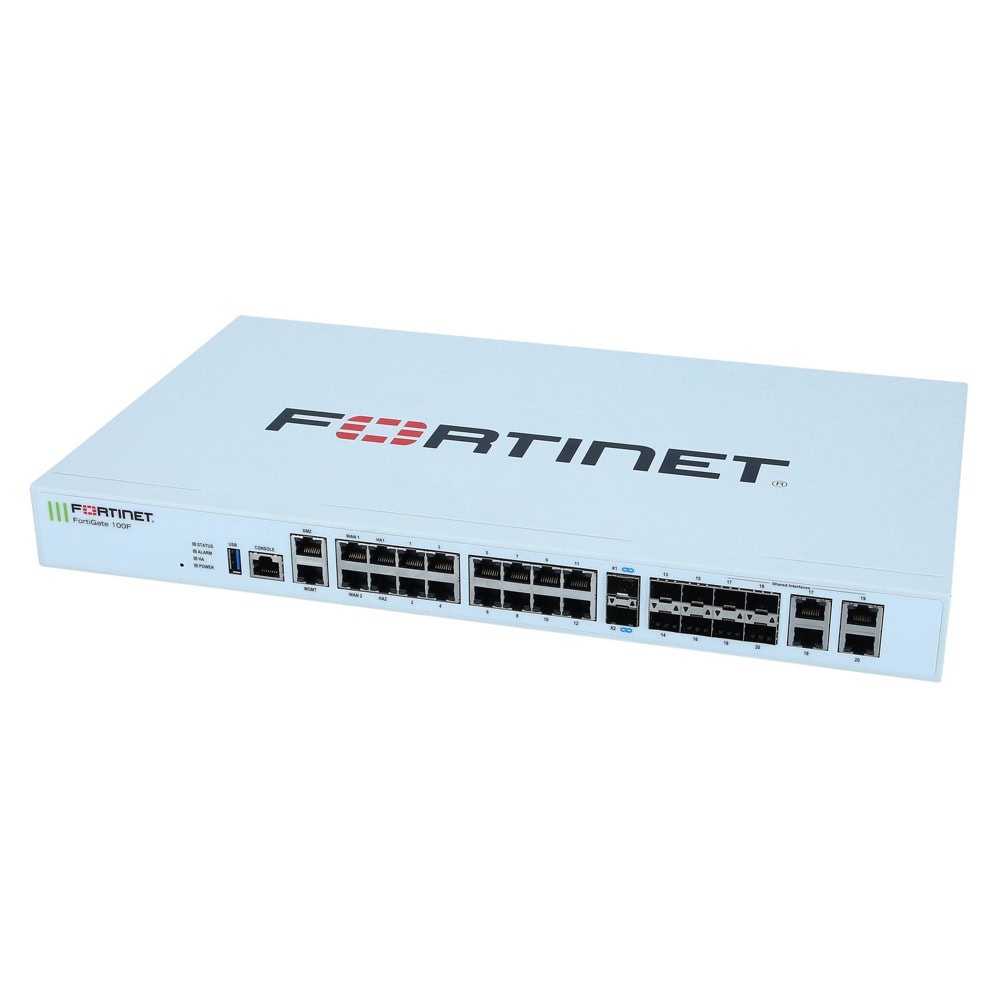

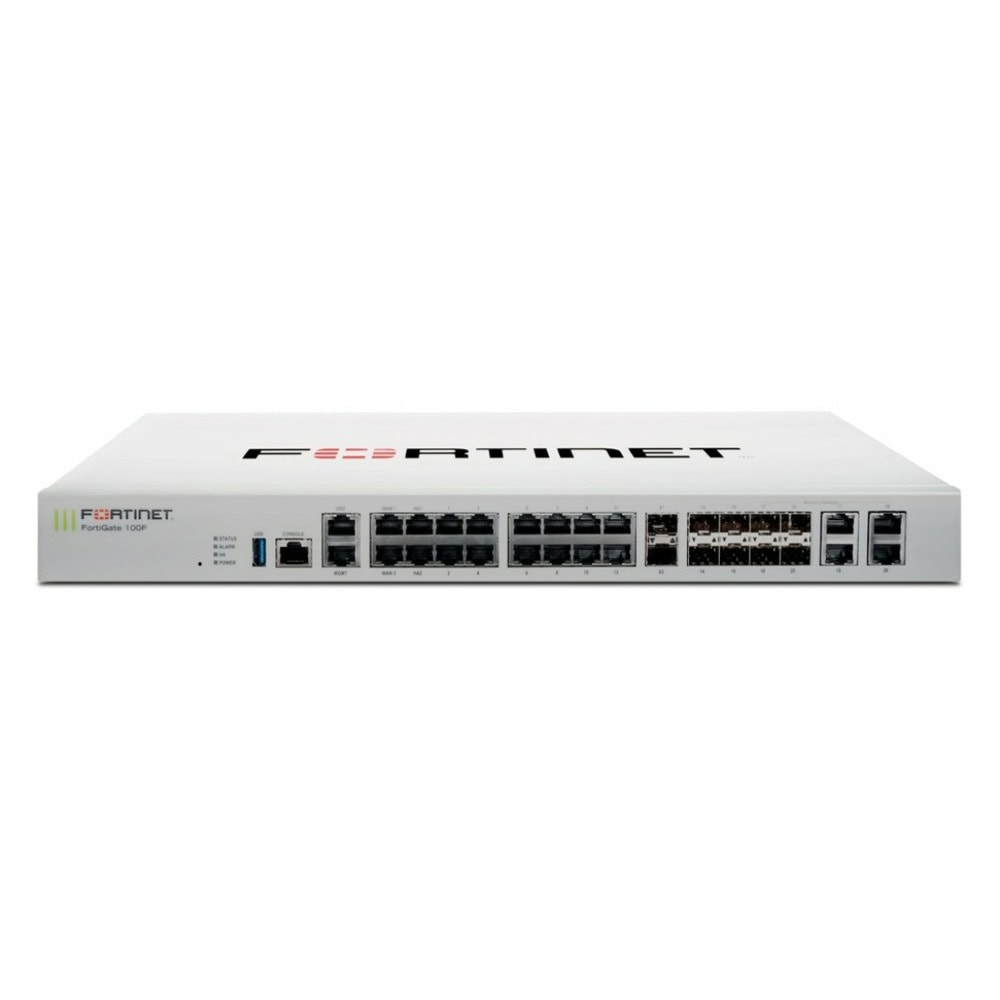

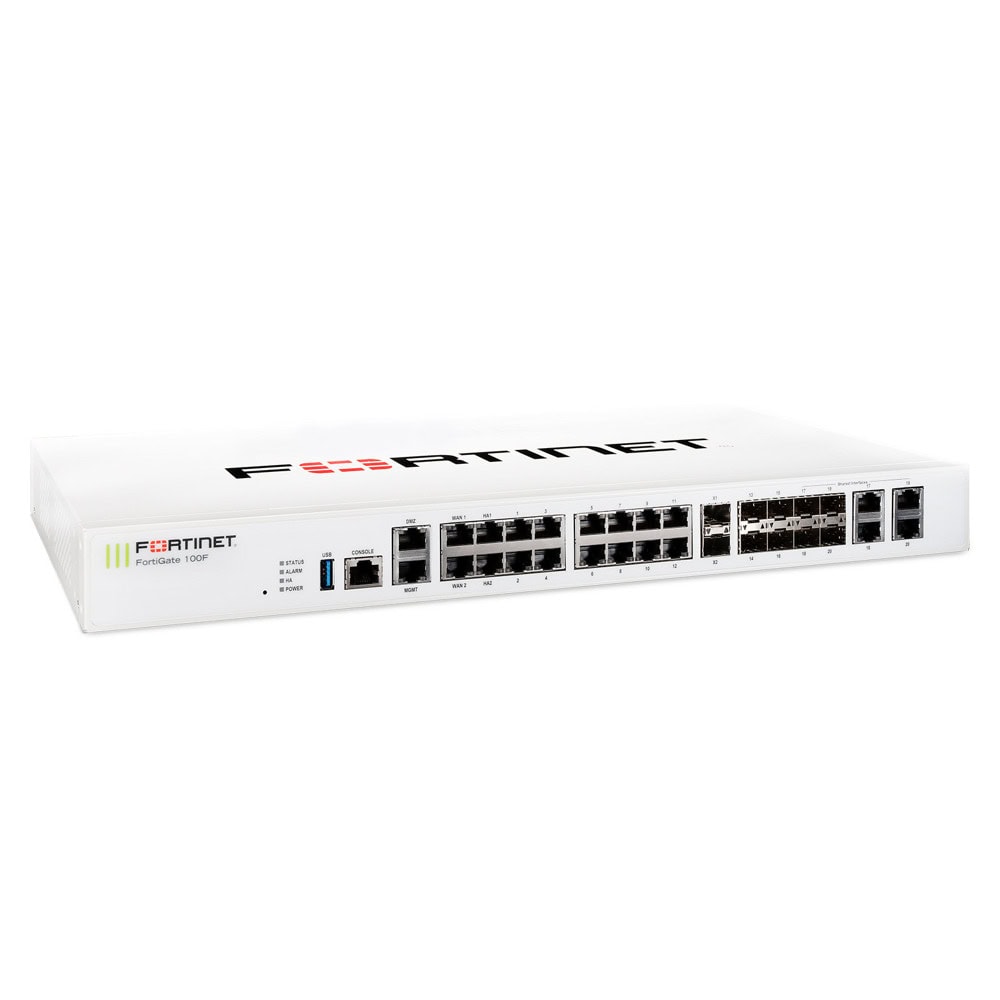

The FortiGate 100F series combines next generation firewall and SD-WAN capabilities for mid-sized to large enterprise distributed locations. Powered by purpose-built Secure SD-WAN ASIC, FortiGate 100F delivers optimal performance for business-critical applications along with best security effectiveness.
- Comprehensive Connectivity and Redundancy: The FortiGate 100F features an extensive array of connectivity options including 22 GE RJ45 ports, 4 SFP ports, and 2 10G SFP+ FortiLinks, backed by dual power supplies for redundancy, ensuring continuous operation and connectivity flexibility for diverse network environments.
- Enhanced Security with AI Integration: Offers advanced protection against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic. Leverages AI-driven threat intelligence from FortiGuard Labs to detect and prevent both known and unknown threats, enhancing security efficacy.
- Superior Performance with Secure SD-WAN: Powered by a purpose-built Secure SD-WAN ASIC, the FortiGate 100F delivers top-notch performance, ideal for business-critical applications, while providing cost-effective and high-performance threat protection and SSL inspection.
- Robust Firewall and Threat Prevention Capabilities: Delivers industry-leading threat protection performance with ultra-low latency, capable of managing up to 1.5 million concurrent sessions and protecting networks with advanced firewall, IPS, and application control capabilities.
- Streamlined Management and Deployment: Features a simple-to-use management console for comprehensive network automation and visibility, including Zero Touch Integration with Fortinet's Security Fabric for a centralized, single-pane-of-glass management experience.
- Certified and Tested for Reliability: Independently validated for security effectiveness and performance with certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives, ensuring a reliable and robust security solution for mid-sized to large enterprise distributed locations.
Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services
Performance
- Delivers industry’s best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
- Provides industry-leading performance and protection for SSL encrypted traffic
Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives
Networking
- Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
- Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security
Management
- Includes management console that’s effective, simple to use, and provides comprehensive network automation & visibility.
- Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
- Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture
Security Fabric
- Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
Specifications
Hardware Specifications
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA/DMZ Ports | 1 / 2 / 1 |
| GE SFP Slots | 4 |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports * | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | — |
| Included Transceivers | 0 |
System Performance — Enterprise Traffic Mix
| IPS Throughput | 2.6 Gbps |
| NGFW Throughput | 1.6 Gbps |
| Threat Protection Throughput | 1 Gbps |
System Performance
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 5 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte)1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 750 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS)3 | 1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS)3 | 135,000 |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 64 / 32 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
Dimensions
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 7.25 lbs (3.29 kg) |
Environment
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Heat Dissipation | 119.77 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
