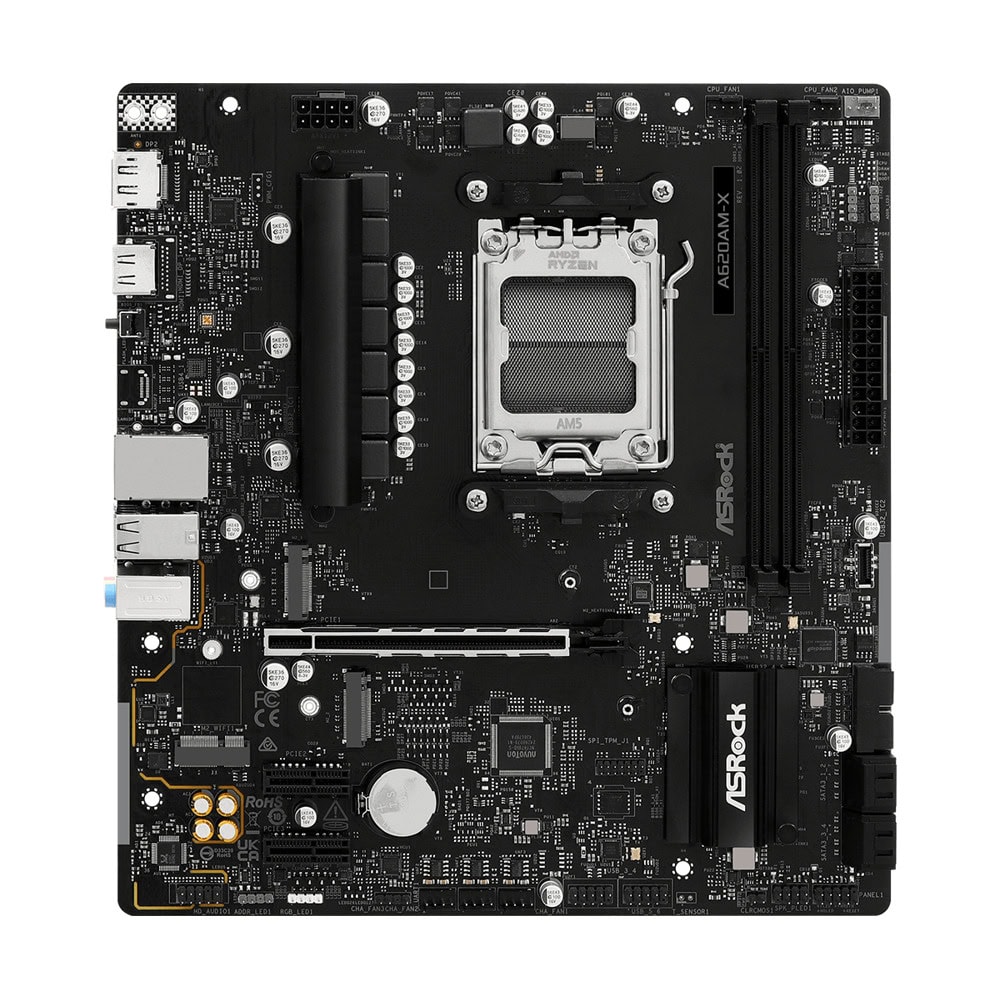

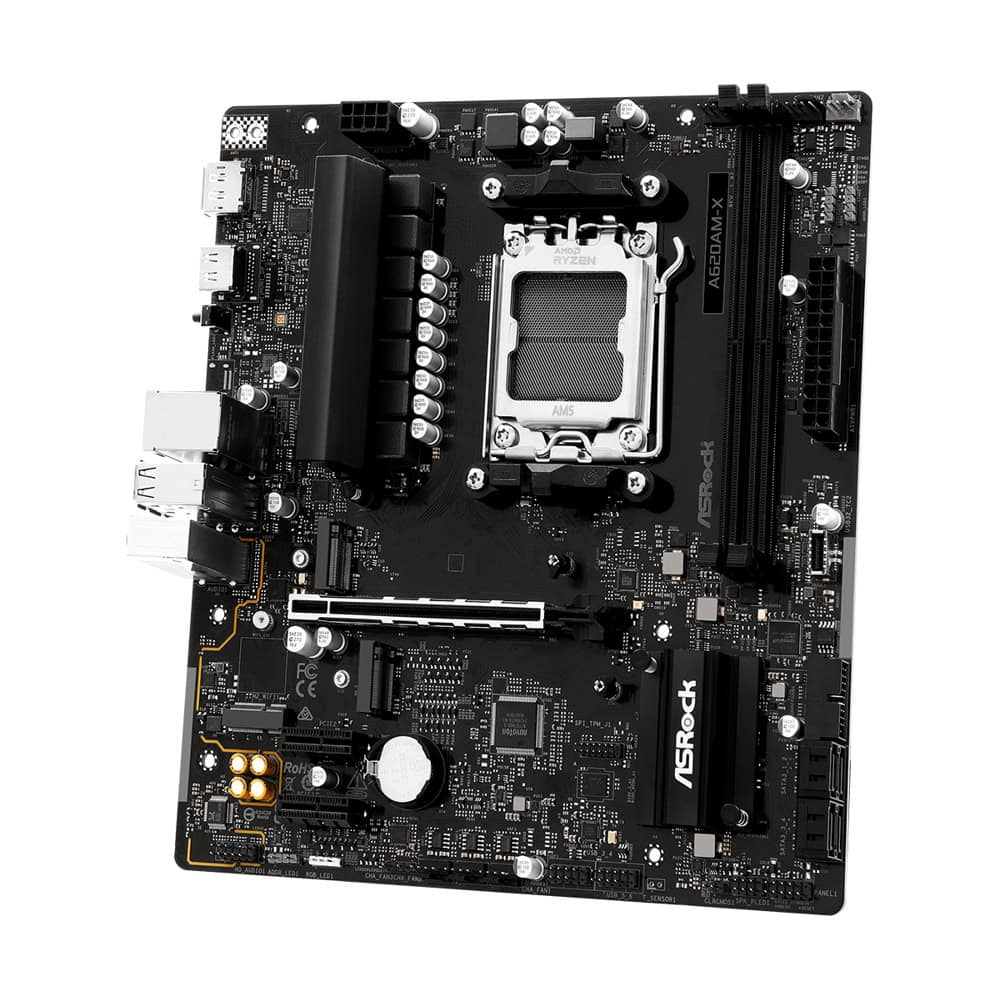

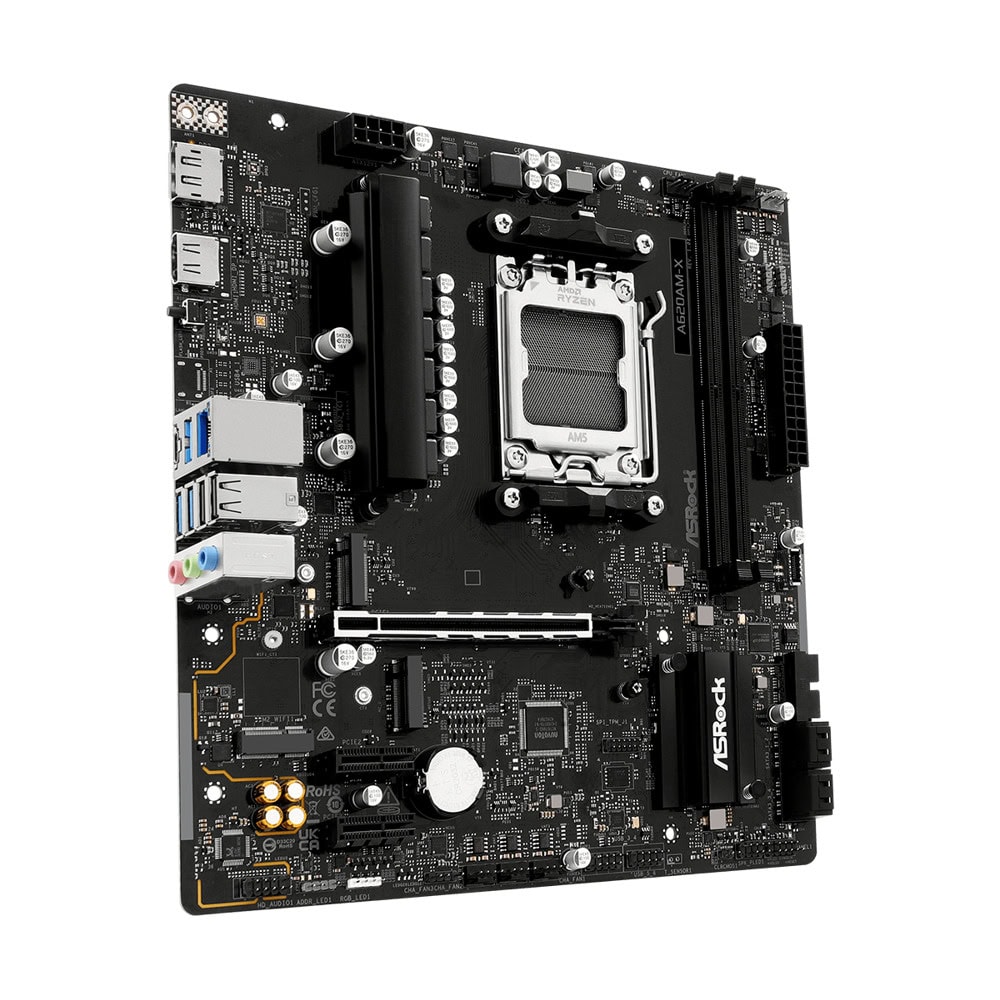

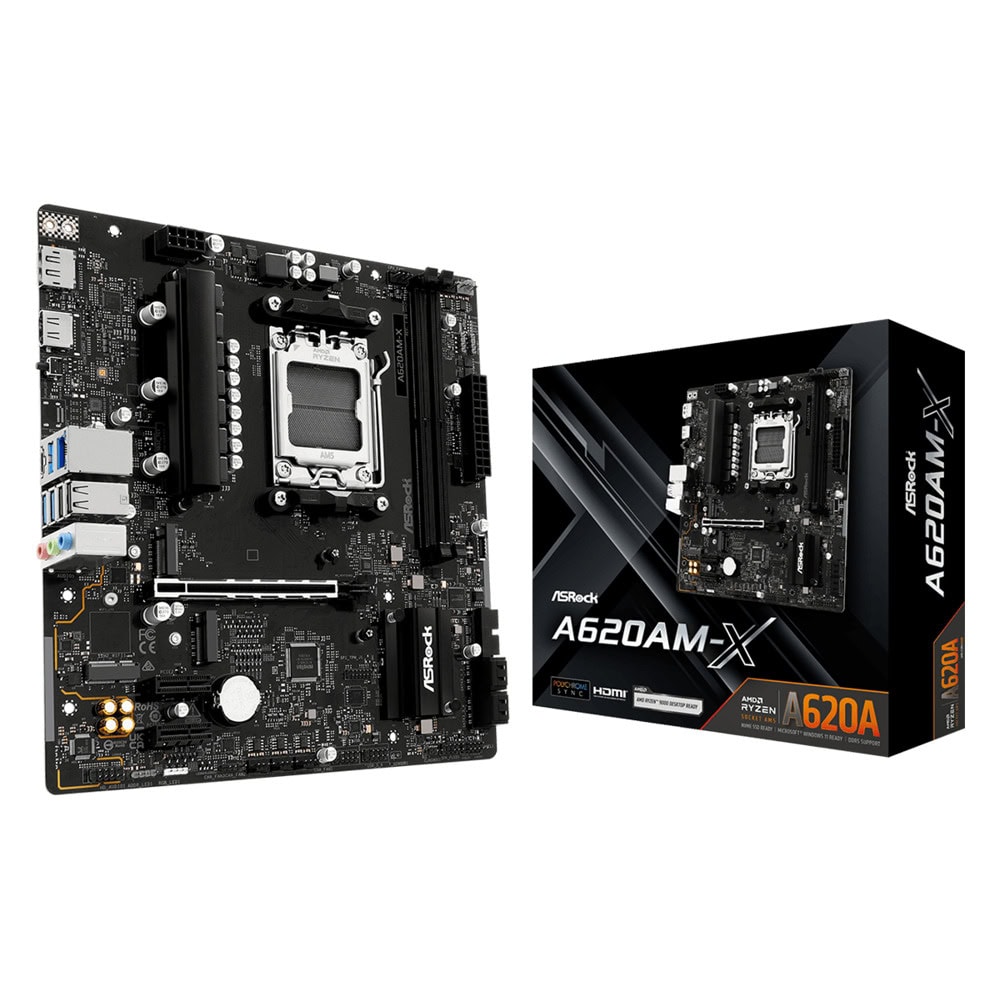

Дънна платка ASRock A620AM-X, A620A, AM5, DDR5, PCI-E 4.0, (DP&HDMI), 4x SATA 6Gb/s, 2x M.2 slots, 2x USB 3.2 Gen1 Type-A, 2.5GbE LAN, Micro ATX

A620AM-X

• Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
• 6+1+1 Power Design, Dr.MOS for VCore
• 2 x DDR5 DIMMs
  Supports Dual Channel, up to 8000+ (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec
• 2 Hyper M.2 (PCIe Gen4x4)
  4 SATA3
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  5 USB 3.2 Gen1 (3 Rear, 2 Front)
  6 USB 2.0 (2 Rear, 4 Front)
• Realtek 2.5G LAN
• Supports BIOS Flashback

• Unique Feature

  Superb Productivity
  - Dual Channel DDR5
  Rock-Solid Durability
  - 6+1+1 Power Phase, Dr.MOS for VCore
  Ultrafast Connectivity
  - 2.5G LAN
  EZ Update
  - BIOS Flashback Button
  - ASRock Auto Driver Installer
  EZ Troubleshooter

• CPU

  - Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors


• Chipset

  - AMD A620A



• Memory

  - Dual Channel DDR5 Memory Technology
  - 2 x DDR5 DIMM Slots
  - Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
  - Max. capacity of system memory: 128GB
  - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*



• BIOS

  - 256Mb AMI UEFI Legal BIOS with GUI support



• Graphics

  Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz



• Audio

  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)



• LAN

  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  - Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control



• Slots

  CPU:
  - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
  Chipset:
  - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
  - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  - 15μ Gold Contact in VGA PCIe Slot (PCIE1)


  * Supports NVMe SSD as boot disks



• Storage

  CPU:
  - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*


  Chipset:
  - 4 x SATA3 6.0 Gb/s Connectors


  * Supports NVMe SSD as boot disks



• RAID

  - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*



  * Requires additional M.2 NVMe expansion cards to support RAID 10



• USB

  CPU:
  - 3 x USB 3.2 Gen1 Type-A (Rear) Chipset:
  - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
  - 2 x USB 3.2 Gen1 Type-A (Front)
  - 6 x USB 2.0 (2 Rear, 4 Front)


  * All USB ports support ESD Protection



• Connector

  - 1 x SPI TPM Header
  - 1 x Power LED and Speaker Header
  - 1 x RGB LED Header*
  - 3 x Addressable LED Headers**
  - 1 x CPU Fan Connector (4-pin)***
  - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
  - 1 x 24 pin ATX Power Connector
  - 1 x 8 pin 12V Power Connector
  - 1 x Front Panel Audio Connector
  - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  - 1 x Front Panel Type C USB 3.2 Gen1 Header



  * Supports in total up to 12V/3A, 36W LED Strip
  ** Support in total up to 5V/3A, 15W LED Strip
  *** CPU_FAN1 supports the fan power up to 1A (12W).
  **** CHA_FAN1~3/WP support the fan power up to 2A (24W).
  CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

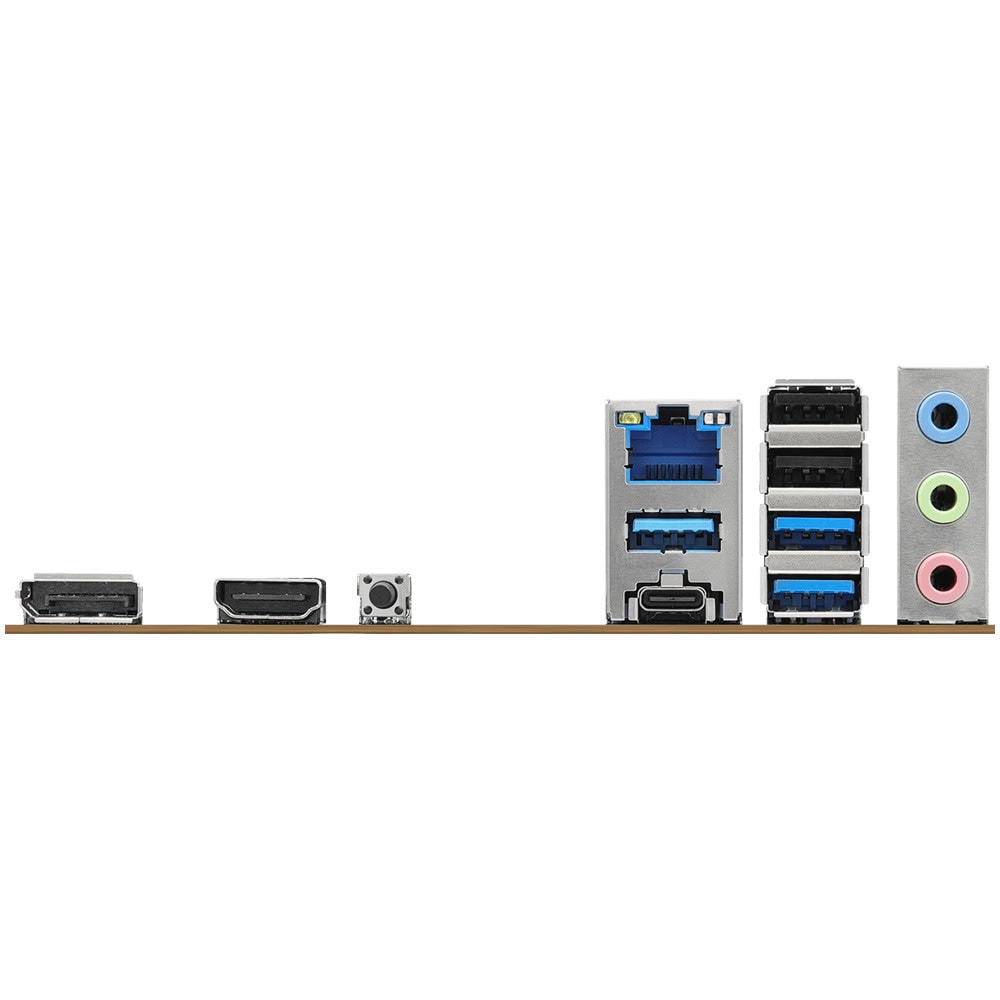

• Rear Panel I/O

  - 2 x Antenna Mounting Points
  - 1 x HDMI Port
  - 1 x DisplayPort 1.4
  - 1 x USB 3.2 Gen1 Type-C Port
  - 3 x USB 3.2 Gen1 Type-A Ports
  - 2 x USB 2.0 Ports
  - 1 x RJ-45 LAN Port
  - 1 x BIOS Flashback Button
  - HD Audio Jacks: Line in / Front Speaker / Microphone

• Form Factor

  - Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

• OS

  - Microsoft Windows® 10 64-bit / 11 64-bit



• Certifications

  - FCC, CE
  - ErP/EuP ready (ErP/EuP ready power supply is required)
