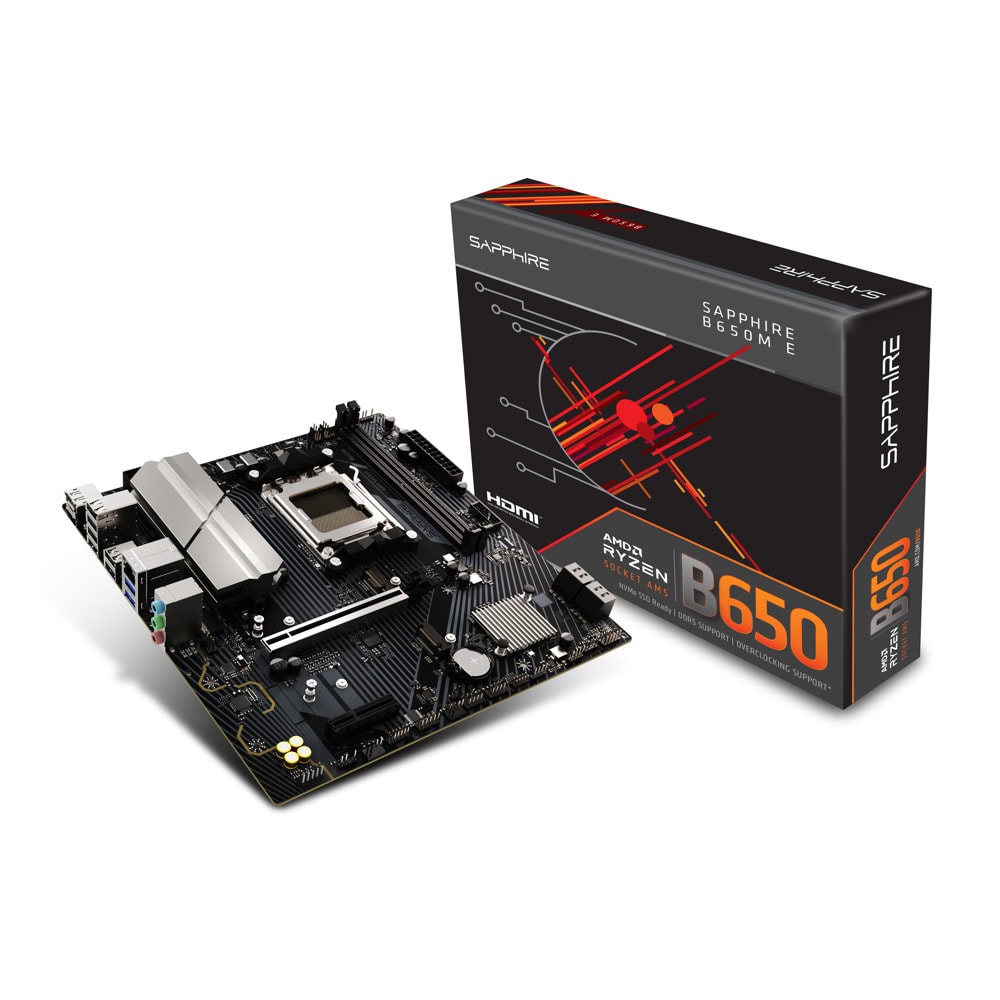

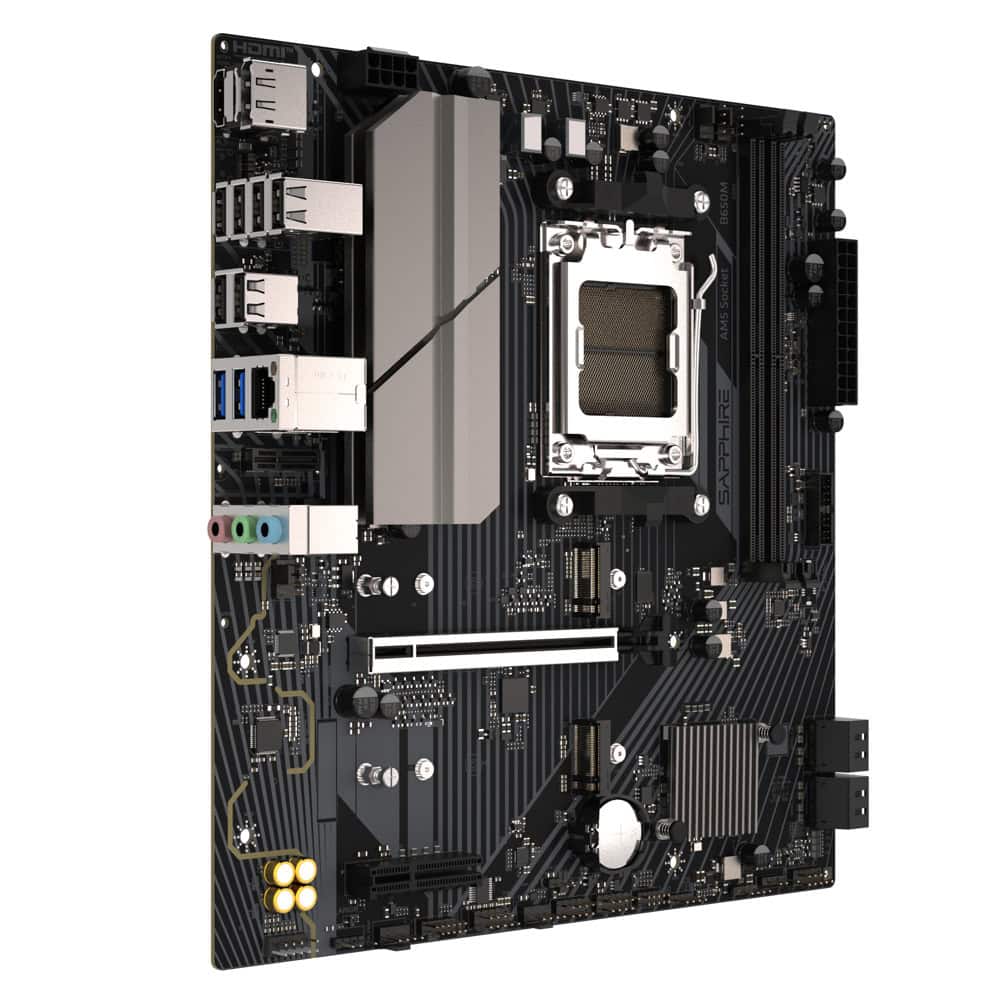

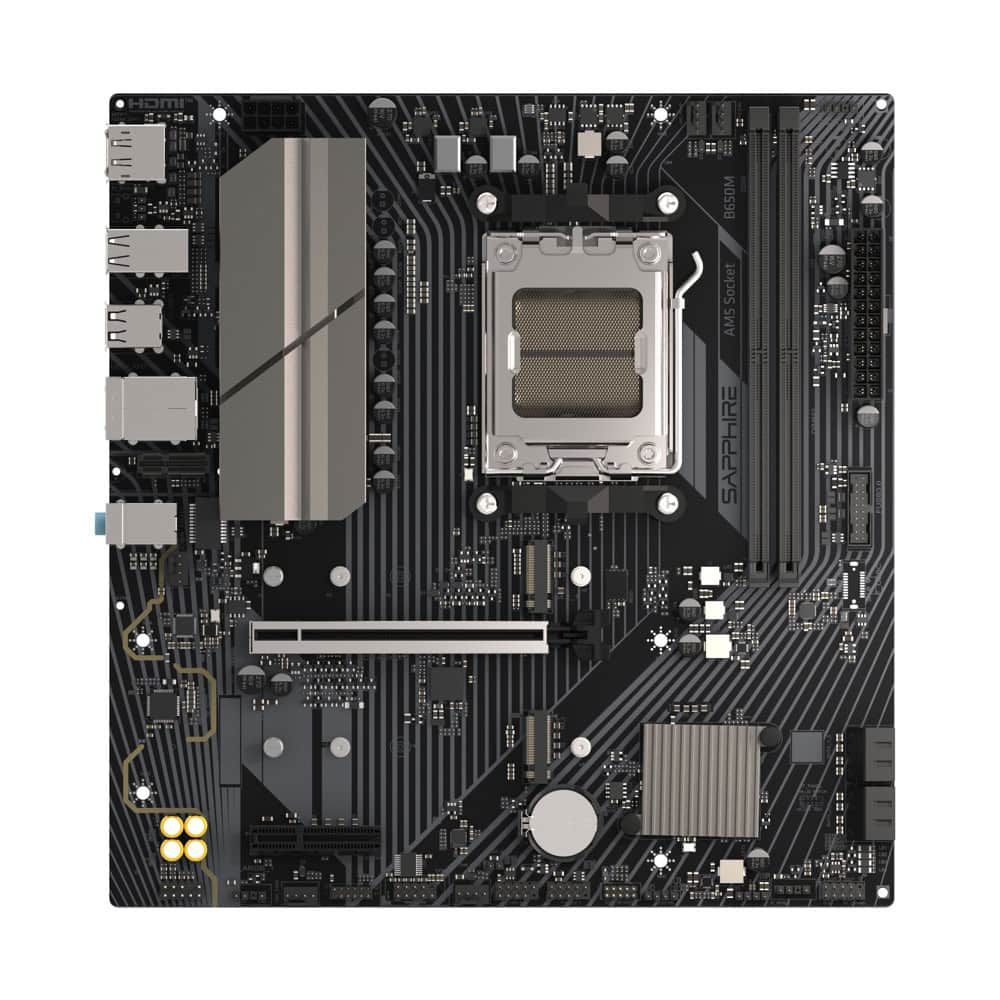

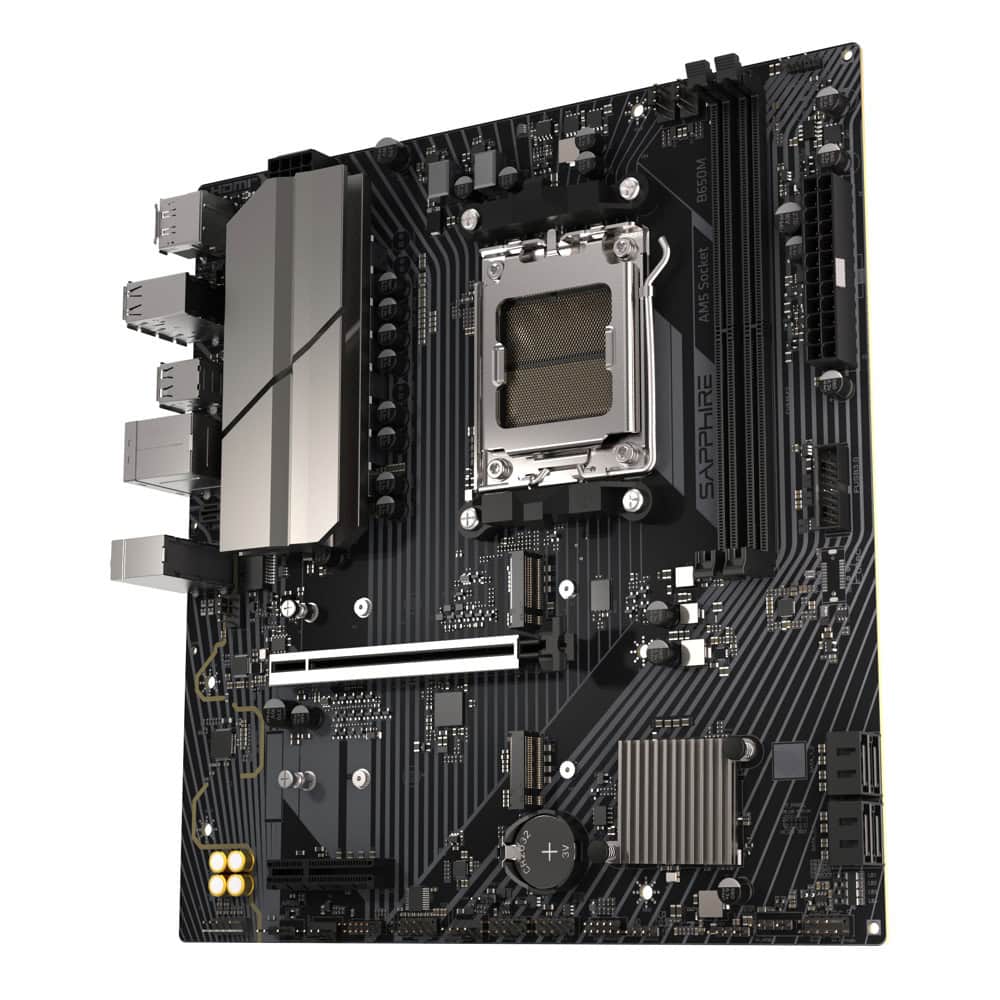

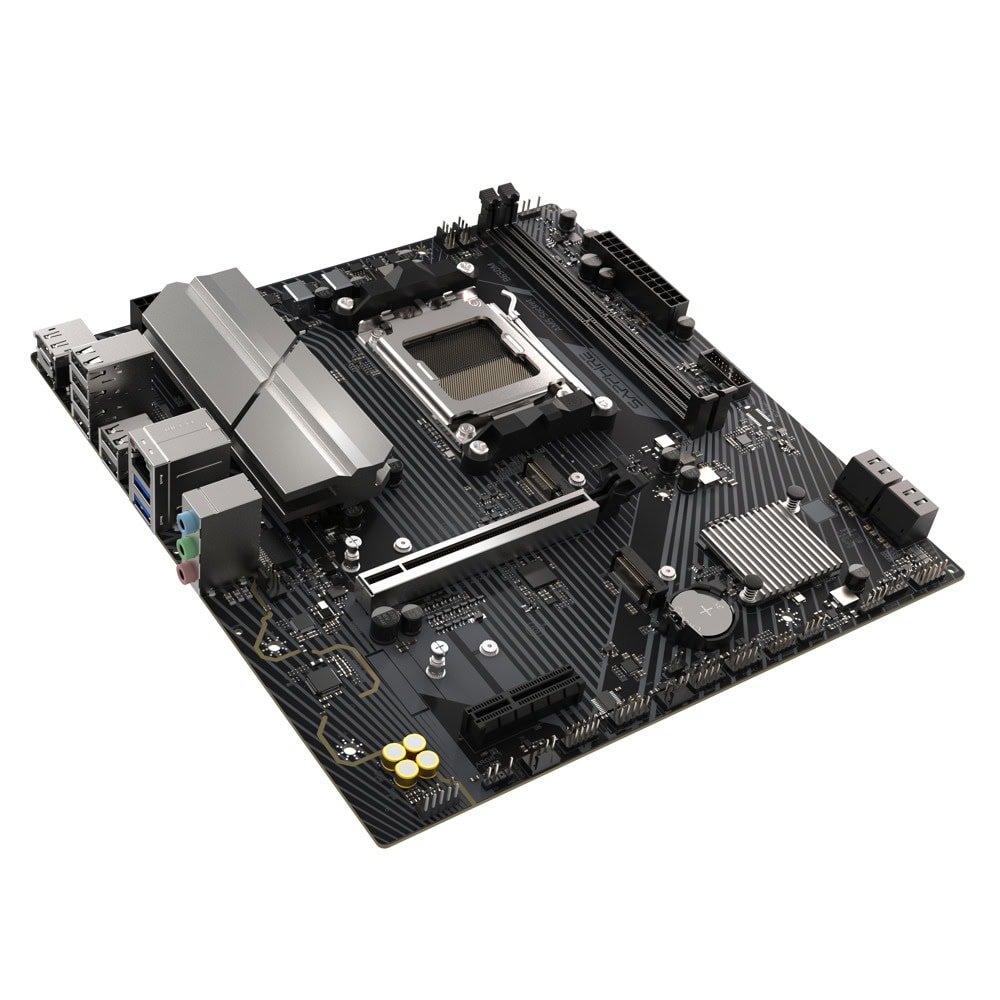

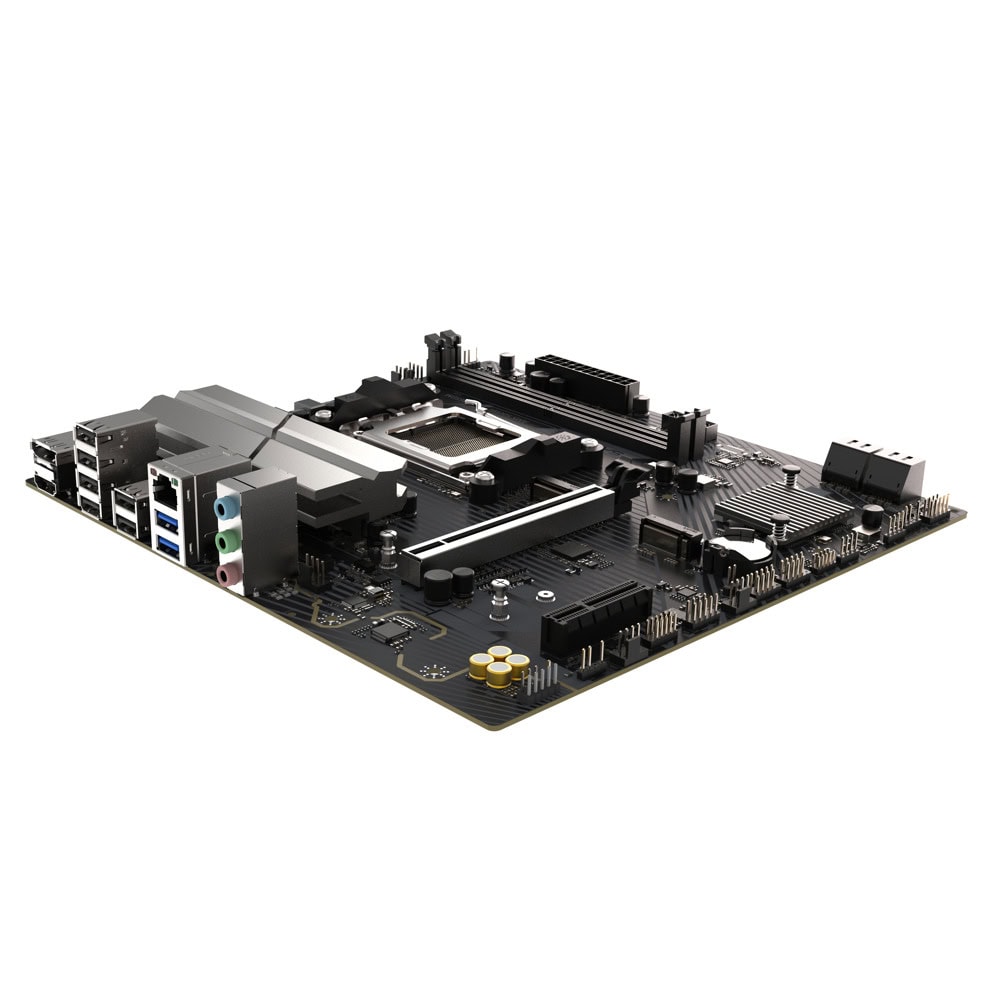

Дънна платка Sapphire B650M E, B650, AM5, DDR5, PCI-E 5.0 (DP&HDMI), 4x SATA 6Gb/s, 2x M.2 slots, 1x USB 3.2 Gen 1 Type-A, Micro ATX

Sapphire B650M E
52112-04-40G


Chipset
AMD B650

CPU Support
Supports AMD Socket AM5 Processors including Ryzen 9000 / 8000 / 7000 Series Desktop Processors

Memory Support
2x DIMM, Dual Channel DDR5, Maximum Memory Capacity 96GB (2x 48GB), up to 7600 MHz(OC)

PCI-E Expansion Slots
1x PCIe 4.0 x16, 1x PCIe 4.0 x4

Display Connector
DisplayPort x1, HDMI x1

Audio
Realtek ALC897 HD Audio, 5.1 Channel

Network
Realtek RTL8125BG 2.5 Gigabit Ethernet

Front USB Headers
1x USB 3.2 Gen1 (2 x Type-A)
2x USB 2.0 (4 x Type-A)

Rear Ports
1x DisplayPort
1x HDMI
6x USB 2.0
2x USB 3.2 Gen1 Type-A
1x RJ45 LAN
3x Audio Jacks

Storage
1x PCIe 5.0 M.2
1x PCIe 4.0 M.2
4x SATA

Dimensions
Micro-ATX
244x235mm

Debug LED
DRAM: Yellow
CPU: Red
GPU: White
Boot: Green
