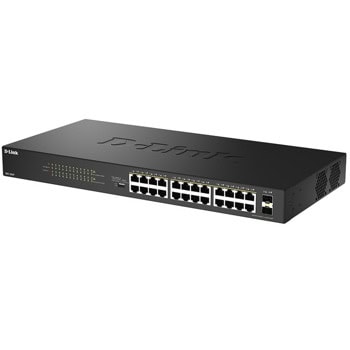

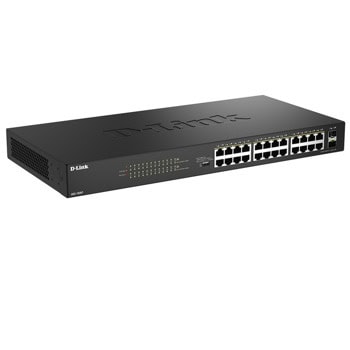

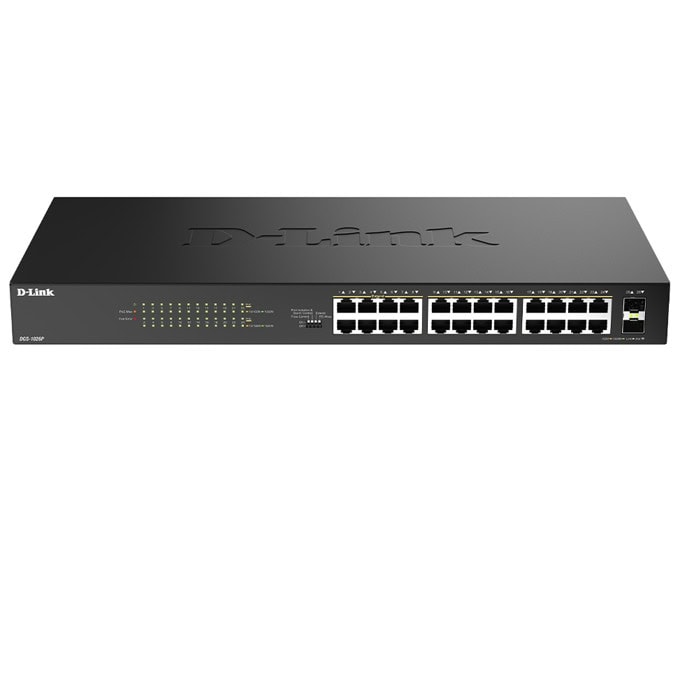

Name: Суич D-Link DGS-1026P, 1000Mbps, 24x порта, 16x 10/100/1000Mbps RJ45 PoE, 2x SFP
Brand: D-Link
SKU: NTLHDLINKDGS1026P
Price: 291.66 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

24GE PoE + 2 SFP Ports 250m PoE Switch

DGS-F1026P-E

24 10/100/1000 Mbps gigabit ethernet ports
2 SFP port
250watts available PoE
Flow control for protection against loss data
Maximum distance of 250m
Light protection (6kV)
Operating Temperature: 0 to 40 deg C (32 to 104 deg F)

High Transmission distance

With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable. The DGS-F1026P-E features 24 ports 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 250W.

Plug & Play Installation

The DGS-F1026P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Different Switch working mode

The DGS-F1026P-E switch works in 4 operating modes using DIP switch

Extend – 1-8 ports support up to 250m distance power supply
VLAN-Isolating ports 1-24 from each other can effectively suppress network storms and improve network performance
QoS-Prioritize the identified video data to make video transmission smoother
PoE-Automatic detection power of port, power off and restart

Category	Specification
General
Size	Desktop (with Mounting Kit)
Interfaces	24 x 10/100/1000 BASE-T ports 2 x SFP
Standards	IEEE 802.3u (Fast Ethernet)IEEE 802.3af/at (PoE)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3az (EEE)IEEE 802.3x (Full-duplex)IEEE 802.3z (Gigabit fiber)
Media Interface	Auto MDI/MDI-X on all ports
Lightning Protection	6KV
Performance
Switching Fabric	52 Gbps
Transmission Method	Store-and-forward
Data Transfer Rates	Gigabit Ethernet: 1000 MbpsEthernet: 100 Mbps
Packet Rates	10M port: 14,800 pps100M port: 148,800 pps1000M port: 1,488,000 pps
PoE
PoE Standards	IEEE 802.3afIEEE 802.3at
PoE Ports	Port 1 – 24Ports 1 – 8 support up to 250m @ 10Mbps with Extend enabled
Power Budget	250W total (30W max per PoE port)
LED Indicators	PowerLink/Activity
Physical
Weight	3.0 kg
Dimensions (W x D x H)	440 x 180 x 44 mm
Power Supply	250W
Operating Temp	0 to 40 °C (32 to 104 °F)
Humidity	Operating: 0% to 95% RH (non-condensing)Storage: 0% to 95% RH (non-condensing)
