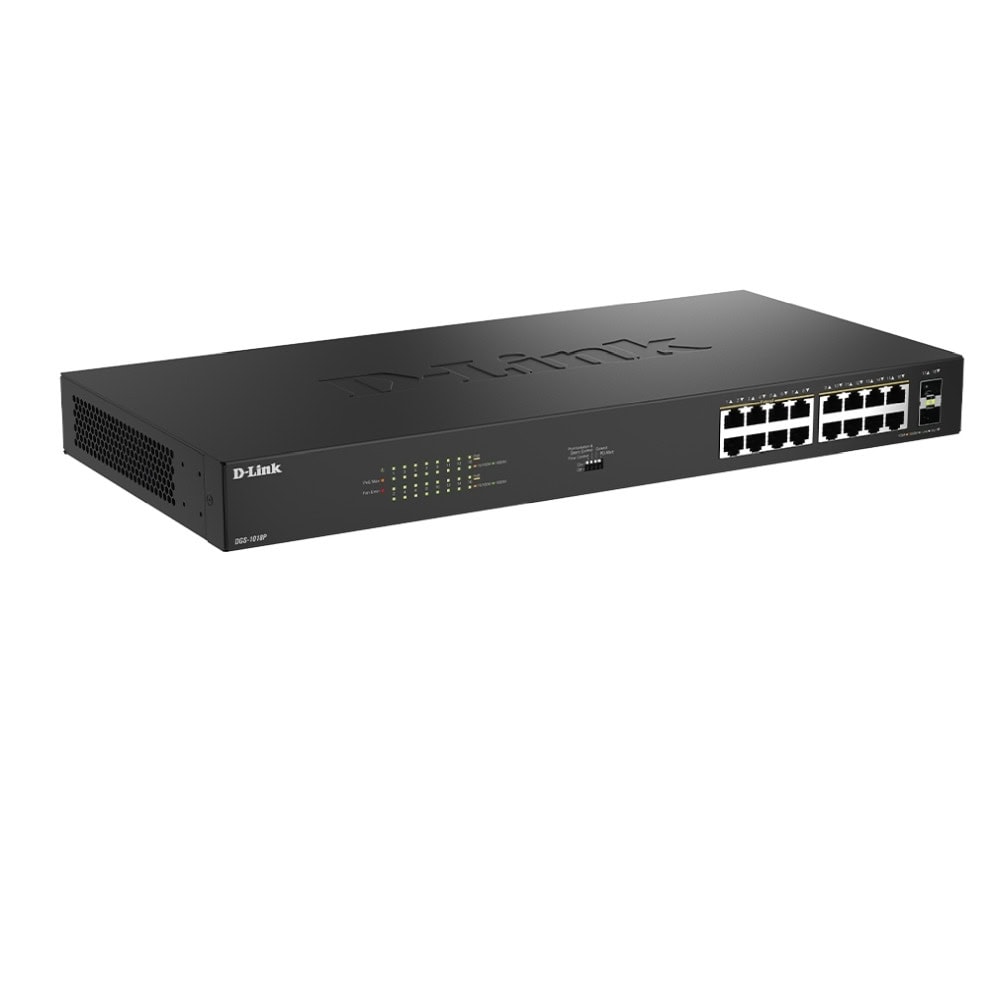

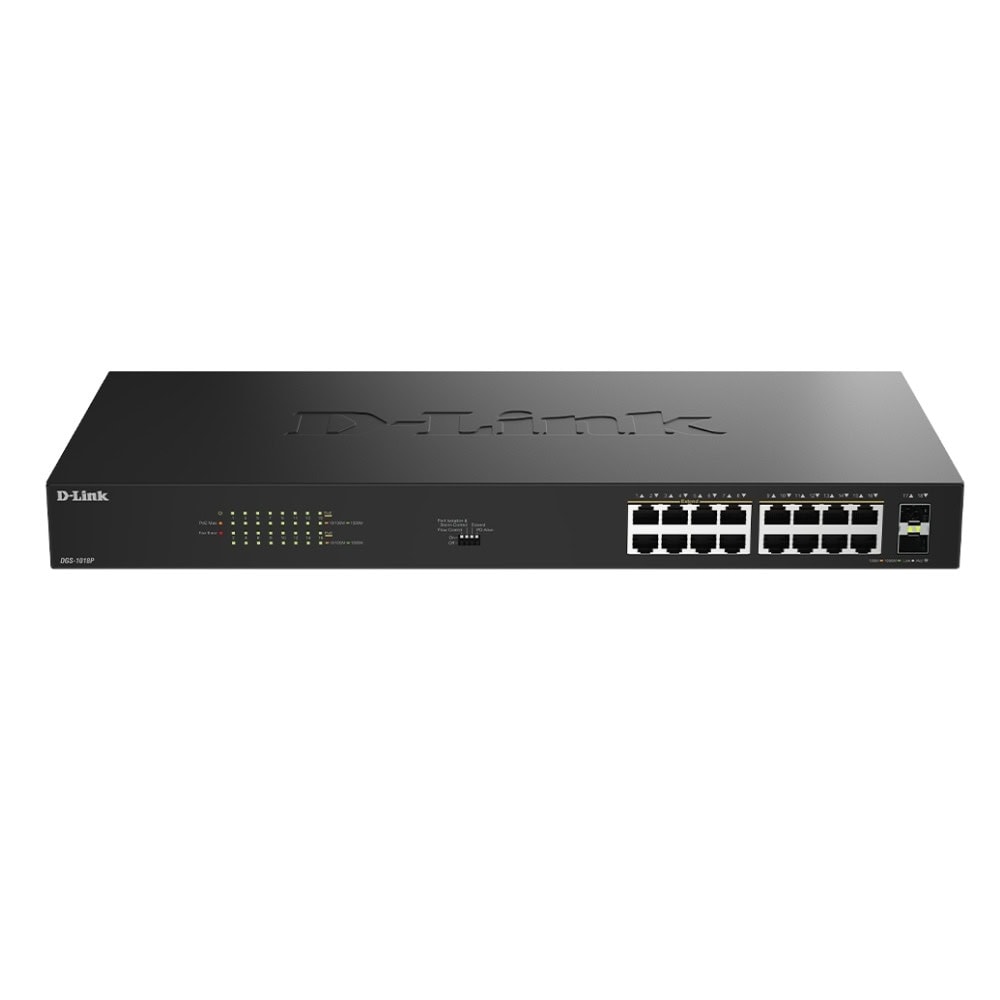

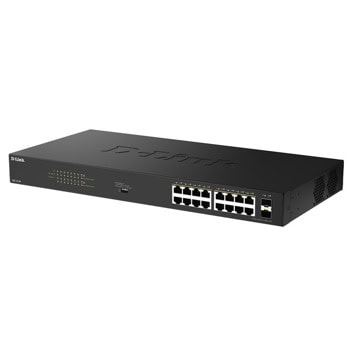

D-Link DGS-1018P
- 16 GE PoE ports enable faster data rates
- 2 1G SFP ports transmit data beyond 100 m
- IEEE 802.3af/at (up to 30 W/port, 240 W budget)
- Convenient DIP switch for onsite configuration
- IEEE 802.3x flow control prevents packet loss
- Port isolation/storm control enhance security
- Extend mode extends PoE/data up to 250 m
- PD-alive reboots unresponsive powered devices
- Real-time PoE usage and status monitoring
- QoS prioritizes important network services

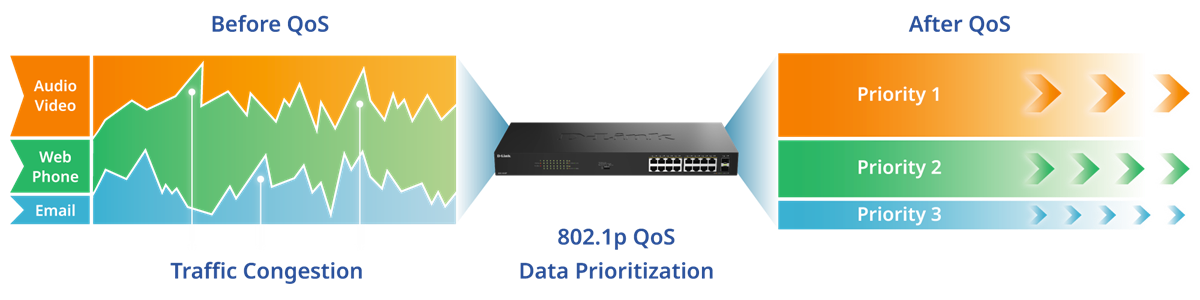

Prioritize Traffic for Optimized Performance
With the DGS-1018P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

| Category | Specification |
|---|---|
| General | |
| Interface | 16 x 10/100/1000 Mbps PoE ports, 2 x 100/1000 Mbps SFP uplink ports |
| Standards | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3x Flow Control IEEE 802.3af/at PoE Standard |
| LED Indicators | Per Unit: Power Per Port: Activity / Link and Speed Per PoE Port: Power Fail, Power OK |
| Functionality | |
| Switching Capacity | 36 Gbps |
| Transmission Method | Store-and-forward |
| Packet Buffer | 4.1 Mb |
| Jumbo Frame Support | 9216 Bytes |
| Max Forwarding Rate | 26.78 Mpps |
| PoE Power Budget | 240 W |
| PoE Support | Ports 1 to 16 (up to 30W per port) |
| Physical | |
| Dimensions (W x D x H) | 441.0 x 210.0 x 44 mm (17.36 x 8.27 x 1.73 in) |
| Weight | 3.182 kg (7.02 lbs) |
| Power Input | Internal AC input: 100 ~ 240 VAC, 50 ~ 60 Hz |
| Power Consumption | Maximum: 280.21 W Standby: 14.102 W |
| Operating Temp | 0 to 50 ˚C (32 to 122 ˚F) |
| Storage Temp | -10 to 70 ˚C (14 to 158 ˚F) |
| Operating Humidity | 10% to 95% RH non-condensing |
| Storage Humidity | 5% to 95% RH non-condensing |
| MTBF | 462,928.28 Hours |
| Heat Dissipation | 956.077 BTU/hr |
| Certifications | FCC, BSMI, CE |
| Safety | LVD, BSMI |
Виж още Суич D-Link
Виж всички продукти Суич в категорията
Документация
Технически характеристики
| Брой портове: | 18 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Не |
