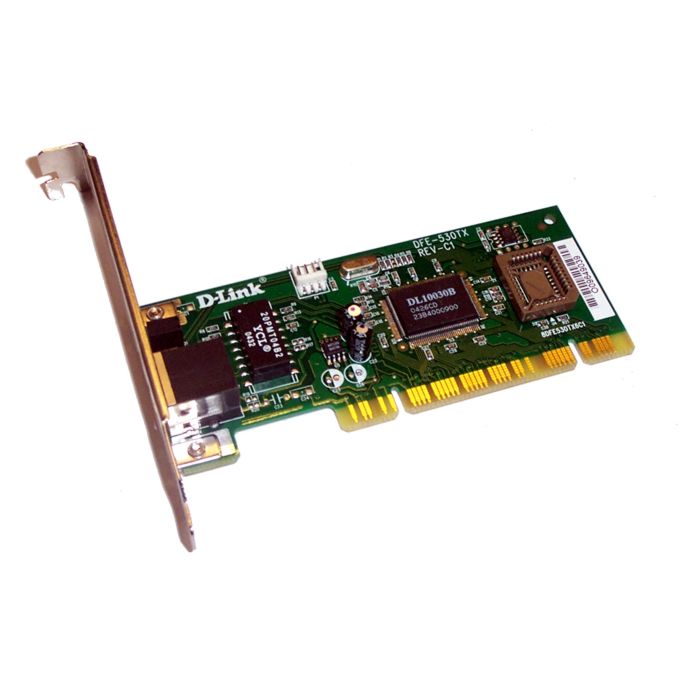

D-Link DFE-530TX+, 10/100Mbps, PCI 32bit

D-Link DFE-530TX+
10/100 Fast Ethernet Desktop PCI Adapter

Standards
- IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Fast Ethernet
- ANSI/IEEE 802.3 Nway Auto-Negotiation
- IEEE 802.3x Full Duplex Flow Control Support

Network Data Transfer Rate
- Ethernet: 10Mbps (Half-duplex)
- Ethernet: 20Mbps (Full-duplex)
- Fast Ethernet: 100Mbps (Half-duplex)
- Fast Ethernet: 200Mbps (Full-duplex)

Features
- PCI Local Bus Master 2.1/2.2 Support
- Plug-and-Play Installation
- Supports PCI 2.1/2.2 ACPI Power Management Wake-On-LAN
- Compliant to PC 99 Standard (Magic Packet, LinkChg and Microsoft wake-up frame)
- Independent 2Kb receive and transmit FIFOs

Protocol
- CSMA/CD

Network Media
- Ethernet: UTP Cat3, 4, 5 EIA/TIA-568 100-ohm screened twisted-pair (STP)
- Fast Ethernet: UTP Cat5, EIA/TIA-568 100-ohm screened twisted-pair (STP)

Led
- Link
- Activity

Certifications
- FCC

Operating Temperature
-10°C to 55°C

Operating Humidity
90% Maximum (Non-condensing)

Minimum System Requirements
- Computer with:
- Windows Vista™, Windows® XP SP2, Windows 2000 SP4**, or Mac OS® X (v10.2/v10.3)***
- CD-ROM Drive
- 20MB Hard Disk Space
- 32-Bit PCI Slot
