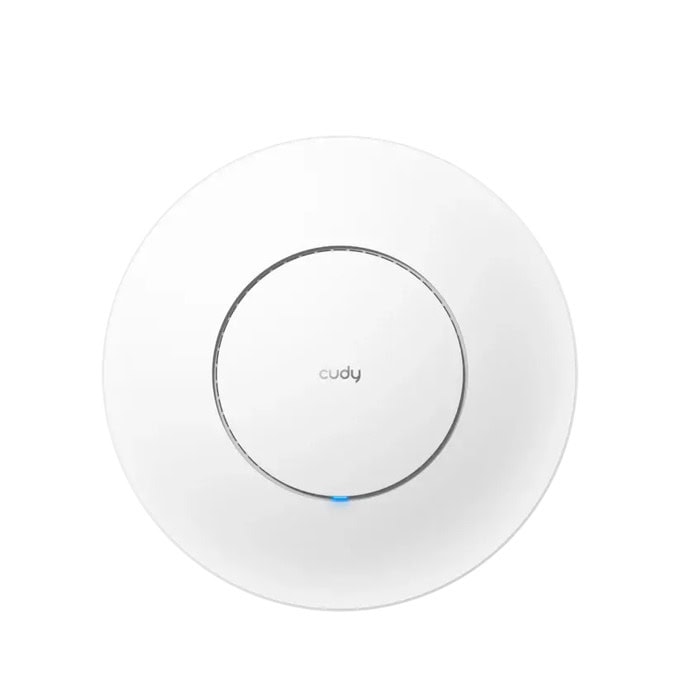

Name: Точка за достъп Cudy AP3600_P, 2.4GHz (688Mpbs)/ 5GHz (2882Mbps), 1x 10/100/1000 RJ45, 1x 10/100/1000/2500 RJ45, 4 вътрешни антени
Brand: Cudy
SKU: NTWBCUDYAP3600P
Price: 92.21 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Wired. Powered. Reliable.

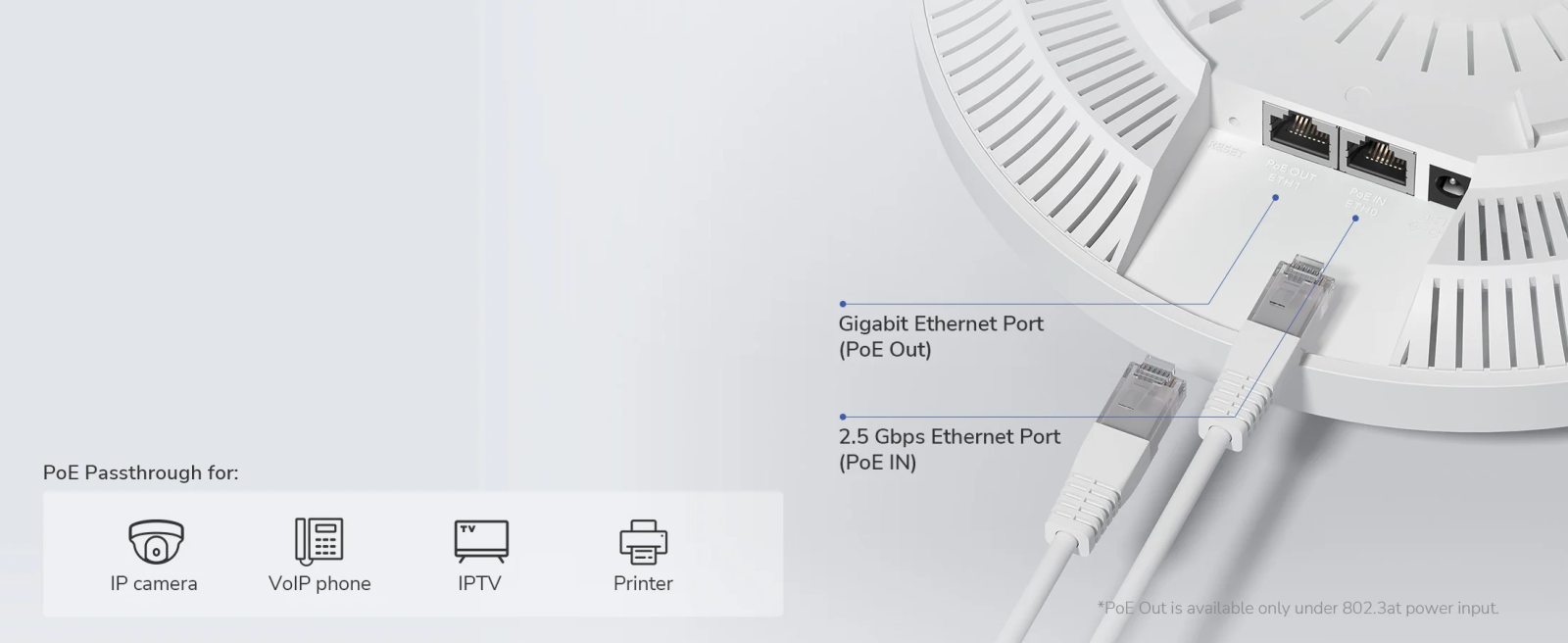

Shielded 2.5 Gbps Ethernet Port

Turbocharge your network bandwidth with a shielded 2.5G Ethernet port, delivering high-speed, interference-resistant connections for seamless multi-device streaming. Plus, a Gigabit Ethernet port supports PoE Out to power connected devices with ease.

Seamless Wi-Fi for Everywhere

Campus

Hospitality

Conference Center

Shopping Mall

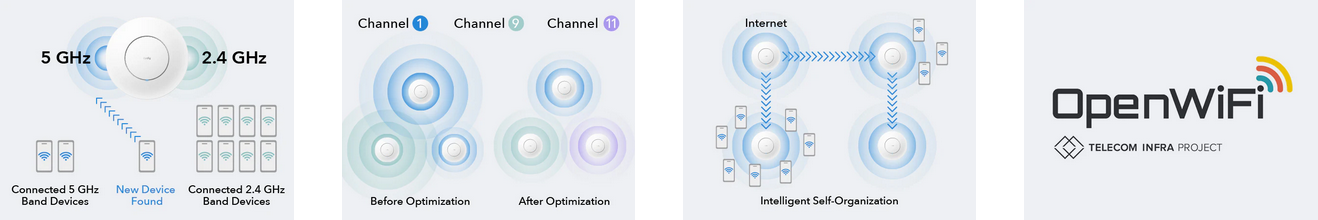

Advanced Business Features

Band Steering

Assign devices to less-congested bands, optimizing the system performance.

Auto Channel Selection

Avoid signal interruptions with nearby access points.

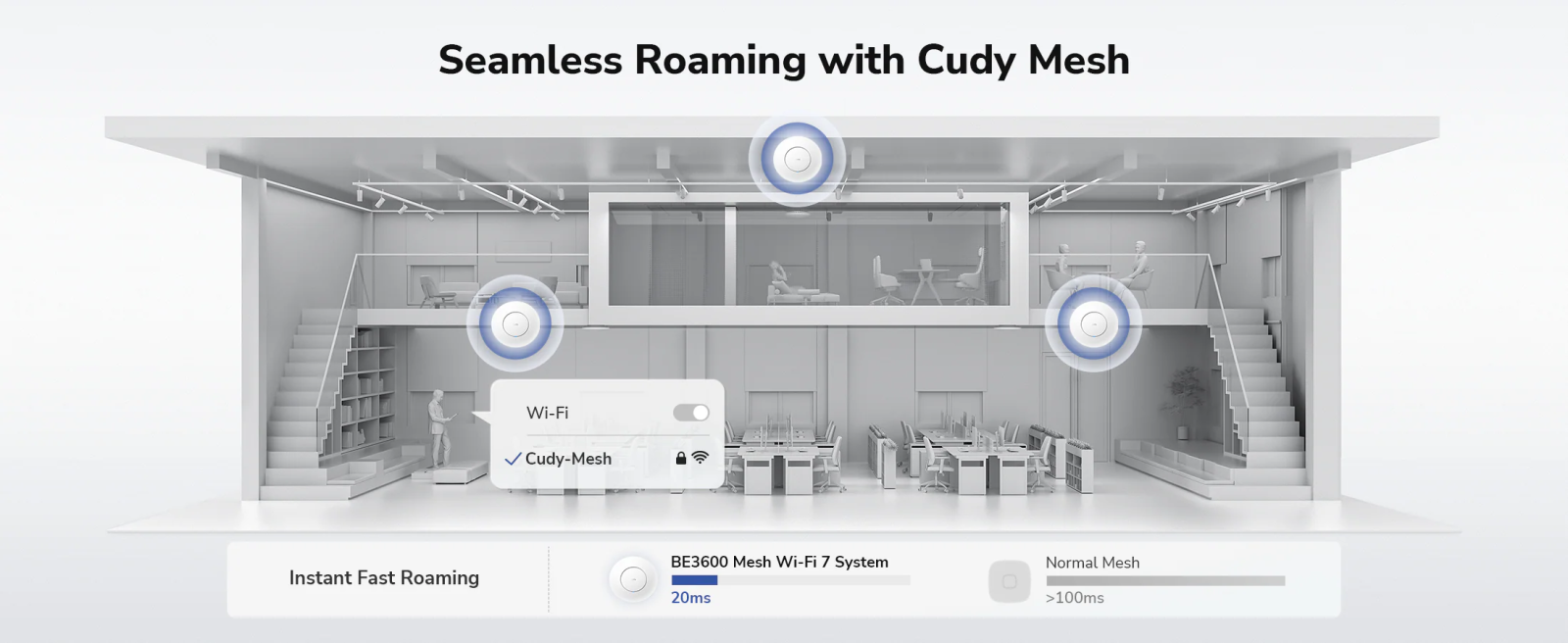

Auto Mesh Optimization

Form mesh backhaul via less congested routes automatically.

OpenWiFi

Built on OpenWiFi software for building a more inclusive and customizable AP system.

Specifications

Hardware Specs

CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
	DDR/RAM	512 MB (4 Gbit) DDR3L
Wireless	5 GHz Wi-Fi Speed	2882 Mbps
	2.4 GHz Wi-Fi Speed	688 Mbps
	5 GHz Wi-Fi Streams	2 Spatial Streams
	2.4 GHz Wi-Fi Streams	2 Spatial Streams
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming
	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

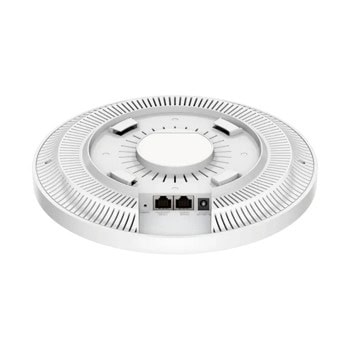

Interfaces	2.5G RJ45 Ports	1
	Gigabit RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
	Power Interfaces	DC Jack PoE via Ethernet Port
Power	Power Methods	DC Passive PoE 802.3at/af PoE
	Power Input	DC: 12V⎓1A Passive PoE: 48-57V⎓ PoE: 802.3at/af
	Power Adapter In the Box	AP3600 \| No adapter in the box AP3600_P \| PoE adapter in the box: Input: 100-240V~, 50/60Hz Output: 48V⎓ Passive PoE
	Max Power Consumption (W)	10W
Reliability	Advanced	Hardware Watchdog
	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	231.9×231.9×57.1 mm 9.13×9.13×2.25 inches
	Product Weight	Adapter Not Included \| EU: 435.0 g (15.34 oz.) EU: 435.0 g (15.34 oz.) With PoE Adapter (_P) \| EU: 435.0 g (15.34 oz.)
Compatibility	Compatible Products	C200P 1.0
	Compatible Accessories	POE400H 1.0, POE200H 1.0, POE52-30W 1.0, POE48-18W 1.0
	Note	Choose with caution: some suggested models may not deliver speeds that match the device’s maximum capability.

Software Specs

Wireless	Wi-Fi Standards	Wi-Fi 7
	Max Wi-Fi Modulation	4K-QAM
	Wi-Fi Efficiency	MLO MRU Puncturing OFDMA MU-MIMO BSS Color
	Max Capacity	512
	Recommended Client Upper Limit	200
	Max Wi-Fi Channel Width	160 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Multi-SSID (Max Number)	8 SSIDs (Up to 4 SSIDs on each band), VLAN Support
	WPS
General	Operation Modes	Wi-Fi Router Access Point
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Management	Multi-AP Management	Via Cudy AP Controller
	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast
	IPTV/VLAN	Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal
	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN
	Online Detection
System	LED Control
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed Wi-Fi Speed

Виж още Аксеспойнт/Репитер Безжични Cudy
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	3600 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 GHz
Антени:	4 Вътрешни
dBi на антена/и:	Не е указано
PoE:	In
Интерфейс:	1x 2500 + 1x 1000
Други:	Няма
