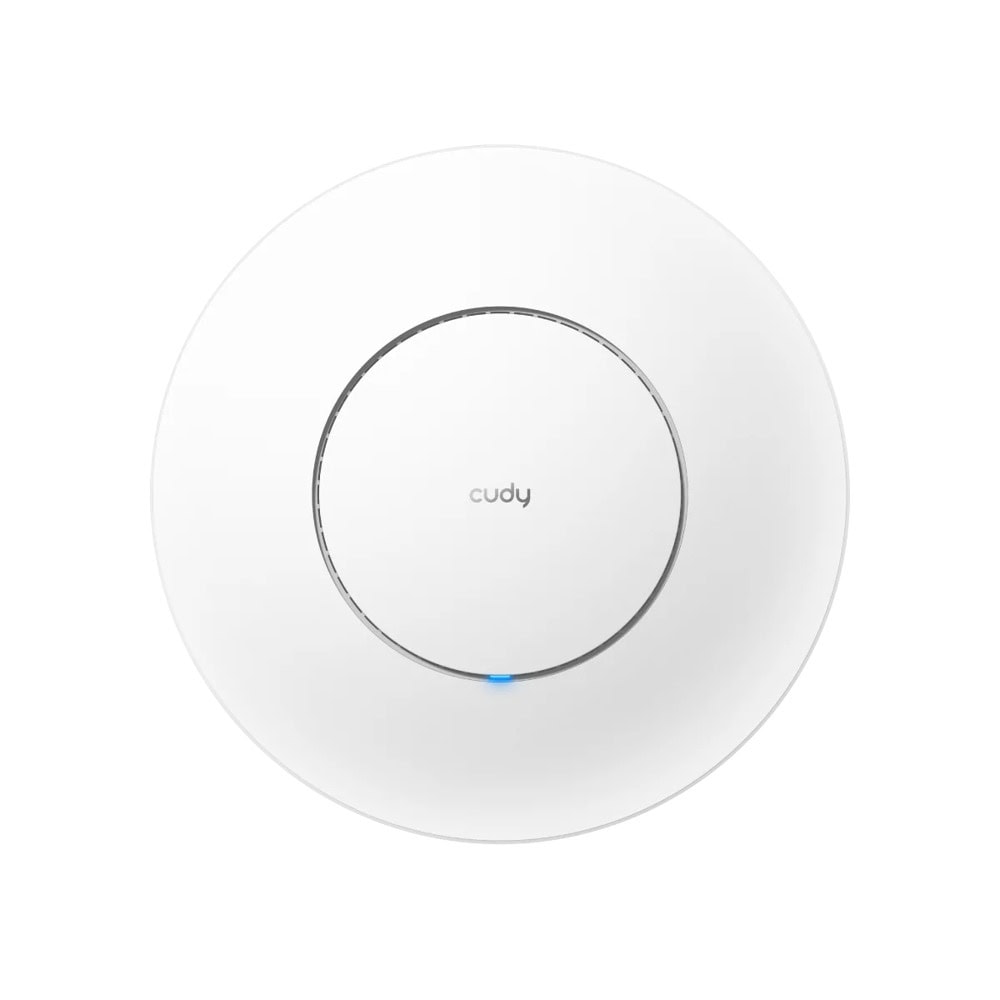

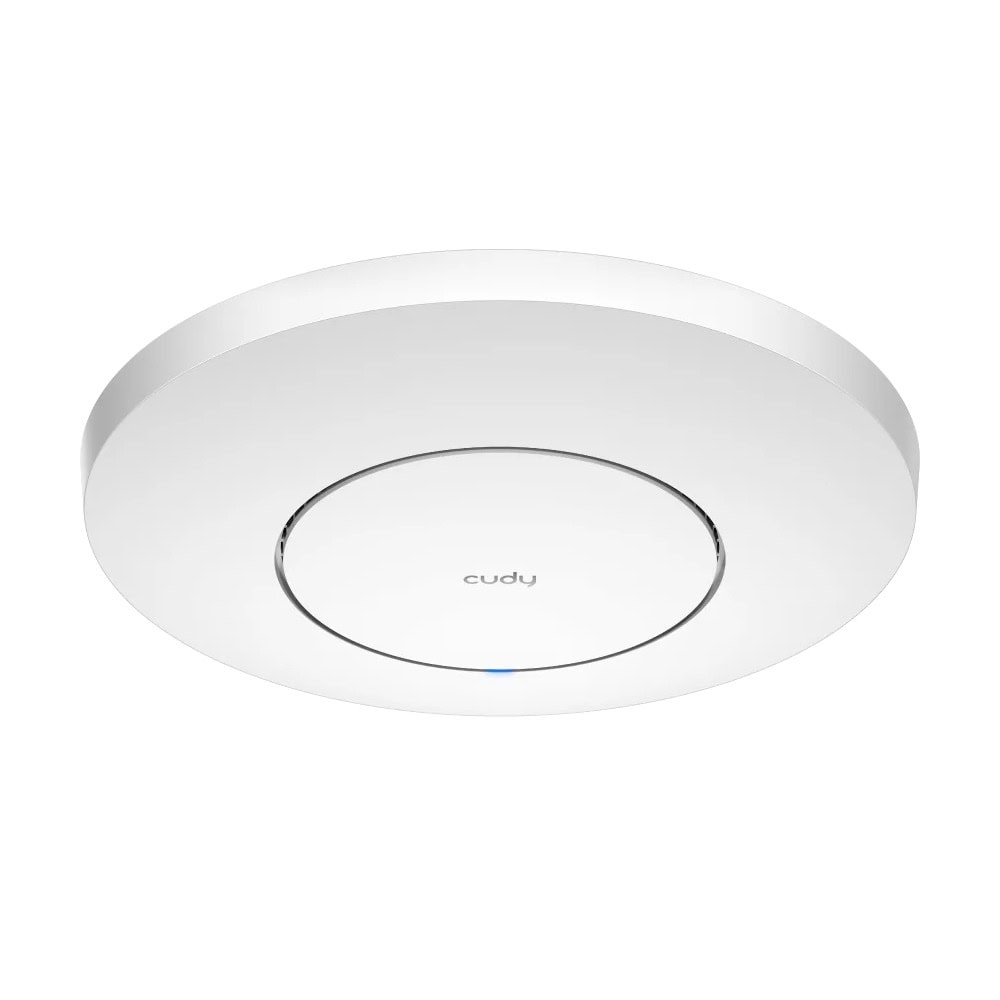

Name: Точка за достъп Cudy AP1200, 1200Mbps, 2.4GHz (300Mbps)/ 5GHz (867Mbps), 4x вътрешни антени
Brand: Cudy
SKU: NTWBCUDYAP1200
Price: 30.99 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

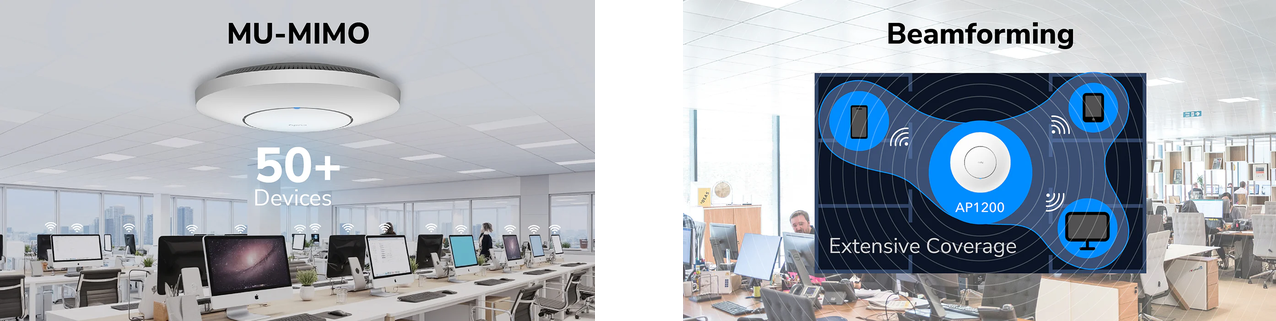

Connect More Devices

With MU-MIMO technology, multiple devices can receive data simultaneously, enhancing efficiency and performance even under heavy usage.

Boosted Coverage

Beamforming technology tracks connected devices' directions and boosts signal towards them, improving coverage performance.

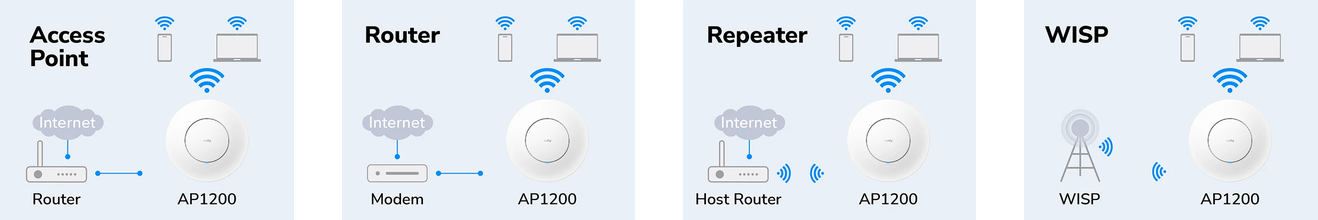

Multi-Mode for Multiple Scenarios

Access Point

Simply create a Wi-Fi spot behind a router.

Wi-Fi Router

Please use the router mode when PPPoE authorization is needed or when creating a separate subnet is needed.

Range Extender

The Wi-Fi Extender (repeater) mode extends existing Wi-Fi coverage to hard-to-cover areas.

WISP

WISP extends Wi-Fi but creates a subnet for connected devices, so it's safer than extender mode.

Specifications

Hardware Specs

CPU	CPU Details	580 MHz Single-Core CPU
Memory/Storage	Flash/ROM	16 MB (128 Mbit) NOR
	DDR/RAM	128 MB (1 Gbit) DDR2

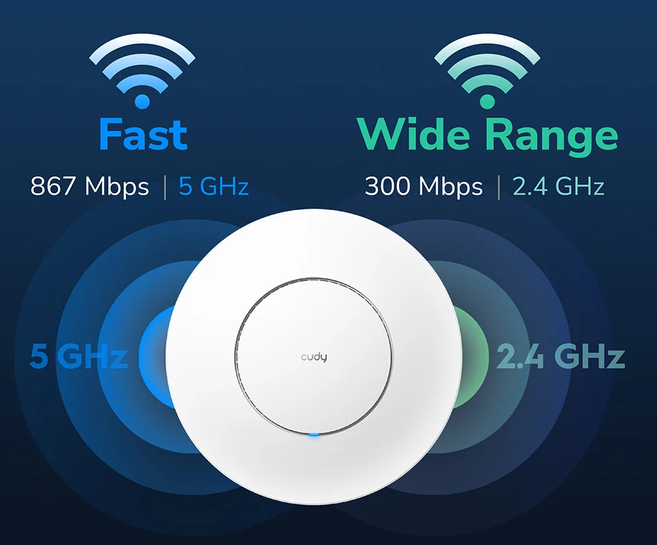

Wireless	5 GHz Wi-Fi Speed	867 Mbps
	2.4 GHz Wi-Fi Speed	300 Mbps
	5 GHz Wi-Fi Streams	2 Spatial Streams
	2.4 GHz Wi-Fi Streams	2 Spatial Streams
	Wi-Fi Antennas	4× Internal
	FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
	Beamforming	Yes
	Range Performance	Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')

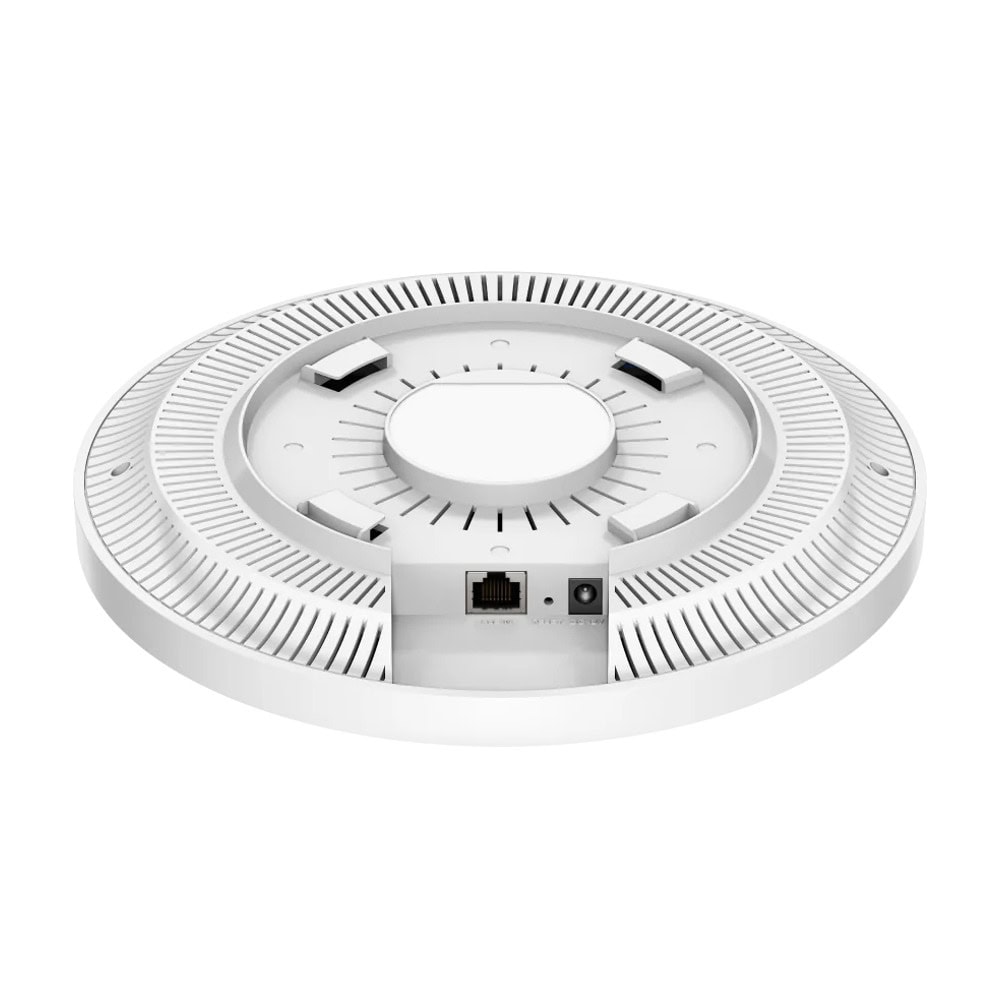

Interfaces	10/100 Mbps RJ45 Ports	1
	Ethernet Notes	Accepts PoE powering
	LED	System
	Physical Buttons	Reset Button
Power	Power Input Type	DC Jack PoE via Ethernet Port
	Power Methods	DC Passive PoE 802.3at/af PoE
	Power Input	DC: 12V⎓1A Passive PoE: 24V⎓ PoE: 802.3at/af
	Power Adapter In the Box	AP1200 \| No adapter in the box AP1200P \| PoE adapter in the box: Input: 100-240V~, 50/60Hz Output: 24V⎓ Passive PoE
	Max Power Consumption (W)	12 W
	Idle Power Consumption (W)	2.5 W
Reliability	EMC	ESD: Contact: 4kV; Air: 8kV
	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications	FCC, CE
Mechanical	Installation	Wall-mount Ceiling-mount
	Dimension	Φ231.9×57.1 mm Φ9.13×2.25 inches
	Product Weight	EU: 370.5 g (13.07 oz.) With PoE Adapter (_P) \| EU: 370.5 g (13.07 oz.)

Software Specs

Wireless	Wi-Fi Standards	Wi-Fi 5
	Max Wi-Fi Modulation	256-QAM
	Wi-Fi Efficiency	MU-MIMO
	Wi-Fi Efficiency Note	MU-MIMO available on 5 GHz
	Max Capacity	128
	Recommended Client Upper Limit	50
	Wi-Fi Channel Width	Auto/20/40/80 MHz
	Wi-Fi Security	WPA/WPA2/WPA3
	Guest Network	2.4 GHz, 5 GHz
	WPS	Yes
General	Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
	Mesh	Cudy Mesh
	Mesh Backhaul	Wireless Backhaul Wired Backhaul
	Multi-Band Backhaul	Yes
	WAN Mode	DHCP Static IP PPPOE PPTP L2TP
	Internet Failover Sequence	WAN WISP
Management	All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
	Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
	Content Management	Domain Filter IP Filter
Network	QoS	Per-User Rate Limiting
	DHCP	Address Reservation DHCP Client List Server
	IP Versions	IPv4/IPv6
	IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
	Multicast	Yes
	IPTV/VLAN	Tag VLAN
	TTL Customization	Extend Spoof Custom
	IGMP	IGMP Proxy IGMP Snooping
	Forwarding	Port Forwarding Port Triggering UPnP DMZ
	Firewall	SPI Firewall DoS Protection Block PING
	Application Layer Gateway	IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
Utilities	Captive Portal	Yes
	Captive Portal Authentication	No Authentication, Local Password, External Portal Server
	VPN Server	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	VPN Client	WireGuard OpenVPN IPsec Zerotier PPTP L2TP
	DNS Options	DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
	DNS over TLS Providers	Cloudflare Google Quad9 Custom
	Wake on LAN	Yes
	Online Detection	Yes
System	LED Control	Yes
	Local Control Method	Config Web Page App Control
	Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
	Firmware Upgrade	Local Update App (Over the Air) Online Update
	Reliability	Timed Reboot Backup and Restore
	Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
	Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard	Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
	Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed

Виж още Аксеспойнт/Репитер Безжични Cudy
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1200 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	4 Вътрешни
dBi на антена/и:	Не е указано
PoE:	In
Интерфейс:	1x 100
Други:	Няма
