Cudy AP1300

Specifications

Hardware Features	Highlights	CPU: 880 MHz Dual-Core Processor
		Flash: 16 MB (128 Mbit)
		DDR: 128 MB (1 Gbit)
	Interface	1× Gigabit Ethernet Port (PoE In)
		1× Reset Button
		1× DC Jack
	Power Supply	802.3af/at PoE
		24-57 V Passive PoE (+4,5pins; -7,8pins)
		12 V ⎓ 1A DC
	Power Consumption	Idle: 4 W
		PoE Max: 11 W DC Max: 7.5 W
	Dimensions ( W×D×H )	232×232×57.1mm
	Antenna Type	4× Internal Omni-directional Antennas
	Mounting	Ceiling/Wall Mounting
Wireless Function	Wireless Standards	Wi-Fi 5 (802.11ac/n/g/b/a)
	Frequency	2.4 GHz and 5 GHz
	Signal Rate	5 GHz: Up to 867 Mbps
		2.4 GHz: Up to 300 Mbps
	Channel Width	20/40/80 MHz
	Wireless Functions (Features with * require a Cudy AC as the gateway) (Features with ** require a Cudy WR1300 or Cudy AC as the gateway) (Features with △ require a Cudy Mesh router/Mesh unit or Cudy AC as the gateway)
		Captive Portal**
		Seamless Roaming Mesh△
		Self-Organizing Mesh△
		Band Steering*
		Auto Channel Optimization*
		Enable/Disable Wireless Radio
		Transmit Power Control
		QoS (WMM)
		MU-MIMO

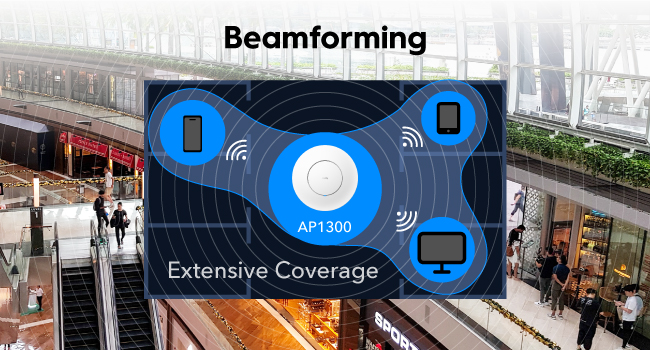

		Beamforming
		Rate Limit
		Reboot Schedule
		Wireless Schedule
	Wireless Encryption	WPA-PSK
		WPA2-PSK
		WPA-PSK/WPA2-PSK
	Security (Features with require a Cudy AC as the gateway)*	IP/MAC Filtering
		AP Isolation*
Operating Modes	Wireless Access Point Mode
	Wireless Router Mode
	Wireless Extender Mode
	WISP Mode
Environments	Operating Temperature: 0~40 °C
	Storage Temperature: -40~70 °C
	Operating Humidity: 10~90% RH non-condensing
	Storage Humidity: 5~90% RH non-condensing
System Requirements	Windows, MAC OS, NetWare, UNIX, or Linux
	Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser
	A fiber/cable/DSL Modem, or other devices providing wired internet
	Subscription with an internet service provider for internet access
	A power socket for AC power supply, or PoE power supply
	Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023. Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.

Виж още Аксеспойнт/Репитер Безжични Cudy
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1200 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	4 Вътрешни
dBi на антена/и:	Не е указано
PoE:	In
Интерфейс:	1x 1000
Други:	Няма
