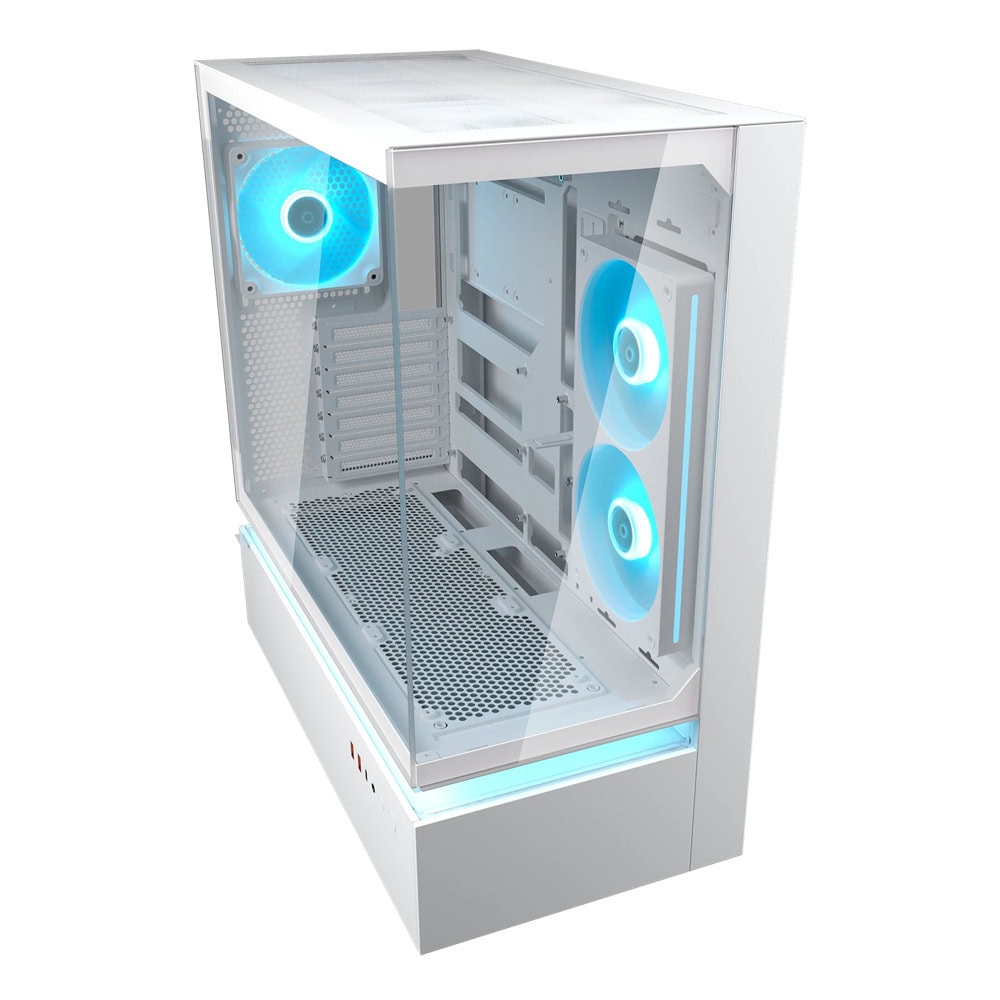

Cougar Gaming CFV235 White CGR-2DA4W
Икона нов продукт
НазадCougar Gaming CFV235 White CGR-2DA4WCougar Gaming CFV235 White CGR-2DA4WCougar Gaming CFV235 White CGR-2DA4WCougar Gaming CFV235 White CGR-2DA4WНапред

Кутия Cougar Gaming CFV235, CEB/ATX/microATX/Mini-ITX, 1x USB 3.2 Gen 2x2 Type-C, 1x 240 single-frame ARGB вентилатор, 1x 120mm ARGB вентилатор, с прозорец, бяла, без захранване

id 302474 Код: CASEPCOUGARGAMINGCGR2DA4W

123.12

/

240.80 лв

ОписаниеХарактеристикиРевюта / Въпроси

Cougar Gaming CFV235



True Free-Floating Structural Separation

Conventional design squeezes both the PSU - a prime source of heat - and critical components in the same space, restricting airflow access to only the top, front and rear panels. The Central Floating Ventilation divides the PSU cabin and main chamber with a structural hollow that lets air move with greater freedom and purpose. This free-floating architectural separation also gives the CFV235 series its unique, progressive visual identity.

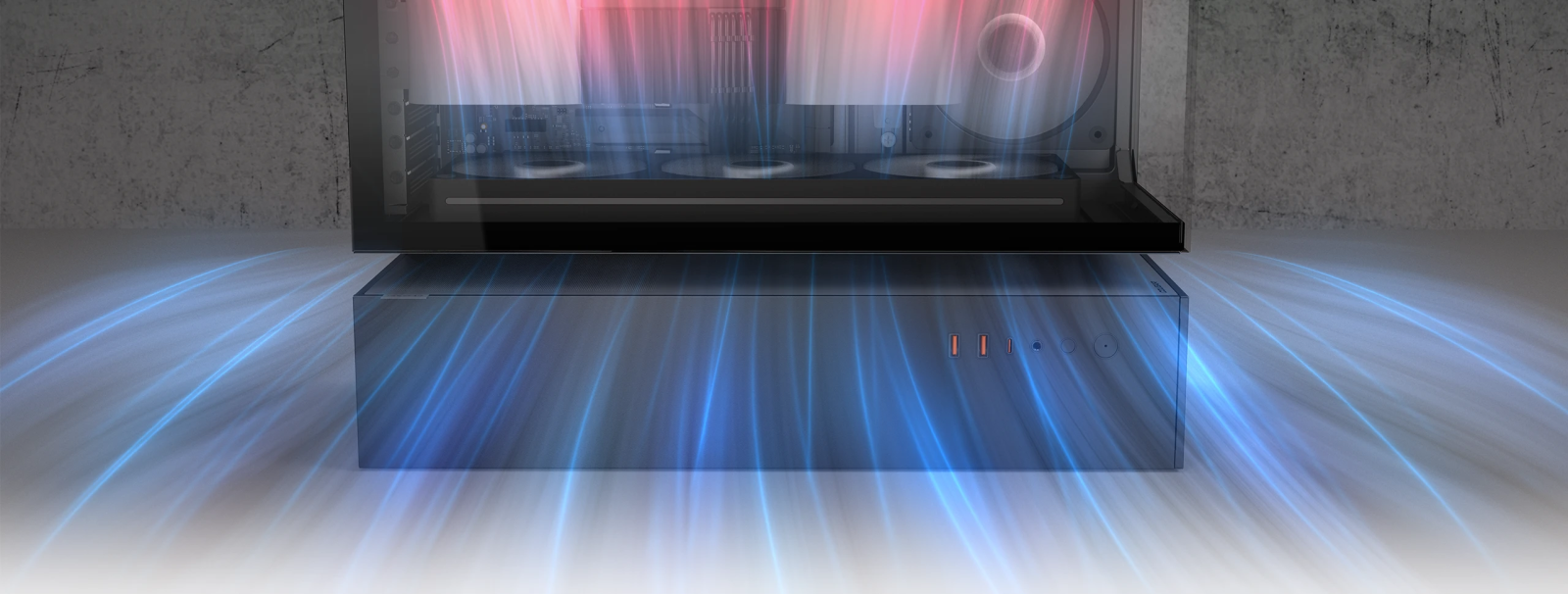

270° Airflow Access Within Suspended Space

The CFV235 series’ floating space is a fully 3 dimensional, discrete void suspended within the chassis. 270° of spacious, unobstructed airflow intake delivers greater ventilation than enclosed layouts to where it’s most needed.

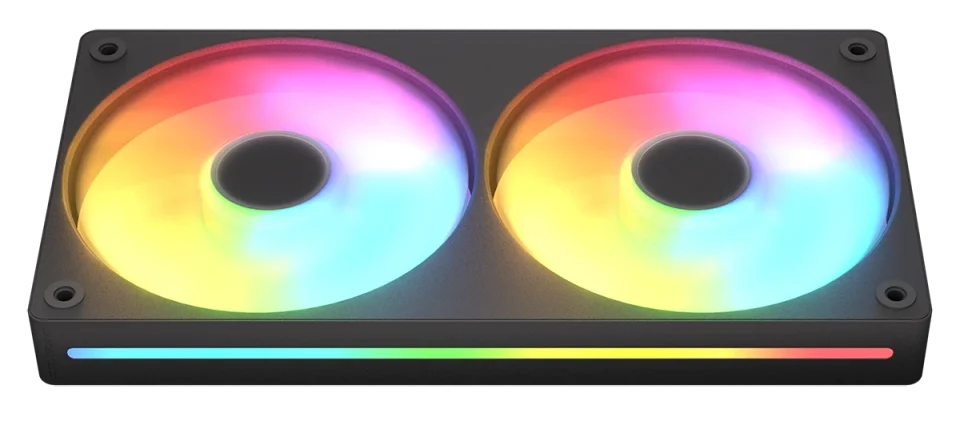

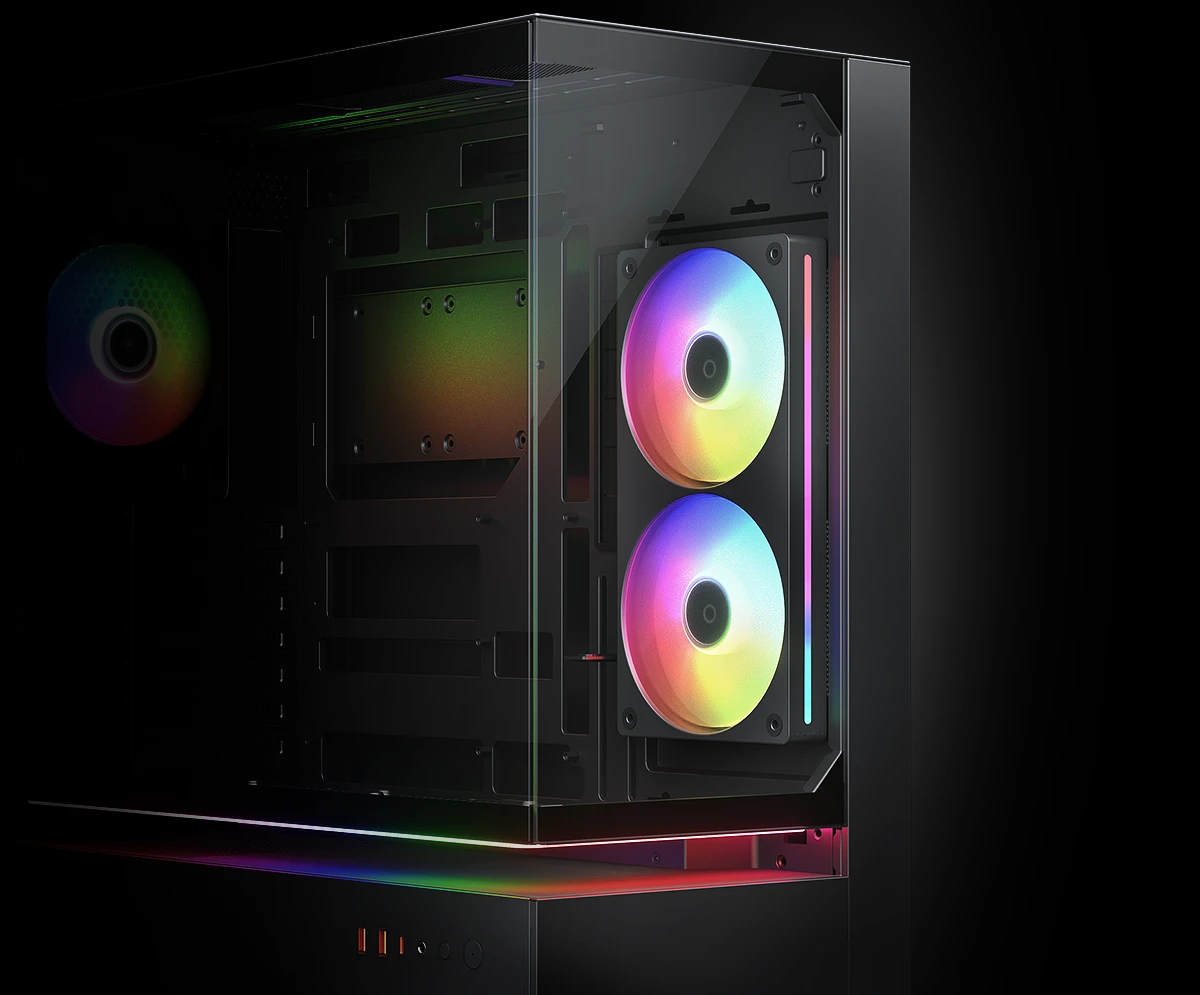

Pre Installed Reverse Blade Unity ARGB 240 Fans

COUGAR Unity ARGB 240 single-frame PWM reverse-blade fans are preinstalled on the motherboard side, providing precise fan speed control, exceptional cooling, near-silent operation, and stunning RGB lighting straight out of the box.

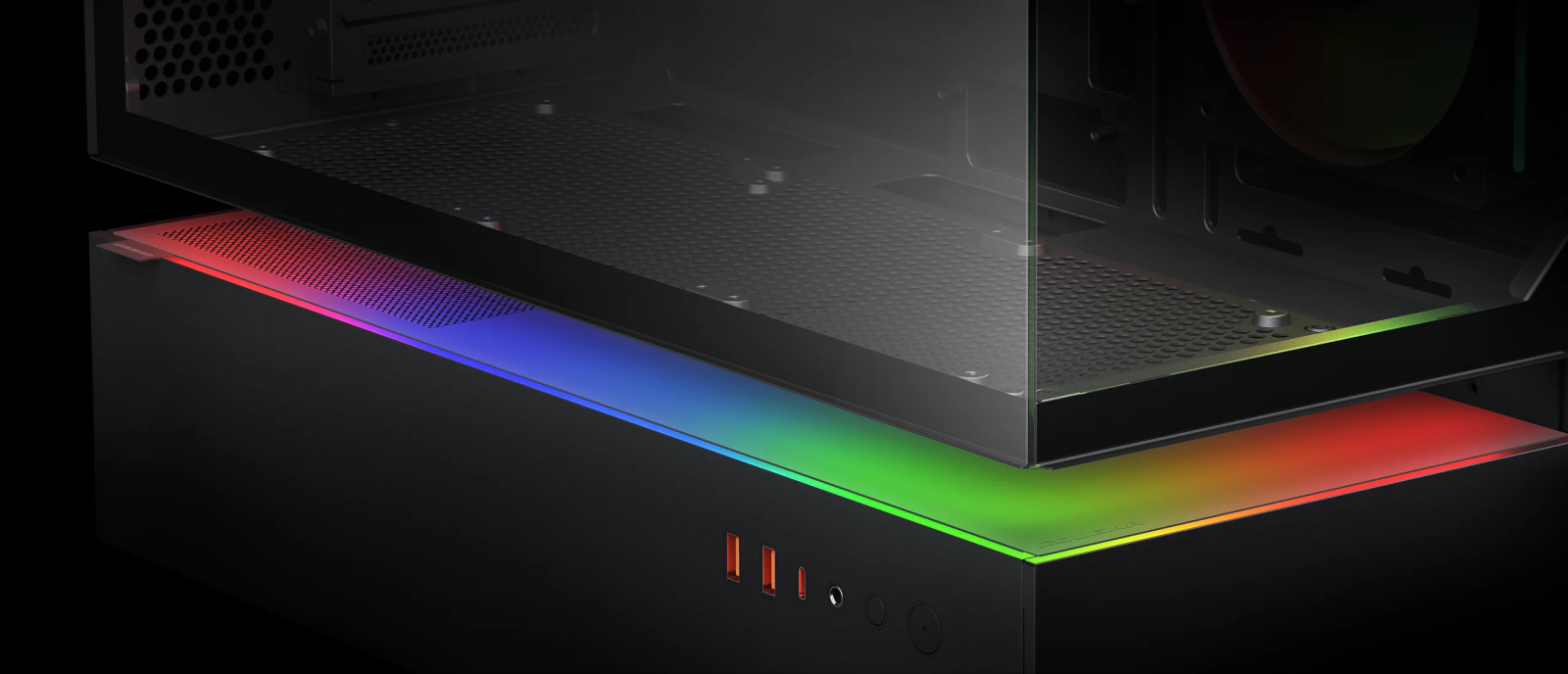

The Rainbow In Between

The Aurora lighting strip lights up with the integrated space of the Central Floating Ventilation structure from within, highlighting this innovative feature and displaying it as an architectural reinvention. It’s included with the case and attaches magnetically for ease and convenience.



Light. Speed

The CFV235 features an integrated universal fan hub that enables seamless coordination of PWM fan speed and RGB lighting. This allows you to control the RGB lighting without the need for software, or synchronize it with motherboard software.

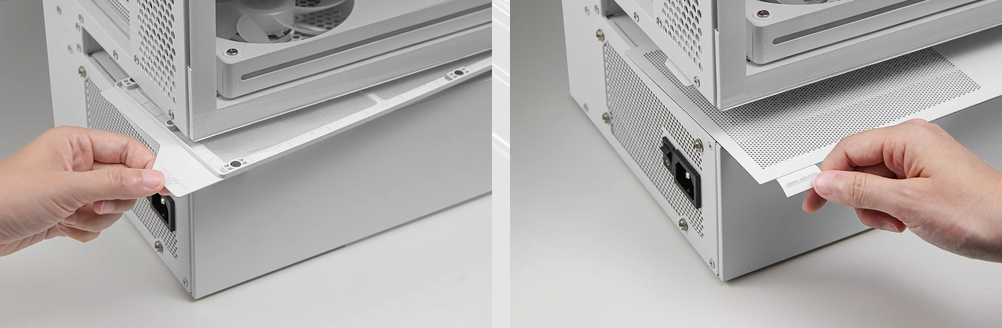

Dual Magnetic Filtration

Magnetic dust filters at the roof and base of the Central Floating Ventilation structure proactively prevent dust and debris buildup, keeping airflow clean and uninterrupted without disrupting the suspended design.

Just grab the protruding tag and pull: it’s that easy to clean the filter.

Dust filters attach magnetically to protect the separated PSU cabin and main chamber from dust and other particles.



Vertical Spatial Efficiency

The placement of the central floating ventilation channel on a vertical axis avoids expanding the overall width, keeping the footprint tight.

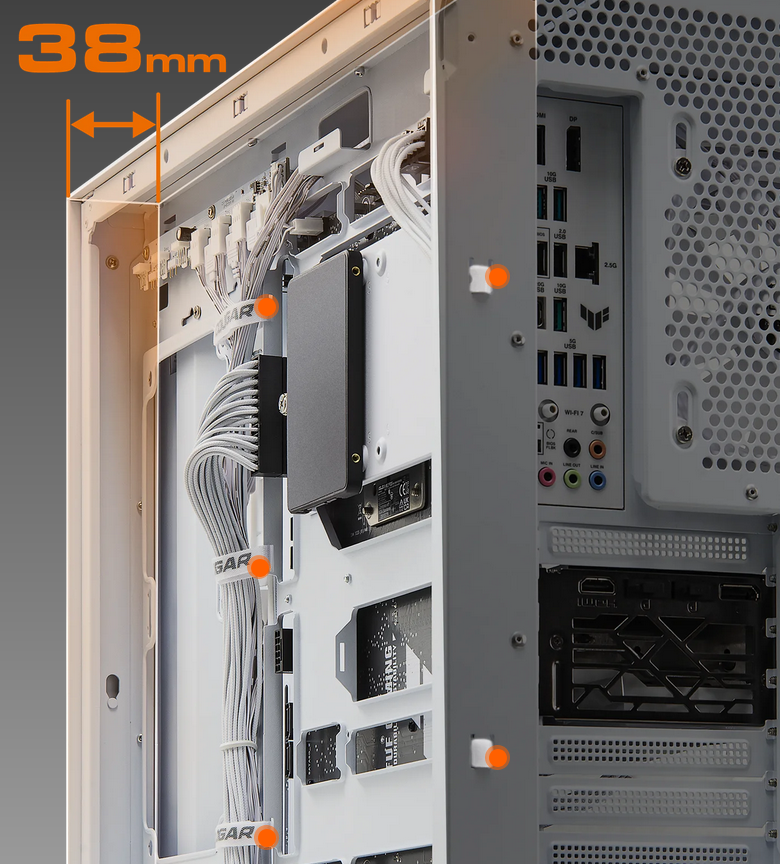

Space Engineering

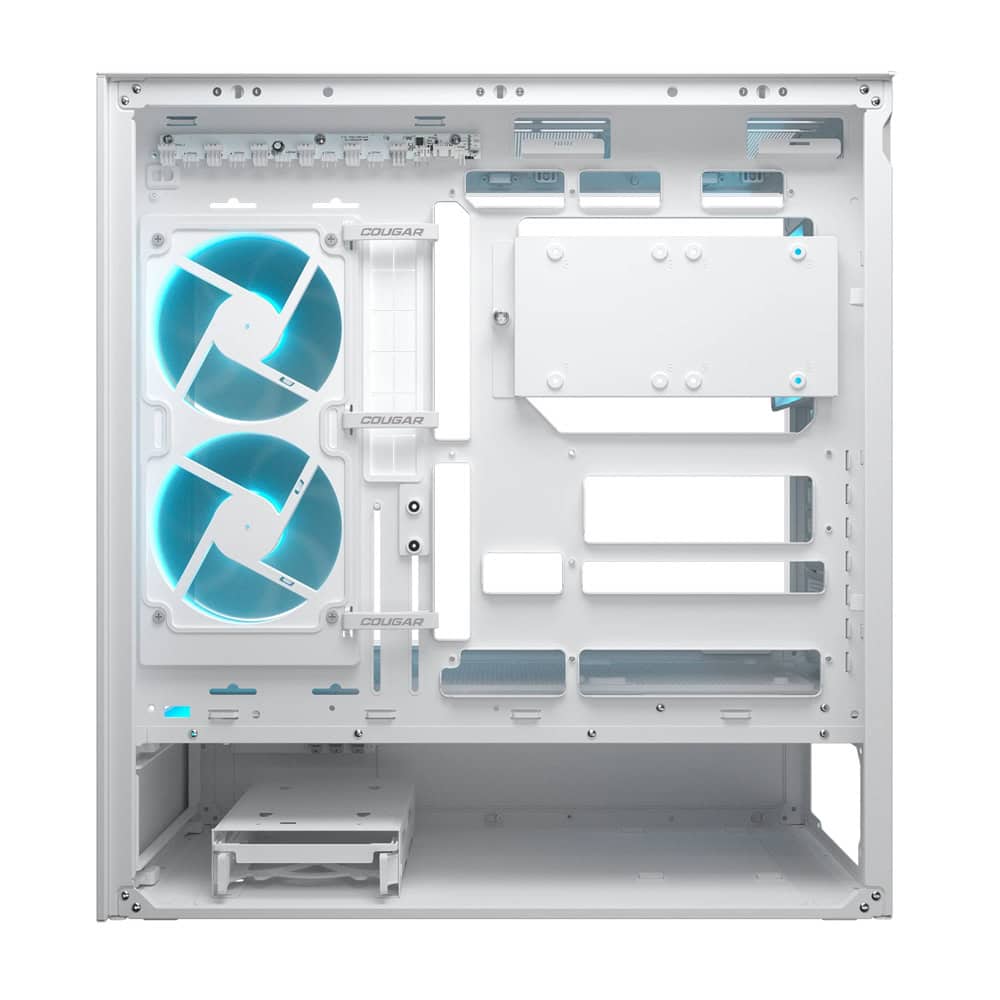

38mm of clearance behind the motherboard tray improves cable management ,offering more room to route and conceal cables of varying thickness. Five adjustable Velcro straps offer versatile options to secure and tidy your layout.



Versatile Compatibility

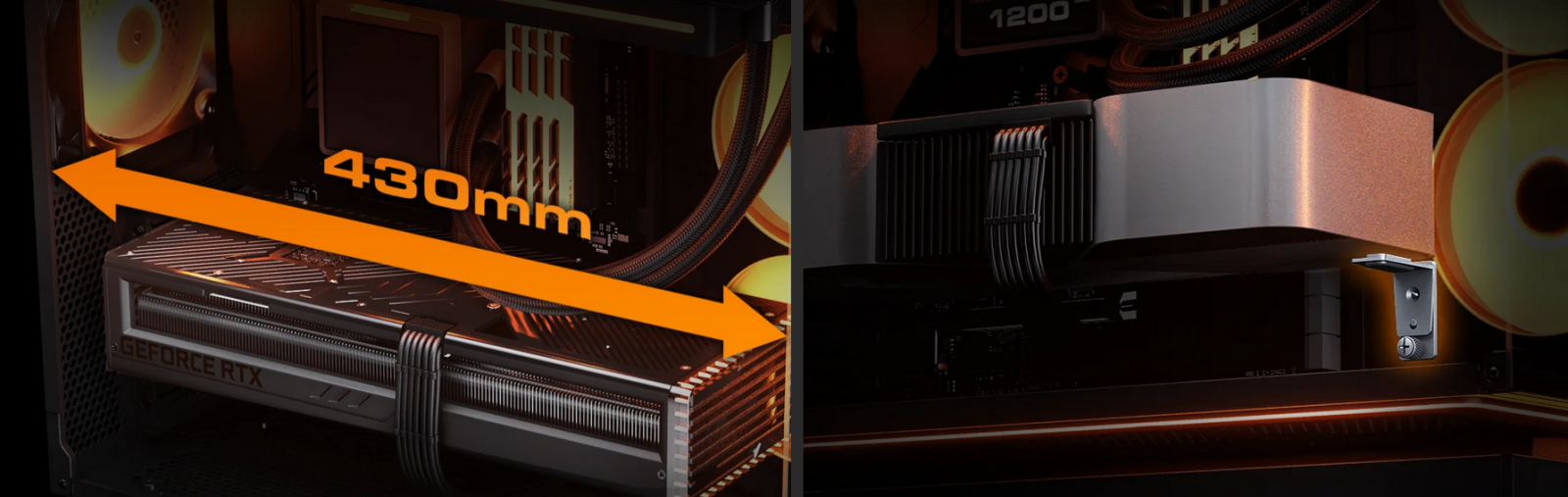

Compatible with reverse connector motherboards and accommodating GPUs of up to 430mm, the CFV235 is engineered for the gaming rigs of the future. An L–shaped GPU mounting bracket with flexible installation options protects against GPU sag.



Specifications



Case Form FactorMid Tower
Motherboard TypeMini ITX / Micro ATX / ATX / CEB
Dimensions (WxHxD)235 x 493 x 460 (mm)
9.3 x 19.4 x 18.1 (in)
I/O PanelUSB 3.2 Gen 2x2 Type-C x 1, USB 3.0 Type-A x 2, 4 Pole Headset Audio Jack x 1, RGB Button
3.5" Drive Bay2
2.5" Drive Bay2+2 (converted from 3.5" drive bays)
Expansion Slots7
Cooling Fan SupportTop120mm x 3 / 140mm x 3
M/B Side120mm x 2
Bottom120mm x 3
Rear120mm x 1
Pre-installed FansM/B SideUnity 240 ARGB PWM Reversed fan x 1
Rear120mm ARGB PWM fan x 1
SpeedUnity 240 ARGB PWM Reversed fan: 700-1600 RPM ±10%
120mm ARGB PWM fan: 500-1400 ± 10% RPM
Connector5V 3 Pin (ARGB) / 4 Pin PWM (Fan)
Maximun Number of Fans9
Water Cooling SupportTop360mm / 280mm / 240mm / 140mm / 120mm
Rear120mm
Aurora LED StripYes
PWM and RGB hub Sync with M/BYes
Max. Graphics Card Length430 (mm) / 16.9 (in)
Max. CPU Cooler Height175 (mm) / 6.9 (in)
Max. PSU Length200 (mm) / 7.9 (in)


JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.



    Виж още Компютърни кутии Cougar Gaming
    Виж всички Компютърни кутии в категорията
    Технически характеристики
    Захранване:  Не
    Прозорец:  Да
    Цвят:  Бял
