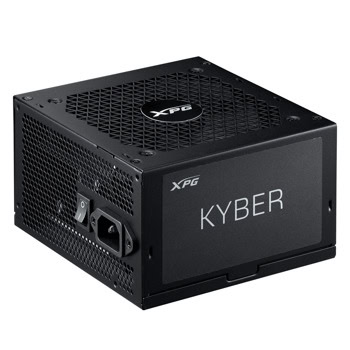

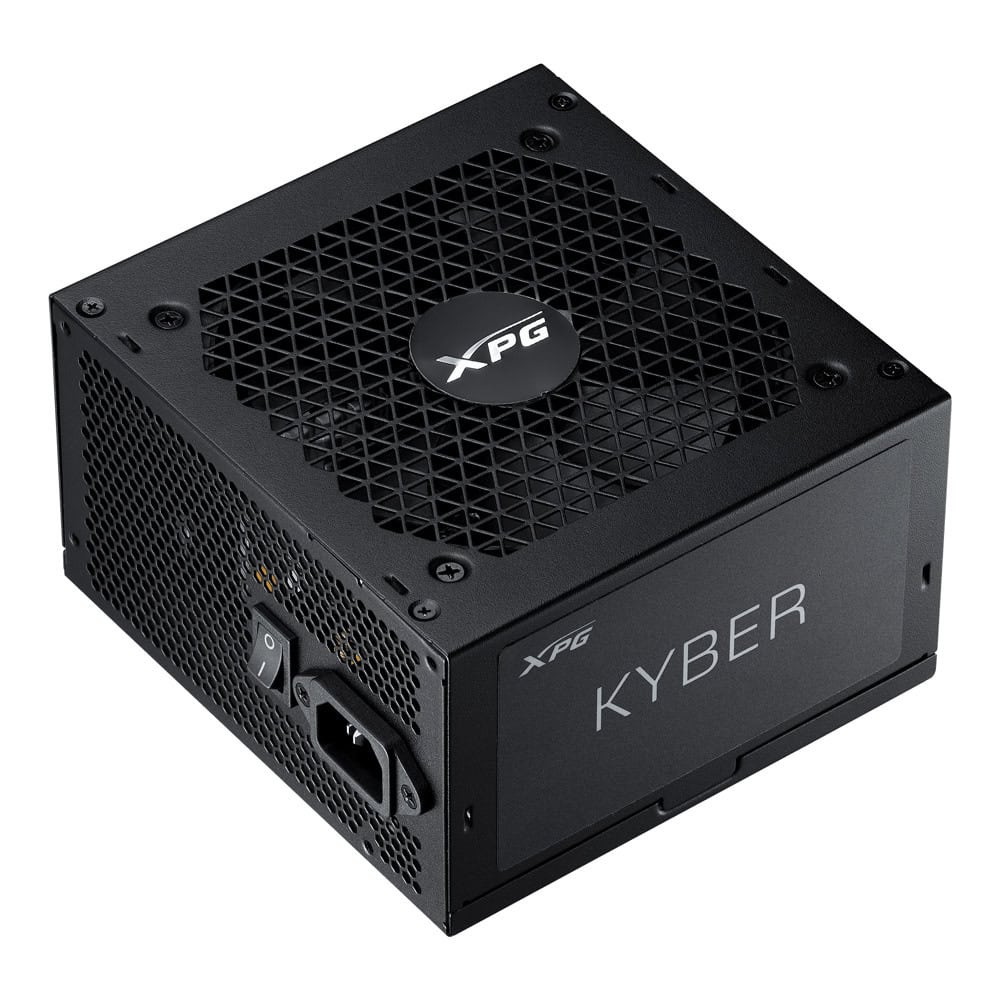

Захранване A-Data KYBER, 850W, Active PFC, 80 Plus Platinum, 120mm вентилатор

Next-Gen Ready - ATX 3.1 COMPATIBLE:
KYBER power supply units adhere to the Intel ATX 3.1 design guide specifications and offering a 12V-2x6 connector at 750 and 850 wattage category, KYBER can support the latest graphics cards, made specifically for those who require high graphic capability and performance.

Intelligent Fan-Curve Design:
The intelligent fan-curve ensures quiet operation in a majority of user scenarios. By starting the fan control at a low RPM, achieving less noise and a much longer lifespan for both the fan and the overall PSU.

PEAK PERFORMANCE AND RELIABILITY:
All XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.


Specifications

Dimensions (L x W x H)
140 x 150 x 86 mm

Cybenetics Rating
PLATINUM

ATX Version
ATX 3.1

Protections
OVP / OPP / SCP / OCP / UVP / OTP / NLO / SIP

Certification
CB/TUV/cTUVus/CE+UKCA/FCC+IC/LVD+UKCA/BSMI/RCM/BIS/EAC+ROHS/S-MARK/NOM

PFC
>0.99

Input Voltage
100V-240V

Input Current
12A

Input Frequency
47 – 63 Hz

DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb

Total Output
850W

Power Excursion
850W: 1700W (*up to 235% of the PSU's rated power for 100μs)

Operating Temperature
40 °C

Fan Size
120 x 120 x 25mm

Fan Bearing
FDB

Fan Speed
2400

MTBF
100,000 hours

ATX 24 Pin Connector
1

EPS 8 Pin Connector
2

PCI-E 6+2 Pin Connector
2

Molex 4 Pin Connector
2

12V-2x6 / 12VHPWR (12+4) Connector (600W)
1

SATA Connector
6

Weight
2.032Kg
