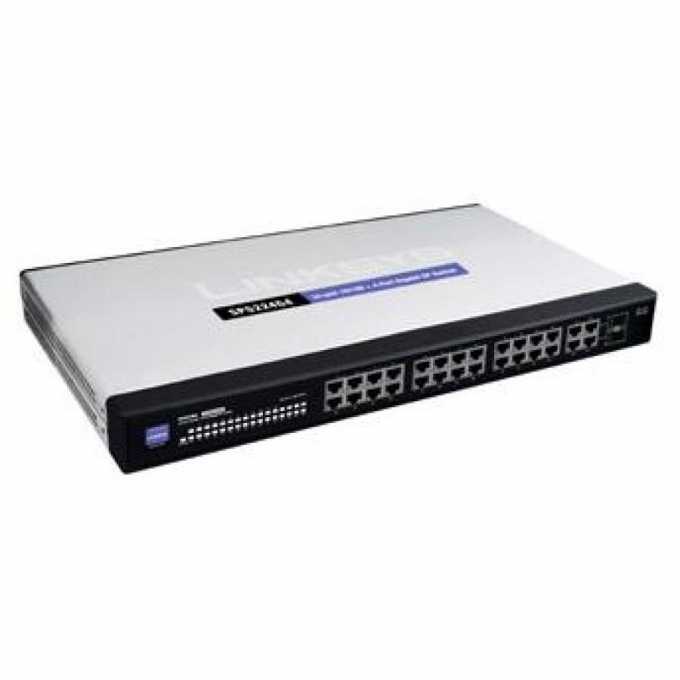

Cisco SPS224G4-G5 24-port 10/100 + 4-port Gigabit SP Суич

Сигурност IEEE 802.1X: RADIUS authentication; MD5 encryption, Multiple-session authentication on a per-host basis, Guest VLAN; Access control; Access security
Захранване Internal power supply; Power consumption: 100–127V/1.0A, 200–240V/0.5A, 50–60 Hz, 15.6W
MAC адреси 8000 MAC address table size
Управление Built-in web user interface for easy browser-based configuration (HTTP/HTTPS); SNMP versions 1, 2c, and 3, with support for traps; Embedded RMON software agent supports four RMON groups for enhanced traffic management, monitoring, and analysis
Памет (Flash, RAM) -
VLAN (брой, стандарти) Number of VLANs: 256 active VLANs (4096 range); Port-based and 802.1Q tag-based VLANs; Q-in-Q stacking VLAN; PVE; GVRP: Dynamic VLAN registration; Management VLAN
Размери, mm 430 x 202.5 x 44.45 mm, 1U Height
Stackable No
Суич, тип Fixed Port
Общ брой портове 28
Основни портове, тип 24x10/100Base-TX
Power Over Ethernet (PoE) No
Uplink портове 2x10/100/1000Base-T, 2xSFP
Свободни (10GB) слотове No
Fans Fanless design
Routing Layer 2 only
Капацитет за маршрутизиране/превключване, Gbps 12.8 Gbps
Пропускателна способност, Mpps 9.5 Mpps
QoS Priority levels: 4 hardware queues; Scheduling: Priority queuing and weighted round robin (WRR); Class of service: Port based, 802.1p VLAN priority based; Per flow QoS: VLAN ID, Ether type, IPv4/v6 IP precedence/ToS/DSCP based
L2 мреживи стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
L3 мрежови стандарти -
IPv6 functionality -
