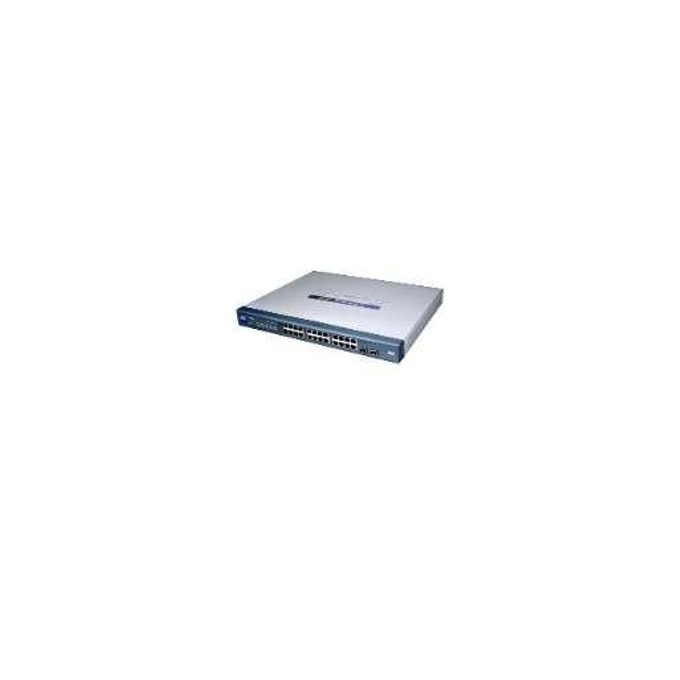

Cisco SPS2024-G5 24-port 10/100/1000 SP Суич

Сигурност IEEE 802.1X RADIUS authentication; MD5 encryption; IEEE 802.1X multiple sessions authentication on a per-host basis; IEEE 802.1X guest VLAN; Access control; Access security
Захранване Internal power supply; Power consumption: 100–127V/2.0A, 200–240V/1.0A, 50–60 Hz, 33W
MAC адреси 8000 MAC address table size
Управление Built-in web UI for easy browser-based configuration (HTTP/HTTPS); CLI support via console port or Telnet; SNMP versions 1, 2c, and 3, with support for traps; Embedded RMON software agent supports 4 RMON groups
Памет (Flash, RAM) -
VLAN (брой, стандарти) Number of VLANs: 256 active VLANs (4096 range); Port-based and 802.1Q tag-based VLANs; Q-in-Q stacking VLANs; PVE; GVRP: Dynamic VLAN registration; Management VLAN
Размери, mm 430 x 350 x 44.45 mm , 1U Height
Stackable No
Суич, тип Fixed Port
Общ брой портове 26
Основни портове, тип 24x10/100/1000Base-T
Power Over Ethernet (PoE) No
Uplink портове 2 dual personality
Свободни (10GB) слотове No
Fans Fanless design
Routing Layer 2 only
Капацитет за маршрутизиране/превключване, Gbps 48 Gbps
Пропускателна способност, Mpps 35.71 Mpps
QoS Priority levels: 4 hardware queues; Scheduling: Priority queuing and weighted round robin (WRR); Class of service: Port based, 802.1p VLAN priority based, IP ToS/DSCP based; Per flow QoS: VLAN ID, Ether type, IPv4/v6 IP precedence/ToS/DSCP based
L2 мреживи стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
L3 мрежови стандарти -
IPv6 functionality -
