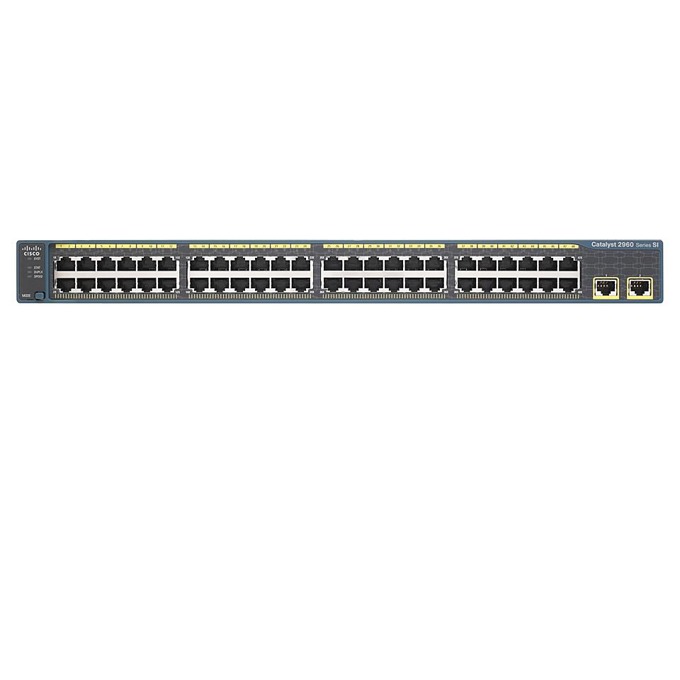

Суич Cisco Catalyst 2960, 48x 100Mbps + 2x 1000BT LAN Lite Image

Сигурност IEEE 802.1x; Port-based ACLs for Layer 2 interfaces; Unicast MAC filtering; SSHv2 and SNMPv3; Bidirectional data support on the Switched Port Analyzer (SPAN); TACACS+ and RADIUS authentication
Захранване Internal Power Supply; Maximum power consumption: 45W
MAC адреси 8000 MAC address table size
Управление Switching Database Manager templates for security and QoS; IGMPv3 snooping provides fast client joins and leaves of multicast streams; Remote SPAN (RSPAN) allows administrators to remotely monitor ports
Памет (Flash, RAM) Flash Memory: 32 MB, RAM: 64 MB DRAM
VLAN (брой, стандарти) VLAN trunks can be created from any port using standards-based IEEE 802.1Q tagging; max VLANs: 255; VLAN IDs: 4000
Размери, mm 445 x 236 x 44 mm, 1U Height
Stackable Yes
Суич, тип Fixed Port
Общ брой портове 50
Основни портове, тип 48x10/100Base-TX
Power Over Ethernet (PoE) No
Uplink портове 2x10/100/1000Base-T
Свободни (10GB) слотове No
Fans yes
Routing Layer 2 Only
Капацитет за маршрутизиране/превключване, Gbps 16 Gbps
Пропускателна способност, Mpps 10.1 Mpps
QoS Standard 802.1p CoS and DSCP field classification; Four egress queues per port enable differentiated management of up to four traffic types across the stack; Strict priority queuing guarantees; Strict priority queuing guarantees
L2 мреживи стандарти IEEE 802.1s; IEEE 802.1w; IEEE 802.1x; IEEE 802.3ad; IEEE 802.3ah; IEEE 802.1D Spanning Tree Protocol
L3 мрежови стандарти -
IPv6 functionality -
