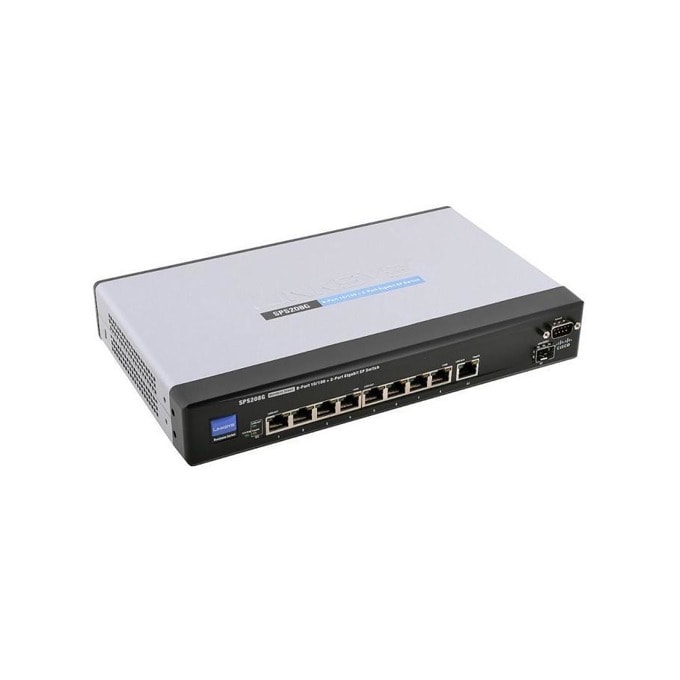

Cisco 8-port 10/100 Суич, +2 Gigabit Ports

Primary LAN port type 100Base-T, RJ-45
Primary LAN ports number 8
Secondary LAN port type Dual Personality (1000Base-T or SFP)
Type Managed
Managed Port Yes
Ports 8
PoE No
Network type Fast Ethernet
Stacking No
Layer 3 switching No
Uplink Base-T Yes
Uplink SFP Yes
Uplink Dual Personality No
Vendor Cisco
Part No. SPS208G-G5
Model No. SPS208G-G5
Web Page http://www.cisco.com/en/US/partner/prod/collateral/switches/ps6568/ps10021/ps10022/data_sheet_c78-534060.html
Dimensions H, cm 4.5
Dimensions W, cm 27.9
Weight, kg 1
Configuration Fixed
Rackmountable Yes, kit included
Configuration and Management RMON, Browser-based, SSH, CLI
SNMP Management SNMPv3, SNMPv2c, SNMPv1
Dimensions D, cm 17
Environmental req. Operating Temp.: 0 to 40˚C; Operating Humidity: 10 to 90%
Power supply AC
Console Port RS-232
Rack Height , RU 1
SFP slots 1
Uplink LC Fiber No
FE fixed ports 8
SFP modular ports 1
Power over Ethernet no
FW Rate (Mpps) 4.17
Max VLAN 256
Max MAC address table 8000
Standards IEEE 802.1x, IEEE 802.1p Class of Service (CoS) Prioritization, IEEE 802.1Q VLAN tagging, IEEE 802.3ad Link Aggregation Control Protocol (LACP), IEEE 802.3z, IEEE 802.3ab, IEEE 802.3, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D Spanning Tree Protocol
RMON RMON
SNMP SNMPv3, SNMPv2c, SNMPv1
OSI Layer suppor Layer 2
Primary Uplink port type Dual Personality (1000Base-T or SFP)
Primary Uplink ports number 1
Switching capacity, Gbps 5.6
Forwarding rate, Mpps 4.17
MAC address table entries 8000
Stackable No
