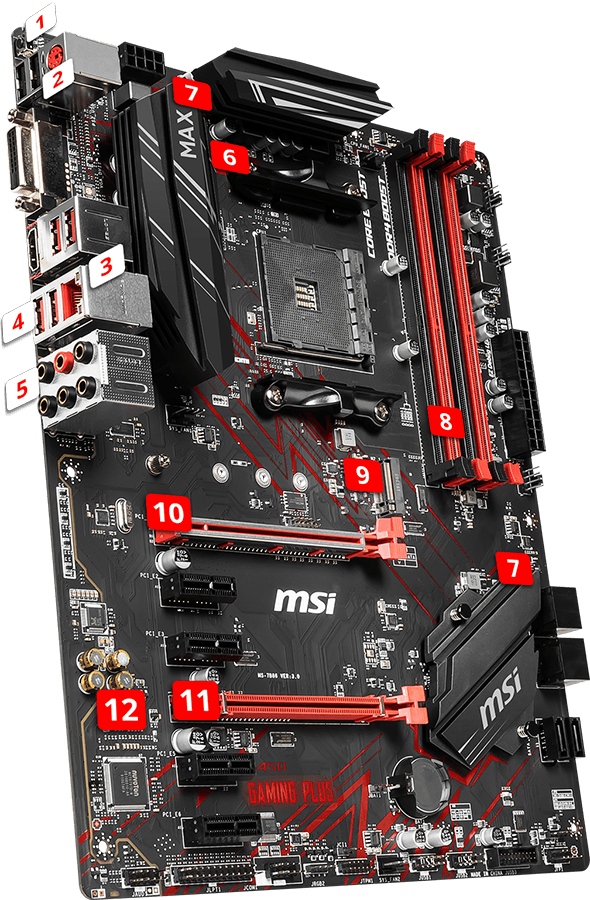

Дънна платка MSI B450 GAMING PLUS MAX, 7B86-031, B450, AM4, DDR4, PCIe 3.0 (HDMI, DVI), 6x SATA 6Gb/s, 1x M.2 slot, 6x USB 3.2 Gen 2, ATX

Satisfying gamers with what they really need, B450 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, DDR4 Boost, USB 3.2 Gen2 Connector

• Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

• Supports DDR4 Memory, up to 4133(OC) MHz

• Lightning Fast Game experience: TURBO M.2, AMD Turbo USB 3.2 GEN2, StoreMI Technology

• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance

• DDR4 Boost: Advanced technology to deliver pure data signals for the best gaming performance and stability

• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Flash BIOS Button: Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card

Specifications

PROCESSOR
Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

CHIPSET
AMD® B450 Chipset

MEMORY
4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
For AMD Ryzen Gen3 (R5/R7/R9)
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE)
For AMD Other CPU
Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466MHz (by A-XMP OC MODE)
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)

SLOTS
1 x PCIe 3.0 x16 slot (PCI_E1)
1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode
Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode
Athlon™ with Radeon™ Vega Graphics support x4 mode
1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)1
4 x PCIe 2.0 x1 slots1
PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.

ONBOARD GRAPHICS
1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1
1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1
Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics processorsMaximum shared memory of 2048 MB

MULTI-GPU
Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® CPU
2 x SATA 6Gb/s ports1
1 x M.2 slot (Key M)1
Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2260/ 2280/ 22110 storage devices
AMD® B450 Chipset
4 x SATA 6Gb/s ports
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.

RAID
AMD® B450 Chipset
Supports RAID 0, RAID1 and RAID 10 for SATA storage devices

USB
AMD® B450 Chipset
2 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel
2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
AMD® CPU
2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel

AUDIO
Realtek® ALC892 Codec
7.1-Channel High Definition Audio

LAN
1 x Realtek® 8111H Gigabit LAN controller

INTERNAL CONNECTORS
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump-fan connector
4 x 4-pin system fan connectors
1 x TPM module connector
1 x Front panel audio connector
2 x System panel connectors
1 x Serial port connector
1 x Parallel port connector
1 x Chassis Intrusion connector
1 x Clear CMOS jumper
2 x 5050 RGB LED strip 12V connectors

BACK PANEL PORTS
PS/2 Combo Port
USB 3.2 Gen1
LAN Port
HD Audio Connectors
Flash BIOS Button
USB 2.0 Ports
DVI-D Port
HDMI Port
USB 3.2 Gen2
MSI B450 GAMING PLUS MAX back panel ports

DIMENSIONS
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

MOUNTING
9 mounting holes

OPERATING SYSTEM
Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
