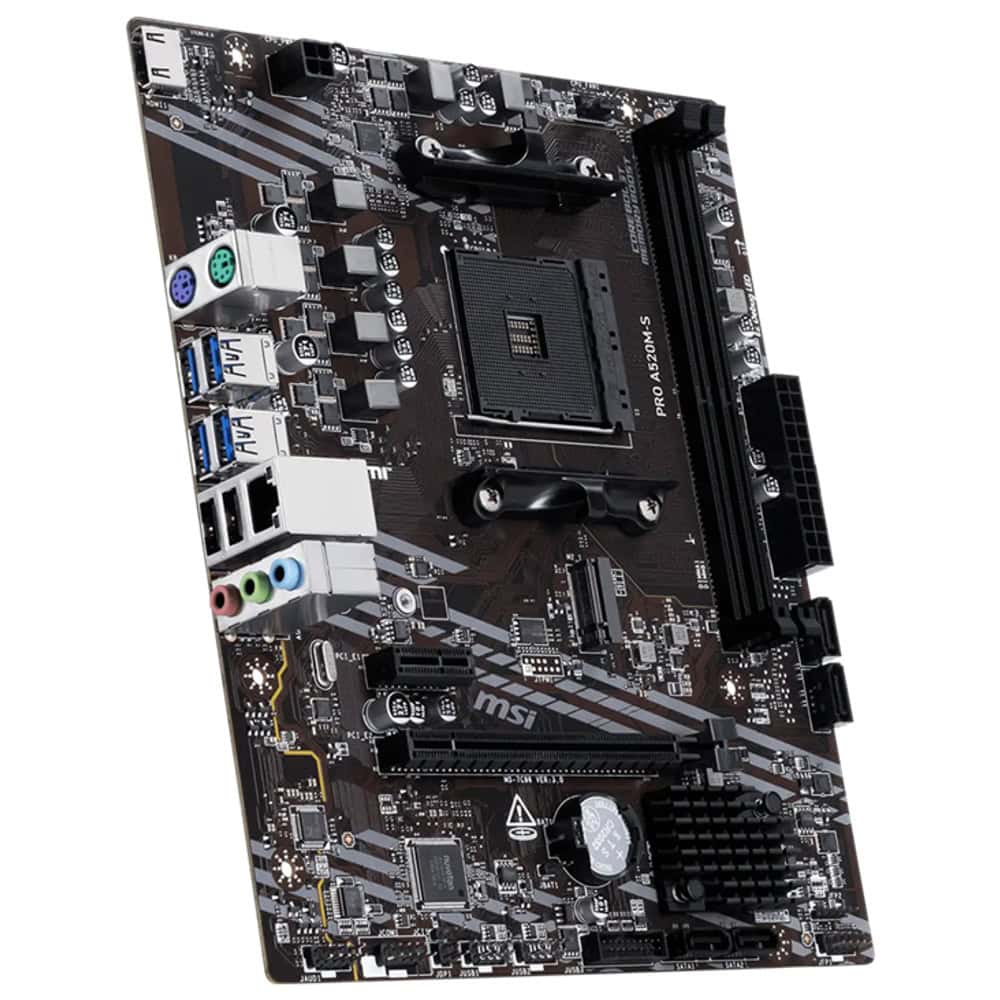

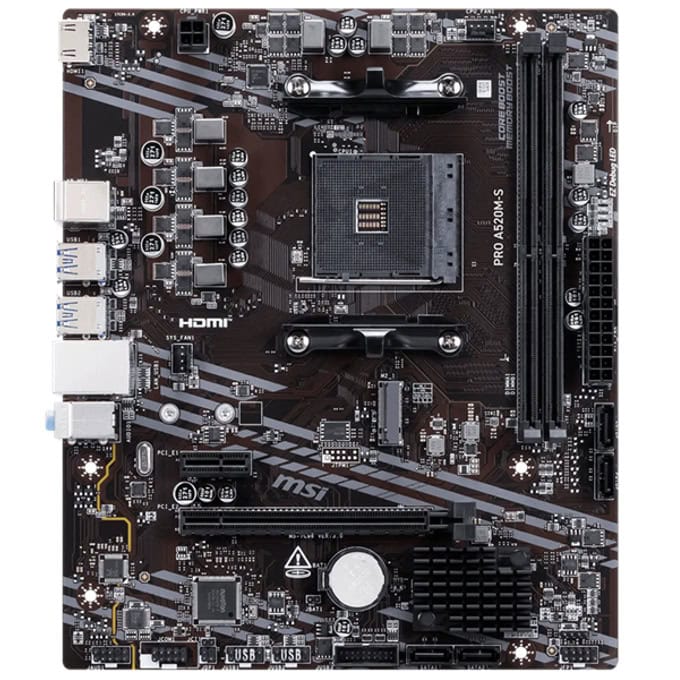

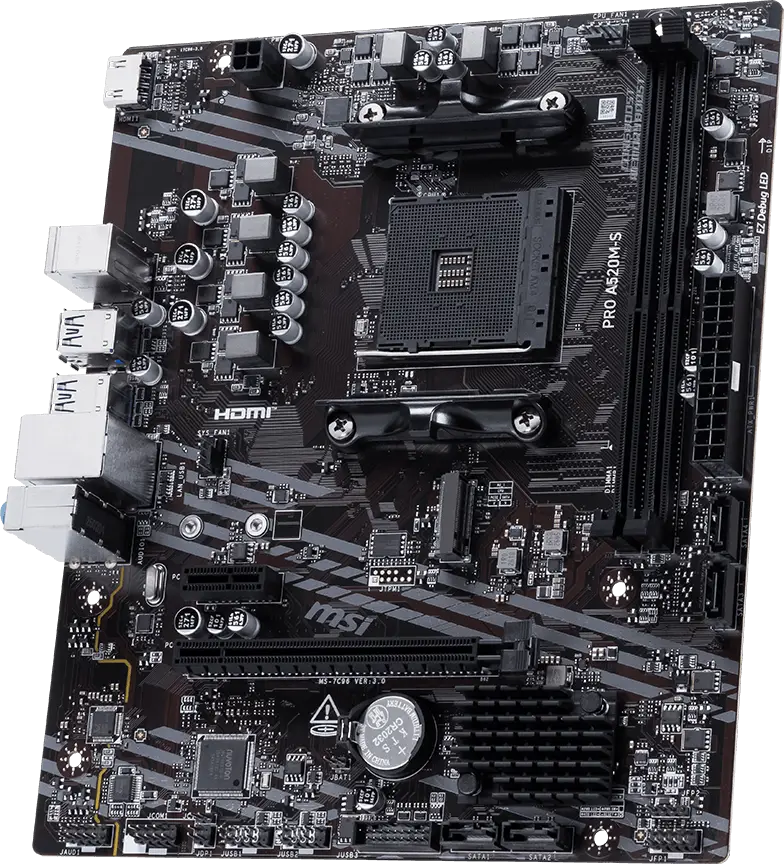

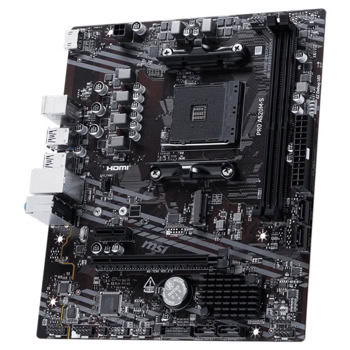

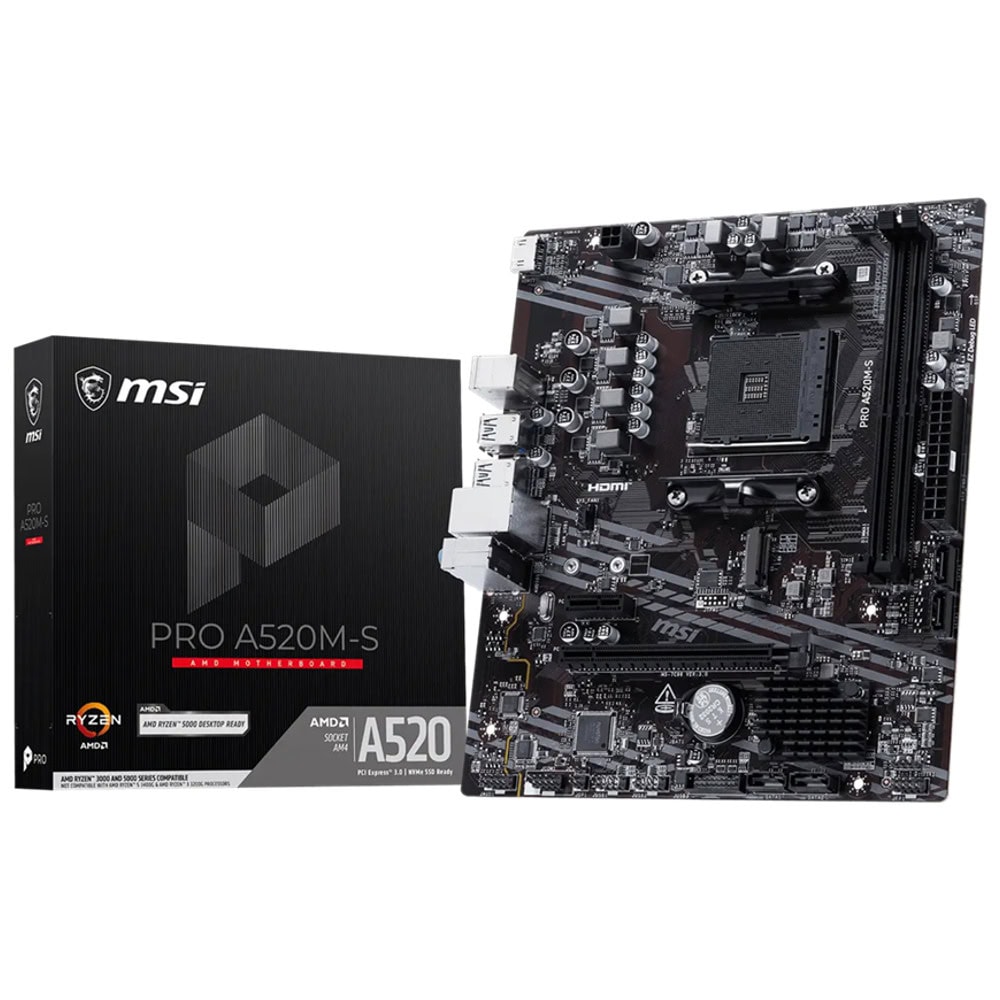

Name: Дънна платка Asus Pro PRO A520M-S, A520, AM4, DDR4, PCI-E 3.0 (HDMI), 4x SATA 6Gb/s, 1x M.2, 4x USB 3.2 Gen 1, Micro ATX
Brand: Asus
SKU: MBAMSI9117C96071
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

PRO A520M-S is engineered with PCIe 3.0 M.2, USB 5Gbps, and HDMI™ 1.4, ready for the AMD Ryzen™ 5000 series processors.

Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, and 3000 G-Series processors
Supports DDR4 Memory, up to 4400+ MT/s (OC)
Turbo M.2: PCIe 3.0 slot and Turbo Gen3 x4 M.2
EZ DIY: EZ Debug LED and EZ Mounting
Audio Boost: Reward your ears with studio-grade sound quality
MSI Center: A brand-new software which integrates all MSI exclusive tools with a user-friendly user interface.

Виж още Дънни платки за AMD процесори Asus
Виж всички Дънни платки за AMD процесори в категорията

Технически характеристики

Процесор сокет:	AM4
Чипсет:	A520
Поддържана памет:	DDR5
Брой слотове за RAM памет:	2
Storage интерфейси:	SATA 6Gbit/s, M.2
RAID:	Да
Безжични мрежи:	Не
Bluetooth:	Не
Видео слот:	PCI-E
Multi-Graphics технология:	Няма
Видео изход:	HDMI
Форм фактор:	Micro ATX
Видеокарта:	Вградена

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Chipset	AMD A520
CPU	Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
Memory	2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE Ryzen™ 5000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 4600+ MT/s • 1DPC 2R Max speed up to 3866+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics	1x HDMI™ Support HDMITM 1.4, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) *The supported specification depends on installed processor.
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
USB	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN	Realtek® RTL8111H 1Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
LED FEATURE	4x EZ Debug LED

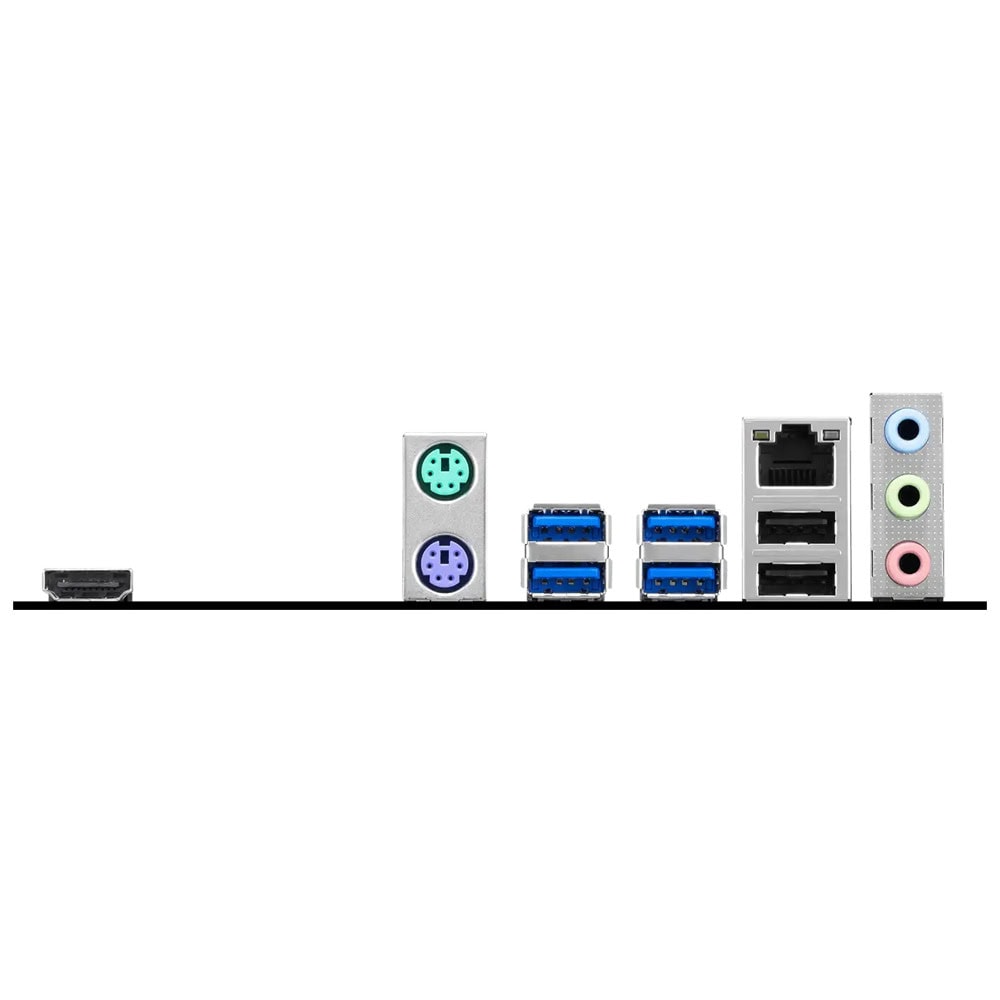

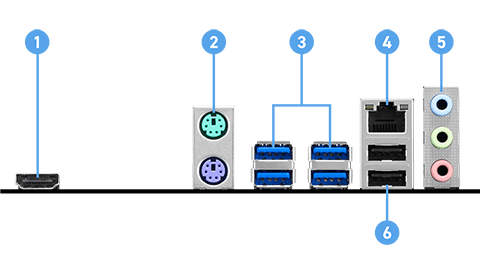

BACK PANEL PORTS	ь HDMI™ Keyboard / Mouse USB 5Gbps Type-A LAN Port Audio connectors USB 2.0
OPERATING SYSTEM	Support for Windows® 11 64-bit
