Суич Dahua PFS3106-4ET-60, 4x 10/100 Base-T ports(PoE), 1x 10/100/1000 Base-T port, 1x 1000 Base-X port

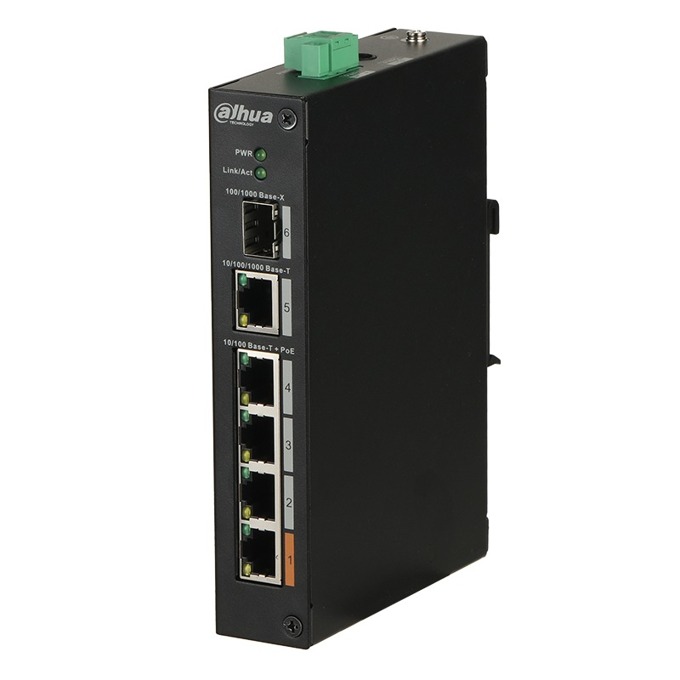

Dahua PFS3106-4ET-60

DH-PFS3106-4ET-60 is a layer two Hardened PoE Switch, which
provides 4*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and
1*10/100/1000Mbps Ethernet uplink port. With high level lightning
protection and wide working temperature range makes it a better
performance in outdoor or harsh environment.


Features

· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply
standard. Port 1 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and
IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup



Technical Specification

Model DH-PFS3106-4ET-60

Ethernet Port
1*100/1000 Base-X
1*10/100/1000 Base-T
4*10/100 Base-T (PoE power supply)

PoE Power Consumption Port1≤60W, Port2-4≤30W, Total≤60W
PoE PIN Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
PoE Power Management Support
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE

Switching Capacity 6.8G

Packet Forwarding Rate 3.57Mpps

Packet Buffer Memory 1Mb

MAC Table Size 8K

Flow Control Enable by default

Application Humidity 5%~95%

Power DC 48~57V power adapter

Lightning Protection Common Mode 6KV

Differential Mode 4KV

ESD Protection Air Discharge 15KV

Contact Discharge 8KV

Working Temperature -30°C~65°C

Weight 440g

Dimension(W×D×H) 150mm×108mm×30mm
